说明

MCU: STM32F405RGT6
PHY: USB3300
IDE: STM32CubeIDE


使用STM32CubeMX生成基础工程

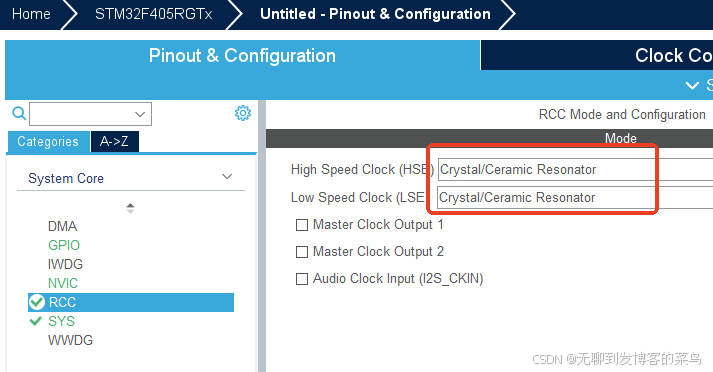

配置RCC
CherryUSB

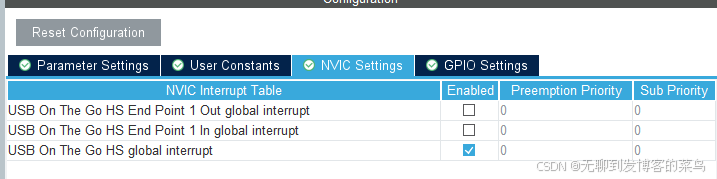

使能高速USB，选择外部PHY，使能DMA，使能中断
在这里插入图片描述
在这里插入图片描述

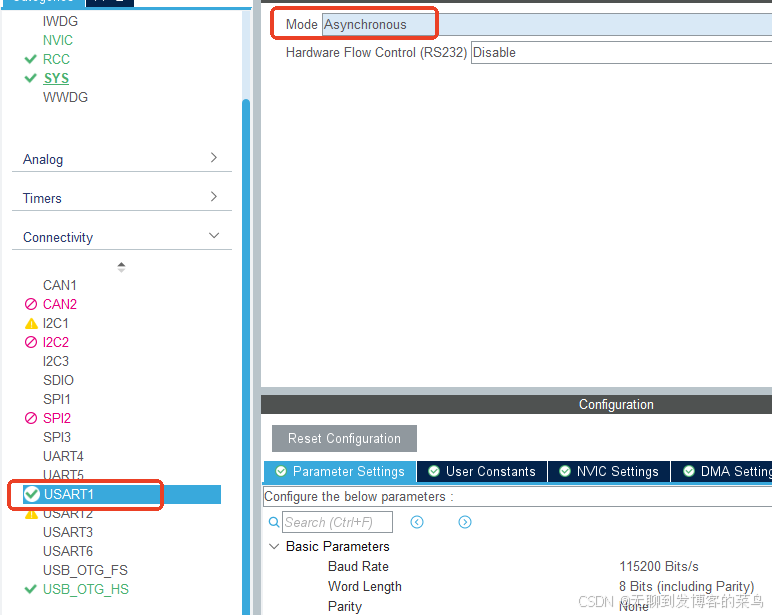

使能UART1作为调试输出
在这里插入图片描述

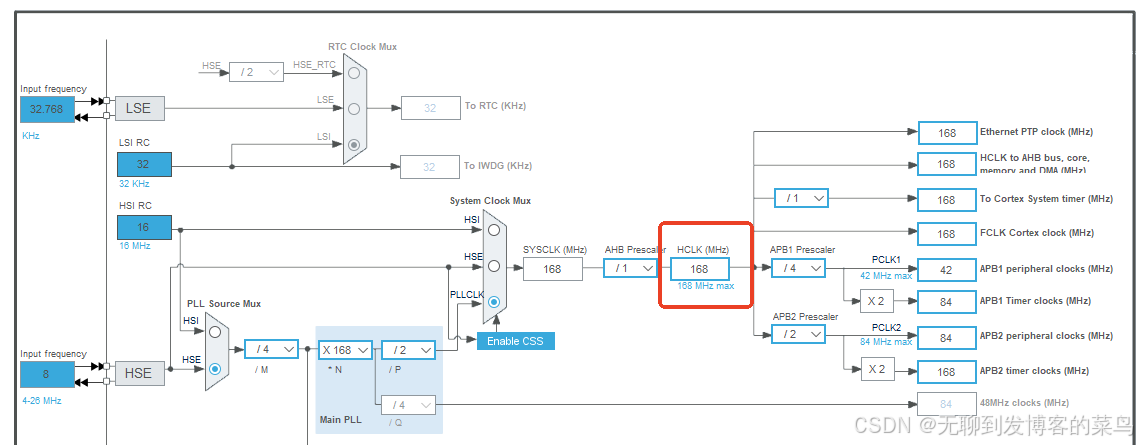

配置主频为最高
在这里插入图片描述



配置串口重定向，添加如下函数

ssize_t _write(int fd, const void *ptr, size_t len)
{
    if (!isatty(fd))
        return -1;

    HAL_UART_Transmit(&huart1, (uint8_t *)ptr, len, HAL_MAX_DELAY);

    return len;
}



移植CherryUSB

项目地址 https://github.com/cherry-embedded/CherryUSB

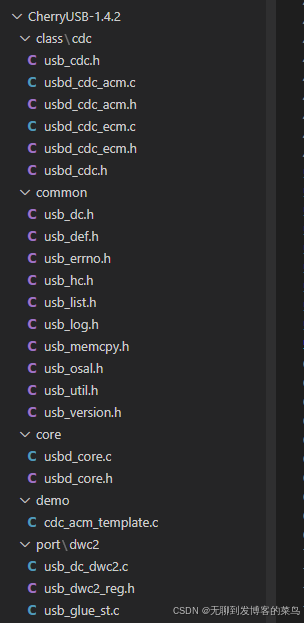

只需要留下如下文件
在这里插入图片描述

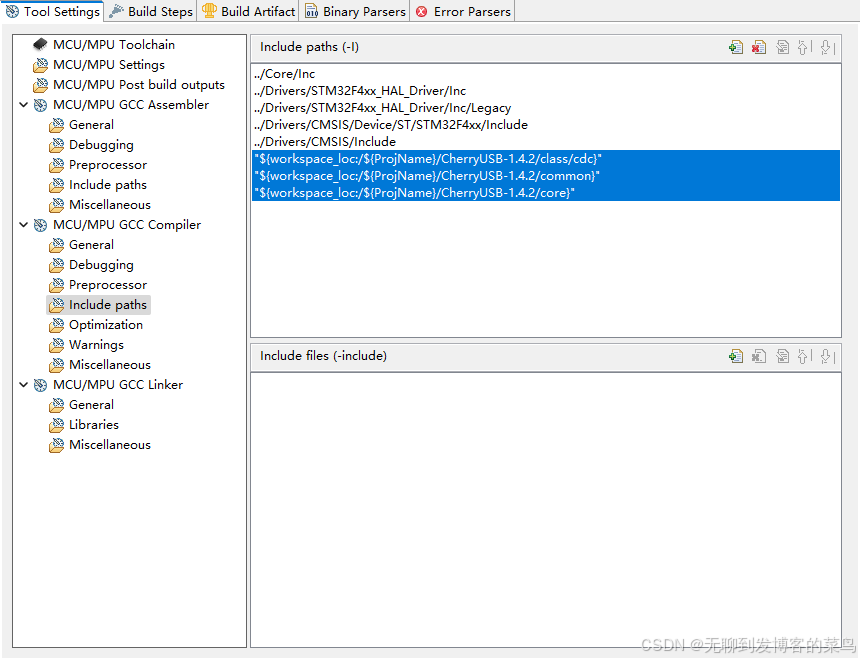

添加头文件路径
在这里插入图片描述



添加配置文件usb_config.h，如下

/*
 * Copyright (c) 2022, sakumisu
 *
 * SPDX-License-Identifier: Apache-2.0
 */
#ifndef CHERRYUSB_CONFIG_H
#define CHERRYUSB_CONFIG_H

// 以下细节如有出入，请对照 stm32xxx.h 文件修改
// 需要根据硬件实际的 fifo 深度进行修改，默认是最基础的配置
#define CONFIG_USB_HS
#define CONFIG_USB_DWC2_DMA_ENABLE

#define CONFIG_USBDEV_EP_NUM 6
#define CONFIG_USB_DWC2_RXALL_FIFO_SIZE (1012 - 128 * 6)
#define CONFIG_USB_DWC2_TX0_FIFO_SIZE (512 / 4)
#define CONFIG_USB_DWC2_TX1_FIFO_SIZE (512 / 4)
#define CONFIG_USB_DWC2_TX2_FIFO_SIZE (512 / 4)
#define CONFIG_USB_DWC2_TX3_FIFO_SIZE (512 / 4)
#define CONFIG_USB_DWC2_TX4_FIFO_SIZE (512 / 4)
#define CONFIG_USB_DWC2_TX5_FIFO_SIZE (512 / 4)

/* ================ USB common Configuration ================ */

#define CONFIG_USB_PRINTF(...) printf(__VA_ARGS__)

#ifndef CONFIG_USB_DBG_LEVEL
#define CONFIG_USB_DBG_LEVEL USB_DBG_INFO
#endif

/* Enable print with color */
#define CONFIG_USB_PRINTF_COLOR_ENABLE

/* data align size when use dma */
#ifndef CONFIG_USB_ALIGN_SIZE
#define CONFIG_USB_ALIGN_SIZE 4
#endif

/* attribute data into no cache ram */
#define USB_NOCACHE_RAM_SECTION __attribute__((section(".noncacheable")))

/* ================= USB Device Stack Configuration ================ */

/* Ep0 in and out transfer buffer */
#ifndef CONFIG_USBDEV_REQUEST_BUFFER_LEN
#define CONFIG_USBDEV_REQUEST_BUFFER_LEN 512
#endif

/* Setup packet log for debug */
// #define CONFIG_USBDEV_SETUP_LOG_PRINT

/* Send ep0 in data from user buffer instead of copying into ep0 reqdata
 * Please note that user buffer must be aligned with CONFIG_USB_ALIGN_SIZE
*/
// #define CONFIG_USBDEV_EP0_INDATA_NO_COPY

/* Check if the input descriptor is correct */
// #define CONFIG_USBDEV_DESC_CHECK

/* Enable test mode */
// #define CONFIG_USBDEV_TEST_MODE

#ifndef CONFIG_USBDEV_MSC_MAX_LUN
#define CONFIG_USBDEV_MSC_MAX_LUN 1
#endif

#ifndef CONFIG_USBDEV_MSC_MAX_BUFSIZE
#define CONFIG_USBDEV_MSC_MAX_BUFSIZE 512
#endif

#ifndef CONFIG_USBDEV_MSC_MANUFACTURER_STRING
#define CONFIG_USBDEV_MSC_MANUFACTURER_STRING ""
#endif

#ifndef CONFIG_USBDEV_MSC_PRODUCT_STRING
#define CONFIG_USBDEV_MSC_PRODUCT_STRING ""
#endif

#ifndef CONFIG_USBDEV_MSC_VERSION_STRING
#define CONFIG_USBDEV_MSC_VERSION_STRING "0.01"
#endif

/* move msc read & write from isr to while(1), you should call usbd_msc_polling in while(1) */
// #define CONFIG_USBDEV_MSC_POLLING

/* move msc read & write from isr to thread */
// #define CONFIG_USBDEV_MSC_THREAD

#ifndef CONFIG_USBDEV_MSC_PRIO
#define CONFIG_USBDEV_MSC_PRIO 4
#endif

#ifndef CONFIG_USBDEV_MSC_STACKSIZE
#define CONFIG_USBDEV_MSC_STACKSIZE 2048
#endif

#ifndef CONFIG_USBDEV_RNDIS_RESP_BUFFER_SIZE
#define CONFIG_USBDEV_RNDIS_RESP_BUFFER_SIZE 156
#endif

/* rndis transfer buffer size, must be a multiple of (1536 + 44)*/
#ifndef CONFIG_USBDEV_RNDIS_ETH_MAX_FRAME_SIZE
#define CONFIG_USBDEV_RNDIS_ETH_MAX_FRAME_SIZE 1580
#endif

#ifndef CONFIG_USBDEV_RNDIS_VENDOR_ID
#define CONFIG_USBDEV_RNDIS_VENDOR_ID 0x0000ffff
#endif

#ifndef CONFIG_USBDEV_RNDIS_VENDOR_DESC
#define CONFIG_USBDEV_RNDIS_VENDOR_DESC "CherryUSB"
#endif

#define CONFIG_USBDEV_RNDIS_USING_LWIP

/* ================ USB HOST Stack Configuration ================== */

#define CONFIG_USBHOST_MAX_RHPORTS          1
#define CONFIG_USBHOST_MAX_EXTHUBS          1
#define CONFIG_USBHOST_MAX_EHPORTS          4
#define CONFIG_USBHOST_MAX_INTERFACES       8
#define CONFIG_USBHOST_MAX_INTF_ALTSETTINGS 8
#define CONFIG_USBHOST_MAX_ENDPOINTS        4

#define CONFIG_USBHOST_MAX_CDC_ACM_CLASS 4
#define CONFIG_USBHOST_MAX_HID_CLASS     4
#define CONFIG_USBHOST_MAX_MSC_CLASS     2
#define CONFIG_USBHOST_MAX_AUDIO_CLASS   1
#define CONFIG_USBHOST_MAX_VIDEO_CLASS   1

#define CONFIG_USBHOST_DEV_NAMELEN 16

#ifndef CONFIG_USBHOST_PSC_PRIO
#define CONFIG_USBHOST_PSC_PRIO 0
#endif
#ifndef CONFIG_USBHOST_PSC_STACKSIZE
#define CONFIG_USBHOST_PSC_STACKSIZE 2048
#endif

//#define CONFIG_USBHOST_GET_STRING_DESC

// #define CONFIG_USBHOST_MSOS_ENABLE
#ifndef CONFIG_USBHOST_MSOS_VENDOR_CODE
#define CONFIG_USBHOST_MSOS_VENDOR_CODE 0x00
#endif

/* Ep0 max transfer buffer */
#ifndef CONFIG_USBHOST_REQUEST_BUFFER_LEN
#define CONFIG_USBHOST_REQUEST_BUFFER_LEN 512
#endif

#ifndef CONFIG_USBHOST_CONTROL_TRANSFER_TIMEOUT
#define CONFIG_USBHOST_CONTROL_TRANSFER_TIMEOUT 500
#endif

#ifndef CONFIG_USBHOST_MSC_TIMEOUT
#define CONFIG_USBHOST_MSC_TIMEOUT 5000
#endif

/* This parameter affects usb performance, and depends on (TCP_WND)tcp eceive windows size,
 * you can change to 2K ~ 16K and must be larger than TCP RX windows size in order to avoid being overflow.
 */
#ifndef CONFIG_USBHOST_RNDIS_ETH_MAX_RX_SIZE
#define CONFIG_USBHOST_RNDIS_ETH_MAX_RX_SIZE (2048)
#endif

/* Because lwip do not support multi pbuf at a time, so increasing this variable has no performance improvement */
#ifndef CONFIG_USBHOST_RNDIS_ETH_MAX_TX_SIZE
#define CONFIG_USBHOST_RNDIS_ETH_MAX_TX_SIZE (2048)
#endif

/* This parameter affects usb performance, and depends on (TCP_WND)tcp eceive windows size,
 * you can change to 2K ~ 16K and must be larger than TCP RX windows size in order to avoid being overflow.
 */
#ifndef CONFIG_USBHOST_CDC_NCM_ETH_MAX_RX_SIZE
#define CONFIG_USBHOST_CDC_NCM_ETH_MAX_RX_SIZE (2048)
#endif
/* Because lwip do not support multi pbuf at a time, so increasing this variable has no performance improvement */
#ifndef CONFIG_USBHOST_CDC_NCM_ETH_MAX_TX_SIZE
#define CONFIG_USBHOST_CDC_NCM_ETH_MAX_TX_SIZE (2048)
#endif

/* This parameter affects usb performance, and depends on (TCP_WND)tcp eceive windows size,
 * you can change to 2K ~ 16K and must be larger than TCP RX windows size in order to avoid being overflow.
 */
#ifndef CONFIG_USBHOST_ASIX_ETH_MAX_RX_SIZE
#define CONFIG_USBHOST_ASIX_ETH_MAX_RX_SIZE (2048)
#endif
/* Because lwip do not support multi pbuf at a time, so increasing this variable has no performance improvement */
#ifndef CONFIG_USBHOST_ASIX_ETH_MAX_TX_SIZE
#define CONFIG_USBHOST_ASIX_ETH_MAX_TX_SIZE (2048)
#endif

/* This parameter affects usb performance, and depends on (TCP_WND)tcp eceive windows size,
 * you can change to 2K ~ 16K and must be larger than TCP RX windows size in order to avoid being overflow.
 */
#ifndef CONFIG_USBHOST_RTL8152_ETH_MAX_RX_SIZE
#define CONFIG_USBHOST_RTL8152_ETH_MAX_RX_SIZE (2048)
#endif
/* Because lwip do not support multi pbuf at a time, so increasing this variable has no performance improvement */
#ifndef CONFIG_USBHOST_RTL8152_ETH_MAX_TX_SIZE
#define CONFIG_USBHOST_RTL8152_ETH_MAX_TX_SIZE (2048)
#endif

#define CONFIG_USBHOST_BLUETOOTH_HCI_H4
// #define CONFIG_USBHOST_BLUETOOTH_HCI_LOG

#ifndef CONFIG_USBHOST_BLUETOOTH_TX_SIZE
#define CONFIG_USBHOST_BLUETOOTH_TX_SIZE 2048
#endif
#ifndef CONFIG_USBHOST_BLUETOOTH_RX_SIZE
#define CONFIG_USBHOST_BLUETOOTH_RX_SIZE 2048
#endif

/* ================ USB Device Port Configuration ================*/

#ifndef CONFIG_USBDEV_MAX_BUS
#define CONFIG_USBDEV_MAX_BUS 1 // for now, bus num must be 1 except hpm ip
#endif

#ifndef CONFIG_USBDEV_EP_NUM
#define CONFIG_USBDEV_EP_NUM 8
#endif

/* When your chip hardware supports high-speed and wants to initialize it in high-speed mode, the relevant IP will configure the internal or external high-speed PHY according to CONFIG_USB_HS. */
// #define CONFIG_USB_HS

/* ---------------- FSDEV Configuration ---------------- */
//#define CONFIG_USBDEV_FSDEV_PMA_ACCESS 2 // maybe 1 or 2, many chips may have a difference

/* ---------------- DWC2 Configuration ---------------- */
/* (5 * number of control endpoints + 8) + ((largest USB packet used / 4) + 1 for
 * status information) + (2 * number of OUT endpoints) + 1 for Global NAK
 */
// #define CONFIG_USB_DWC2_RXALL_FIFO_SIZE (1024 / 4)
/* IN Endpoints Max packet Size / 4 */
// #define CONFIG_USB_DWC2_TX0_FIFO_SIZE (64 / 4)
// #define CONFIG_USB_DWC2_TX1_FIFO_SIZE (1024 / 4)
// #define CONFIG_USB_DWC2_TX2_FIFO_SIZE (64 / 4)
// #define CONFIG_USB_DWC2_TX3_FIFO_SIZE (64 / 4)
// #define CONFIG_USB_DWC2_TX4_FIFO_SIZE (0 / 4)
// #define CONFIG_USB_DWC2_TX5_FIFO_SIZE (0 / 4)
// #define CONFIG_USB_DWC2_TX6_FIFO_SIZE (0 / 4)
// #define CONFIG_USB_DWC2_TX7_FIFO_SIZE (0 / 4)
// #define CONFIG_USB_DWC2_TX8_FIFO_SIZE (0 / 4)

// #define CONFIG_USB_DWC2_DMA_ENABLE

/* ---------------- MUSB Configuration ---------------- */
// #define CONFIG_USB_MUSB_SUNXI

/* ================ USB Host Port Configuration ==================*/
#ifndef CONFIG_USBHOST_MAX_BUS
#define CONFIG_USBHOST_MAX_BUS 1
#endif

#ifndef CONFIG_USBHOST_PIPE_NUM
#define CONFIG_USBHOST_PIPE_NUM 10
#endif

/* ---------------- EHCI Configuration ---------------- */

#define CONFIG_USB_EHCI_HCCR_OFFSET     (0x0)
#define CONFIG_USB_EHCI_FRAME_LIST_SIZE 1024
#define CONFIG_USB_EHCI_QH_NUM          CONFIG_USBHOST_PIPE_NUM
#define CONFIG_USB_EHCI_QTD_NUM         3
#define CONFIG_USB_EHCI_ITD_NUM         20
// #define CONFIG_USB_EHCI_HCOR_RESERVED_DISABLE
// #define CONFIG_USB_EHCI_CONFIGFLAG
// #define CONFIG_USB_EHCI_ISO
// #define CONFIG_USB_EHCI_WITH_OHCI

/* ---------------- OHCI Configuration ---------------- */
#define CONFIG_USB_OHCI_HCOR_OFFSET (0x0)

/* ---------------- XHCI Configuration ---------------- */
#define CONFIG_USB_XHCI_HCCR_OFFSET (0x0)

/* ---------------- DWC2 Configuration ---------------- */
/* largest non-periodic USB packet used / 4 */
// #define CONFIG_USB_DWC2_NPTX_FIFO_SIZE (512 / 4)
/* largest periodic USB packet used / 4 */
// #define CONFIG_USB_DWC2_PTX_FIFO_SIZE (1024 / 4)
/*
 * (largest USB packet used / 4) + 1 for status information + 1 transfer complete +
 * 1 location each for Bulk/Control endpoint for handling NAK/NYET scenario
 */
// #define CONFIG_USB_DWC2_RX_FIFO_SIZE ((1012 - CONFIG_USB_DWC2_NPTX_FIFO_SIZE - CONFIG_USB_DWC2_PTX_FIFO_SIZE))

/* ---------------- MUSB Configuration ---------------- */
// #define CONFIG_USB_MUSB_SUNXI

#endif




修改中断服务函数OTG_HS_IRQHandler，如下

 void OTG_HS_IRQHandler(void)
 {
   /* USER CODE BEGIN OTG_HS_IRQn 0 */

   /* USER CODE END OTG_HS_IRQn 0 */
   //HAL_PCD_IRQHandler(&hpcd_USB_OTG_HS);
   /* USER CODE BEGIN OTG_HS_IRQn 1 */
   extern void USBD_IRQHandler(uint8_t busid);
   USBD_IRQHandler(0);
   /* USER CODE END OTG_HS_IRQn 1 */
 }




定义usb_dc_low_level_init函数，将HAL_PCD_MspInit中内容放入其中，并注释掉MX_USB_OTG_HS_PCD_Init

void usb_dc_low_level_init(uint8_t busid)
{

    GPIO_InitTypeDef GPIO_InitStruct = {0};
    // if(pcdHandle->Instance==USB_OTG_HS)
    {
        /* USER CODE BEGIN USB_OTG_HS_MspInit 0 */

        /* USER CODE END USB_OTG_HS_MspInit 0 */

        __HAL_RCC_GPIOC_CLK_ENABLE();
        __HAL_RCC_GPIOA_CLK_ENABLE();
        __HAL_RCC_GPIOB_CLK_ENABLE();
        /**USB_OTG_HS GPIO Configuration
        PC0     ------> USB_OTG_HS_ULPI_STP
        PC2     ------> USB_OTG_HS_ULPI_DIR
        PC3     ------> USB_OTG_HS_ULPI_NXT
        PA3     ------> USB_OTG_HS_ULPI_D0
        PA5     ------> USB_OTG_HS_ULPI_CK
        PB0     ------> USB_OTG_HS_ULPI_D1
        PB1     ------> USB_OTG_HS_ULPI_D2
        PB10     ------> USB_OTG_HS_ULPI_D3
        PB11     ------> USB_OTG_HS_ULPI_D4
        PB12     ------> USB_OTG_HS_ULPI_D5
        PB13     ------> USB_OTG_HS_ULPI_D6
        PB5     ------> USB_OTG_HS_ULPI_D7
        */
        GPIO_InitStruct.Pin = GPIO_PIN_0 | GPIO_PIN_2 | GPIO_PIN_3;
        GPIO_InitStruct.Mode = GPIO_MODE_AF_PP;
        GPIO_InitStruct.Pull = GPIO_NOPULL;
        GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_VERY_HIGH;
        GPIO_InitStruct.Alternate = GPIO_AF10_OTG_HS;
        HAL_GPIO_Init(GPIOC, &GPIO_InitStruct);

        GPIO_InitStruct.Pin = GPIO_PIN_3 | GPIO_PIN_5;
        GPIO_InitStruct.Mode = GPIO_MODE_AF_PP;
        GPIO_InitStruct.Pull = GPIO_NOPULL;
        GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_VERY_HIGH;
        GPIO_InitStruct.Alternate = GPIO_AF10_OTG_HS;
        HAL_GPIO_Init(GPIOA, &GPIO_InitStruct);

        GPIO_InitStruct.Pin =
            GPIO_PIN_0 | GPIO_PIN_1 | GPIO_PIN_10 | GPIO_PIN_11 | GPIO_PIN_12 | GPIO_PIN_13 | GPIO_PIN_5;
        GPIO_InitStruct.Mode = GPIO_MODE_AF_PP;
        GPIO_InitStruct.Pull = GPIO_NOPULL;
        GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_VERY_HIGH;
        GPIO_InitStruct.Alternate = GPIO_AF10_OTG_HS;
        HAL_GPIO_Init(GPIOB, &GPIO_InitStruct);

        /* USB_OTG_HS clock enable */
        __HAL_RCC_USB_OTG_HS_CLK_ENABLE();
        __HAL_RCC_USB_OTG_HS_ULPI_CLK_ENABLE();

        /* USB_OTG_HS interrupt Init */
        HAL_NVIC_SetPriority(OTG_HS_IRQn, 0, 0);
        HAL_NVIC_EnableIRQ(OTG_HS_IRQn);
        /* USER CODE BEGIN USB_OTG_HS_MspInit 1 */

        /* USER CODE END USB_OTG_HS_MspInit 1 */
    }
}



运行demo

运行demo后，设备管理器中就会多出一个COM设备

int main(void)
{
    HAL_Init();
    SystemClock_Config();

    MX_GPIO_Init();
    MX_USART1_UART_Init();
    // MX_USB_OTG_HS_PCD_Init();

	extern void cdc_acm_init(uint8_t busid, uint32_t reg_base);
    extern void cdc_acm_data_send_with_dtr_test(uint8_t busid);

    cdc_acm_init(0, USB_OTG_HS_PERIPH_BASE);

    while (1)
    {
        cdc_acm_data_send_with_dtr_test(0);
        HAL_Delay(1000);
    }
    /* USER CODE END 3 */
}

在这里插入图片描述



性能测试

屏蔽usbd_cdc_acm_bulk_out和usbd_cdc_acm_bulk_in中的打印

将发送buff扩大到16K

void cdc_acm_data_send_with_dtr_test(uint8_t busid)
{
    if (dtr_enable) {
        ep_tx_busy_flag = true;
        usbd_ep_start_write(busid, CDC_IN_EP, write_buffer, 2048*8);
        while (ep_tx_busy_flag) {
        }
    }
}

循环发送，实测速率能接近200Mbps

int main(void)
{
    HAL_Init();
    SystemClock_Config();

    MX_GPIO_Init();
    MX_USART1_UART_Init();
    // MX_USB_OTG_HS_PCD_Init();

	extern void cdc_acm_init(uint8_t busid, uint32_t reg_base);
    extern void cdc_acm_data_send_with_dtr_test(uint8_t busid);

    cdc_acm_init(0, USB_OTG_HS_PERIPH_BASE);

    while (1)
    {
        cdc_acm_data_send_with_dtr_test(0);
        //HAL_Delay(1000);
    }
    /* USER CODE END 3 */
}
# 单片机 # stm32 # 嵌入式硬件
Logo
AI硬件创业社区

智能硬件社区聚焦AI智能硬件技术生态，汇聚嵌入式AI、物联网硬件开发者，打造交流分享平台，同步全国赛事资讯、开展 OPC 核心人才招募，助力技术落地与开发者成长。

更多推荐

cover

STM32H7 的 OTA 安全设计：公钥轮换与防回滚如何平衡开发效率与安全

avatar AI硬件创业社区
cover

穿戴语音设备的实体确认键：省下的BOM成本可能让售后翻三倍

avatar AI硬件创业社区
cover

穿戴语音设备设计误区：省掉实体键真的能降成本吗？

avatar AI硬件创业社区
