uboot设备树修改

1. u-boot目录下打开u-boot

2. 包含头文件

   /* USER CODE BEGIN includes */
   #include "stm32mp15-u-boot.dtsi"
   #include "stm32mp15-pinctrl.dtsi"
   /* USER CODE END includes */


3. 根节点下增加

   	/* USER CODE BEGIN root */
     	aliases {
          		serial0 = &uart4;
   			//mmc0 = &sdmmc1; // solved emmc not found issue
   			mmc0 = &sdmmc2;
       	};
   	chosen {
   		stdout-path = "serial0:115200n8";
   	};
   	usb_phy_tuning: usb-phy-tuning {
   		st,hs-dc-level = <2>;
   		st,fs-rftime-tuning;
   		st,hs-rftime-reduction;
   		st,hs-current-trim = <15>;
   		st,hs-impedance-trim = <1>;
   		st,squelch-level = <3>;
   		st,hs-rx-offset = <2>;
   		st,no-lsfs-sc;
   	};
   	vddcore: buck1 {
   		regulator-name = "vddcore";
   		regulator-min-microvolt = <1200000>;
   		regulator-max-microvolt = <1350000>;
   		regulator-always-on;
   		regulator-initial-mode = <0>;
   		regulator-over-current-protection;
   	};
   	vdd_usb: regulator-vdd-usb {
   		compatible = "regulator-fixed";
   		regulator-name = "vdd_usb";
   		regulator-min-microvolt = <3300000>;
   		regulator-max-microvolt = <3300000>;
   		regulator-always-on;
   		regulator-boot-on;
   	};
   	vin: vin {
   		compatible = "regulator-fixed";
   		regulator-name = "vin";
   		regulator-min-microvolt = <5000000>;
   		regulator-max-microvolt = <5000000>;
   		regulator-always-on;
   	};
      	vmmc: fixedregulator@1 {
           	compatible = "regulator-fixed";
           	regulator-name = "vmmc";
           	regulator-min-microvolt = <3300000>;
           	regulator-max-microvolt = <3300000>;
           	startup-delay-us = <70000>;
          		 enable-active-high;
       	};
   	/* USER CODE END root */


4. i2c1配置

   &i2c1 {
   	pinctrl-names = "default", "sleep";
   	pinctrl-0 = <&i2c1_pins_mx>;
   	pinctrl-1 = <&i2c1_sleep_pins_mx>;
   	status = "okay";

   	/* USER CODE BEGIN i2c1 */
   	i2c-scl-rising-time-ns = <100>;
   	i2c-scl-falling-time-ns = <7>;
   	/delete-property/dmas;
   	/delete-property/dma-names;
   	stusb1600@28 {
   		compatible = "st,stusb1600";
   		reg = <0x28>;
   		interrupts = <2 IRQ_TYPE_EDGE_FALLING>;
   		interrupt-parent = <&gpiog>;
   		pinctrl-names = "default";
   		pinctrl-0 = <&stusb1600_pins_a>;
   		status = "okay";
   		vdd-supply = <&vin>;

   		connector {
   			compatible = "usb-c-connector";
   			label = "USB-C";
   			power-role = "dual";
   			power-opmode = "default";

   			port {
   				con_usbotg_hs_ep: endpoint {
   					remote-endpoint = <&usbotg_hs_ep>;
   				};
   			};
   		};
   	};
   	/* USER CODE END i2c1 */
   };


5. sdmmc2配置

   &sdmmc2 {
   	pinctrl-names = "default", "opendrain", "sleep";
   	pinctrl-0 = <&sdmmc2_pins_mx>;
   	pinctrl-1 = <&sdmmc2_opendrain_pins_mx>;
   	pinctrl-2 = <&sdmmc2_sleep_pins_mx>;
   	status = "okay";

   	/* USER CODE BEGIN sdmmc2 */
   	non-removable;
   	no-sd;
   	no-sdio;
   	st,dirpol;
   	st,negedge;
   	bus-width = <8>;
   	vmmc-supply = <&vmmc>;
   	vqmmc-supply = <&vmmc>;
   	/* USER CODE END sdmmc2 */
   };


6. usbh配置

   &usbh_ehci {
   	status = "okay";

   	/* USER CODE BEGIN usbh_ehci */
   	phys = <&usbphyc_port0>;
   	/* USER CODE END usbh_ehci */
   };

   &usbh_ohci {
   	status = "okay";

   	/* USER CODE BEGIN usbh_ohci */
   	phys = <&usbphyc_port0>;
   	/* USER CODE END usbh_ohci */
   };


7. usb_otg配置

   &usbotg_hs {
   	status = "okay";

   	/* USER CODE BEGIN usbotg_hs */
   	phys = <&usbphyc_port1 0>;
   	phy-names = "usb2-phy";
   	usb-role-switch;

   	port {
   		usbotg_hs_ep: endpoint {
   			remote-endpoint = <&con_usbotg_hs_ep>;
   		};
   	};
   	/* USER CODE END usbotg_hs */
   };


8. usb phy配置

   &usbphyc {
   	status = "okay";

   	/* USER CODE BEGIN usbphyc */
   	/* USER CODE END usbphyc */
   };

   &usbphyc_port0 {
   	status = "okay";

   	/* USER CODE BEGIN usbphyc_port0 */
   	phy-supply = <&vdd_usb>;
   	st,phy-tuning = <&usb_phy_tuning>;
   	/* USER CODE END usbphyc_port0 */
   };

   &usbphyc_port1 {
   	status = "okay";

   	/* USER CODE BEGIN usbphyc_port1 */
   	phy-supply = <&vdd_usb>;
   	st,phy-tuning = <&usb_phy_tuning>;
   	/* USER CODE END usbphyc_port1 */
   };


修改uboot目录下Makefile.sdk

只编译生成optee-emmc和optee-programmer-usb两个fip

# Set default FIP config
#FIP_CONFIG ?= optee-emmc optee-nand optee-nor optee-sdcard optee-programmer-usb opteemin-emmc opteemin-nand opteemin-nor opteemin-sdcard opteemin-programmer-usb
FIP_CONFIG ?= optee-emmc optee-programmer-usb

编译uboot源码

cd u-boot-stm32mp-v2023.10-stm32mp-r1
export FIP_DEPLOYDIR_ROOT=$PWD/../../FIP_artifacts
source ~/sdk6.6

make -f $PWD/../Makefile.sdk  UBOOT_DEFCONFIG=stm32mp15_defconfig UBOOT_BINARY=u-boot.dtb DEVICE_TREE=stm32mp157d-stm32mp157daa1-mx DEPLOYDIR=$FIP_DEPLOYDIR_ROOT/u-boot all

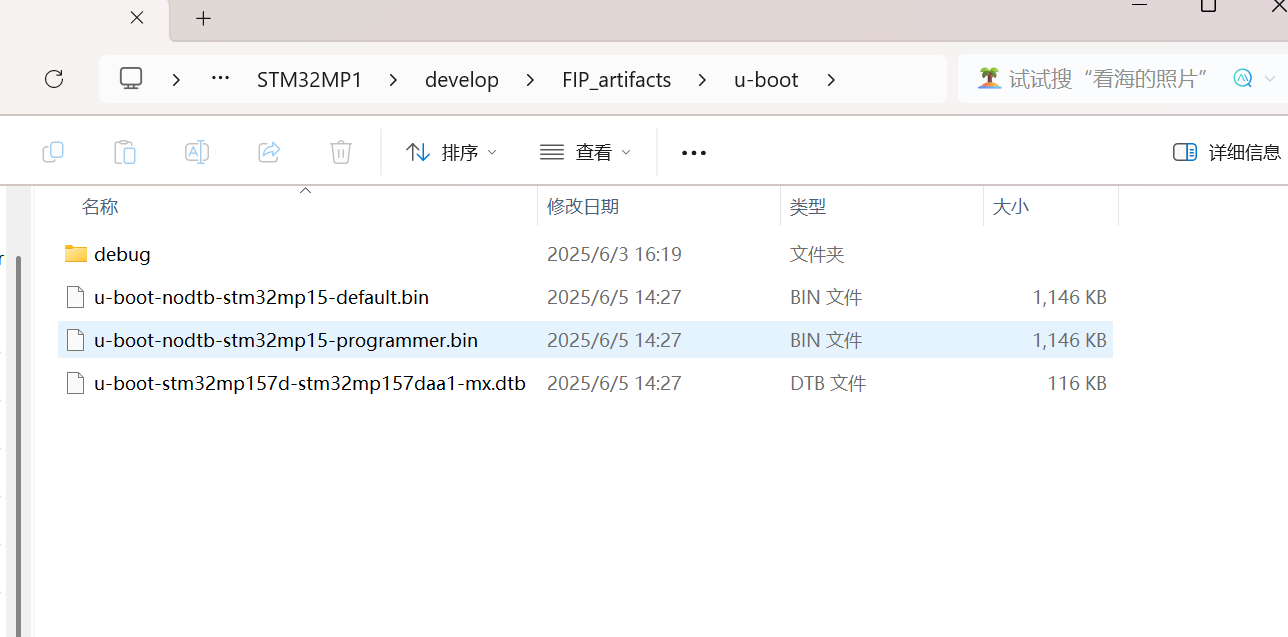

会在…/…/FIP_artifacts/fip生成

fip-stm32mp157d-stm32mp157daa1-mx-optee-emmc.bin
fip-stm32mp157d-stm32mp157daa1-mx-optee-emmc.txt
fip-stm32mp157d-stm32mp157daa1-mx-optee-programmer-usb.bin
fip-stm32mp157d-stm32mp157daa1-mx-optee-programmer-usb.txt

下载到板子上验证

新建flash.tsv文件，将下面的内容复制进来

#Opt	Id	Name	Type	Device	Offset	Binary
-	0x01	fsbl-boot	Binary	none	0x0	new/tf-a-stm32mp157d-stm32mp157daa1-mx-optee-programmer-usb.stm32
-	0x03	fip-boot	Binary	none	0x0	new/fip-stm32mp157d-stm32mp157daa1-mx-optee-programmer-usb.bin
P	0x04	fsbl1	Binary	mmc0	boot1	new/tf-a-stm32mp157d-stm32mp157daa1-mx-optee-emmc.stm32
P	0x05	fsbl2	Binary	mmc0	boot2	new/tf-a-stm32mp157d-stm32mp157daa1-mx-optee-emmc.stm32
PD	0x06	metadata1	FWU_MDATA	mmc0	0x00080000	new/metadata.bin
PD	0x07	metadata2	FWU_MDATA	mmc0	0x00100000	new/metadata.bin
P	0x08	fip-a	FIP	mmc0	0x00180000	new/fip-stm32mp157d-stm32mp157daa1-mx-optee-emmc.bin

使用STM32CubeProgrammer进行烧录，选择USB，点击connect，点击Download

出现以下消息，则表示烧录成功

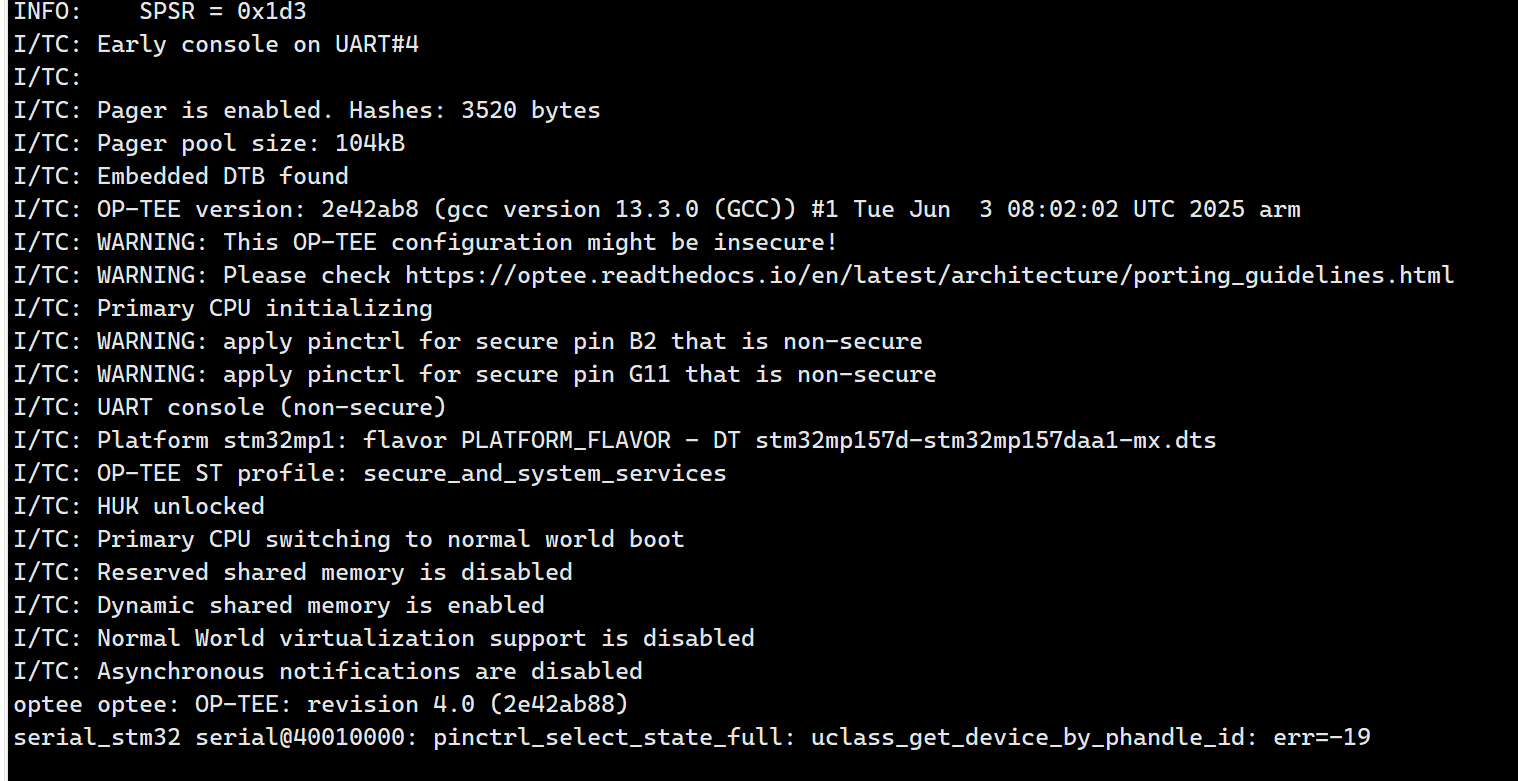

第一张图片是optee打印

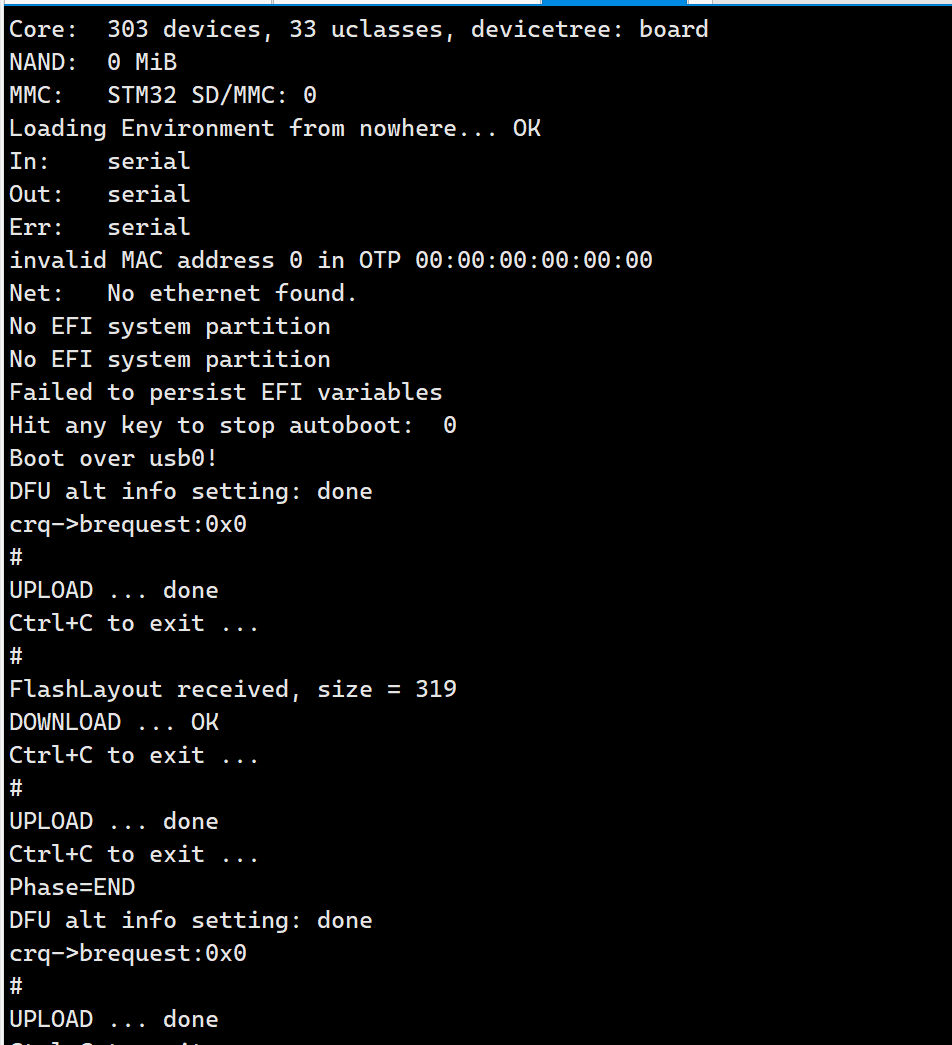

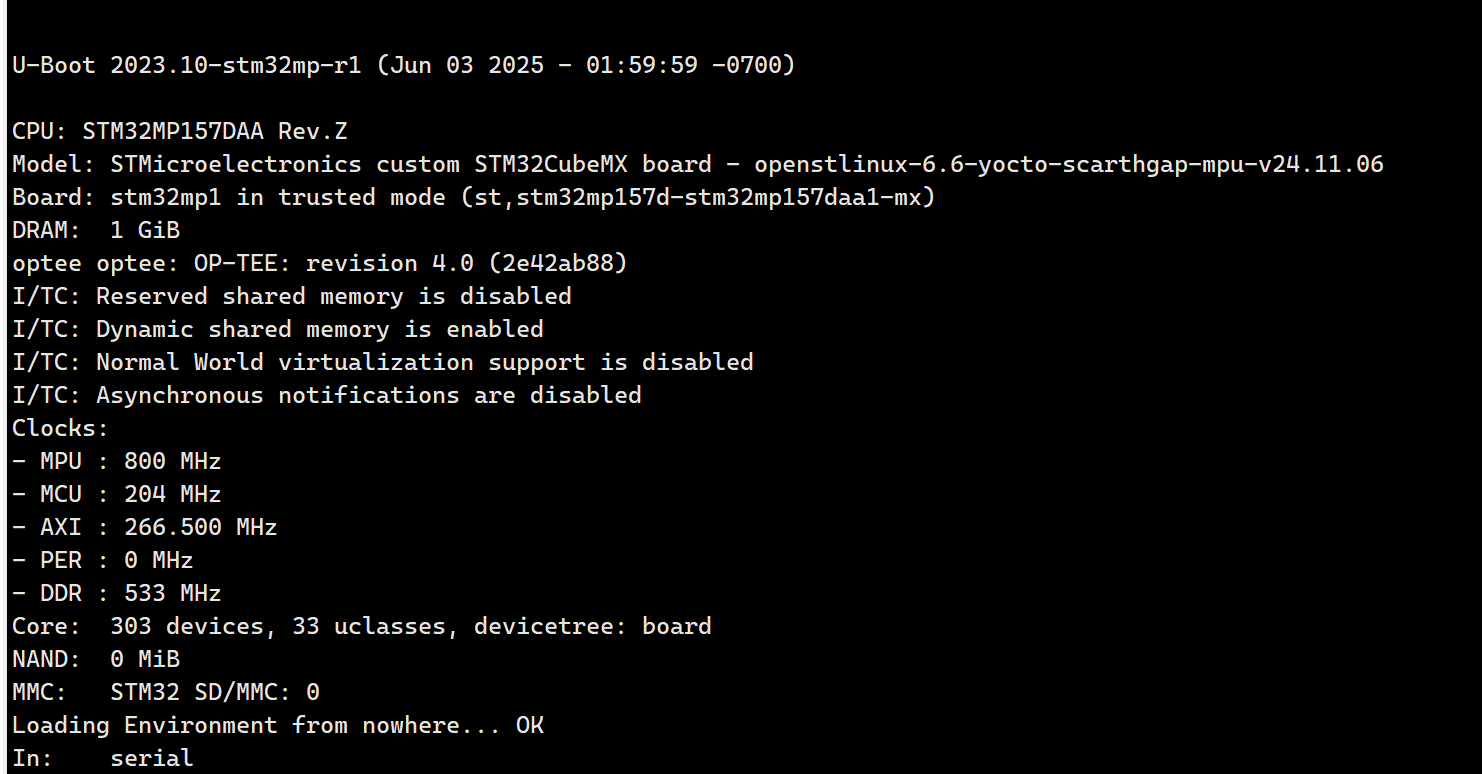

下面图片是uboot打印
