esp-idf esp32 s3驱动i80 8位接口的st7789屏幕
【代码】esp-idf esp32 s3驱动i80 8位接口的st7789屏幕。
·

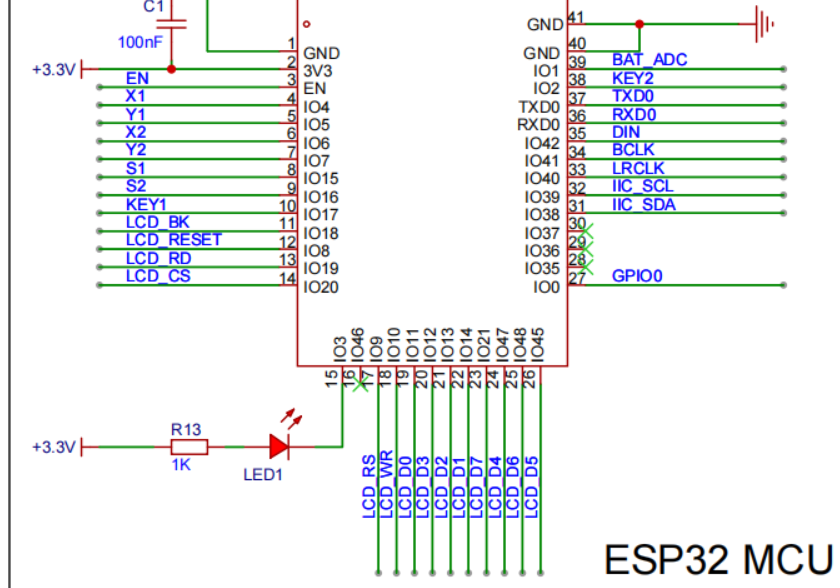

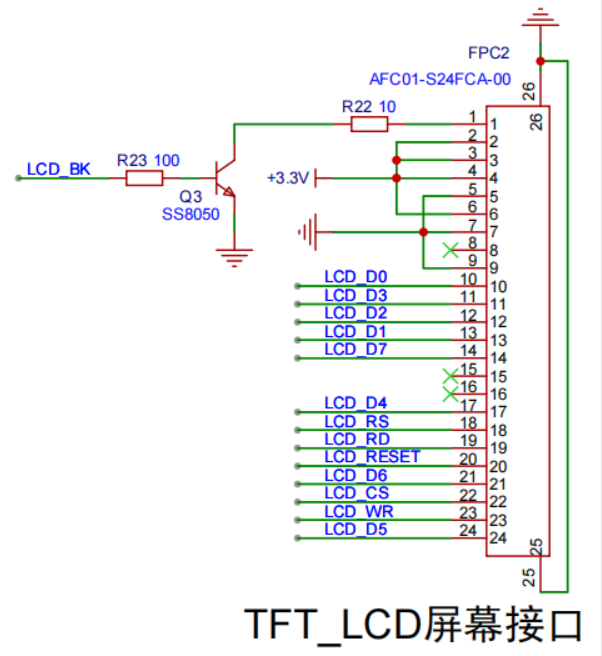

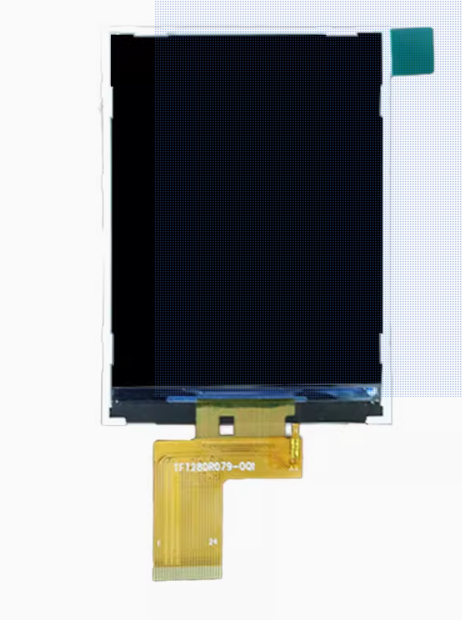

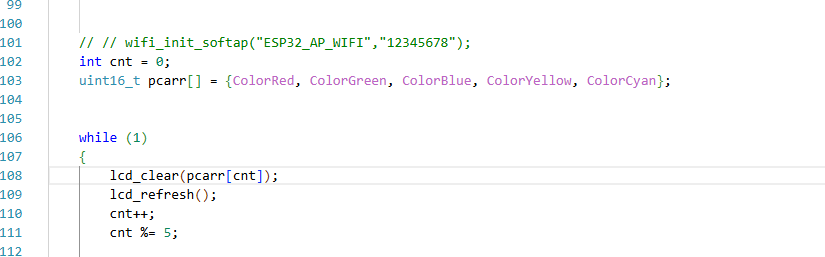

屏幕接口
lcd.c
#include "lcd.h"
#include "lcd_font.h"
#include "driver/gpio.h"
#include "stdarg.h"
#include "string.h"
#include "esp_log.h"
#define LCD_WINTH 320
#define LCD_HEIGHT 240
#define LCD_PIN_CS GPIO_NUM_20 // Chip select control pin (library pulls permanently low
#define LCD_PIN_DC GPIO_NUM_9 // Data Command control pin - must use a pin in the range 0-31
#define LCD_PIN_RST GPIO_NUM_8 // Reset pin, toggles on startup
#define LCD_PIN_WR GPIO_NUM_10 // Write strobe control pin - must use a pin in the range 0-31
#define LCD_PIN_RD GPIO_NUM_19 // Read strobe control pin
#define LCD_PIN_D0 GPIO_NUM_11 // Must use pins in the range 0-31 for the data bus
#define LCD_PIN_D1 GPIO_NUM_14 // so a single register write sets/clears all bits.
#define LCD_PIN_D2 GPIO_NUM_13 // Pins can be randomly assigned, this does not affect
#define LCD_PIN_D3 GPIO_NUM_12 // LCD_PIN screen update performance.
#define LCD_PIN_D4 GPIO_NUM_47
#define LCD_PIN_D5 GPIO_NUM_45
#define LCD_PIN_D6 GPIO_NUM_48
#define LCD_PIN_D7 GPIO_NUM_21
#define LCD_PIN_BL GPIO_NUM_18 // LED back-light control pin
esp_lcd_i80_bus_handle_t i80_bus = NULL;
esp_lcd_panel_handle_t panel_handle = NULL;
esp_lcd_panel_io_handle_t io_handle = NULL;
bool lcd_cb(esp_lcd_panel_io_handle_t panel_io, esp_lcd_panel_io_event_data_t *edata, void *user_ctx)
{
return false;
}
void lcd_bk_init(void)
{
//初始化lcd bk
gpio_config_t io_conf = {
.intr_type = GPIO_INTR_DISABLE, // Disable interrupts
.mode = GPIO_MODE_OUTPUT, // Set as output
.pin_bit_mask = (1ULL << LCD_PIN_BL)|(1ULL << LCD_PIN_RD), // Set the specific GPIO pin for the backlight
.pull_up_en = GPIO_PULLUP_DISABLE, // Disable pull-up
.pull_down_en = GPIO_PULLDOWN_DISABLE // Disable pull-down
};
gpio_config(&io_conf);
gpio_set_level(LCD_PIN_BL, 1); // Initialize backlight to on
gpio_set_level(LCD_PIN_RD, 1); // Initialize backlight to on
}
//image remap buffer
uint16_t __aligned(4) __lcd_remap[LCD_WINTH*LCD_HEIGHT] = {0};
void lcd_init(void)
{
esp_lcd_i80_bus_config_t bus_config = {
.clk_src = LCD_CLK_SRC_DEFAULT,
.dc_gpio_num = LCD_PIN_DC,
.wr_gpio_num = LCD_PIN_WR,
.data_gpio_nums = {
LCD_PIN_D0,
LCD_PIN_D1,
LCD_PIN_D2,
LCD_PIN_D3,
LCD_PIN_D4,
LCD_PIN_D5,
LCD_PIN_D6,
LCD_PIN_D7,
},
.bus_width = 8,
.max_transfer_bytes = LCD_WINTH * LCD_HEIGHT * sizeof(uint16_t),
.psram_trans_align = 64,
.sram_trans_align = 8,
};
ESP_ERROR_CHECK(esp_lcd_new_i80_bus(&bus_config, &i80_bus));
esp_lcd_panel_io_i80_config_t io_config = {
.cs_gpio_num = LCD_PIN_CS,
.pclk_hz = (20 * 1000 * 1000),
.trans_queue_depth = 10,
.dc_levels = {
.dc_idle_level = 0,
.dc_dummy_level = 0,
.dc_cmd_level = 0,
.dc_data_level = 1,
},
.on_color_trans_done = lcd_cb,
.user_ctx = NULL,
.lcd_cmd_bits = 8,
.lcd_param_bits = 8,
.flags = {
.swap_color_bytes = true,
.cs_active_high = false,
.reverse_color_bits = false,
.pclk_active_neg = false,
.pclk_idle_low = false,
},
};
ESP_ERROR_CHECK(esp_lcd_new_panel_io_i80(i80_bus, &io_config, &io_handle));
esp_lcd_panel_dev_config_t panel_config = {
.reset_gpio_num = LCD_PIN_RST,
.color_space = ESP_LCD_COLOR_SPACE_RGB,
.bits_per_pixel = 16,
.vendor_config = NULL,
};
lcd_bk_init();
ESP_ERROR_CHECK(esp_lcd_new_panel_st7789(io_handle, &panel_config, &panel_handle));
esp_lcd_panel_reset(panel_handle);
esp_lcd_panel_init(panel_handle);
esp_lcd_panel_disp_sleep(panel_handle, false);
esp_lcd_panel_swap_xy(panel_handle, true);
esp_lcd_panel_mirror(panel_handle, true, false);
esp_lcd_panel_invert_color(panel_handle, true);
// the gap is LCD panel specific, even panels with the same driver IC, can have different gap value
// esp_lcd_panel_set_gap(panel_handle, 0, 20);
esp_lcd_panel_disp_on_off(panel_handle, true);
}
//set pixel color in the color map
void lcd_pixel_set(uint16_t w, uint16_t h, uint16_t *pcolor, uint16_t x, uint16_t y, uint16_t pixel)
{
if (x >= w || y >= h) {
return;
}
pcolor[y * w + x] = pixel;
}
//fill the color map with a specific color
void lcd_fill_pcolor(uint16_t x_start, uint16_t y_start, uint16_t x_end, uint16_t y_end, uint16_t* pcolor)
{
ESP_ERROR_CHECK(esp_lcd_panel_draw_bitmap(panel_handle, x_start, y_start, x_end, y_end, pcolor));
}
/*****************************************************************************************************************************************************************************************************************/
uint16_t __lcd_fcolor = ColorRed;
uint16_t __lcd_bcolor = ColorWhite;
void lcd_refresh(void)
{
lcd_fill_pcolor(0, 0, LCD_WINTH, LCD_HEIGHT, __lcd_remap);
}
void lcd_clear(const uint16_t color)
{
const size_t size = LCD_WINTH * LCD_HEIGHT;
for (size_t i = 0; i < size; i++) {
__lcd_remap[i] = color;
}
}
void lcd_draw_point(uint16_t x, uint16_t y, const uint16_t color)
{
if (x >= LCD_WINTH)
{
x = LCD_WINTH - 1;
}
else if (y >= LCD_HEIGHT)
{
y = LCD_HEIGHT - 1;
}
lcd_pixel_set(LCD_WINTH, LCD_HEIGHT, __lcd_remap, x, y, color);
}
void lcd_fill_rectangle(uint16_t x_start, uint16_t y_start, uint16_t x_end, uint16_t y_end, const uint16_t color)
{
uint16_t x, y;
if (x_start >= LCD_WINTH)
{
x_start = LCD_WINTH - 1;
}
else if (y_start >= LCD_HEIGHT)
{
y_start = LCD_HEIGHT - 1;
}
else if (x_end < x_start)
{
x_end = x_start;
}
else if (y_end < y_start)
{
y_end = y_start;
}
for (y = y_start; y <= y_end; y++)
{
for (x = x_start; x <= x_end; x++)
{
lcd_draw_point(x, y, color);
}
}
}
/**********************************************************************************************************************************/
void lcd_font_set_fcolor(const uint16_t color)
{
__lcd_fcolor = color;
}
void lcd_font_set_bcolor(const uint16_t color)
{
__lcd_bcolor = color;
}
//void gd_code_print(char *str)
//{
// unsigned short code = 0;
// unsigned char str_ch[3] = {0};
// for (int i = 0; i < strlen(str);)
// {
// str_ch[0] = (unsigned char)str[i++];
// str_ch[1] = (unsigned char)str[i++];
// code = (str_ch[0]<<8)|str_ch[1];
// printf("%#X,/*%s*/\r\n",code,str_ch);
// }
//}
//void utf_code_print(char *str)
//{
// unsigned int code = 0;
// unsigned char str_ch[5] = {0};
// for (int i = 0; i < strlen(str);)
// {
// str_ch[0] = (unsigned char)str[i++];
// str_ch[1] = (unsigned char)str[i++];
// str_ch[2] = (unsigned char)str[i++];
// code = ((unsigned int)str_ch[0]<<16)|((unsigned int)str_ch[1]<<8)|str_ch[2];
// printf("%#X,/*%s*/\r\n",code,str_ch);
// }
//}
static int __lcd_search_code_table(unsigned char font, unsigned int code)
{
int i;
const unsigned int *pt = 0;
switch (font)
{
case 12: pt = __lcd_cn12_sheet; break;
case 16: pt = __lcd_cn16_sheet; break;
case 24: pt = __lcd_cn24_sheet; break;
case 32: pt = __lcd_cn32_sheet; break;
default: pt = __lcd_cn12_sheet;
}
for (i = 0; pt[i] != 0; i++)
{
if (pt[i] == code)
{
break;
}
}
return i;
}
static int __lcd_get_code(const char *cn)
{
// return ((unsigned int)cn[0]<<8)|cn[1];
return ((unsigned int)cn[0]<<16)|((unsigned int)cn[1]<<8)|cn[2];
}
void lcd_show_char(uint16_t x, uint16_t y, const char chr, uint8_t font)
{
uint16_t i, m, temp, n, chr1, x0=x, y0=y;
if (font == 8)
n = 6;
else //得到字体一个字符对应点阵集所占的字节数
n = (font/8+((font%8)?1:0))*(font/2);
chr1 = chr-' '; //计算偏移后的值
for (i = 0; i < n; i++)
{
if (font == 8) //调用0806字体
temp = __lcd_ascii_0806[chr1][i];
else if (font == 12) //调用1206字体
temp = __lcd_ascii_1206[chr1][i];
else if (font == 16) //调用1608字体
temp = __lcd_ascii_1608[chr1][i];
else if (font == 24) //调用2412字体
temp = __lcd_ascii_2412[chr1][i];
else
return;
for (m = 0; m < 8; m++)
{
if (temp & 0x01)
lcd_draw_point(x,y,__lcd_fcolor);
else
lcd_draw_point(x,y,__lcd_bcolor);
temp >>= 1;
y++;
}
x++;
if ((font!=8) && ((x-x0)==font/2))
{
x = x0;
y0 = y0+8;
}
y = y0;
}
}
void lcd_show_cn(uint16_t x, uint16_t y, uint8_t font, const char *cn)
{
uint16_t i, m, temp, x0 = x, y0 = y;
uint8_t n = (font/8+((font%8)?1:0))*font; //得到字体一个字符对应点阵集所占的字节数
int code = __lcd_search_code_table(font,__lcd_get_code(cn));
for (i = 0; i < n; i++)
{
if (font == 12)
temp = __lcd_cn12_font[code][i];//调用12*12字体
else if (font == 16)
temp = __lcd_cn16_font[code][i];//调用16*16字体
else if (font == 24)
temp = __lcd_cn24_font[code][i];//调用24*24字体
else if (font == 32)
temp = __lcd_cn32_font[code][i];//调用32*32字体
else
return;
for (m = 0; m < 8; m++)
{
if (temp&0x01)
lcd_draw_point(x,y,__lcd_fcolor);
else
lcd_draw_point(x,y,__lcd_bcolor);
temp >>= 1;
y++;
}
x++;
if ((x-x0) == font)
{
x = x0;
y0 = y0+8;
}
y = y0;
}
}
void lcd_show_string(uint16_t x, uint16_t y, const char *s, uint8_t font)
{
int len = strlen(s);
for (int i = 0; i < len;)
{
if (s[i] <= 127)
{
lcd_show_char(x, y, s[i], font);
if (font == 8)
x += 6;
else
x += font/2;
i++;
}
else
{
if (font != 8)
{
lcd_show_cn(x, y, font, (const char *)&s[i]);
x += font;
}
else
{
x += 6;
}
// i += 2; //gb2312
i += 3; //utf-8
if (i >= len)
{
break;
}
}
}
}
void lcd_println(uint16_t x, uint16_t y, uint8_t font, const char *fmt, ...)
{
static char __buf[128];
va_list valist;
memset((void *)__buf,0,sizeof(__buf));
va_start(valist, fmt);
vsprintf(__buf, fmt, valist);
va_end(valist);
lcd_show_string(x, y, __buf, font);
}
lcd.h
#ifndef __LCD_H__
#define __LCD_H__
#include "esp_lcd_panel_io.h"
#include "esp_lcd_panel_vendor.h"
#include "esp_lcd_panel_ops.h"
#include "lcd_color.h"
void lcd_init(void);
void lcd_fill_pcolor(uint16_t x_start, uint16_t y_start, uint16_t x_end, uint16_t y_end, uint16_t* pcolor);
void lcd_pixel_set(uint16_t w, uint16_t h, uint16_t *pcolor, uint16_t x, uint16_t y, uint16_t pixel);
void lcd_refresh(void);
void lcd_clear(const uint16_t color);
void lcd_draw_point(uint16_t x, uint16_t y, const uint16_t color);
void lcd_fill_rectangle(uint16_t x_start, uint16_t y_start, uint16_t x_end, uint16_t y_end, const uint16_t color);
void lcd_font_set_fcolor(const uint16_t color);
void lcd_font_set_bcolor(const uint16_t color);
void lcd_show_char(uint16_t x, uint16_t y, const char chr, uint8_t font);
void lcd_show_string(uint16_t x, uint16_t y, const char *s, uint8_t font);
void lcd_println(uint16_t x, uint16_t y, uint8_t font, const char *fmt, ...);
#endif/*__LED_H__ */
lcd_font.h
#ifndef __LCDFONT_H__
#define __LCDFONT_H__
const unsigned char __lcd_ascii_0806[][6] =
{
{0x00, 0x00, 0x00, 0x00, 0x00, 0x00},// sp
{0x00, 0x00, 0x00, 0x2f, 0x00, 0x00},// !
{0x00, 0x00, 0x07, 0x00, 0x07, 0x00},// "
{0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14},// #
{0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12},// $
{0x00, 0x62, 0x64, 0x08, 0x13, 0x23},// %
{0x00, 0x36, 0x49, 0x55, 0x22, 0x50},// &
{0x00, 0x00, 0x05, 0x03, 0x00, 0x00},// '
{0x00, 0x00, 0x1c, 0x22, 0x41, 0x00},// (
{0x00, 0x00, 0x41, 0x22, 0x1c, 0x00},// )
{0x00, 0x14, 0x08, 0x3E, 0x08, 0x14},// *
{0x00, 0x08, 0x08, 0x3E, 0x08, 0x08},// +
{0x00, 0x00, 0x00, 0xA0, 0x60, 0x00},// ,
{0x00, 0x08, 0x08, 0x08, 0x08, 0x08},// -
{0x00, 0x00, 0x60, 0x60, 0x00, 0x00},// .
{0x00, 0x20, 0x10, 0x08, 0x04, 0x02},// /
{0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E},// 0
{0x00, 0x00, 0x42, 0x7F, 0x40, 0x00},// 1
{0x00, 0x42, 0x61, 0x51, 0x49, 0x46},// 2
{0x00, 0x21, 0x41, 0x45, 0x4B, 0x31},// 3
{0x00, 0x18, 0x14, 0x12, 0x7F, 0x10},// 4
{0x00, 0x27, 0x45, 0x45, 0x45, 0x39},// 5
{0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30},// 6
{0x00, 0x01, 0x71, 0x09, 0x05, 0x03},// 7
{0x00, 0x36, 0x49, 0x49, 0x49, 0x36},// 8
{0x00, 0x06, 0x49, 0x49, 0x29, 0x1E},// 9
{0x00, 0x00, 0x36, 0x36, 0x00, 0x00},// :
{0x00, 0x00, 0x56, 0x36, 0x00, 0x00},// ;
{0x00, 0x08, 0x14, 0x22, 0x41, 0x00},// <
{0x00, 0x14, 0x14, 0x14, 0x14, 0x14},// =
{0x00, 0x00, 0x41, 0x22, 0x14, 0x08},// >
{0x00, 0x02, 0x01, 0x51, 0x09, 0x06},// ?
{0x00, 0x32, 0x49, 0x59, 0x51, 0x3E},// @
{0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C},// A
{0x00, 0x7F, 0x49, 0x49, 0x49, 0x36},// B
{0x00, 0x3E, 0x41, 0x41, 0x41, 0x22},// C
{0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C},// D
{0x00, 0x7F, 0x49, 0x49, 0x49, 0x41},// E
{0x00, 0x7F, 0x09, 0x09, 0x09, 0x01},// F
{0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A},// G
{0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F},// H
{0x00, 0x00, 0x41, 0x7F, 0x41, 0x00},// I
{0x00, 0x20, 0x40, 0x41, 0x3F, 0x01},// J
{0x00, 0x7F, 0x08, 0x14, 0x22, 0x41},// K
{0x00, 0x7F, 0x40, 0x40, 0x40, 0x40},// L
{0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F},// M
{0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F},// N
{0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E},// O
{0x00, 0x7F, 0x09, 0x09, 0x09, 0x06},// P
{0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E},// Q
{0x00, 0x7F, 0x09, 0x19, 0x29, 0x46},// R
{0x00, 0x46, 0x49, 0x49, 0x49, 0x31},// S
{0x00, 0x01, 0x01, 0x7F, 0x01, 0x01},// T
{0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F},// U
{0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F},// V
{0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F},// W
{0x00, 0x63, 0x14, 0x08, 0x14, 0x63},// X
{0x00, 0x07, 0x08, 0x70, 0x08, 0x07},// Y
{0x00, 0x61, 0x51, 0x49, 0x45, 0x43},// Z
{0x00, 0x00, 0x7F, 0x41, 0x41, 0x00},// [
{0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55},// 55
{0x00, 0x00, 0x41, 0x41, 0x7F, 0x00},// ]
{0x00, 0x04, 0x02, 0x01, 0x02, 0x04},// ^
{0x00, 0x40, 0x40, 0x40, 0x40, 0x40},// _
{0x00, 0x00, 0x01, 0x02, 0x04, 0x00},// '
{0x00, 0x20, 0x54, 0x54, 0x54, 0x78},// a
{0x00, 0x7F, 0x48, 0x44, 0x44, 0x38},// b
{0x00, 0x38, 0x44, 0x44, 0x44, 0x20},// c
{0x00, 0x38, 0x44, 0x44, 0x48, 0x7F},// d
{0x00, 0x38, 0x54, 0x54, 0x54, 0x18},// e
{0x00, 0x08, 0x7E, 0x09, 0x01, 0x02},// f
{0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C},// g
{0x00, 0x7F, 0x08, 0x04, 0x04, 0x78},// h
{0x00, 0x00, 0x44, 0x7D, 0x40, 0x00},// i
{0x00, 0x40, 0x80, 0x84, 0x7D, 0x00},// j
{0x00, 0x7F, 0x10, 0x28, 0x44, 0x00},// k
{0x00, 0x00, 0x41, 0x7F, 0x40, 0x00},// l
{0x00, 0x7C, 0x04, 0x18, 0x04, 0x78},// m
{0x00, 0x7C, 0x08, 0x04, 0x04, 0x78},// n
{0x00, 0x38, 0x44, 0x44, 0x44, 0x38},// o
{0x00, 0xFC, 0x24, 0x24, 0x24, 0x18},// p
{0x00, 0x18, 0x24, 0x24, 0x18, 0xFC},// q
{0x00, 0x7C, 0x08, 0x04, 0x04, 0x08},// r
{0x00, 0x48, 0x54, 0x54, 0x54, 0x20},// s
{0x00, 0x04, 0x3F, 0x44, 0x40, 0x20},// t
{0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C},// u
{0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C},// v
{0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C},// w
{0x00, 0x44, 0x28, 0x10, 0x28, 0x44},// x
{0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C},// y
{0x00, 0x44, 0x64, 0x54, 0x4C, 0x44},// z
{0x14, 0x14, 0x14, 0x14, 0x14, 0x14},// horiz lines
};
//12*12 ASCII字符集点阵
const unsigned char __lcd_ascii_1206[95][12]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0xFC,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,0x00},/*"!",1*/
{0x00,0x0C,0x02,0x0C,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x90,0xD0,0xBC,0xD0,0xBC,0x90,0x00,0x03,0x00,0x03,0x00,0x00},/*"#",3*/
{0x18,0x24,0xFE,0x44,0x8C,0x00,0x03,0x02,0x07,0x02,0x01,0x00},/*"$",4*/
{0x18,0x24,0xD8,0xB0,0x4C,0x80,0x00,0x03,0x00,0x01,0x02,0x01},/*"%",5*/
{0xC0,0x38,0xE4,0x38,0xE0,0x00,0x01,0x02,0x02,0x01,0x02,0x02},/*"&",6*/
{0x08,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0xF8,0x04,0x02,0x00,0x00,0x00,0x01,0x02,0x04},/*"(",8*/
{0x00,0x02,0x04,0xF8,0x00,0x00,0x00,0x04,0x02,0x01,0x00,0x00},/*")",9*/
{0x90,0x60,0xF8,0x60,0x90,0x00,0x00,0x00,0x01,0x00,0x00,0x00},/*"*",10*/
{0x20,0x20,0xFC,0x20,0x20,0x00,0x00,0x00,0x01,0x00,0x00,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x06,0x00,0x00,0x00,0x00},/*",",12*/
{0x20,0x20,0x20,0x20,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x80,0x60,0x1C,0x02,0x00,0x04,0x03,0x00,0x00,0x00,0x00},/*"/",15*/
{0xF8,0x04,0x04,0x04,0xF8,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"0",16*/
{0x00,0x08,0xFC,0x00,0x00,0x00,0x00,0x02,0x03,0x02,0x00,0x00},/*"1",17*/
{0x18,0x84,0x44,0x24,0x18,0x00,0x03,0x02,0x02,0x02,0x02,0x00},/*"2",18*/
{0x08,0x04,0x24,0x24,0xD8,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"3",19*/
{0x40,0xB0,0x88,0xFC,0x80,0x00,0x00,0x00,0x00,0x03,0x02,0x00},/*"4",20*/
{0x3C,0x24,0x24,0x24,0xC4,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"5",21*/
{0xF8,0x24,0x24,0x2C,0xC0,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"6",22*/
{0x0C,0x04,0xE4,0x1C,0x04,0x00,0x00,0x00,0x03,0x00,0x00,0x00},/*"7",23*/
{0xD8,0x24,0x24,0x24,0xD8,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"8",24*/
{0x38,0x44,0x44,0x44,0xF8,0x00,0x00,0x03,0x02,0x02,0x01,0x00},/*"9",25*/
{0x00,0x00,0x10,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x06,0x00,0x00,0x00},/*";",27*/
{0x00,0x20,0x50,0x88,0x04,0x02,0x00,0x00,0x00,0x00,0x01,0x02},/*"<",28*/
{0x90,0x90,0x90,0x90,0x90,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"=",29*/
{0x00,0x02,0x04,0x88,0x50,0x20,0x00,0x02,0x01,0x00,0x00,0x00},/*">",30*/
{0x18,0x04,0xC4,0x24,0x18,0x00,0x00,0x00,0x02,0x00,0x00,0x00},/*"?",31*/
{0xF8,0x04,0xE4,0x94,0xF8,0x00,0x01,0x02,0x02,0x02,0x02,0x00},/*"@",32*/
{0x00,0xE0,0x9C,0xF0,0x80,0x00,0x02,0x03,0x00,0x00,0x03,0x02},/*"A",33*/
{0x04,0xFC,0x24,0x24,0xD8,0x00,0x02,0x03,0x02,0x02,0x01,0x00},/*"B",34*/
{0xF8,0x04,0x04,0x04,0x0C,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"C",35*/
{0x04,0xFC,0x04,0x04,0xF8,0x00,0x02,0x03,0x02,0x02,0x01,0x00},/*"D",36*/
{0x04,0xFC,0x24,0x74,0x0C,0x00,0x02,0x03,0x02,0x02,0x03,0x00},/*"E",37*/
{0x04,0xFC,0x24,0x74,0x0C,0x00,0x02,0x03,0x02,0x00,0x00,0x00},/*"F",38*/
{0xF0,0x08,0x04,0x44,0xCC,0x40,0x00,0x01,0x02,0x02,0x01,0x00},/*"G",39*/
{0x04,0xFC,0x20,0x20,0xFC,0x04,0x02,0x03,0x00,0x00,0x03,0x02},/*"H",40*/
{0x04,0x04,0xFC,0x04,0x04,0x00,0x02,0x02,0x03,0x02,0x02,0x00},/*"I",41*/
{0x00,0x04,0x04,0xFC,0x04,0x04,0x06,0x04,0x04,0x03,0x00,0x00},/*"J",42*/
{0x04,0xFC,0x24,0xD0,0x0C,0x04,0x02,0x03,0x02,0x00,0x03,0x02},/*"K",43*/
{0x04,0xFC,0x04,0x00,0x00,0x00,0x02,0x03,0x02,0x02,0x02,0x03},/*"L",44*/
{0xFC,0x3C,0xC0,0x3C,0xFC,0x00,0x03,0x00,0x03,0x00,0x03,0x00},/*"M",45*/
{0x04,0xFC,0x30,0xC4,0xFC,0x04,0x02,0x03,0x02,0x00,0x03,0x00},/*"N",46*/
{0xF8,0x04,0x04,0x04,0xF8,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"O",47*/
{0x04,0xFC,0x24,0x24,0x18,0x00,0x02,0x03,0x02,0x00,0x00,0x00},/*"P",48*/
{0xF8,0x84,0x84,0x04,0xF8,0x00,0x01,0x02,0x02,0x07,0x05,0x00},/*"Q",49*/
{0x04,0xFC,0x24,0x64,0x98,0x00,0x02,0x03,0x02,0x00,0x03,0x02},/*"R",50*/
{0x18,0x24,0x24,0x44,0x8C,0x00,0x03,0x02,0x02,0x02,0x01,0x00},/*"S",51*/
{0x0C,0x04,0xFC,0x04,0x0C,0x00,0x00,0x02,0x03,0x02,0x00,0x00},/*"T",52*/
{0x04,0xFC,0x00,0x00,0xFC,0x04,0x00,0x01,0x02,0x02,0x01,0x00},/*"U",53*/
{0x04,0x7C,0x80,0xE0,0x1C,0x04,0x00,0x00,0x03,0x00,0x00,0x00},/*"V",54*/
{0x1C,0xE0,0x3C,0xE0,0x1C,0x00,0x00,0x03,0x00,0x03,0x00,0x00},/*"W",55*/
{0x04,0x9C,0x60,0x9C,0x04,0x00,0x02,0x03,0x00,0x03,0x02,0x00},/*"X",56*/
{0x04,0x1C,0xE0,0x1C,0x04,0x00,0x00,0x02,0x03,0x02,0x00,0x00},/*"Y",57*/
{0x0C,0x84,0x64,0x1C,0x04,0x00,0x02,0x03,0x02,0x02,0x03,0x00},/*"Z",58*/
{0x00,0x00,0xFE,0x02,0x02,0x00,0x00,0x00,0x07,0x04,0x04,0x00},/*"[",59*/
{0x00,0x0E,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x01,0x02,0x00},/*"\",60*/
{0x00,0x02,0x02,0xFE,0x00,0x00,0x00,0x04,0x04,0x07,0x00,0x00},/*"]",61*/
{0x00,0x04,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08},/*"_",63*/
{0x00,0x00,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x40,0xA0,0xA0,0xC0,0x00,0x00,0x01,0x02,0x02,0x03,0x02},/*"a",65*/
{0x04,0xFC,0x20,0x20,0xC0,0x00,0x00,0x03,0x02,0x02,0x01,0x00},/*"b",66*/
{0x00,0xC0,0x20,0x20,0x60,0x00,0x00,0x01,0x02,0x02,0x02,0x00},/*"c",67*/
{0x00,0xC0,0x20,0x24,0xFC,0x00,0x00,0x01,0x02,0x02,0x03,0x02},/*"d",68*/
{0x00,0xC0,0xA0,0xA0,0xC0,0x00,0x00,0x01,0x02,0x02,0x02,0x00},/*"e",69*/
{0x00,0x20,0xF8,0x24,0x24,0x04,0x00,0x02,0x03,0x02,0x02,0x00},/*"f",70*/
{0x00,0x40,0xA0,0xA0,0x60,0x20,0x00,0x07,0x0A,0x0A,0x0A,0x04},/*"g",71*/
{0x04,0xFC,0x20,0x20,0xC0,0x00,0x02,0x03,0x02,0x00,0x03,0x02},/*"h",72*/
{0x00,0x20,0xE4,0x00,0x00,0x00,0x00,0x02,0x03,0x02,0x00,0x00},/*"i",73*/
{0x00,0x00,0x20,0xE4,0x00,0x00,0x08,0x08,0x08,0x07,0x00,0x00},/*"j",74*/
{0x04,0xFC,0x80,0xE0,0x20,0x20,0x02,0x03,0x02,0x00,0x03,0x02},/*"k",75*/
{0x04,0x04,0xFC,0x00,0x00,0x00,0x02,0x02,0x03,0x02,0x02,0x00},/*"l",76*/
{0xE0,0x20,0xE0,0x20,0xC0,0x00,0x03,0x00,0x03,0x00,0x03,0x00},/*"m",77*/
{0x20,0xE0,0x20,0x20,0xC0,0x00,0x02,0x03,0x02,0x00,0x03,0x02},/*"n",78*/
{0x00,0xC0,0x20,0x20,0xC0,0x00,0x00,0x01,0x02,0x02,0x01,0x00},/*"o",79*/
{0x20,0xE0,0x20,0x20,0xC0,0x00,0x08,0x0F,0x0A,0x02,0x01,0x00},/*"p",80*/
{0x00,0xC0,0x20,0x20,0xE0,0x00,0x00,0x01,0x02,0x0A,0x0F,0x08},/*"q",81*/
{0x20,0xE0,0x40,0x20,0x20,0x00,0x02,0x03,0x02,0x00,0x00,0x00},/*"r",82*/
{0x00,0x60,0xA0,0xA0,0x20,0x00,0x00,0x02,0x02,0x02,0x03,0x00},/*"s",83*/
{0x00,0x20,0xF8,0x20,0x00,0x00,0x00,0x00,0x01,0x02,0x02,0x00},/*"t",84*/
{0x20,0xE0,0x00,0x20,0xE0,0x00,0x00,0x01,0x02,0x02,0x03,0x02},/*"u",85*/
{0x20,0xE0,0x20,0x80,0x60,0x20,0x00,0x00,0x03,0x01,0x00,0x00},/*"v",86*/
{0x60,0x80,0xE0,0x80,0x60,0x00,0x00,0x03,0x00,0x03,0x00,0x00},/*"w",87*/
{0x20,0x60,0x80,0x60,0x20,0x00,0x02,0x03,0x00,0x03,0x02,0x00},/*"x",88*/
{0x20,0xE0,0x20,0x80,0x60,0x20,0x08,0x08,0x07,0x01,0x00,0x00},/*"y",89*/
{0x00,0x20,0xA0,0x60,0x20,0x00,0x00,0x02,0x03,0x02,0x02,0x00},/*"z",90*/
{0x00,0x00,0x20,0xDE,0x02,0x00,0x00,0x00,0x00,0x07,0x04,0x00},/*"{",91*/
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x0F,0x00,0x00},/*"|",92*/
{0x00,0x02,0xDE,0x20,0x00,0x00,0x00,0x04,0x07,0x00,0x00,0x00},/*"}",93*/
{0x02,0x01,0x02,0x04,0x04,0x02,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/
};
//16*16 ASCII字符集点阵
const unsigned char __lcd_ascii_1608[][16]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00},/*"!",1*/
{0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00},/*"#",3*/
{0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00},/*"$",4*/
{0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00},/*"%",5*/
{0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10},/*"&",6*/
{0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00},/*"(",8*/
{0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00},/*")",9*/
{0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00},/*"*",10*/
{0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00},/*",",12*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00},/*"/",15*/
{0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00},/*"0",16*/
{0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"1",17*/
{0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00},/*"2",18*/
{0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00},/*"3",19*/
{0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00},/*"4",20*/
{0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00},/*"5",21*/
{0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00},/*"6",22*/
{0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00},/*"7",23*/
{0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00},/*"8",24*/
{0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00},/*"9",25*/
{0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00},/*";",27*/
{0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00},/*"<",28*/
{0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00},/*"=",29*/
{0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00},/*">",30*/
{0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00},/*"?",31*/
{0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00},/*"@",32*/
{0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20},/*"A",33*/
{0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00},/*"B",34*/
{0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00},/*"C",35*/
{0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00},/*"D",36*/
{0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00},/*"E",37*/
{0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00},/*"F",38*/
{0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00},/*"G",39*/
{0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20},/*"H",40*/
{0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"I",41*/
{0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00},/*"J",42*/
{0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00},/*"K",43*/
{0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00},/*"L",44*/
{0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00},/*"M",45*/
{0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00},/*"N",46*/
{0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00},/*"O",47*/
{0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00},/*"P",48*/
{0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00},/*"Q",49*/
{0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20},/*"R",50*/
{0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00},/*"S",51*/
{0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00},/*"T",52*/
{0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00},/*"U",53*/
{0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00},/*"V",54*/
{0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00},/*"W",55*/
{0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20},/*"X",56*/
{0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00},/*"Y",57*/
{0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00},/*"Z",58*/
{0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00},/*"[",59*/
{0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00},/*"\",60*/
{0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00},/*"]",61*/
{0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80},/*"_",63*/
{0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20},/*"a",65*/
{0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00},/*"b",66*/
{0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00},/*"c",67*/
{0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20},/*"d",68*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00},/*"e",69*/
{0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"f",70*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00},/*"g",71*/
{0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20},/*"h",72*/
{0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"i",73*/
{0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00},/*"j",74*/
{0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00},/*"k",75*/
{0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"l",76*/
{0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F},/*"m",77*/
{0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20},/*"n",78*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00},/*"o",79*/
{0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00},/*"p",80*/
{0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80},/*"q",81*/
{0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00},/*"r",82*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00},/*"s",83*/
{0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00},/*"t",84*/
{0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20},/*"u",85*/
{0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00},/*"v",86*/
{0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00},/*"w",87*/
{0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00},/*"x",88*/
{0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00},/*"y",89*/
{0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00},/*"z",90*/
{0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40},/*"{",91*/
{0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00},/*"|",92*/
{0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00},/*"}",93*/
{0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/
};
//24*24 ASICII字符集点阵
const unsigned char __lcd_ascii_2412[][36]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x00,0x00,0x00,0xF0,0xF0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x7F,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x1C,0x00,0x00,0x00,0x00},/*"!",1*/
{0x00,0x00,0x80,0x60,0x30,0x1C,0x8C,0x60,0x30,0x1C,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x00,0x00,0x00,0xE0,0x00,0x00,0x00,0x00,0x00,0xE0,0x00,0x00,0x00,0x86,0xE6,0x9F,0x86,0x86,0x86,0x86,0xE6,0x9F,0x86,0x00,0x00,0x01,0x1F,0x01,0x01,0x01,0x01,0x01,0x1F,0x01,0x01,0x00},/*"#",3*/
{0x00,0x00,0x80,0xC0,0x60,0x20,0xF8,0x20,0xE0,0xC0,0x00,0x00,0x00,0x00,0x03,0x07,0x0C,0x18,0xFF,0x70,0xE1,0x81,0x00,0x00,0x00,0x00,0x07,0x0F,0x10,0x10,0x7F,0x10,0x0F,0x07,0x00,0x00},/*"$",4*/
{0x80,0x60,0x20,0x60,0x80,0x00,0x00,0x00,0xE0,0x20,0x00,0x00,0x0F,0x30,0x20,0x30,0x9F,0x70,0xDC,0x37,0x10,0x30,0xC0,0x00,0x00,0x00,0x10,0x0E,0x03,0x00,0x07,0x18,0x10,0x18,0x07,0x00},/*"%",5*/
{0x00,0x00,0xC0,0x20,0x20,0xE0,0xC0,0x00,0x00,0x00,0x00,0x00,0x80,0xE0,0x1F,0x38,0xE8,0x87,0x03,0xC4,0x3C,0x04,0x00,0x00,0x07,0x0F,0x18,0x10,0x10,0x0B,0x07,0x0D,0x10,0x10,0x08,0x00},/*"&",6*/
{0x00,0x80,0x8C,0x4C,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xE0,0x30,0x08,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x0F,0x18,0x20,0x40,0x00},/*"(",8*/
{0x00,0x04,0x08,0x30,0xE0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x0F,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*")",9*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x42,0x66,0x66,0x3C,0x18,0xFF,0x18,0x3C,0x66,0x66,0x42,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x00,0x00},/*"*",10*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x10,0x10,0xFF,0x10,0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x00,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x8C,0x4C,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*",",12*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x38,0x0C,0x00,0x00,0x00,0x00,0x00,0x80,0x70,0x1C,0x03,0x00,0x00,0x00,0x00,0x00,0x60,0x38,0x0E,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"/",15*/
{0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0xFE,0xFF,0x01,0x00,0x00,0x00,0x00,0x01,0xFF,0xFE,0x00,0x00,0x01,0x07,0x0E,0x18,0x10,0x10,0x18,0x0E,0x07,0x01,0x00},/*"0",16*/
{0x00,0x00,0x80,0x80,0x80,0xC0,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00},/*"1",17*/
{0x00,0x80,0x40,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0x03,0x03,0x00,0x80,0x40,0x20,0x38,0x1F,0x07,0x00,0x00,0x00,0x1C,0x1A,0x19,0x18,0x18,0x18,0x18,0x18,0x1F,0x00,0x00},/*"2",18*/
{0x00,0x80,0xC0,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0x00,0x03,0x03,0x00,0x10,0x10,0x18,0x2F,0xE7,0x80,0x00,0x00,0x00,0x07,0x0F,0x10,0x10,0x10,0x10,0x18,0x0F,0x07,0x00,0x00},/*"3",19*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xE0,0xF0,0x00,0x00,0x00,0x00,0xC0,0xB0,0x88,0x86,0x81,0x80,0xFF,0xFF,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x00},/*"4",20*/
{0x00,0x00,0xE0,0x60,0x60,0x60,0x60,0x60,0x60,0x60,0x00,0x00,0x00,0x00,0x3F,0x10,0x08,0x08,0x08,0x18,0xF0,0xE0,0x00,0x00,0x00,0x07,0x0B,0x10,0x10,0x10,0x10,0x1C,0x0F,0x03,0x00,0x00},/*"5",21*/
{0x00,0x00,0x80,0xC0,0x40,0x20,0x20,0x20,0xE0,0xC0,0x00,0x00,0x00,0xFC,0xFF,0x21,0x10,0x08,0x08,0x08,0x18,0xF0,0xE0,0x00,0x00,0x01,0x07,0x0C,0x18,0x10,0x10,0x10,0x08,0x0F,0x03,0x00},/*"6",22*/
{0x00,0x00,0xC0,0xE0,0x60,0x60,0x60,0x60,0x60,0xE0,0x60,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0xE0,0x18,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x1F,0x00,0x00,0x00,0x00,0x00},/*"7",23*/
{0x00,0x80,0xC0,0x60,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x87,0xEF,0x2C,0x18,0x18,0x30,0x30,0x68,0xCF,0x83,0x00,0x00,0x07,0x0F,0x08,0x10,0x10,0x10,0x10,0x18,0x0F,0x07,0x00},/*"8",24*/
{0x00,0x00,0xC0,0xC0,0x20,0x20,0x20,0x20,0xC0,0x80,0x00,0x00,0x00,0x1F,0x3F,0x60,0x40,0x40,0x40,0x20,0x10,0xFF,0xFE,0x00,0x00,0x00,0x0C,0x1C,0x10,0x10,0x10,0x08,0x0F,0x03,0x00,0x00},/*"9",25*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x0E,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x1C,0x00,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x58,0x38,0x00,0x00,0x00,0x00,0x00},/*";",27*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x40,0x20,0x10,0x00,0x00,0x00,0x10,0x28,0x44,0x82,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x00},/*"<",28*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"=",29*/
{0x00,0x00,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x82,0x44,0x28,0x10,0x00,0x00,0x00,0x10,0x08,0x04,0x02,0x01,0x00,0x00,0x00,0x00,0x00},/*">",30*/
{0x00,0xC0,0x20,0x20,0x10,0x10,0x10,0x10,0x30,0xE0,0xC0,0x00,0x00,0x03,0x03,0x00,0x00,0xF0,0x10,0x08,0x0C,0x07,0x03,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x1C,0x00,0x00,0x00,0x00,0x00},/*"?",31*/
{0x00,0x00,0x00,0xC0,0x40,0x60,0x20,0x20,0x20,0x40,0xC0,0x00,0x00,0xFC,0xFF,0x01,0xF0,0x0E,0x03,0xC1,0xFE,0x03,0x80,0x7F,0x00,0x01,0x07,0x0E,0x08,0x11,0x11,0x10,0x11,0x09,0x04,0x02},/*"@",32*/
{0x00,0x00,0x00,0x00,0x80,0xE0,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x7C,0x43,0x40,0x47,0x7F,0xF8,0x80,0x00,0x00,0x10,0x18,0x1F,0x10,0x00,0x00,0x00,0x00,0x13,0x1F,0x1C,0x10},/*"A",33*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x18,0x2F,0xE7,0x80,0x00,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x10,0x18,0x0F,0x07,0x00},/*"B",34*/
{0x00,0x00,0x80,0xC0,0x40,0x20,0x20,0x20,0x20,0x60,0xE0,0x00,0x00,0xFC,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x01,0x07,0x0E,0x18,0x10,0x10,0x10,0x08,0x04,0x03,0x00},/*"C",35*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x40,0xC0,0x80,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFE,0x00,0x10,0x1F,0x1F,0x10,0x10,0x10,0x18,0x08,0x0E,0x07,0x01,0x00},/*"D",36*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x20,0x60,0x80,0x00,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x7C,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x10,0x10,0x18,0x06,0x00},/*"E",37*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x60,0x60,0x80,0x00,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x7C,0x00,0x00,0x01,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"F",38*/
{0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0x20,0x40,0xE0,0x00,0x00,0x00,0xFC,0xFF,0x01,0x00,0x00,0x40,0x40,0xC0,0xC1,0x40,0x40,0x00,0x01,0x07,0x0E,0x18,0x10,0x10,0x10,0x0F,0x0F,0x00,0x00},/*"G",39*/
{0x20,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x20,0xE0,0xE0,0x20,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x10,0x10,0xFF,0xFF,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10},/*"H",40*/
{0x00,0x00,0x20,0x20,0x20,0xE0,0xE0,0x20,0x20,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00},/*"I",41*/
{0x00,0x00,0x00,0x00,0x20,0x20,0x20,0xE0,0xE0,0x20,0x20,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x60,0xE0,0x80,0x80,0x80,0xC0,0x7F,0x3F,0x00,0x00,0x00},/*"J",42*/
{0x20,0xE0,0xE0,0x20,0x00,0x00,0x20,0xA0,0x60,0x20,0x20,0x00,0x00,0xFF,0xFF,0x30,0x18,0x7C,0xE3,0xC0,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x01,0x13,0x1F,0x1C,0x18,0x10},/*"K",43*/
{0x20,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x10,0x10,0x18,0x06,0x00},/*"L",44*/
{0x20,0xE0,0xE0,0xE0,0x00,0x00,0x00,0x00,0xE0,0xE0,0xE0,0x20,0x00,0xFF,0x01,0x3F,0xFE,0xC0,0xE0,0x1E,0x01,0xFF,0xFF,0x00,0x10,0x1F,0x10,0x00,0x03,0x1F,0x03,0x00,0x10,0x1F,0x1F,0x10},/*"M",45*/
{0x20,0xE0,0xE0,0xC0,0x00,0x00,0x00,0x00,0x00,0x20,0xE0,0x20,0x00,0xFF,0x00,0x03,0x07,0x1C,0x78,0xE0,0x80,0x00,0xFF,0x00,0x10,0x1F,0x10,0x00,0x00,0x00,0x00,0x00,0x03,0x0F,0x1F,0x00},/*"N",46*/
{0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0xFE,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0xFF,0xFE,0x00,0x00,0x01,0x07,0x0E,0x18,0x10,0x10,0x18,0x0C,0x07,0x01,0x00},/*"O",47*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0xFF,0xFF,0x20,0x20,0x20,0x20,0x20,0x30,0x1F,0x0F,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"P",48*/
{0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0xFE,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0xFF,0xFE,0x00,0x00,0x01,0x07,0x0E,0x11,0x11,0x13,0x3C,0x7C,0x67,0x21,0x00},/*"Q",49*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0xFF,0xFF,0x10,0x10,0x30,0xF0,0xD0,0x08,0x0F,0x07,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x03,0x0F,0x1C,0x10,0x10},/*"R",50*/
{0x00,0x80,0xC0,0x60,0x20,0x20,0x20,0x20,0x40,0x40,0xE0,0x00,0x00,0x07,0x0F,0x0C,0x18,0x18,0x30,0x30,0x60,0xE0,0x81,0x00,0x00,0x1F,0x0C,0x08,0x10,0x10,0x10,0x10,0x18,0x0F,0x07,0x00},/*"S",51*/
{0x80,0x60,0x20,0x20,0x20,0xE0,0xE0,0x20,0x20,0x20,0x60,0x80,0x01,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00},/*"T",52*/
{0x20,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x00,0x20,0xE0,0x20,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x07,0x0F,0x18,0x10,0x10,0x10,0x10,0x10,0x08,0x07,0x00},/*"U",53*/
{0x20,0x60,0xE0,0xE0,0x20,0x00,0x00,0x00,0x20,0xE0,0x60,0x20,0x00,0x00,0x07,0x7F,0xF8,0x80,0x00,0x80,0x7C,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0x1F,0x1C,0x07,0x00,0x00,0x00,0x00},/*"V",54*/
{0x20,0xE0,0xE0,0x20,0x00,0xE0,0xE0,0x20,0x00,0x20,0xE0,0x20,0x00,0x07,0xFF,0xF8,0xE0,0x1F,0xFF,0xFC,0xE0,0x1F,0x00,0x00,0x00,0x00,0x03,0x1F,0x03,0x00,0x01,0x1F,0x03,0x00,0x00,0x00},/*"W",55*/
{0x00,0x20,0x60,0xE0,0xA0,0x00,0x00,0x20,0xE0,0x60,0x20,0x00,0x00,0x00,0x00,0x03,0x8F,0x7C,0xF8,0xC6,0x01,0x00,0x00,0x00,0x00,0x10,0x18,0x1E,0x13,0x00,0x01,0x17,0x1F,0x18,0x10,0x00},/*"X",56*/
{0x20,0x60,0xE0,0xE0,0x20,0x00,0x00,0x00,0x20,0xE0,0x60,0x20,0x00,0x00,0x01,0x07,0x3E,0xF8,0xE0,0x18,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x00,0x00,0x00},/*"Y",57*/
{0x00,0x80,0x60,0x20,0x20,0x20,0x20,0xA0,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x00,0xC0,0xF0,0x3E,0x0F,0x03,0x00,0x00,0x00,0x00,0x10,0x1C,0x1F,0x17,0x10,0x10,0x10,0x10,0x18,0x06,0x00},/*"Z",58*/
{0x00,0x00,0x00,0x00,0x00,0xFC,0x04,0x04,0x04,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x40,0x40,0x00},/*"[",59*/
{0x00,0x00,0x10,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x1C,0x60,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x0C,0x70,0x80,0x00},/*"\",60*/
{0x00,0x00,0x04,0x04,0x04,0x04,0x04,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,0x00},/*"]",61*/
{0x00,0x00,0x00,0x10,0x08,0x0C,0x04,0x0C,0x08,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80},/*"_",63*/
{0x00,0x00,0x00,0x04,0x04,0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x98,0xD8,0x44,0x64,0x24,0x24,0xFC,0xF8,0x00,0x00,0x00,0x0F,0x1F,0x18,0x10,0x10,0x10,0x08,0x1F,0x1F,0x10,0x18},/*"a",65*/
{0x00,0x20,0xE0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x18,0x08,0x04,0x04,0x0C,0xF8,0xF0,0x00,0x00,0x00,0x1F,0x0F,0x18,0x10,0x10,0x10,0x18,0x0F,0x03,0x00},/*"b",66*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xF8,0x18,0x04,0x04,0x04,0x3C,0x38,0x00,0x00,0x00,0x00,0x03,0x0F,0x0C,0x10,0x10,0x10,0x10,0x08,0x06,0x00,0x00},/*"c",67*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0xE0,0xF0,0x00,0x00,0x00,0xE0,0xF8,0x1C,0x04,0x04,0x04,0x08,0xFF,0xFF,0x00,0x00,0x00,0x03,0x0F,0x18,0x10,0x10,0x10,0x08,0x1F,0x0F,0x08,0x00},/*"d",68*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xF8,0x48,0x44,0x44,0x44,0x4C,0x78,0x70,0x00,0x00,0x00,0x03,0x0F,0x0C,0x18,0x10,0x10,0x10,0x08,0x04,0x00},/*"e",69*/
{0x00,0x00,0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0xE0,0xC0,0x00,0x00,0x04,0x04,0x04,0xFF,0xFF,0x04,0x04,0x04,0x04,0x00,0x00,0x00,0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00,0x00},/*"f",70*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x70,0xF8,0x8C,0x04,0x04,0x8C,0xF8,0x74,0x04,0x0C,0x00,0x70,0x76,0xCF,0x8D,0x8D,0x8D,0x89,0xC8,0x78,0x70,0x00},/*"g",71*/
{0x00,0x20,0xE0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x08,0x04,0x04,0x04,0xFC,0xF8,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00},/*"h",72*/
{0x00,0x00,0x00,0x00,0x00,0x60,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x04,0xFC,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00},/*"i",73*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x04,0xFC,0xFC,0x00,0x00,0x00,0x00,0x00,0xC0,0xC0,0x80,0x80,0xC0,0x7F,0x3F,0x00,0x00,0x00},/*"j",74*/
{0x00,0x20,0xE0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x80,0xC0,0xF4,0x1C,0x04,0x04,0x00,0x00,0x00,0x10,0x1F,0x1F,0x11,0x00,0x03,0x1F,0x1C,0x10,0x10,0x00},/*"k",75*/
{0x00,0x00,0x20,0x20,0x20,0xE0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00},/*"l",76*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0xFC,0xFC,0x08,0x04,0xFC,0xFC,0x08,0x04,0xFC,0xFC,0x00,0x10,0x1F,0x1F,0x10,0x00,0x1F,0x1F,0x10,0x00,0x1F,0x1F,0x10},/*"m",77*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0xFC,0xFC,0x08,0x08,0x04,0x04,0xFC,0xF8,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00},/*"n",78*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xF0,0x18,0x0C,0x04,0x04,0x0C,0x18,0xF0,0xE0,0x00,0x00,0x03,0x0F,0x0C,0x10,0x10,0x10,0x10,0x0C,0x0F,0x03,0x00},/*"o",79*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0xFC,0xFC,0x08,0x04,0x04,0x04,0x0C,0xF8,0xF0,0x00,0x00,0x80,0xFF,0xFF,0x88,0x90,0x10,0x10,0x1C,0x0F,0x03,0x00},/*"p",80*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xF8,0x1C,0x04,0x04,0x04,0x08,0xF8,0xFC,0x00,0x00,0x00,0x03,0x0F,0x18,0x10,0x10,0x90,0x88,0xFF,0xFF,0x80,0x00},/*"q",81*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x04,0xFC,0xFC,0x10,0x08,0x04,0x04,0x0C,0x0C,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00,0x00,0x00},/*"r",82*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x78,0xCC,0xC4,0x84,0x84,0x84,0x0C,0x1C,0x00,0x00,0x00,0x1E,0x18,0x10,0x10,0x10,0x11,0x19,0x0F,0x06,0x00},/*"s",83*/
{0x00,0x00,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x04,0xFF,0xFF,0x04,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x1F,0x10,0x10,0x10,0x0C,0x00,0x00},/*"t",84*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0xFC,0xFE,0x00,0x00,0x00,0x04,0xFC,0xFE,0x00,0x00,0x00,0x00,0x0F,0x1F,0x18,0x10,0x10,0x08,0x1F,0x0F,0x08,0x00},/*"u",85*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x0C,0x3C,0xFC,0xC4,0x00,0x00,0xC4,0x3C,0x0C,0x04,0x00,0x00,0x00,0x00,0x01,0x0F,0x1E,0x0E,0x01,0x00,0x00,0x00},/*"v",86*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x3C,0xFC,0xC4,0x00,0xE4,0x7C,0xFC,0x84,0x80,0x7C,0x04,0x00,0x00,0x07,0x1F,0x07,0x00,0x00,0x07,0x1F,0x07,0x00,0x00},/*"w",87*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x1C,0x7C,0xE4,0xC0,0x34,0x1C,0x04,0x04,0x00,0x00,0x10,0x10,0x1C,0x16,0x01,0x13,0x1F,0x1C,0x18,0x10,0x00},/*"x",88*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x0C,0x3C,0xFC,0xC4,0x00,0xC4,0x3C,0x04,0x04,0x00,0x00,0x00,0xC0,0x80,0xC1,0x37,0x0E,0x01,0x00,0x00,0x00,0x00},/*"y",89*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x04,0x04,0xC4,0xF4,0x7C,0x1C,0x04,0x00,0x00,0x00,0x00,0x10,0x1C,0x1F,0x17,0x11,0x10,0x10,0x18,0x0E,0x00},/*"z",90*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x0C,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x28,0xEF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0x60,0x40,0x00,0x00},/*"{",91*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00},/*"|",92*/
{0x00,0x00,0x04,0x0C,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xEF,0x28,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x60,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"}",93*/
{0x00,0x18,0x06,0x02,0x02,0x04,0x08,0x10,0x20,0x20,0x30,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/
};
//12
const unsigned int __lcd_cn12_sheet[] = \
{
0xE5AD97,
0xE4BD93,
0x00,
};
const unsigned char __lcd_cn12_font[][24] = \
{
{0x0C,0x04,0x24,0x24,0x25,0x26,0xA4,0x64,0x24,0x04,0x0C,0x00,0x01,0x01,0x01,0x09,0x09,0x0F,0x01,0x01,0x01,0x01,0x01,0x00},/*"字",0*/
{0x10,0xFC,0x03,0x88,0x48,0x28,0xFF,0x28,0x48,0x88,0x00,0x00,0x00,0x0F,0x01,0x00,0x02,0x02,0x0F,0x02,0x02,0x00,0x01,0x00},/*"体",1*/
{0x00},
};
//16
const unsigned int __lcd_cn16_sheet[] = \
{
0xE5AD97,
0xE4BD93,
0x00,
};
const unsigned char __lcd_cn16_font[][32] = \
{
{0x10,0x0C,0x04,0x24,0x24,0x24,0x25,0x26,0xA4,0x64,0x24,0x04,0x04,0x14,0x0C,0x00,0x02,0x02,0x02,0x02,0x02,0x42,0x82,0x7F,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x00},/*"字",0*/
{0x00,0x80,0x60,0xF8,0x07,0x10,0x10,0x10,0xD0,0xFF,0xD0,0x10,0x10,0x10,0x00,0x00,0x01,0x00,0x00,0xFF,0x10,0x08,0x04,0x0B,0x08,0xFF,0x08,0x0B,0x04,0x08,0x10,0x00},/*"体",1*/
{0x00},
};
//24
const unsigned int __lcd_cn24_sheet[] = \
{
0xE5AD97,
0xE4BD93,
0x00,
};
const unsigned char __lcd_cn24_font[][72] = \
{
{0x00,0x00,0x00,0x80,0xF0,0x20,0x20,0x20,0x20,0x20,0x22,0x2C,0x3C,0x20,0x20,0x20,0x20,0x20,0x20,0xE0,0x70,0x20,0x00,0x00,0x00,0x40,0x41,0x41,0x40,0x41,0x41,0x41,0x41,0x41,0x41,0xF1,0xF1,0x49,0x45,0x47,0x43,0x43,0x41,0x40,0x40,0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x60,0x7F,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"字",0*/
{0x00,0x00,0x00,0x00,0x80,0x70,0x1E,0x04,0x40,0x40,0x40,0x40,0x40,0xC0,0xFE,0x44,0xC0,0x40,0x40,0x40,0x40,0x40,0x00,0x00,0x00,0x10,0x08,0x06,0x01,0xFF,0x01,0x00,0x00,0xC0,0x60,0x18,0x07,0x01,0xFF,0x00,0x03,0x1C,0x70,0xC0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0x04,0x02,0x01,0x02,0x02,0x02,0x02,0x02,0x7F,0x02,0x02,0x02,0x03,0x02,0x03,0x03,0x00,0x00},/*"体",1*/
{0x00},
};
//32
const unsigned int __lcd_cn32_sheet[] = \
{
0xE5AD97,
0xE4BD93,
0x00,
};
const unsigned char __lcd_cn32_font[][128] = \
{
{0x00,0x00,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x84,0x8C,0xB8,0xF0,0xA0,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0xC0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x0E,0x07,0x00,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x90,0xD0,0x50,0x70,0x38,0x30,0x00,0x06,0x03,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0xFF,0xFE,0x09,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x0C,0x0C,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x30,0x70,0x3F,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"字",0*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xF8,0x38,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x60,0x18,0xFF,0xFB,0x08,0x00,0x02,0x02,0x02,0x02,0x02,0xC2,0xF2,0x3E,0x0E,0xFF,0xFF,0x0E,0x72,0x82,0x02,0x02,0x02,0x03,0x03,0x02,0x00,0x00,0x00,0x02,0x01,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0xC0,0x60,0x30,0x8C,0x87,0x83,0x80,0x80,0x80,0xFF,0xFF,0x80,0x80,0x81,0xC6,0x9C,0xF8,0xF0,0xE0,0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0x3F,0x00,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"体",1*/
{0x00},
};
#endif
lcd_color.h
#define ColorBlack 0X0000 //黑色
#define ColorDimgray 0X6B4D //昏灰
#define ColorGray 0X8410 //灰色
#define ColorDarkGray 0XAD55 //暗灰
#define ColorSilver 0XC618 //银色
#define ColorLightGray 0XD69A //亮灰色
#define ColorGainsboro 0XDEFB //庚斯博罗灰
#define ColorWhiteSmoke 0XF7BE //白烟色
#define ColorWhite 0XFFFF //白色
#define ColorSnow 0XFFDF //雪色
#define ColorIronGray 0X62CA //铁灰色
#define ColorSandBeige 0XE618 //沙棕
#define ColorRosyBrown 0XBC71 //玫瑰褐
#define ColorLightCoral 0XF410 //亮珊瑚色
#define ColorIndianRed 0XCAEB //印度红
#define ColorBrown 0XA145 //褐色
#define ColorFireBrick 0XB104 //耐火砖红
#define ColorMaroon 0X8000 //栗色
#define ColorDarkRed 0X8800 //暗红
#define ColorStrongRed 0XE000 //鲜红
#define ColorRed 0XF800 //红色
#define ColorPersimmon 0XFA68 //柿子橙
#define ColorMistyRose 0XFF3C //雾玫瑰色
#define ColorSalmon 0XFC0E //鲑红
#define ColorScarlet 0XF920 //腥红
#define ColorTomato 0XFB08 //蕃茄红
#define ColorDarkSalmon 0XECAF //暗鲑红
#define ColorCoral 0XFBEA //珊瑚红
#define ColorOrangeRed 0XFA20 //橙红
#define ColorLightSalmon 0XFD0F //亮鲑红
#define ColorVermilion 0XFA60 //朱红
#define ColorSienna 0XA285 //赭黄
#define ColorTropicalOrange 0XFC06 //热带橙
#define ColorCamel 0XA348 //驼色
#define ColorApricot 0XE4CC //杏黄
#define ColorCoconutBrown 0X48E0 //椰褐
#define ColorSeashell 0XFFBD //海贝色
#define ColorSaddleBrown 0X8A22 //鞍褐
#define ColorChocolate 0XD343 //巧克力色
#define ColorBurntOrange 0XCAA0 //燃橙
#define ColorSunOrange 0XFB80 //阳橙
#define ColorPeachPuff 0XFED7 //粉扑桃色
#define ColorSandBrown 0XF52C //沙褐
#define ColorBronze 0XBB86 //古铜色
#define ColorLinen 0XFF9C //亚麻色
#define ColorHoneyOrange 0XFD8C //蜜橙
#define ColorPeru 0XCC27 //秘鲁色
#define ColorSepia 0X7202 //乌贼墨色
#define ColorOcher 0XCBA4 //赭色
#define ColorBisque 0XFF38 //陶坯黄
#define ColorTangerine 0XF420 //橘色
#define ColorDarkOrange 0XFC60 //暗橙
#define ColorAntiqueWhite 0XFF5A //古董白
#define ColorTan 0XD5B1 //日晒色
#define ColorBurlyWood 0XDDD0 //硬木色
#define ColorBlanchedAlmond 0XFF59 //杏仁白
#define ColorNavajoWhite 0XFEF5 //那瓦霍白
#define ColorMarigold 0XFCC0 //万寿菊黄
#define ColorPapayaWhip 0XFF7A //蕃木瓜色
#define ColorPaleOcre 0XCD91 //灰土色
#define ColorKhaki 0X9B43 //卡其色
#define ColorMoccasin 0XFF36 //鹿皮鞋色
#define ColorOldLace 0XFFBC //旧蕾丝色
#define ColorWheat 0XF6F6 //小麦色
#define ColorPeach 0XFF36 //桃色
#define ColorOrange 0XFD20 //橙色
#define ColorFloralWhite 0XFFDE //花卉白
#define ColorGoldenrod 0XDD24 //金菊色
#define ColorDarkGoldenrod 0XBC21 //暗金菊色
#define ColorCoffee 0X49C0 //咖啡色
#define ColorJasmine 0XE60B //茉莉黄
#define ColorAmber 0XFDE0 //琥珀色
#define ColorCornsilk 0XFFDB //玉米丝色
#define ColorChromeYellow 0XE5C0 //铬黄
#define ColorGolden 0XFEA0 //金色
#define ColorLemonChiffon 0XFFD9 //柠檬绸色
#define ColorLightKhaki 0XF731 //亮卡其色
#define ColorPaleGoldenrod 0XEF55 //灰金菊色
#define ColorDarkKhaki 0XBDAD //暗卡其色
#define ColorMimosa 0XE6C6 //含羞草黄
#define ColorCream 0XFFFA //奶油色
#define ColorIvory 0XFFFE //象牙色
#define ColorBeige 0XF7BB //米黄色
#define ColorLightYellow 0XFFFC //亮黄
#define ColorLightGoldenrod 0XFFDA //亮金菊黄
#define ColorChampagneYellow 0XFFF3 //香槟黄
#define ColorMustard 0XCE69 //芥末黄
#define ColorMoonYellow 0XFFE9 //月黄
#define ColorOlive 0X8400 //橄榄色
#define ColorCanaryYellow 0XFFE0 //鲜黄
#define ColorYellow 0XFFE0 //黄色
#define ColorMossGreen 0X6BA4 //苔藓绿
#define ColorLightLime 0XCFE0 //亮柠檬绿
#define ColorOliveDrab 0X6C64 //橄榄军服绿
#define ColorYellowGreen 0X9E66 //黄绿
#define ColorDarkOlive 0X5345 //暗橄榄绿
#define ColorAppleGreen 0X8F20 //苹果绿
#define ColorGreenYellow 0XAFE5 //绿黄
#define ColorGrassGreen 0X9F29 //草绿
#define ColorLawnGreen 0X7FE0 //草坪绿
#define ColorChartreuse 0X7FE0 //查特酒绿
#define ColorFoliageGreen 0X75C7 //叶绿
#define ColorFreshLeaves 0X9FE9 //嫩绿
#define ColorBrightGreen 0X67E0 //明绿
#define ColorCobaltGreen 0X67EB //钴绿
#define ColorHoneydew 0XF7FE //蜜瓜绿
#define ColorDarkSea 0X8DF1 //暗海绿
#define ColorLightGreen 0X9772 //亮绿
#define ColorPaleGreen 0X9FD3 //灰绿
#define ColorIvyGreen 0X35E6 //常春藤绿
#define ColorForestGreen 0X2444 //森林绿
#define ColorLimeGreen 0X3666 //柠檬绿
#define ColorDarkGreen 0X0320 //暗绿
#define ColorGreen 0X0400 //绿色
#define ColorLime 0X07E0 //鲜绿色
#define ColorMalachite 0X2605 //孔雀石绿
#define ColorMint 0X14C5 //薄荷绿
#define ColorCeladonGreen 0X7731 //青瓷绿
#define ColorEmerald 0X564F //碧绿
#define ColorTurquoiseGreen 0X4F30 //绿松石绿
#define ColorVeridian 0X13A6 //铬绿
#define ColorHorizonBlue 0XA7F9 //苍色
#define ColorSeaGreen 0X2C4A //海绿
#define ColorMediumSea 0X3D8E //中海绿
#define ColorMintCream 0XF7FF //薄荷奶油色
#define ColorSpringGreen 0X07F0 //春绿
#define ColorPeacockGreen 0X050B //孔雀绿
#define ColorMediumSpring 0X07D3 //中春绿色
#define ColorMediumAquamarine 0X6675 //中碧蓝色
#define ColorAquamarine 0X7FFA //碧蓝色
#define ColorCyanBlue 0X0DF1 //青蓝
#define ColorAquaBlue 0X67FC //水蓝
#define ColorTurquoiseBlue 0X3739 //绿松石蓝
#define ColorTurquoise 0X36B9 //绿松石色
#define ColorLightSea 0X2595 //亮海绿
#define ColorMediumTurquoise 0X4E99 //中绿松石色
#define ColorLightCyan 0XE7FF //亮青
#define ColorBabyBlue 0XE7FF //浅蓝
#define ColorPaleTurquoise 0XAF7D //灰绿松石色
#define ColorDarkAsh 0X2A69 //暗岩灰
#define ColorTeal 0X0410 //凫绿
#define ColorDarkCyan 0X0451 //暗青
#define ColorCyan 0X07FF //青色
#define ColorAqua 0XAEFC //水色
#define ColorDarkTurquoise 0X067A //暗绿松石色
#define ColorCadetBlue 0X5CF4 //军服蓝
#define ColorPeacockBlue 0X0411 //孔雀蓝
#define ColorPowderBlue 0XB71C //婴儿粉蓝
#define ColorStrongBlue 0X030E //浓蓝
#define ColorLightBlue 0XAEDC //亮蓝
#define ColorPaleBlue 0X7DD9 //灰蓝
#define ColorSaxeBlue 0X44D6 //萨克斯蓝
#define ColorDeepSky 0X05FF //深天蓝
#define ColorSkyBlue 0X867D //天蓝
#define ColorLightSky 0X867F //亮天蓝
#define ColorMarineBlue 0X022F //水手蓝
#define ColorPrussianblue 0X018A //普鲁士蓝
#define ColorSteelBlue 0X4416 //钢青色
#define ColorAliceBlue 0XF7DF //爱丽丝蓝
#define ColorSlateGray 0X7412 //岩灰
#define ColorLightSlate 0X7453 //亮岩灰
#define ColorDodgerBlue 0X1C9F //道奇蓝
#define ColorMineralBlue 0X0273 //矿蓝
#define ColorAzure 0X03FF //湛蓝
#define ColorWedgwoodBlue 0X5437 //韦奇伍德瓷蓝
#define ColorLightSteel 0XB63B //亮钢蓝
#define ColorCobaltBlue 0X0235 //钴蓝
#define ColorPaleDenim 0X5C38 //灰丁宁蓝
#define ColorCornflowerBlue 0X64BD //矢车菊蓝
#define ColorSalviaBlue 0X4C1C //鼠尾草蓝
#define ColorDarkPowder 0X0193 //暗婴儿粉蓝
#define ColorSapphire 0X092C //蓝宝石色
#define ColorInternationalKlein 0X0174 //国际奇连蓝
#define ColorCeruleanblue 0X2A97 //蔚蓝
#define ColorRoyalBlue 0X435C //品蓝
#define ColorDarkMineral 0X21AF //暗矿蓝
#define ColorUltramarine 0X019F //极浓海蓝
#define ColorLapisLazuli 0X099F //天青石蓝
#define ColorGhostWhite 0XFFDF //幽灵白
#define ColorLavender 0XE73F //薰衣草紫
#define ColorPeriwinkle 0XCE7F //长春花色
#define ColorMidnightBlue 0X18CE //午夜蓝
#define ColorNavyBlue 0X0010 //藏青
#define ColorDarkBlue 0X0011 //暗蓝
#define ColorMediumBlue 0X0019 //中蓝
#define ColorBlue 0X001F //蓝色
#define ColorWisteria 0X5A9C //紫藤色
#define ColorDarkSlate 0X49F1 //暗岩蓝
#define ColorSlateBlue 0X6AD9 //岩蓝
#define ColorMediumSlate 0X7B5D //中岩蓝
#define ColorMauve 0X621F //木槿紫
#define ColorLilac 0XB4DF //紫丁香色
#define ColorMediumPurple 0X939B //中紫红
#define ColorAmethyst 0X6199 //紫水晶色
#define ColorGrayishPurple 0X83B4 //浅灰紫红
#define ColorHeliotrope 0X5017 //缬草紫
#define ColorMineralViolet 0XBD19 //矿紫
#define ColorBlueViolet 0X895C //蓝紫
#define ColorViolet 0X881F //紫罗兰色
#define ColorIndigo 0X4810 //靛色
#define ColorDarkOrchid 0X9999 //暗兰紫
#define ColorDarkViolet 0X901A //暗紫
#define ColorPansy 0X7014 //三色堇紫
#define ColorMallow 0XDA7F //锦葵紫
#define ColorOperaMauve 0XE41F //优品紫红
#define ColorMediumOrchid 0XBABA //中兰紫
#define ColorPailLilac 0XE67C //淡紫丁香色
#define ColorThistle 0XDDFB //蓟紫
#define ColorClematis 0XCD19 //铁线莲紫
#define ColorPlum 0XDD1B //梅红色
#define ColorLightViolet 0XEC1D //亮紫
#define ColorPurple 0X8010 //紫色
#define ColorDarkMagenta 0X8811 //暗洋红
#define ColorMagenta 0XF81F //洋红
#define ColorFuchsia 0XF014 //品红
#define ColorOrchid 0XDB9A //兰紫
#define ColorPearlPink 0XFD9C //浅珍珠红
#define ColorOldRose 0XBAB3 //陈玫红
#define ColorRosePink 0XFB39 //浅玫瑰红
#define ColorMediumViolet 0XC0B0 //中青紫红
#define ColorMagentaRose 0XF874 //洋玫瑰红
#define ColorRose 0XF80F //玫瑰红
#define ColorRuby 0XC810 //红宝石色
#define ColorCamellia 0XE1D2 //山茶红
#define ColorDeepPink 0XF8B2 //深粉红
#define ColorFlamingo 0XE457 //火鹤红
#define ColorCoralPink 0XFC17 //浅珊瑚红
#define ColorHotPink 0XFB56 //暖粉红
#define ColorBurgundy 0X4004 //勃艮第酒红
#define ColorSpinelRed 0XFB96 //尖晶石红
#define ColorCarmine 0XE00B //胭脂红
#define ColorBabyPink 0XFEDC //浅粉红
#define ColorCardinalRed 0X9806 //枢机红
#define ColorLavenderBlush 0XFF9E //薰衣草紫红
#define ColorPaleViolet 0XDB92 //灰紫红
#define ColorCerise 0XD98C //樱桃红
#define ColorSalmonPink 0XFC13 //浅鲑红
#define ColorCrimson 0XD8A7 //绯红
#define ColorPink 0XFE19 //粉红
#define ColorLightPink 0XFDB8 //亮粉红
#define ColorShellPink 0XFD97 //壳黄红
#define ColorAlizarinCrimson 0XE126 //茜红
main.c
现象

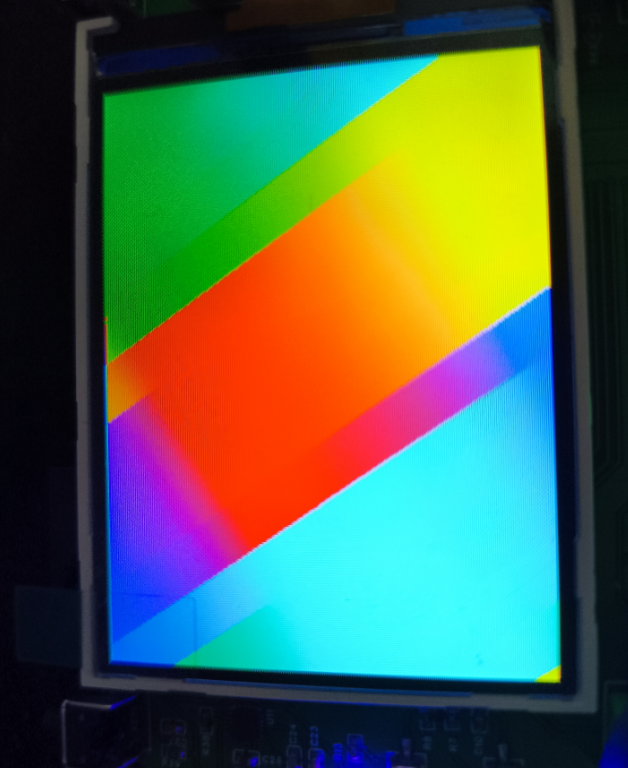

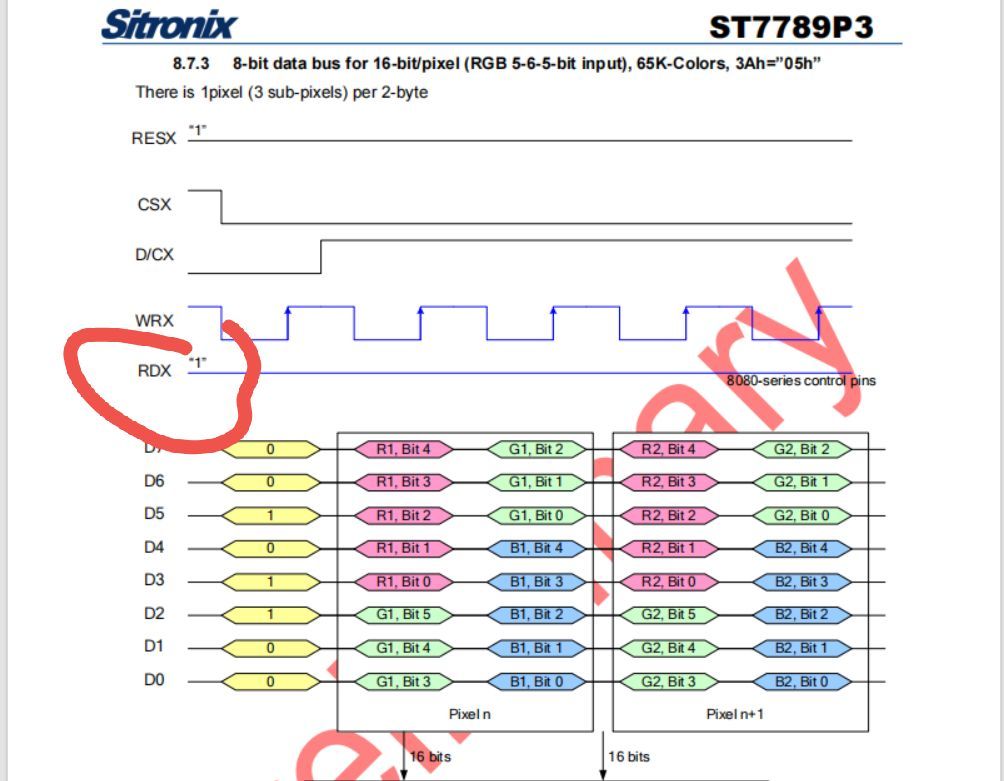

对于一些人使用esp-idf esp_lcd_panel库函数的时候出现花屏，是这个有个RD引脚没有被初始化，而手续上要想发送参数就需要将RD置1，所以在代码中需要注意初始化RD并且置1。
智能硬件社区聚焦AI智能硬件技术生态，汇聚嵌入式AI、物联网硬件开发者，打造交流分享平台，同步全国赛事资讯、开展 OPC 核心人才招募，助力技术落地与开发者成长。
更多推荐
2
0- 0
已为社区贡献3条内容
所有评论(0)
