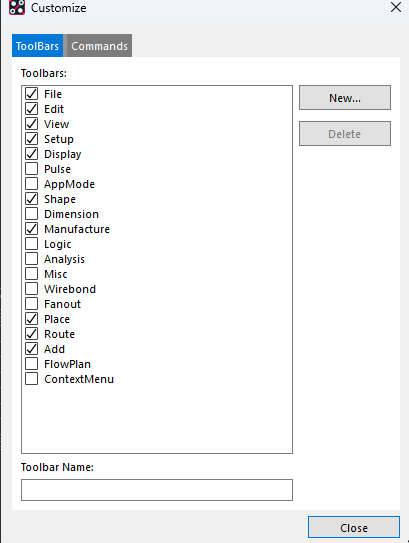

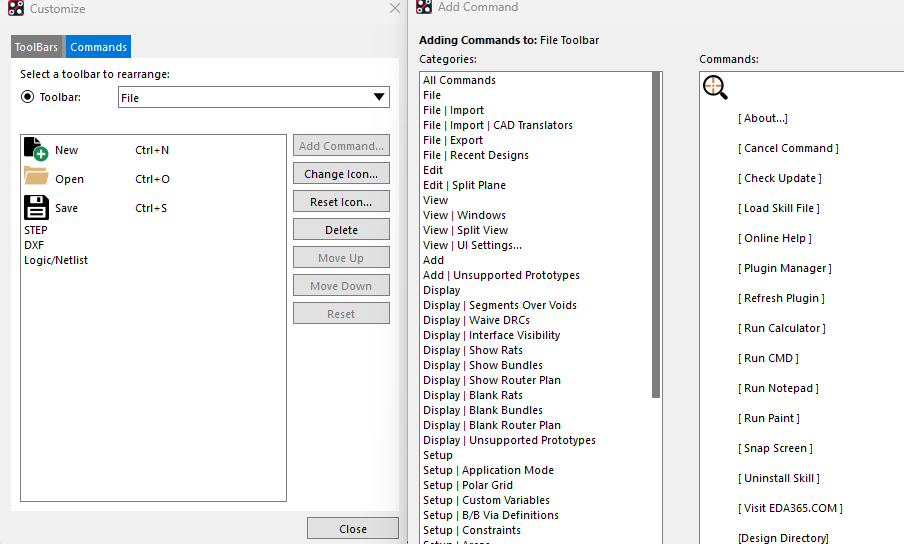

1.设置菜单栏

把自己常用的的放在菜单栏，方便使用

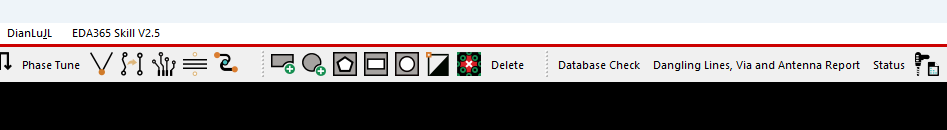

效果如下图

2.导入导出菜单栏设置

位置：view->UI settings

前面两个是重置UI
第四个在这里保存好设置，避免菜单栏变了找不回来

第三个可以应用之前保存的设置或导出，如要导入新的点下方的+就可以了

3.增加菜单栏

路径
SPB_17.4\share\pcb\text\cuimenus
备份一份allegro.men文件，以防出错

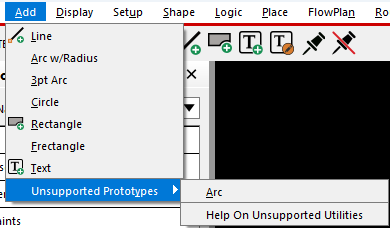

举个例子

   POPUP "&Add"
    BEGIN
        MENUITEM "&Line",                       "add line"
        MENUITEM "&Arc w/Radius",               "add rarc"
        MENUITEM "&3pt Arc",                    "add arc"
        MENUITEM "&Circle",                     "add circle"
        MENUITEM "&Rectangle",                  "add rect"
        MENUITEM "&Frectangle",                 "add frect"
        MENUITEM "&Text",                       "add text"
#ifndef disable_unsupported_menus
        MENUITEM SEPARATOR
        POPUP "Unsupported Protot&ypes"
        BEGIN
            MENUITEM "&Arc",                    "add farc"
            MENUITEM SEPARATOR
            MENUITEM "Help on Unsupported Utilities", "helpcmd -unsupported"
        END

参考上面格式写一下skill，也可以把常用的命令整合到一起

 POPUP "&skill"
    BEGIN
        MENUITEM "&Cut clines",            "clinecut"
        MENUITEM "cut45line",              "scalpel"
        MENUITEM "&exp_placement ",        "exp_placement"
        MENUITEM "&imp_placement ",        "imp_placement"
        MENUITEM "cutshape ",	    		 "cutshape"
        MENUITEM "silkio",                 "silkio"
  END
