1.常规设置

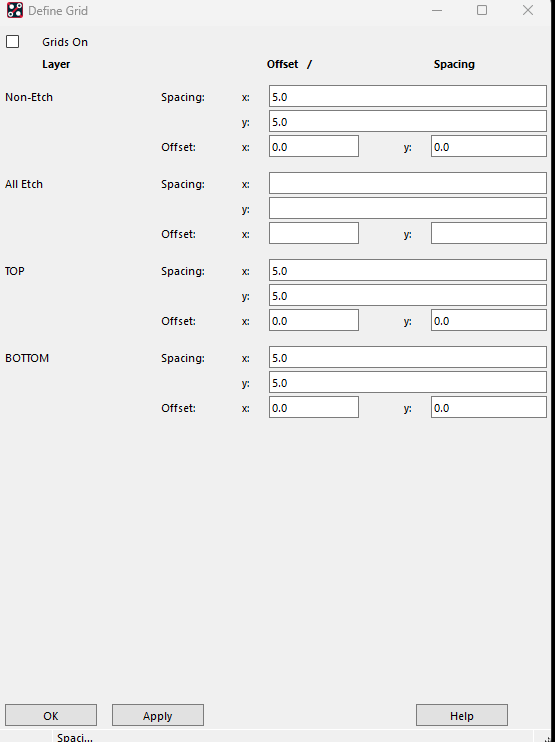

• setup->girds…

2.env设置

先录制格点 file->script

• 先命名，未设置路径会存在allegro文件下面
• 点击Record（这个对话框消失）， 设置grid，
• File->Scrip点击Stop

删除多余操作

# Allegro script
#	file: C:/Users/g5.scr
#	start time: Fri Jun 20 14:54:31 2025
#	Version: 17.4-2019 S039 (4153571) Windows SPB 64-bit Edition
version 17.4

setwindow pcb
define grid
setwindow form.grid
FORM grid non_etch non_etch_x_grids 5
FORM grid non_etch non_etch_y_grids 5
FORM grid all_etch all_etch_x_grids 5
FORM grid all_etch all_etch_y_grids 5
FORM grid done

#	stop time: Fri Jun 20 14:54:48 2025

将文件放到script路径下面
在env文件里写上（快捷键依实际修改）
funckey ~5 replay g5
如需其他格点，可以修改参数重命名

3.skil快捷键

• setgrid.il
  将load(“setgrid”)写在allegro.ilinit
  使用方法：g 空格 数字

axlCmdRegister("g"  'setgrid  ?cmdType "interactive")

procedure(setgrid(@optional (grid ""))
	if(grid != ""
		then
			grid = atof(grid)
			if(grid
				then
					set1(grid)
				else
					axlUIWPrint (nil "Sorry,You enter the wrong setgrid")
				);end if
		else
		axlUIWPrint(nil "Please Input argument...")
		)
);end procedure
procedure(set1(ingrid)
	grids = axlDBGridGet(nil)
	foreach(grd cdr(grids)
	grd = axlDBGridGet(grd)
	grd->name = 'all
	grd->xGrids = ingrid
	grd->yGrids = ingrid
	axlDBGridSet(grd) )
)

可自行下载或者copy上文（摘自eda365网站）

来源：https://bbs.eda365.com/forum.php?mod=viewthread&tid=362060&highlight=%B8%F1%B5%E3

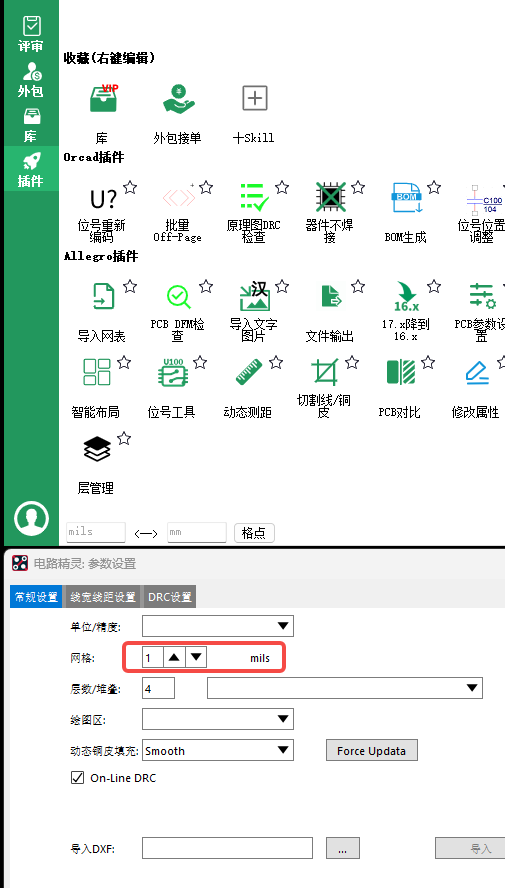

4.电路精灵

5.其他skill

• 下面是类似的skill，可自行探索，地址如下:
  https://www.elecfans.com/d/6631443.html
