vi config-sample.yaml

• 1.

kind: Cluster
metadata:
  name: sample
spec:
  hosts:
  - {name: node1, address: 192.168.0.45, internalAddress: 192.168.0.45, user: root, password: "123456",arch: "arm64"}
  roleGroups:
    etcd:
    - node1
    control-plane:
    - node1
    worker:
    - node1
    registry:
    - node1
  controlPlaneEndpoint:
    ## Internal loadbalancer for apiservers
    # internalLoadbalancer: haproxy

    domain: lb.kubesphere.local
    address: ""
    port: 6443
  kubernetes:
    version: v1.30.12
    clusterName: cluster.local
    autoRenewCerts: true
    containerManager: docker
  etcd:
    type: kubekey
  network:
    plugin: flannel
    kubePodsCIDR: 10.233.64.0/18
    kubeServiceCIDR: 10.233.0.0/18
    ## multus support. https://github.com/k8snetworkplumbingwg/multus-cni
    multusCNI:
      enabled: false
  registry:
    type: harbor
    registryMirrors: []
    insecureRegistries: []
    privateRegistry: "dockerhub.kubekey.local"
    namespaceOverride: "kubesphereio"
    auths: # if docker add by `docker login`, if containerd append to `/etc/containerd/config.toml`
      "dockerhub.kubekey.local":
        username: "admin"

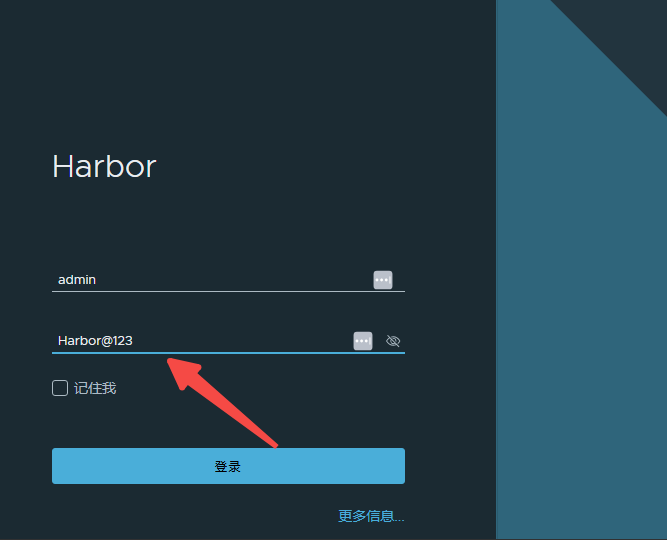

        password: Harbor@123 # 此处可自定义，kk3.1.8新特性
        skipTLSVerify: true # Allow contacting registries over HTTPS with failed TLS verification.
        plainHTTP: false # Allow contacting registries over HTTP.
        certsPath: "/etc/docker/certs.d/dockerhub.kubekey.local"
  addons: []

---

• 1.
• 2.
• 3.
• 4.
• 5.
• 6.
• 7.
• 8.
• 9.
• 10.
• 11.
• 12.
• 13.
• 14.
• 15.
• 16.
• 17.
• 18.
• 19.
• 20.
• 21.
• 22.
• 23.
• 24.
• 25.
• 26.
• 27.
• 28.
• 29.
• 30.
• 31.
• 32.
• 33.
• 34.
• 35.
• 36.
• 37.
• 38.
• 39.
• 40.
• 41.
• 42.
• 43.
• 44.
• 45.
• 46.
• 47.
• 48.
• 49.
• 50.
• 51.
• 52.

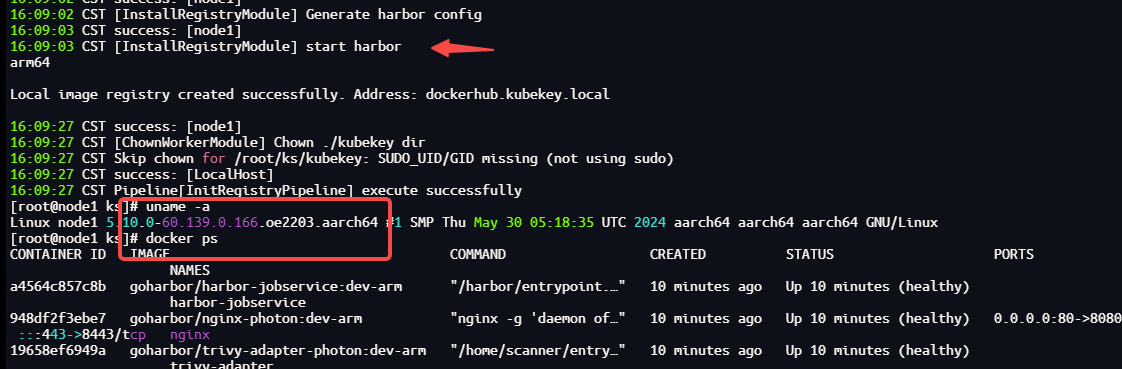

./kt init registry -f config-sample.yaml -a artifact-arm-k8s13012-ks413.tar.gz

• 1.

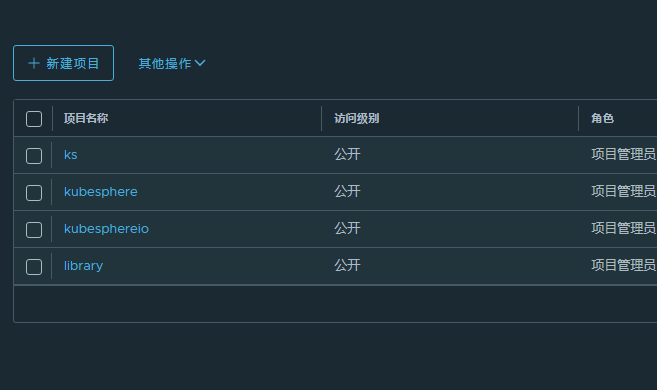

vi create_project_harbor.sh

• 1.

#!/usr/bin/env bash

url="https://dockerhub.kubekey.local"  # 或修改为实际镜像仓库地址
user="admin"
passwd="Harbor@123"

harbor_projects=(
        ks
        kubesphere
        kubesphereio
        gjing1st
)

for project in "${harbor_projects[@]}"; do
    echo "creating $project"
    curl -u "${user}:${passwd}" -X POST -H "Content-Type: application/json" "${url}/api/v2.0/projects" -d "{ \"project_name\": \"${project}\", \"public\": true}" -k  # 注意在 curl 命令末尾加上 -k
done

• 1.
• 2.
• 3.
• 4.
• 5.
• 6.
• 7.
• 8.
• 9.
• 10.
• 11.
• 12.
• 13.
• 14.
• 15.
• 16.
• 17.

chmod +x create_project_harbor.sh

./create_project_harbor.sh

• 1.
• 2.
• 3.

tar zxf ks3.4.1-images.tar.gz
cd ks3.4.1-images && ./load-push.sh

• 1.
• 2.

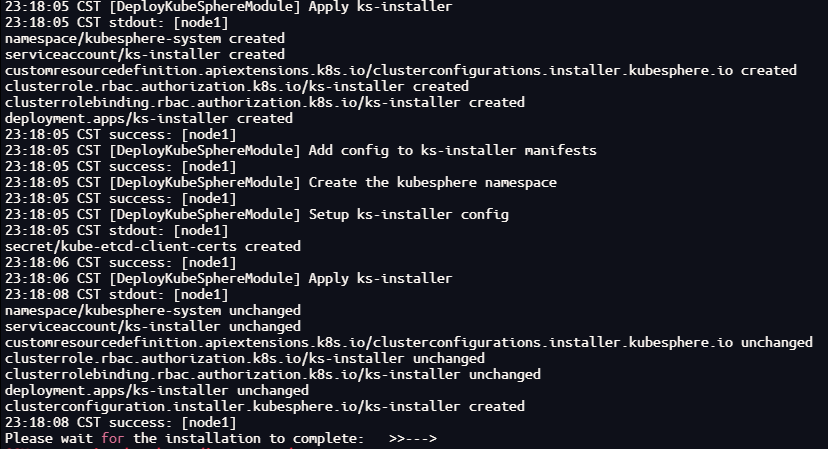

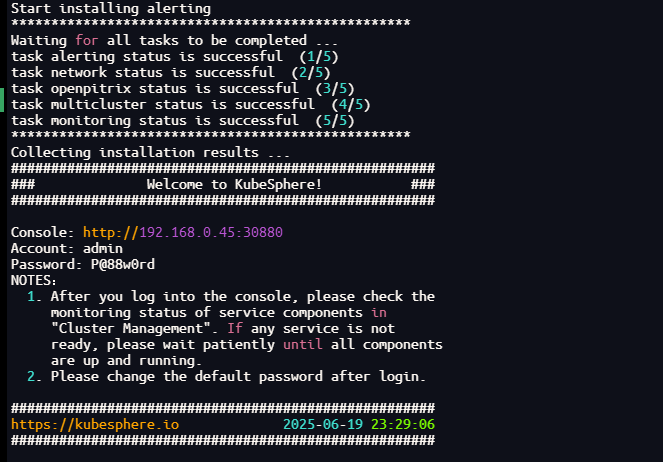

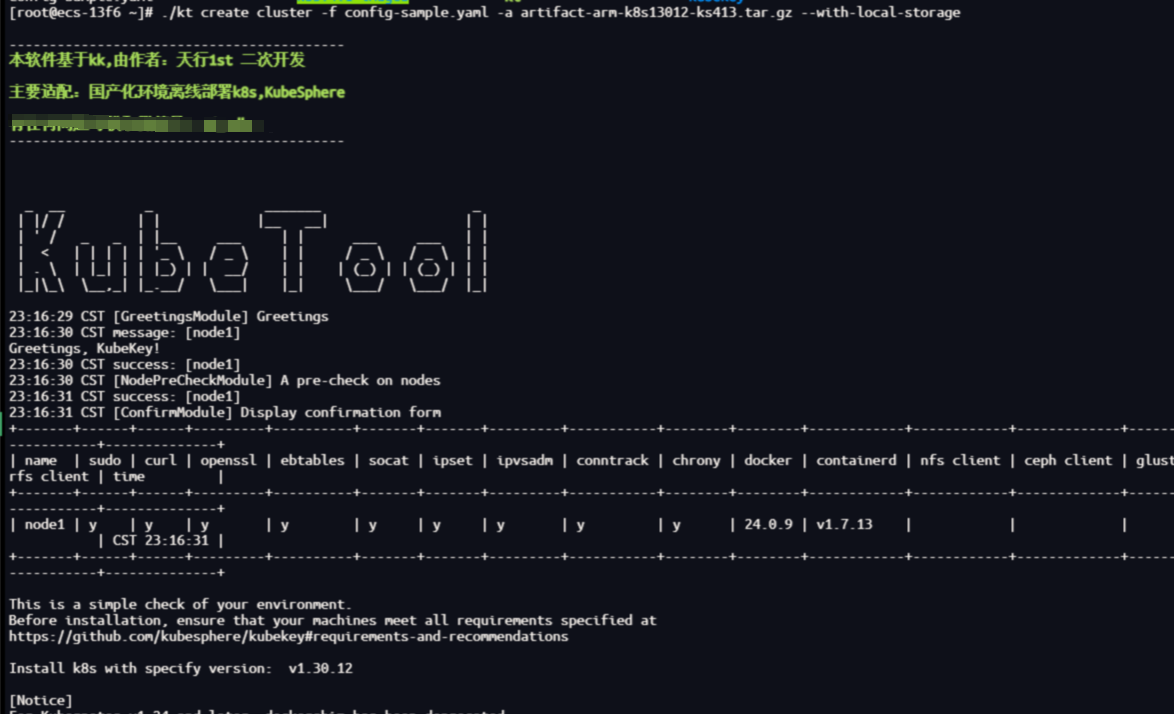

./kt create cluster -f config-sample.yaml -a artifact-arm-k8s13012-ks413.tar.gz  --with-local-storage

• 1.
