一、输入捕获原理

1.测量脉宽实现过程：

在这里插入图片描述

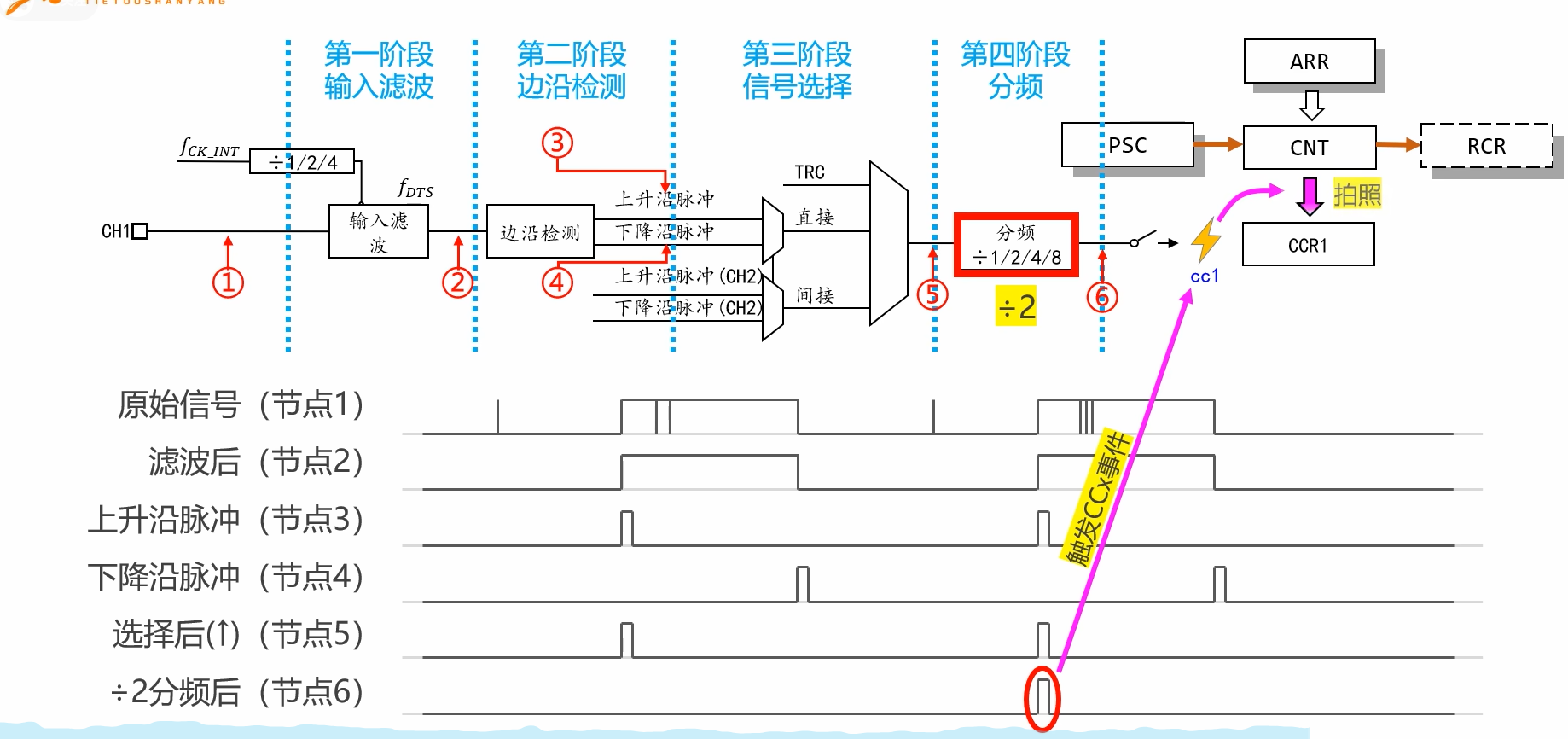

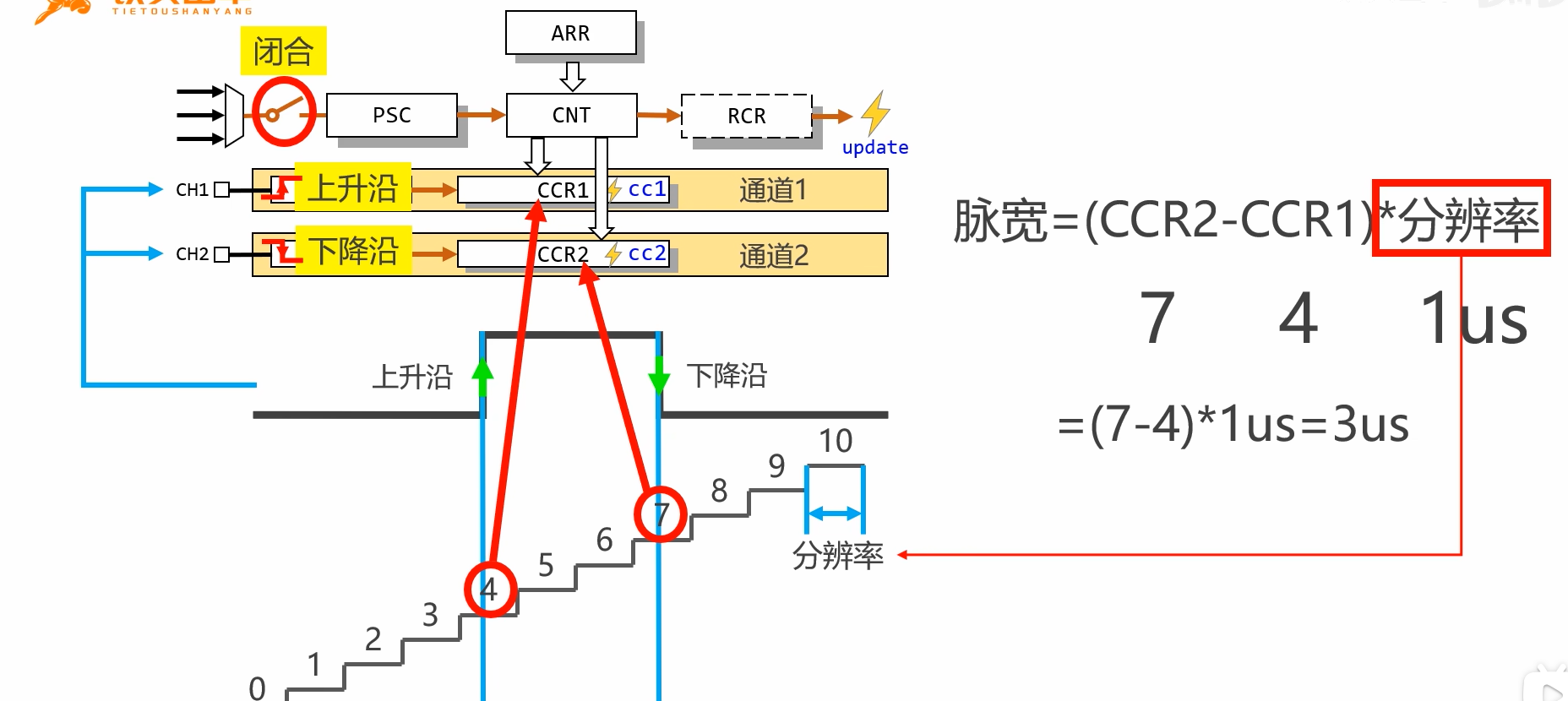

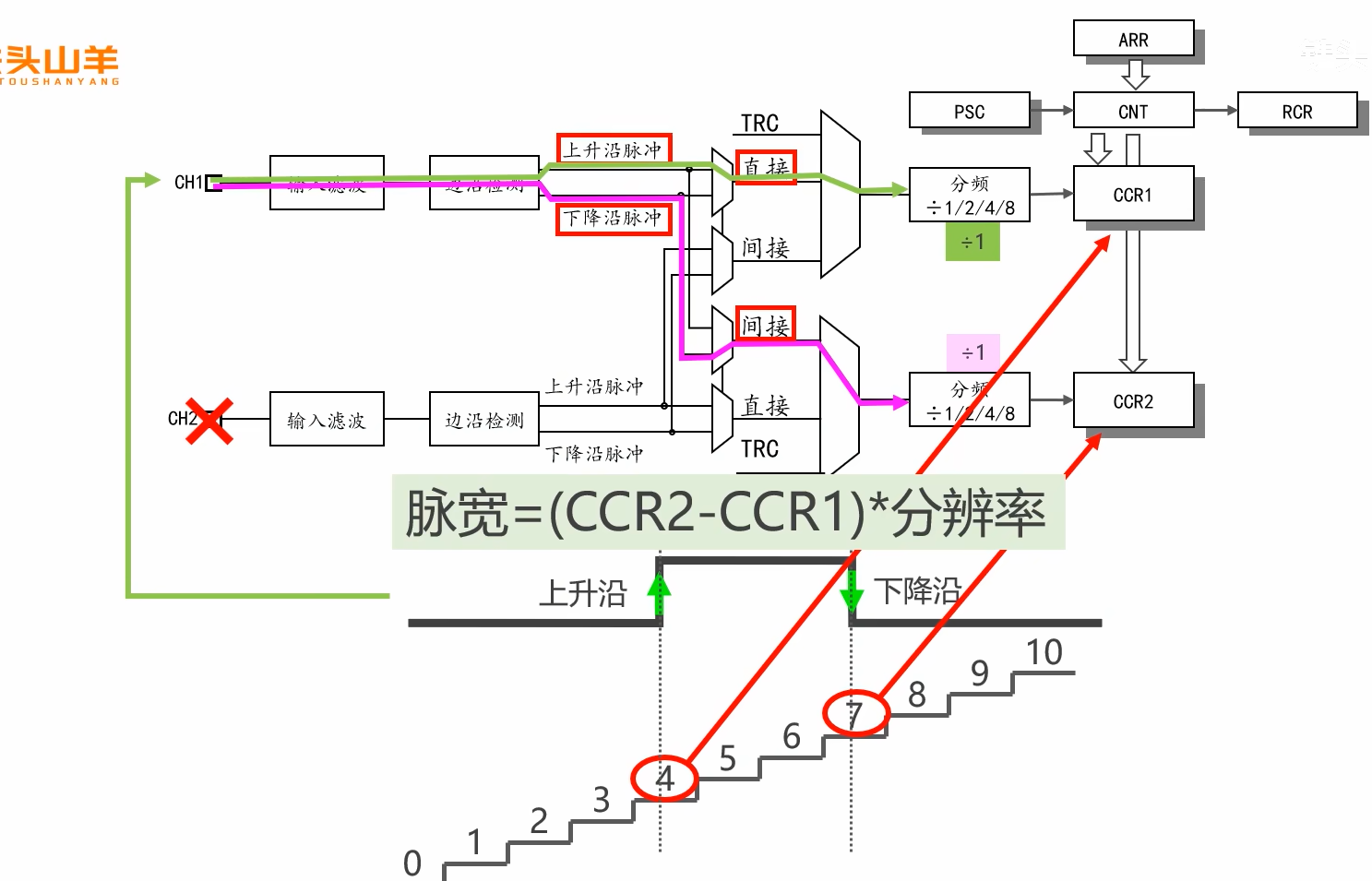

脉宽测量的实现：

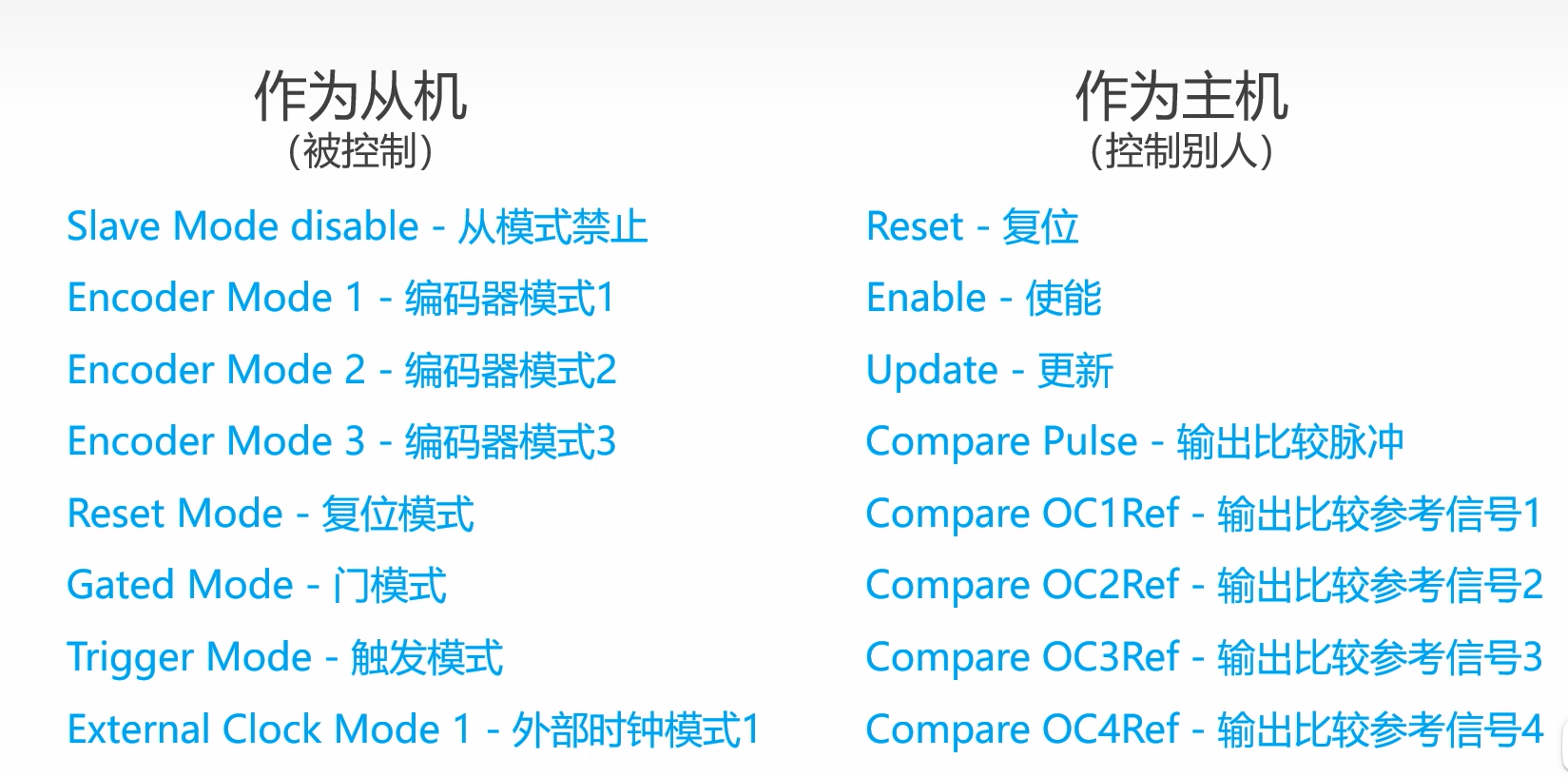

2.从模式控制器

在这里插入图片描述

（1）作为从机

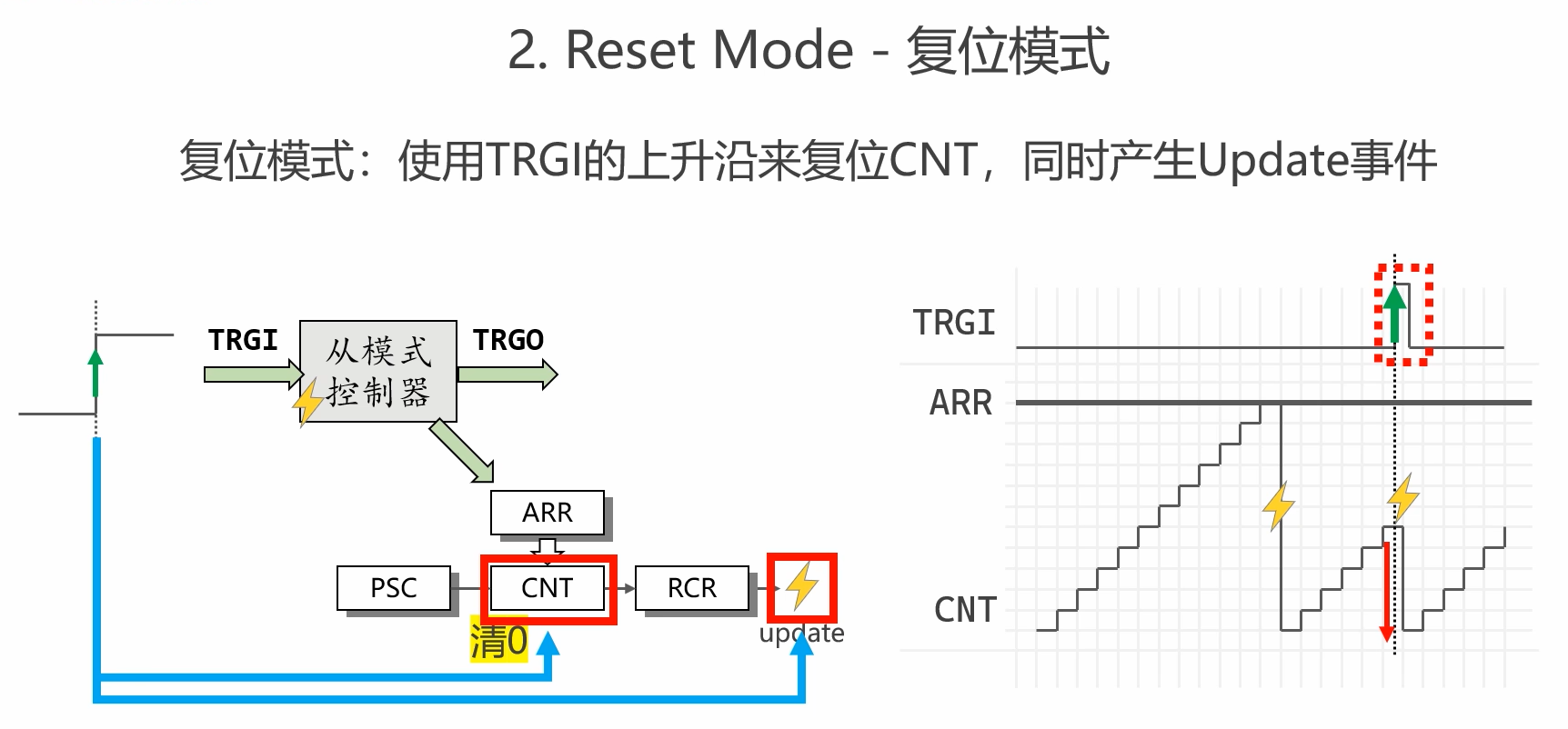

复位模式：在这里插入图片描述

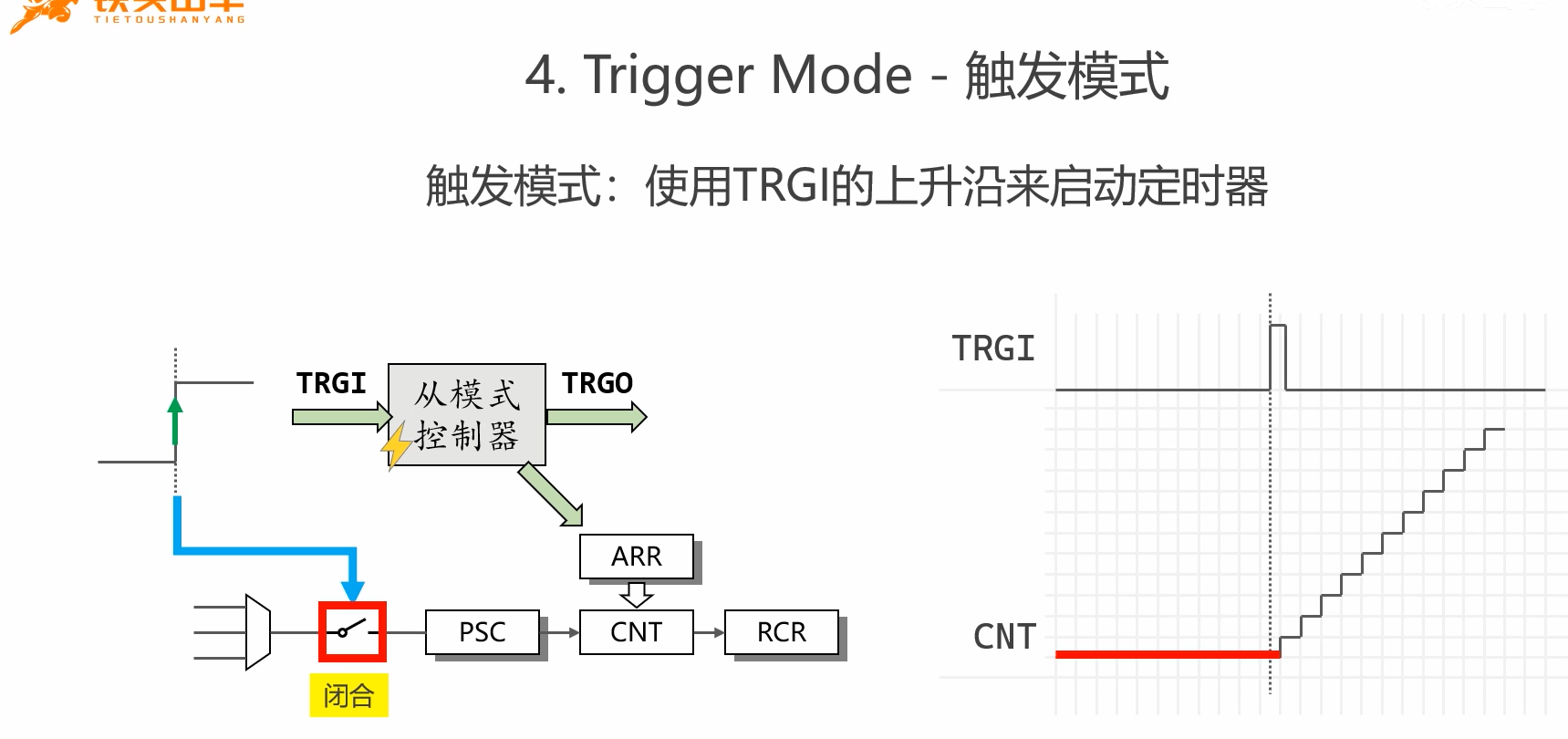

触发模式：

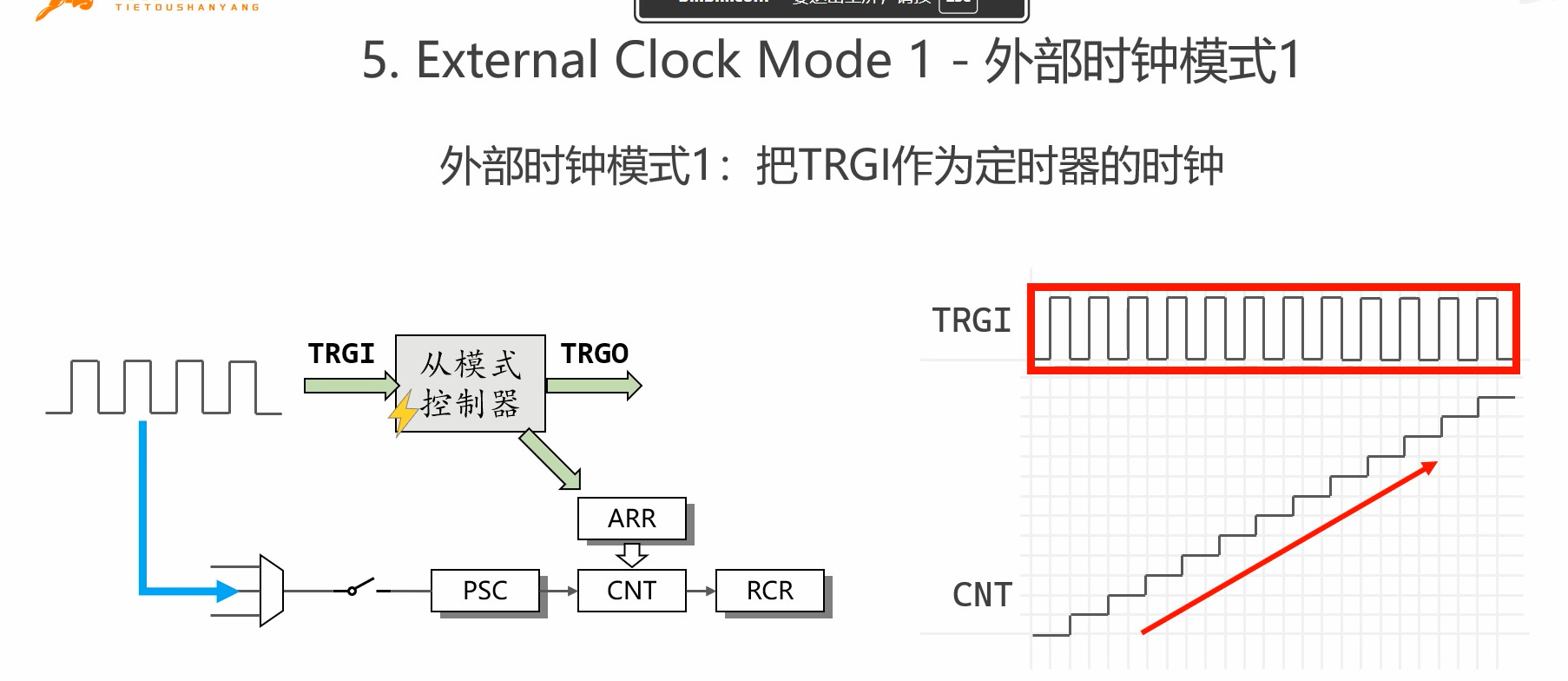

外部时钟模式：（用来编码器计次）

（2）作为主机

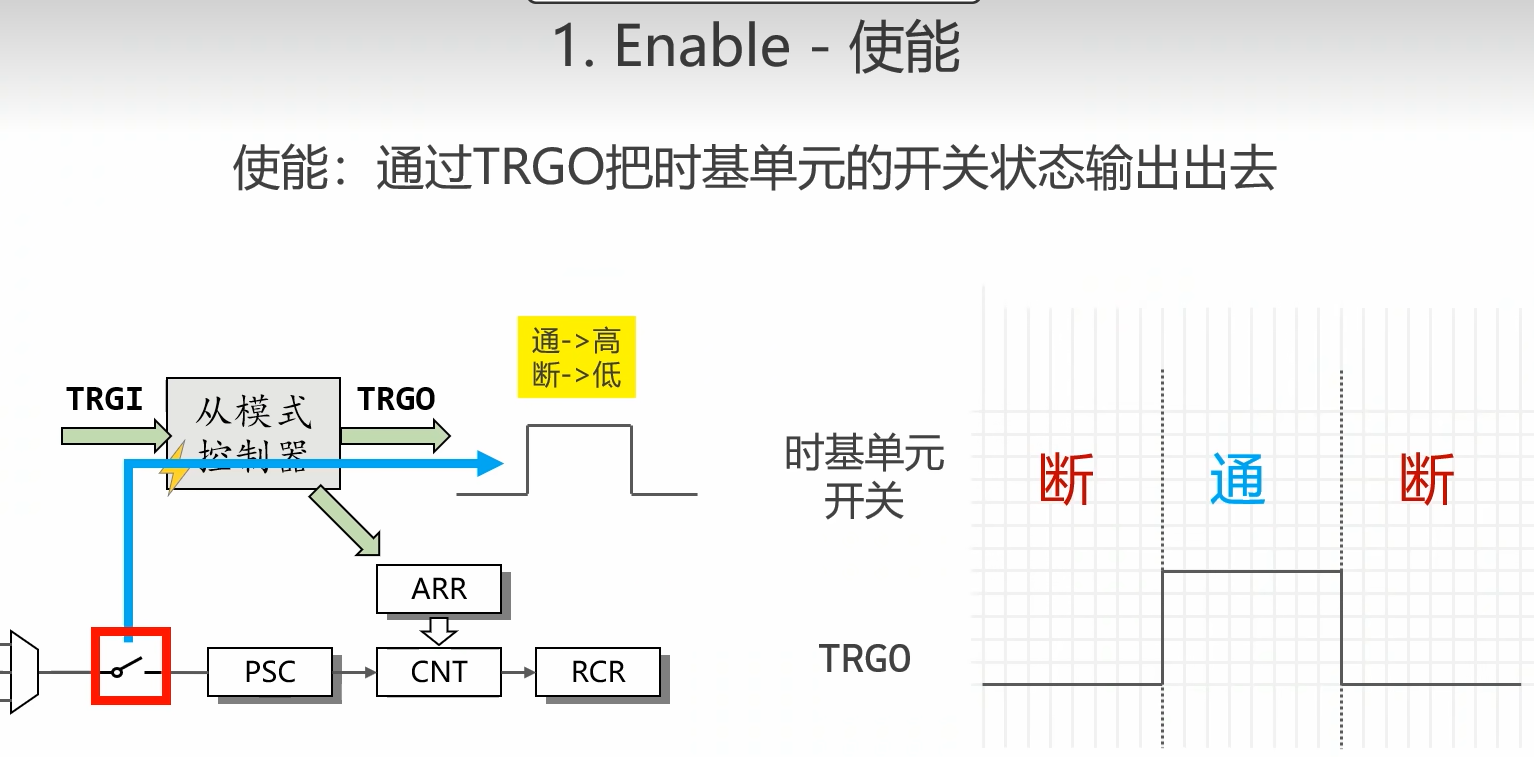

使能：
在这里插入图片描述

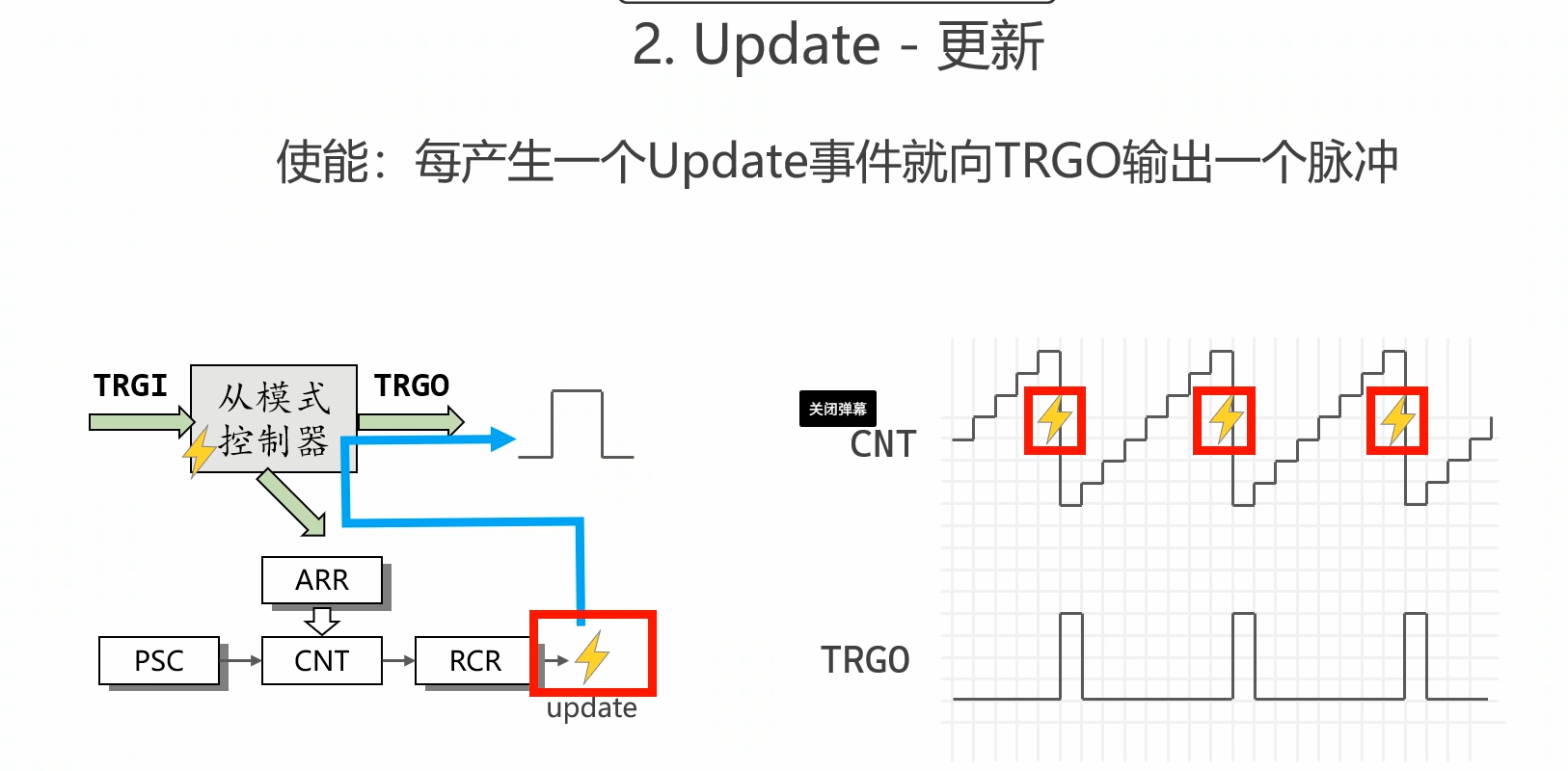

更新：

二、测量占空比实验

TIM3产生PWM信号，TIM1进行测量
产生配置：
周期：8000000/（7+1）*（999+1）=1000HZ=1MS
在这里插入图片描述

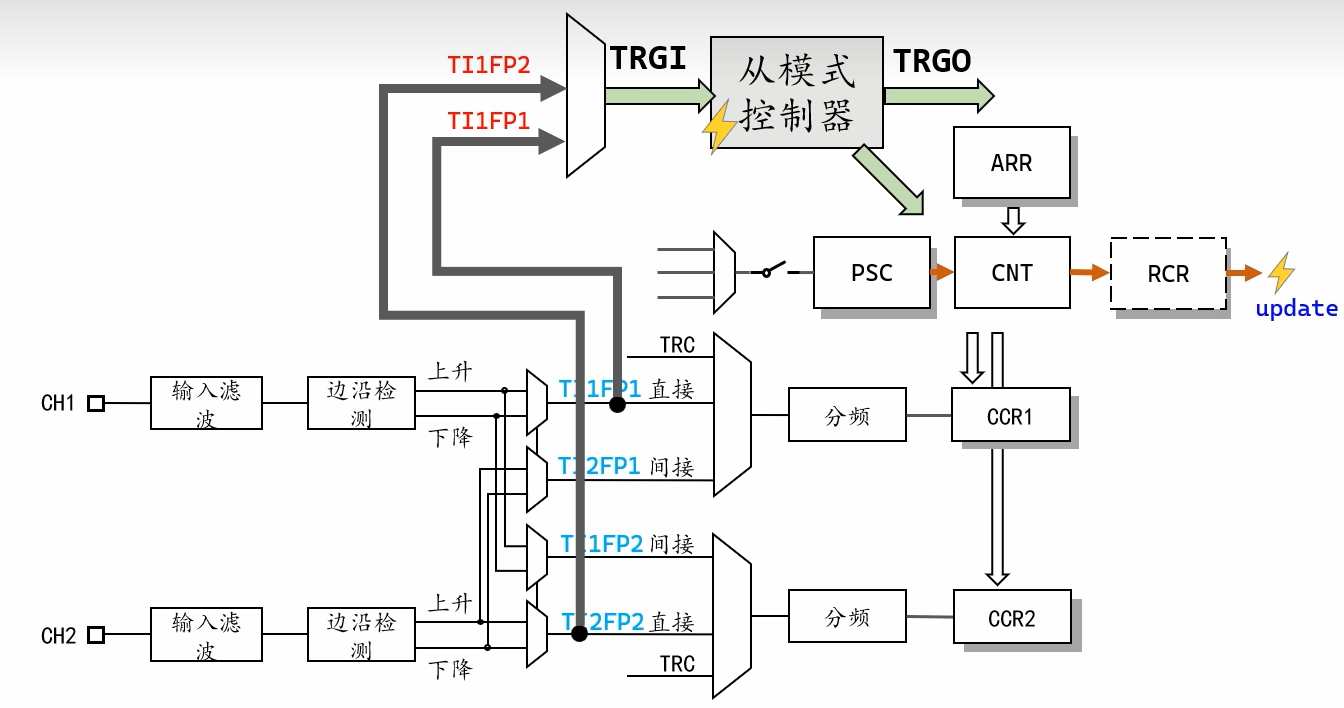

主从控制器的输入框图：

1.原理分析

在这里插入图片描述
上图分析：

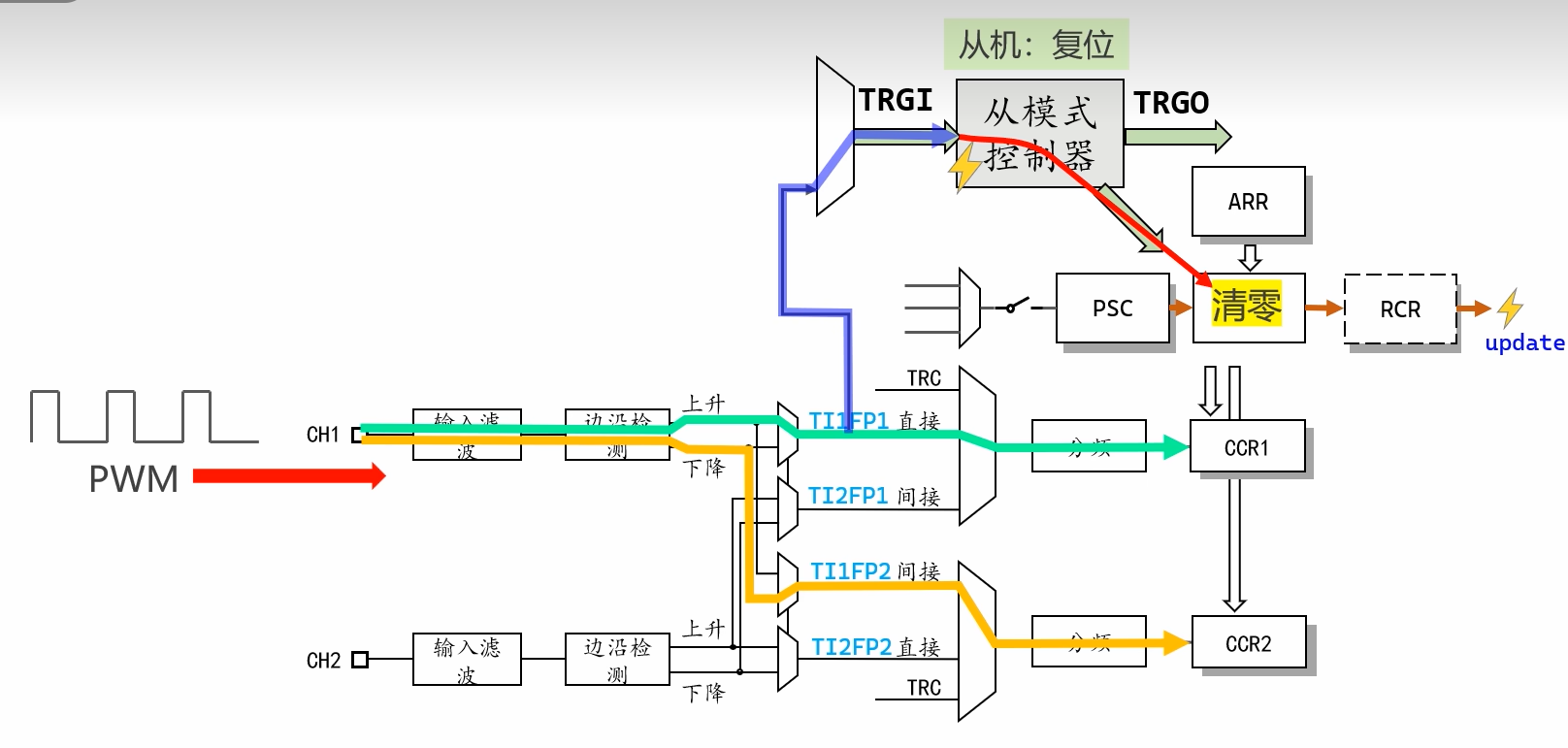

对定时器4输出的PWM波，对TIM1的通道1配置为输入上升沿捕获TI1FP1直接;对通道2配置为输入下降沿捕获TI1FP2间接，TI1FP1为TRGI的触发源，配置为复位即给计数器清零

测量占空比原理：

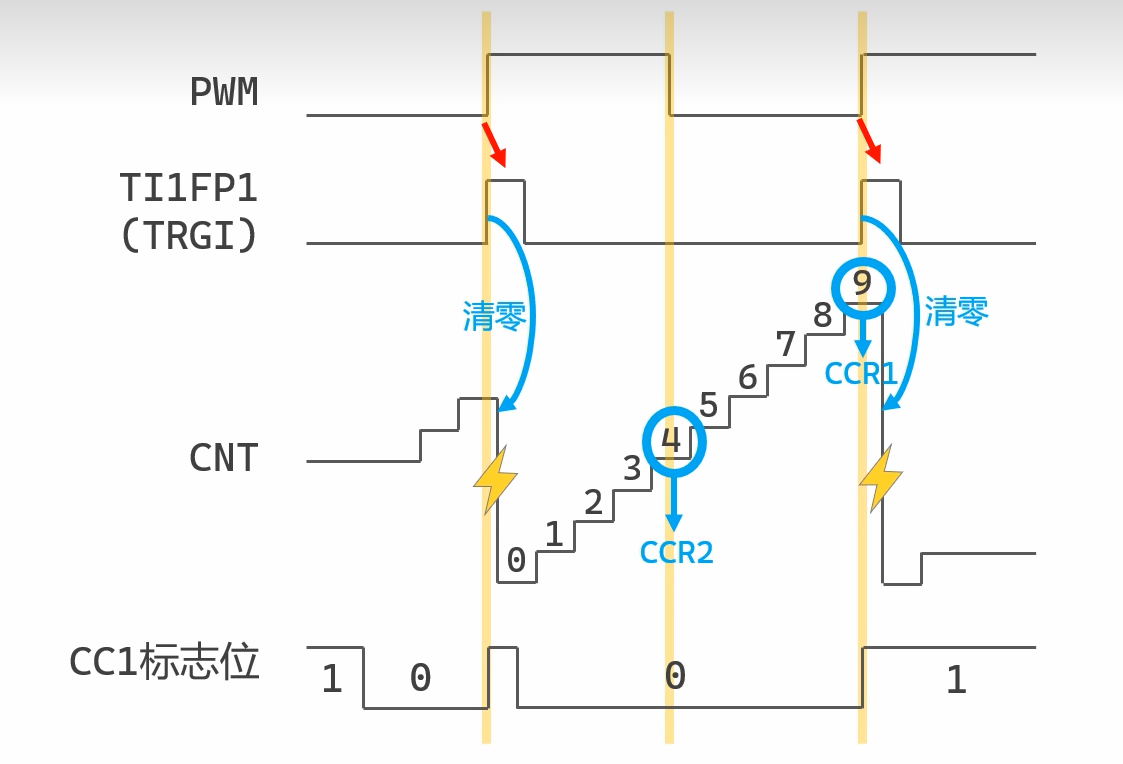

由上图，TI1FP1为触发源，当PWM上升沿，清零CNT，CNT1和CNT2两个通道的定时器开始计数，当PWM下降沿时，CNT2的计数值CCR2的计数值为PWM的高电平时间，而至下一个PWM周期上升沿，CNT1的计数值CCR2的值为PWM的一个周期，同时触发TI1FP1从模式清零CNT，得到占空比Duty = 高电平时间 / 周期 = CCR2 / CNT1
