介绍

这款基于 MAX98357 I2S D 类放大器模块的 I2S 数字放大器可与具有 I2S 音频输出的微控制器（如 ESP32）配合使用，可应用于物联网节点、智能家居设备、蓝牙音频播放器等项目。
该模块支持3.3V-5V电源。当由 2.5V 和 5Ω 扬声器驱动时，它可以输出超过 4W 的功率。此外，它还允许用户通过改变标清端口上的电阻来设置不同的模式（关闭、左声道、右声道和混合）。产品默认为混合模式。
这款 I2S 放大器体积小，带有印记孔，可直接插入或安装在 PCB 和面包板上。此外，它采用PH2.0设计，并带有用于连接扬声器的印章孔，使用灵活方便。

特征

MAX98357 I2S 数字 D 类放大器，功率 >2.5W
3.3V~5V电压电源
可切换声道
可调增益
印章孔设计，支持SMT和DIP
连接扬声器的两种方式：PH2.0 和印章孔

应用

蓝牙音频播放器
物联网节点音频播放器
智能家居语音交互
机器人设备音频播放器

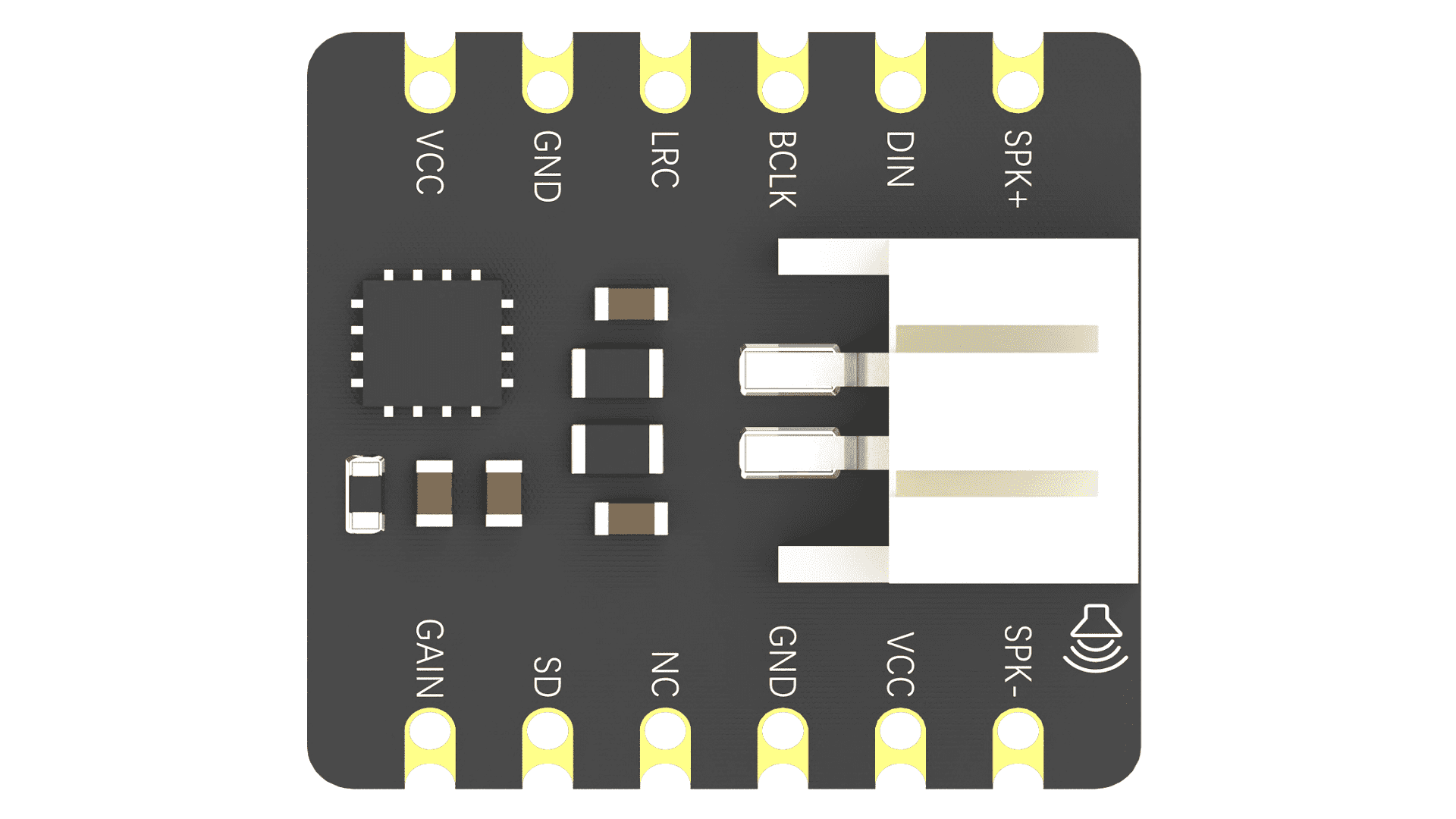

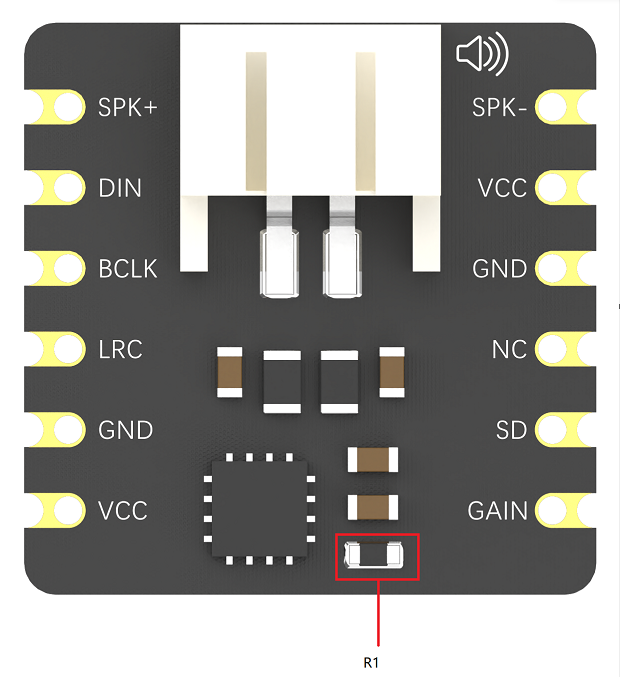

董事会概览

针	功能	备注
SPK-	扬声器负片	4Ω/8Ω <3W
VCC的	电源输入	直流 3.3V-5V
接地	地
数控	未连接引脚
标清	关闭 amp升压器，调整声道	参考 4.1.2（SD 模式说明）
获得	调整放大器增益	默认为 9dB/参考 4.1.1 增益控制说明
SPK+	扬声器阳性	4Ω/8Ω <3W
喧嚣	数字输入信号
BCLK的	位时钟输入	位时钟输入
法改会	帧时钟	I2S和LJ模式的左/右时钟。TDM 模式下的同步时钟

特殊引脚功能

4.1.1 增益控制（Gain）

当GAIN和GND之间连接100K电阻时，增益为15dB
当GAIN直接连接到GND时，增益为12dB
当没有任何东西连接到 GAIN 时，增益为 9dB（默认状态）
当GAIN直接连接到VCC时，增益为6dB
当增益和VCC之间连接100k电阻时，增益为3dB

标清模式

当SD连接到GND时关闭放大器（电压低于0.16V）
输出混音通道（默认）当SD上的电压在0.16V至0.77V之间时，R1电阻为680k。
当SD上的电压在0.77V至1.4V之间，R1电阻为330K时，输出右通道。
当SD上的电压超过1.4V，R1电阻为100K时输出左声道

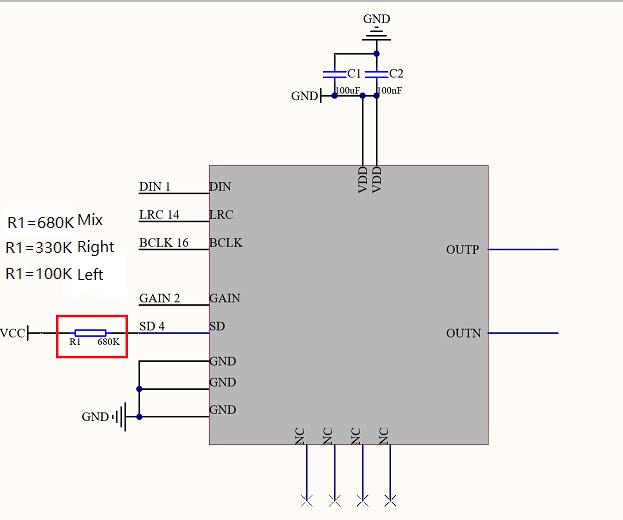

通道设置

规范

模块参数

MCU：MAX98357A
工作电压：DC 3.3V~5V
输出功率：8Ω 1.8W / 4Ω 2.5W（12db时）
输出通道：单通道
通讯接口：I2S接口
工作温度：-40°C - +80°C
储存温度：-40°C - +80°C
尺寸（不含包装）：18mm × 18mm/ 0.059 × 0.059

芯片音频相关参数

VDD = 5V，VGND = 0V，GAIN_SLOT = VDD。BCLK = 3.072MHz，LRCLK = 48kHz
除非另有说明，否则 OUTP 和 OUTN 之间连接的扬声器负载（ZSPK），ZSPK = J，TA = TMIN 到 TMAX。典型值为 TA = +25NC。
采样率：8kHz~96kHz
总谐失真：
- 0.02% （f = 1kHz，POUT = 1W，TA = +25NC，ZSPK = 4I + 33FH，TQFN）
- 0.013% （f = 1kHz，POUT = 0.5W，TA = +25NC，ZSPK = 8I + 68FH）
动态范围：105DB（A 加权，VRMS = 2.54V，24 位或 32 位数据）
输出噪声：25FVRMS（A加权，24位或32位数据（注4））
增益（相对于 2.1dBV 的参考电平）：
- GAIN_SLOT = GND至100kΩ：最小值14.4dB，典型值15dB，最大值15.6dB
- GAIN_SLOT = GND：最小值11.4dB，典型值12dB，最大值12.6dB
- GAIN_SLOT = 未连接：最小 8.4dB，典型值 9dB，最大 9.6dB
- GAIN_SLOT = VDD：最小值5.4dB，典型值6dB，最大值6.6dB
- GAIN_SLOT = VDD至100kΩ：最小2.4dB，典型值3dB，最大3.6dB
效率：92%（ZSPK = 8I + 68FH，THD+N = 10%，f = 1kHz，增益 = 12dB）
DAC增益误差：1%
频率响应：±0.2dB
D 类开关频率：330kHz
扩频带宽：±12.5kHz

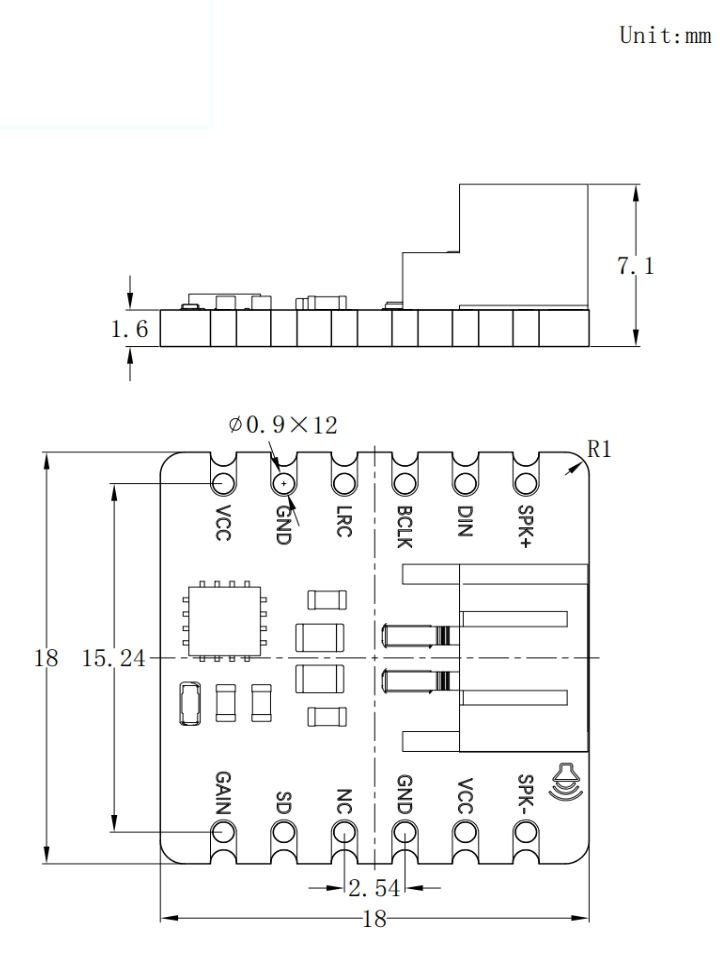

产品尺寸

Tutorial 1 - Play music via Bluetooth

Requirements

Hardware
- Firebeetle ESP32-E(DFR0654) x 1
- Speaker x1
- Phone with Bluetooth function
- M-M/F-M/F-F Jumper wires
Software
- Arduino IDE
- Click the FireBeetle 2 ESP32-E Wikipage to find SDK installtion tutorial
- Download and install the I2S Ampilifer Library. (About how to install the library?)

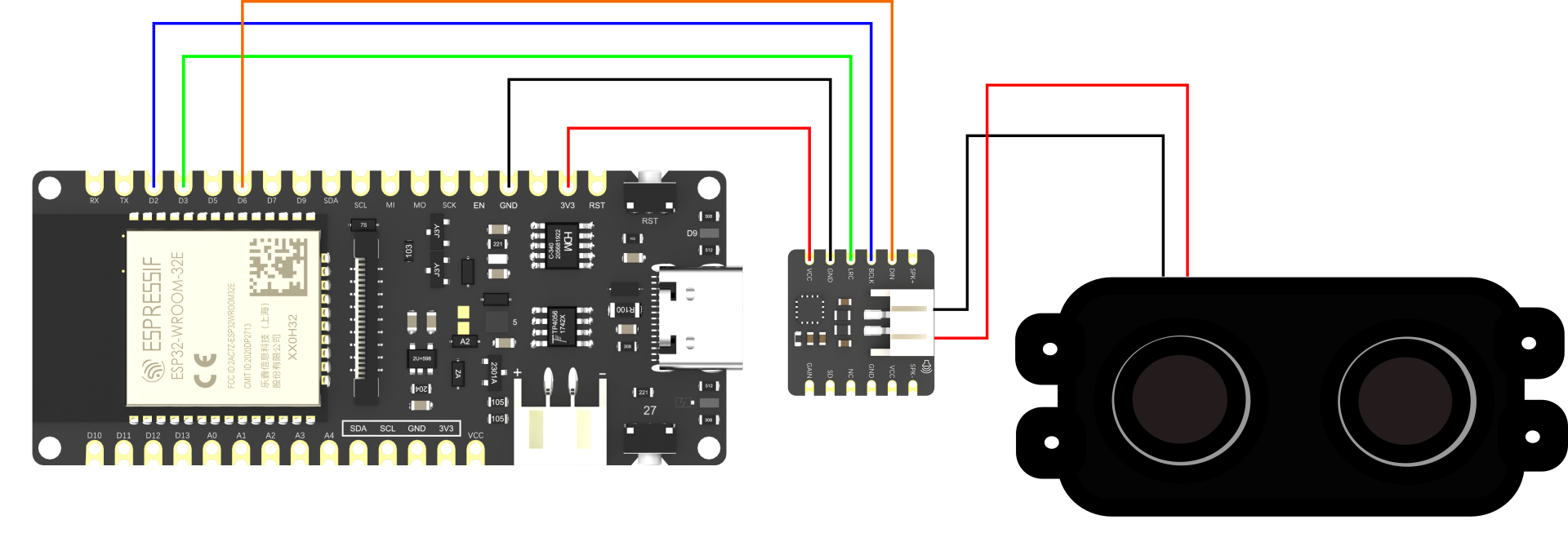

Connection Diagram

Connection 1

Description:

I2S Module VCC to ESP32-E 3V3

I2S Module GND to ESP32-E GND

I2S Module LRC to ESP32-E 26/D3

I2S Module BCLK to ESP32-E 25/D2

I2S Module DIN to ESP32-E 14/D6

I2S Module SPK+ to Speaker power +

I2S Module SPK- to Speaker power -

Sample Code

Enable ESP32-E Bluetooth function, create a Bluetooth node named bluetoothAmplifier, and use a phone with Bluetooth function to connect that node to play music.

<span style="color:#24292e"><span style="background-color:#ffffff"><span style="background-color:#f5f2f0"><span style="color:black"><code class="language-arduino"><span style="color:#990055">#<span style="color:#0077aa">include</span> <span style="color:#669900"><DFRobot_MAX98357A.h></span></span>
DFRobot_MAX98357A amplifier<span style="color:#999999">;</span>

<span style="color:#0077aa">void</span> <span style="color:#0077aa">setup</span><span style="color:#999999">(</span><span style="color:#0077aa">void</span><span style="color:#999999">)</span>
<span style="color:#999999">{</span>
  <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">begin</span><span style="color:#999999">(</span><span style="color:#990055">115200</span><span style="color:#999999">)</span><span style="color:#999999">;</span><span style="color:slategray">//Set serial rate to 115200</span>
  <span style="color:#0077aa">while</span><span style="color:#999999">(</span> <span style="background-color:rgba(255, 255, 255, 0.5)"><span style="color:#9a6e3a">!</span></span>amplifier<span style="color:#999999">.</span><span style="color:#dd4a68">begin</span><span style="color:#999999">(</span><span style="color:slategray">/*btName=*/</span><span style="color:#669900">"bluetoothAmplifier"</span><span style="color:#999999">,</span> <span style="color:slategray">/*bclk=*/</span>GPIO_NUM_25<span style="color:#999999">,</span> <span style="color:slategray">/*lrclk=*/</span>GPIO_NUM_26<span style="color:#999999">,</span><span style="color:slategray">/*din=*/</span>GPIO_NUM_14<span style="color:#999999">)</span> <span style="color:#999999">)</span><span style="color:#999999">{</span>
    <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">println</span><span style="color:#999999">(</span><span style="color:#669900">"Initialize failed !"</span><span style="color:#999999">)</span><span style="color:#999999">;</span><span style="color:slategray">//No I2S pin signal detected, init failed </span>
    <span style="color:#dd4a68">delay</span><span style="color:#999999">(</span><span style="color:#990055">3000</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
  <span style="color:#999999">}</span>
  <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">println</span><span style="color:#999999">(</span><span style="color:#669900">"Initialize succeed!"</span><span style="color:#999999">)</span><span style="color:#999999">;</span><span style="color:slategray">//I2S pin signal detected, init succeeded  </span>
<span style="color:#999999">}</span>

<span style="color:#0077aa">void</span> <span style="color:#0077aa">loop</span><span style="color:#999999">(</span><span style="color:#0077aa">void</span><span style="color:#999999">)</span>
<span style="color:#999999">{</span>
  <span style="color:#dd4a68">delay</span><span style="color:#999999">(</span><span style="color:#990055">3000</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
<span style="color:#999999">}</span>
</code></span></span></span></span>

Result

Open Arduino IDE, select board as "FireBeetle2 ESP32-E" and set upload rate to 921600

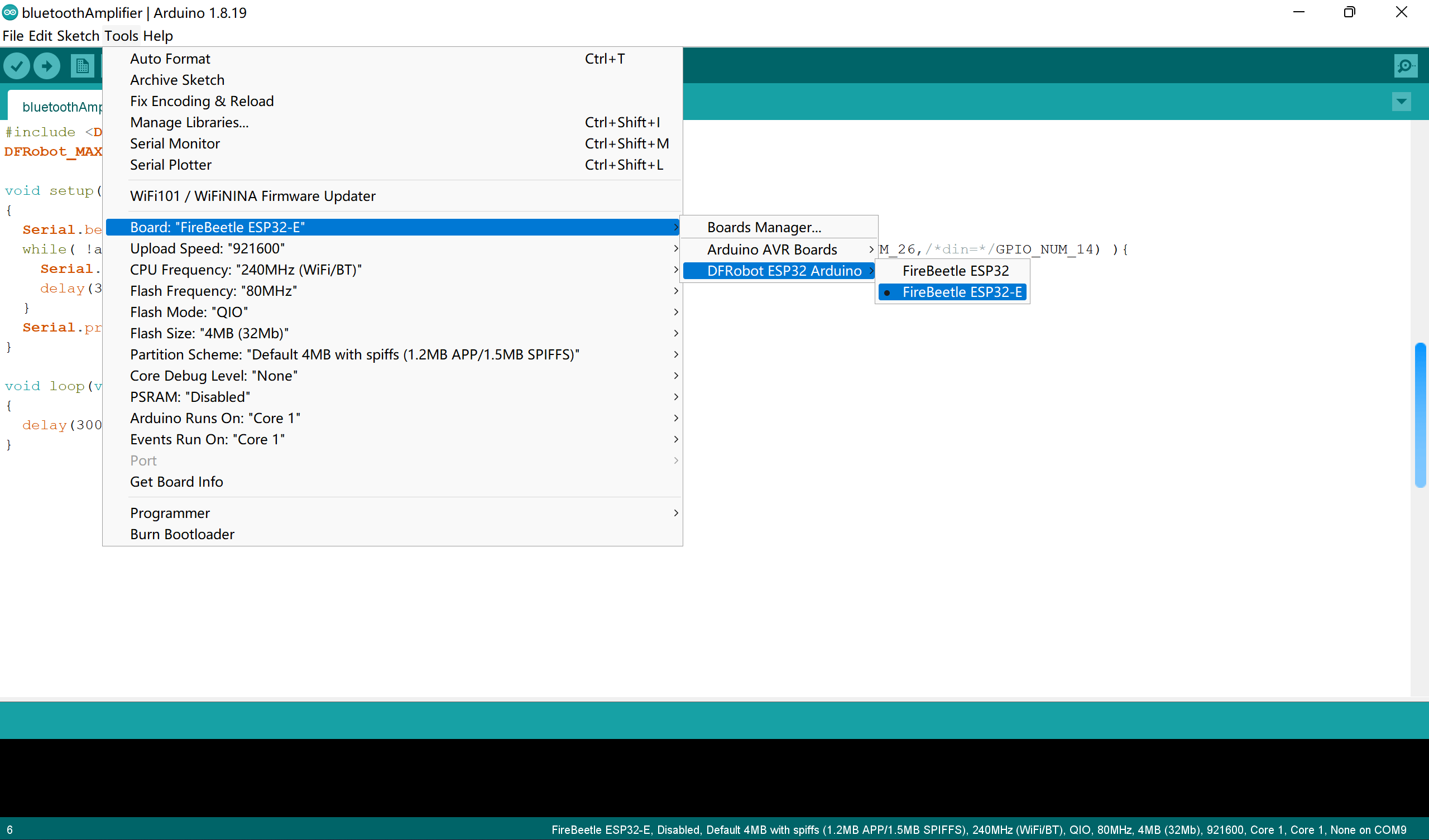

Set upload rate

Copy the codes to Arduino IDE, and burn into FireBeetle2 ESP32-E.

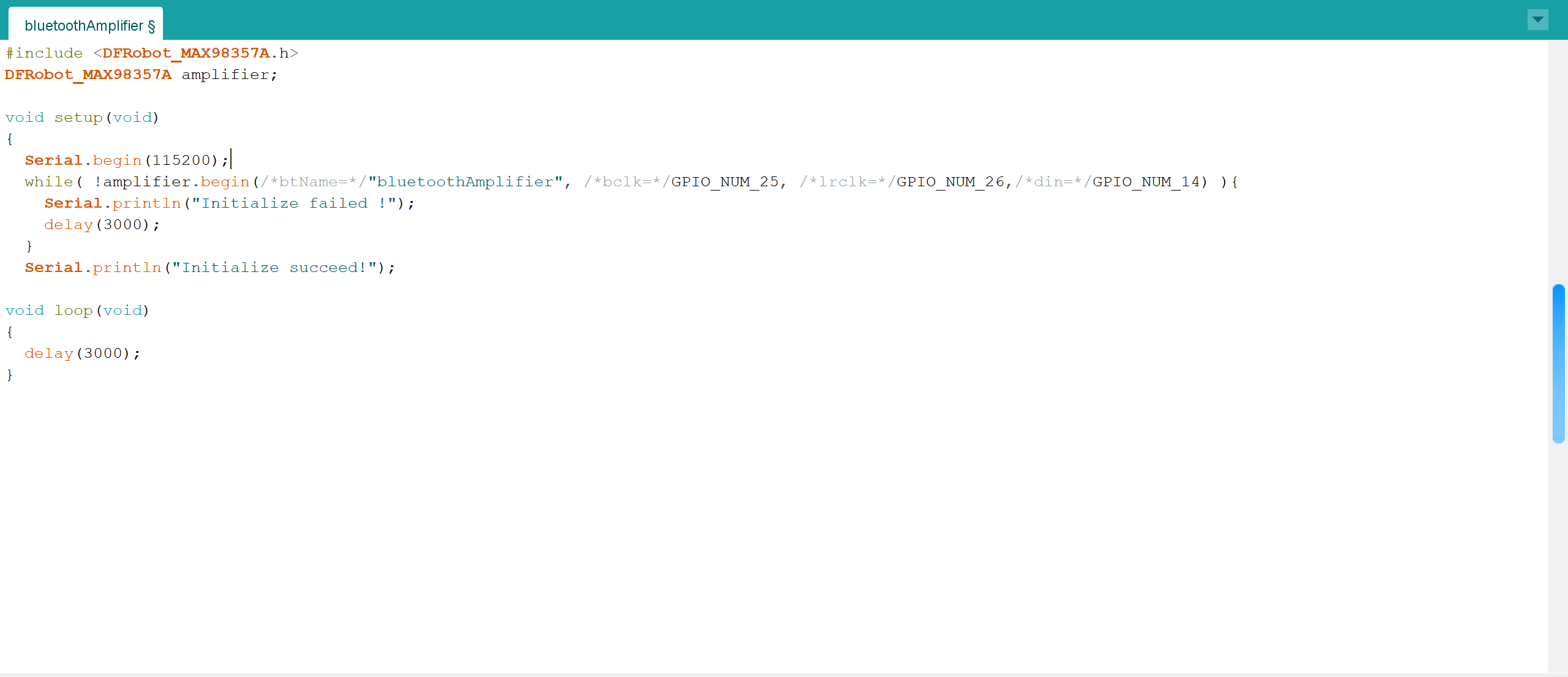

复制代码

打开手机蓝牙并连接到蓝牙Amplifier节点，然后播放muisc。

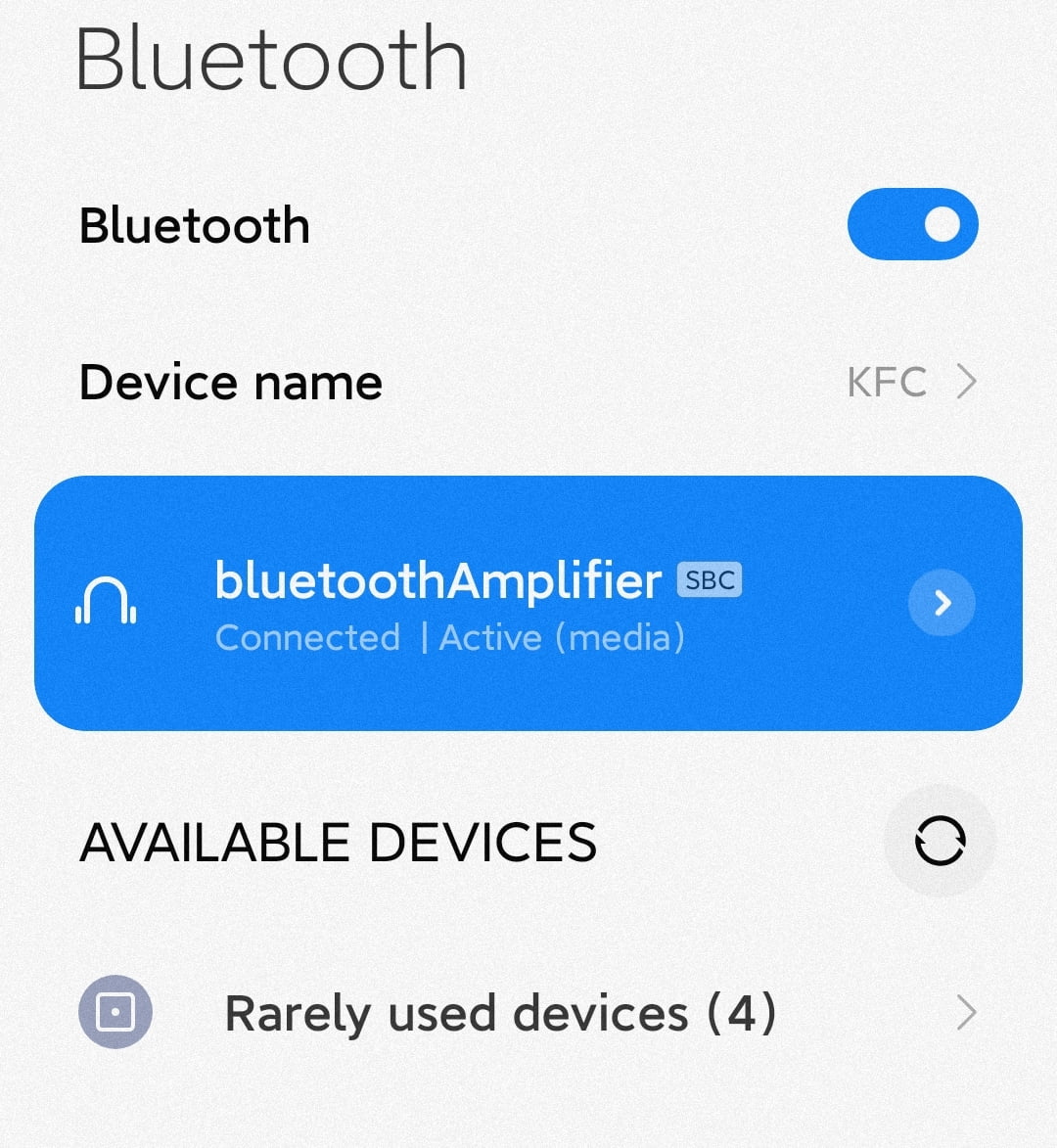

连接蓝牙

教程 2 - 从 SD 卡播放音乐

要求

硬件
- 火甲虫 ESP32-E（DFR0654） x 1
- 扬声器 x1
- MicroSD 模块（DFR0229） x 1
- SD/MicroSD 存储卡（SKU：FIT0394）×1
- 读卡器 ×1
- M-M/F-M/F-F 跳线
软件
- Arduino IDE
- 点击 FireBeetle 2 ESP32-E 维基页面查找 SDK 安装教程
- 下载并安装 I2S 放大器库。（关于如何安装库？)

连接图

连接 2

Description:

I2S Module VCC to ESP32-E 3V3

I2S Module GND to ESP32-E GND

I2S Module LRC to ESP32-E 26/D3

I2S Module BCLK to ESP32-E 25/D2

I2S Module DIN to ESP32-E 14/D6

SD card module 5V to ESP32-E VCC

SD card module GND to ESP32-E GND

SD card module MOSI to ESP32-E 23/MOSI

SD card module SS to ESP32-E 4/D12

SD card module SCL to ESP32-E 18/SCK

SD card module MISO to ESP32-E 19/MISO

I2S Module SPK+ to Speaker power +

I2S Module SPK- to Speaker power -

Sample Code

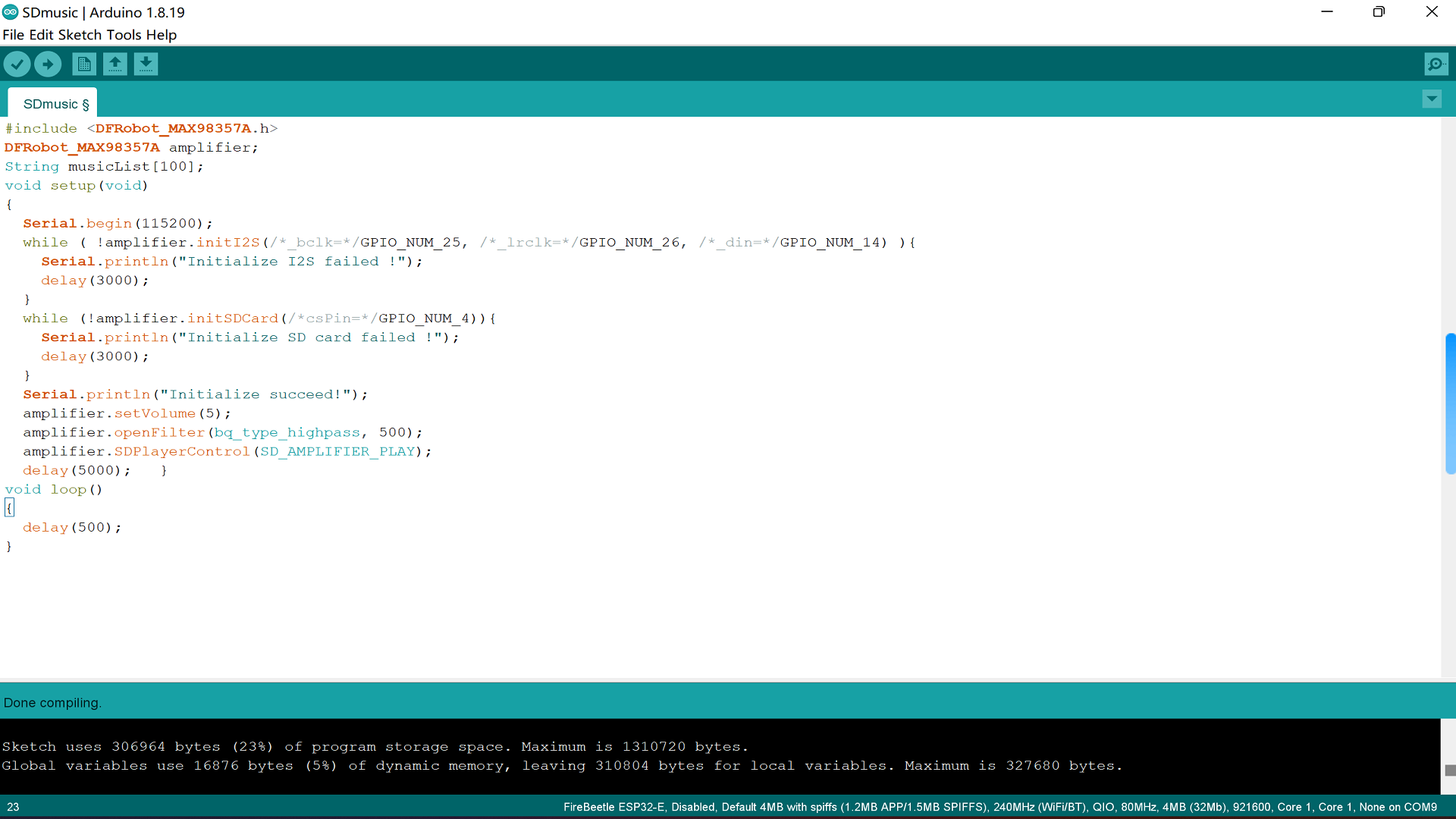

Connect to SD card module, then the music in the SD card can be played. Press RST button to play from the beginning,

<span style="color:#24292e"><span style="background-color:#ffffff"><span style="background-color:#f5f2f0"><span style="color:black"><code class="language-arduino"><span style="color:#990055">#<span style="color:#0077aa">include</span> <span style="color:#669900"><DFRobot_MAX98357A.h></span></span>

DFRobot_MAX98357A amplifier<span style="color:#999999">;</span>

<span style="color:#0077aa">String</span> musicList<span style="color:#999999">[</span><span style="color:#990055">100</span><span style="color:#999999">]</span><span style="color:#999999">;</span>   <span style="color:slategray">// SD card music playlist </span>
<span style="color:#0077aa">void</span> <span style="color:#0077aa">setup</span><span style="color:#999999">(</span><span style="color:#0077aa">void</span><span style="color:#999999">)</span>
<span style="color:#999999">{</span>
  <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">begin</span><span style="color:#999999">(</span><span style="color:#990055">115200</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
  <span style="color:#0077aa">while</span> <span style="color:#999999">(</span> <span style="background-color:rgba(255, 255, 255, 0.5)"><span style="color:#9a6e3a">!</span></span>amplifier<span style="color:#999999">.</span><span style="color:#dd4a68">initI2S</span><span style="color:#999999">(</span><span style="color:slategray">/*_bclk=*/</span>GPIO_NUM_25<span style="color:#999999">,</span> <span style="color:slategray">/*_lrclk=*/</span>GPIO_NUM_26<span style="color:#999999">,</span> <span style="color:slategray">/*_din=*/</span>GPIO_NUM_14<span style="color:#999999">)</span> <span style="color:#999999">)</span><span style="color:#999999">{</span>
    <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">println</span><span style="color:#999999">(</span><span style="color:#669900">"Initialize I2S failed !"</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
    <span style="color:#dd4a68">delay</span><span style="color:#999999">(</span><span style="color:#990055">3000</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
  <span style="color:#999999">}</span>
  <span style="color:#0077aa">while</span> <span style="color:#999999">(</span><span style="background-color:rgba(255, 255, 255, 0.5)"><span style="color:#9a6e3a">!</span></span>amplifier<span style="color:#999999">.</span><span style="color:#dd4a68">initSDCard</span><span style="color:#999999">(</span><span style="color:slategray">/*csPin=*/</span>GPIO_NUM_4<span style="color:#999999">)</span><span style="color:#999999">)</span><span style="color:#999999">{</span>
    <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">println</span><span style="color:#999999">(</span><span style="color:#669900">"Initialize SD card failed !"</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
    <span style="color:#dd4a68">delay</span><span style="color:#999999">(</span><span style="color:#990055">3000</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
  <span style="color:#999999">}</span>
  <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">println</span><span style="color:#999999">(</span><span style="color:#669900">"Initialize succeed!"</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
  amplifier<span style="color:#999999">.</span><span style="color:#dd4a68">scanSDMusic</span><span style="color:#999999">(</span>musicList<span style="color:#999999">)</span><span style="color:#999999">;</span>
  <span style="color:#dd4a68">printMusicList</span><span style="color:#999999">(</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
  amplifier<span style="color:#999999">.</span><span style="color:#dd4a68">setVolume</span><span style="color:#999999">(</span><span style="color:#990055">5</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
  amplifier<span style="color:#999999">.</span><span style="color:#dd4a68">closeFilter</span><span style="color:#999999">(</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
  amplifier<span style="color:#999999">.</span><span style="color:#dd4a68">openFilter</span><span style="color:#999999">(</span>bq_type_highpass<span style="color:#999999">,</span> <span style="color:#990055">500</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
  amplifier<span style="color:#999999">.</span><span style="color:#dd4a68">SDPlayerControl</span><span style="color:#999999">(</span>SD_AMPLIFIER_PLAY<span style="color:#999999">)</span><span style="color:#999999">;</span>
  <span style="color:#dd4a68">delay</span><span style="color:#999999">(</span><span style="color:#990055">5000</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
  <span style="color:#0077aa">if</span><span style="color:#999999">(</span>musicList<span style="color:#999999">[</span><span style="color:#990055">1</span><span style="color:#999999">]</span><span style="color:#999999">.</span><span style="color:#dd4a68">length</span><span style="color:#999999">(</span><span style="color:#999999">)</span><span style="color:#999999">)</span><span style="color:#999999">{</span>
    <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">println</span><span style="color:#999999">(</span><span style="color:#669900">"Changing Music...\n"</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
    amplifier<span style="color:#999999">.</span><span style="color:#dd4a68">playSDMusic</span><span style="color:#999999">(</span>musicList<span style="color:#999999">[</span><span style="color:#990055">1</span><span style="color:#999999">]</span><span style="color:#999999">.</span><span style="color:#dd4a68">c_str</span><span style="color:#999999">(</span><span style="color:#999999">)</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
  <span style="color:#999999">}</span><span style="color:#0077aa">else</span><span style="color:#999999">{</span>
    <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">println</span><span style="color:#999999">(</span><span style="color:#669900">"The currently selected music file is incorrect!\n"</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
  <span style="color:#999999">}</span>
<span style="color:#999999">}</span>
<span style="color:#0077aa">void</span> <span style="color:#0077aa">loop</span><span style="color:#999999">(</span><span style="color:#999999">)</span>
<span style="color:#999999">{</span>
  <span style="color:#dd4a68">parseSerialCommand</span><span style="color:#999999">(</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
  <span style="color:#dd4a68">delay</span><span style="color:#999999">(</span><span style="color:#990055">500</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
<span style="color:#999999">}</span>
<span style="color:#0077aa">void</span> <span style="color:#dd4a68">printMusicList</span><span style="color:#999999">(</span><span style="color:#0077aa">void</span><span style="color:#999999">)</span>
<span style="color:#999999">{</span>
  uint8_t i <span style="background-color:rgba(255, 255, 255, 0.5)"><span style="color:#9a6e3a">=</span></span> <span style="color:#990055">0</span><span style="color:#999999">;</span>
  <span style="color:#0077aa">if</span><span style="color:#999999">(</span>musicList<span style="color:#999999">[</span>i<span style="color:#999999">]</span><span style="color:#999999">.</span><span style="color:#dd4a68">length</span><span style="color:#999999">(</span><span style="color:#999999">)</span><span style="color:#999999">)</span><span style="color:#999999">{</span>
    <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">println</span><span style="color:#999999">(</span><span style="color:#669900">"\nMusic List: "</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
  <span style="color:#999999">}</span><span style="color:#0077aa">else</span><span style="color:#999999">{</span>
    <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">println</span><span style="color:#999999">(</span><span style="color:#669900">"The SD card audio file scan is empty, please check whether there are audio files in the SD card that meet the format!"</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
  <span style="color:#999999">}</span>

  <span style="color:#0077aa">while</span><span style="color:#999999">(</span>musicList<span style="color:#999999">[</span>i<span style="color:#999999">]</span><span style="color:#999999">.</span><span style="color:#dd4a68">length</span><span style="color:#999999">(</span><span style="color:#999999">)</span><span style="color:#999999">)</span><span style="color:#999999">{</span>
    <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">print</span><span style="color:#999999">(</span><span style="color:#669900">"\t"</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
    <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">print</span><span style="color:#999999">(</span>i<span style="color:#999999">)</span><span style="color:#999999">;</span>
    <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">print</span><span style="color:#999999">(</span><span style="color:#669900">"  -  "</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
    <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">println</span><span style="color:#999999">(</span>musicList<span style="color:#999999">[</span>i<span style="color:#999999">]</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
    i<span style="background-color:rgba(255, 255, 255, 0.5)"><span style="color:#9a6e3a">++</span></span><span style="color:#999999">;</span>
  <span style="color:#999999">}</span>
<span style="color:#999999">}</span>
<span style="color:#0077aa">void</span> <span style="color:#dd4a68">parseSerialCommand</span><span style="color:#999999">(</span><span style="color:#0077aa">void</span><span style="color:#999999">)</span>
<span style="color:#999999">{</span>
  <span style="color:#0077aa">String</span> cmd<span style="color:#999999">;</span>
  float value<span style="color:#999999">;</span>
  <span style="color:#0077aa">if</span><span style="color:#999999">(</span><span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">available</span><span style="color:#999999">(</span><span style="color:#999999">)</span><span style="color:#999999">)</span><span style="color:#999999">{</span>
    cmd <span style="background-color:rgba(255, 255, 255, 0.5)"><span style="color:#9a6e3a">=</span></span> <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">readStringUntil</span><span style="color:#999999">(</span><span style="color:#669900">'-'</span><span style="color:#999999">)</span><span style="color:#999999">;</span>

    <span style="color:#0077aa">if</span><span style="color:#999999">(</span>cmd<span style="color:#999999">.</span><span style="color:#dd4a68">equals</span><span style="color:#999999">(</span><span style="color:#669900">"hp"</span><span style="color:#999999">)</span><span style="color:#999999">)</span><span style="color:#999999">{</span>
      <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">println</span><span style="color:#999999">(</span><span style="color:#669900">"Setting a High-Pass filter...\n"</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
      value <span style="background-color:rgba(255, 255, 255, 0.5)"><span style="color:#9a6e3a">=</span></span><span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">parseFloat</span><span style="color:#999999">(</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
      amplifier<span style="color:#999999">.</span><span style="color:#dd4a68">openFilter</span><span style="color:#999999">(</span>bq_type_highpass<span style="color:#999999">,</span> value<span style="color:#999999">)</span><span style="color:#999999">;</span>
    <span style="color:#999999">}</span><span style="color:#0077aa">else</span> <span style="color:#0077aa">if</span><span style="color:#999999">(</span>cmd<span style="color:#999999">.</span><span style="color:#dd4a68">equals</span><span style="color:#999999">(</span><span style="color:#669900">"lp"</span><span style="color:#999999">)</span><span style="color:#999999">)</span><span style="color:#999999">{</span>
      <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">println</span><span style="color:#999999">(</span><span style="color:#669900">"Setting a Low-Pass filter...\n"</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
      value <span style="background-color:rgba(255, 255, 255, 0.5)"><span style="color:#9a6e3a">=</span></span><span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">parseFloat</span><span style="color:#999999">(</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
      amplifier<span style="color:#999999">.</span><span style="color:#dd4a68">openFilter</span><span style="color:#999999">(</span>bq_type_lowpass<span style="color:#999999">,</span> value<span style="color:#999999">)</span><span style="color:#999999">;</span>
    <span style="color:#999999">}</span><span style="color:#0077aa">else</span> <span style="color:#0077aa">if</span><span style="color:#999999">(</span>cmd<span style="color:#999999">.</span><span style="color:#dd4a68">equals</span><span style="color:#999999">(</span><span style="color:#669900">"closeFilter"</span><span style="color:#999999">)</span><span style="color:#999999">)</span><span style="color:#999999">{</span>
      <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">println</span><span style="color:#999999">(</span><span style="color:#669900">"Closing filter...\n"</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
      amplifier<span style="color:#999999">.</span><span style="color:#dd4a68">closeFilter</span><span style="color:#999999">(</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
    <span style="color:#999999">}</span><span style="color:#0077aa">else</span> <span style="color:#0077aa">if</span><span style="color:#999999">(</span>cmd<span style="color:#999999">.</span><span style="color:#dd4a68">equals</span><span style="color:#999999">(</span><span style="color:#669900">"vol"</span><span style="color:#999999">)</span><span style="color:#999999">)</span><span style="color:#999999">{</span>
      <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">println</span><span style="color:#999999">(</span><span style="color:#669900">"Setting volume...\n"</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
      value <span style="background-color:rgba(255, 255, 255, 0.5)"><span style="color:#9a6e3a">=</span></span><span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">parseFloat</span><span style="color:#999999">(</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
      amplifier<span style="color:#999999">.</span><span style="color:#dd4a68">setVolume</span><span style="color:#999999">(</span>value<span style="color:#999999">)</span><span style="color:#999999">;</span>
    <span style="color:#999999">}</span><span style="color:#0077aa">else</span> <span style="color:#0077aa">if</span><span style="color:#999999">(</span>cmd<span style="color:#999999">.</span><span style="color:#dd4a68">equals</span><span style="color:#999999">(</span><span style="color:#669900">"start"</span><span style="color:#999999">)</span><span style="color:#999999">)</span><span style="color:#999999">{</span>
      <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">println</span><span style="color:#999999">(</span><span style="color:#669900">"starting amplifier...\n"</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
      amplifier<span style="color:#999999">.</span><span style="color:#dd4a68">SDPlayerControl</span><span style="color:#999999">(</span>SD_AMPLIFIER_PLAY<span style="color:#999999">)</span><span style="color:#999999">;</span>
    <span style="color:#999999">}</span><span style="color:#0077aa">else</span> <span style="color:#0077aa">if</span><span style="color:#999999">(</span>cmd<span style="color:#999999">.</span><span style="color:#dd4a68">equals</span><span style="color:#999999">(</span><span style="color:#669900">"pause"</span><span style="color:#999999">)</span><span style="color:#999999">)</span><span style="color:#999999">{</span>
      <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">println</span><span style="color:#999999">(</span><span style="color:#669900">"Pause amplifier...\n"</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
      amplifier<span style="color:#999999">.</span><span style="color:#dd4a68">SDPlayerControl</span><span style="color:#999999">(</span>SD_AMPLIFIER_PAUSE<span style="color:#999999">)</span><span style="color:#999999">;</span>
    <span style="color:#999999">}</span><span style="color:#0077aa">else</span> <span style="color:#0077aa">if</span><span style="color:#999999">(</span>cmd<span style="color:#999999">.</span><span style="color:#dd4a68">equals</span><span style="color:#999999">(</span><span style="color:#669900">"stop"</span><span style="color:#999999">)</span><span style="color:#999999">)</span><span style="color:#999999">{</span>
      <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">println</span><span style="color:#999999">(</span><span style="color:#669900">"Stopping amplifier...\n"</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
      amplifier<span style="color:#999999">.</span><span style="color:#dd4a68">SDPlayerControl</span><span style="color:#999999">(</span>SD_AMPLIFIER_STOP<span style="color:#999999">)</span><span style="color:#999999">;</span>
    <span style="color:#999999">}</span><span style="color:#0077aa">else</span> <span style="color:#0077aa">if</span><span style="color:#999999">(</span>cmd<span style="color:#999999">.</span><span style="color:#dd4a68">equals</span><span style="color:#999999">(</span><span style="color:#669900">"musicList"</span><span style="color:#999999">)</span><span style="color:#999999">)</span><span style="color:#999999">{</span>
      <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">println</span><span style="color:#999999">(</span><span style="color:#669900">"Scanning music list...\n"</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
      amplifier<span style="color:#999999">.</span><span style="color:#dd4a68">scanSDMusic</span><span style="color:#999999">(</span>musicList<span style="color:#999999">)</span><span style="color:#999999">;</span>
      <span style="color:#dd4a68">printMusicList</span><span style="color:#999999">(</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
    <span style="color:#999999">}</span><span style="color:#0077aa">else</span> <span style="color:#0077aa">if</span><span style="color:#999999">(</span>cmd<span style="color:#999999">.</span><span style="color:#dd4a68">equals</span><span style="color:#999999">(</span><span style="color:#669900">"changeMusic"</span><span style="color:#999999">)</span><span style="color:#999999">)</span><span style="color:#999999">{</span>
      cmd <span style="background-color:rgba(255, 255, 255, 0.5)"><span style="color:#9a6e3a">=</span></span> musicList<span style="color:#999999">[</span><span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">parseInt</span><span style="color:#999999">(</span><span style="color:#999999">)</span><span style="color:#999999">]</span><span style="color:#999999">;</span>
      <span style="color:#0077aa">if</span><span style="color:#999999">(</span>cmd<span style="color:#999999">.</span><span style="color:#dd4a68">length</span><span style="color:#999999">(</span><span style="color:#999999">)</span><span style="color:#999999">)</span><span style="color:#999999">{</span>
        <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">println</span><span style="color:#999999">(</span><span style="color:#669900">"Changing Music...\n"</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
        amplifier<span style="color:#999999">.</span><span style="color:#dd4a68">playSDMusic</span><span style="color:#999999">(</span>cmd<span style="color:#999999">.</span><span style="color:#dd4a68">c_str</span><span style="color:#999999">(</span><span style="color:#999999">)</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
      <span style="color:#999999">}</span><span style="color:#0077aa">else</span><span style="color:#999999">{</span>
        <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">println</span><span style="color:#999999">(</span><span style="color:#669900">"The currently selected music file is incorrect!\n"</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
      <span style="color:#999999">}</span>

    <span style="color:#999999">}</span><span style="color:#0077aa">else</span><span style="color:#999999">{</span>
      <span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">println</span><span style="color:#999999">(</span><span style="color:#669900">"Help : \n \
      Currently available commands (format: cmd-value):\n \
        Start playback: e.g. start-\n \
        Pause playback: e.g. pause-\n \
        Stop playback: e.g. stop-\n \
        Print music list: e.g. musicList-\n \
        Change songs according to the music list: e.g. changeMusic-1\n \
        Set and open high-pass filter: e.g. hp-500\n \
        Set and open low-pass filter: e.g. lp-15000\n \
        Close filter: e.g. closeFilter-\n \
        Set volume: e.g. vol-5.0\n \
      For the detailed meaning, please refer to the code comments of this demo.\n"</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
    <span style="color:#999999">}</span>
    <span style="color:#0077aa">while</span><span style="color:#999999">(</span><span style="color:#669900">Serial</span><span style="color:#999999">.</span><span style="color:#dd4a68">read</span><span style="color:#999999">(</span><span style="color:#999999">)</span> <span style="background-color:rgba(255, 255, 255, 0.5)"><span style="color:#9a6e3a">>=</span></span> <span style="color:#990055">0</span><span style="color:#999999">)</span><span style="color:#999999">;</span>
  <span style="color:#999999">}</span>
<span style="color:#999999">}</span>
</code></span></span></span></span>

Result

Open Arduino IDE, select board as "FireBeetle2 ESP32-E" and set upload rate to 921600

设置上传速率

将代码复制到Arduino IDE中，刻录到FireBeetle2 ESP32-E中，音乐文件SD卡会自动播放。

从 SD 播放音乐

API函数

/**
   * @fn begin
   * @brief Init function
   * @param btName - Created Bluetooth device name
   * @param bclk - I2S communication pin number, serial clock (SCK), aka bit clock (BCK)
   * @param lrclk - I2S communication pin number, word select (WS), i.e. command (channel) select, used to switch between left and right channel data
   * @param din - I2S communication pin number, serial data signal (SD), used to transmit audio data in two's complement format
   * @return true on success, false on error
   */
  bool begin(const char *btName="bluetoothAmplifier",
             int bclk=GPIO_NUM_25,
             int lrclk=GPIO_NUM_26,
             int din=GPIO_NUM_27);

  /**
   * @fn initI2S
   * @brief Initialize I2S
   * @param _bclk - I2S communication pin number, serial clock (SCK), aka bit clock (BCK)
   * @param _lrclk - I2S communication pin number, word select (WS), i.e. command (channel) select, used to switch between left and right channel data
   * @param _din - I2S communication pin number, serial data signal (SD), used to transmit audio data in two's complement format
   * @return true on success, false on error
   */
  bool initI2S(int _bclk, int _lrclk, int _din);

  /**
   * @fn initBluetooth
   * @brief Initialize bluetooth
   * @param _btName - The created Bluetooth device name
   * @return true on success, false on error
   */
  bool initBluetooth(const char * _btName);

  /**
   * @fn initSDCard
   * @brief Initialize SD card
   * @param csPin The number of the cs pin for spi communication of SD card module
   * @return true on success, false on error
   */
  bool initSDCard(uint8_t csPin=GPIO_NUM_5);

/*************************** Function ******************************/

  /**
   * @fn scanSDMusic
   * @brief Scan the music files in WAV format in the SD card
   * @param musicList - The music files in WAV format scanned from the SD card. Type: character string array.
   * @return None
   * @note Only support English for path name of music files and WAV for their format currently.
   */
  void scanSDMusic(String * musicList);

  /**
   * @fn playSDMusic
   * @brief Play music files in the SD card
   * @param Filename - music file name, only support the music files in .wav format currently
   * @note Music file name must be an absolute path like /musicDir/music.wav
   * @return None
   * @note Only support English for path name of music files and WAV for their format currently.
   */
  void playSDMusic(const char *Filename);

  /**
   * @fn SDPlayerControl
   * @brief SD card music playback control interface
   * @param CMD - playback control command:
   * @n SD_AMPLIFIER_PLAY: start to play music, which can be played from the position where you paused before
   * @n   If no music file is selected through playSDMusic(), the first one in the playlist will be played by default.
   * @n   Playback error may occur if music files are not scanned from SD card in the correct format (only support English for path name of music files and WVA for their format currently)
   * @n SD_AMPLIFIER_PAUSE: pause playback, retain the playback position of the current music file
   * @n SD_AMPLIFIER_STOP: stop playback, end the current music playback
   * @return None
   */
  void SDPlayerControl(uint8_t CMD);

  /**
   * @fn getMetadata
   * @brief Get "metadata" through AVRC command
   * @param type - The type of metadata to be obtained, and the parameters currently supported:
   * @n     ESP_AVRC_MD_ATTR_TITLE   ESP_AVRC_MD_ATTR_ARTIST   ESP_AVRC_MD_ATTR_ALBUM
   * @return The corresponding type of "metadata"
   */
  String getMetadata(uint8_t type);

  /**
   * @fn getRemoteAddress
   * @brief Get address of Bluetooth device remotely
   * @note The address will be obtained after the module is paired with the remote Bluetooth device and successfully communicates with it based on the Bluetooth AVRCP protocol.
   * @return Return the array pointer storing the address of the remote Bluetooth device
   * @n Return None when the module does not connect to the remote device or failed to communicate with it based on the Bluetooth AVRCP protocol.
   * @n AVRCP(Audio Video Remote Control Profile)
   */
  uint8_t * getRemoteAddress(void);

  /**
   * @fn setVolume
   * @brief Set volume
   * @param vol - Set volume, the range can be set to 0-9
   * @note 5 for the original volume of audio data, no increase or decrease
   * @return None
   */
  void setVolume(float vol);

  /**
   * @fn openFilter
   * @brief Enable audio filter
   * @param type - bq_type_highpass: enable high-pass filtering; bq_type_lowpass: enable low-pass filtering
   * @param fc - Threshold of filtering, range: 2-20000
   * @note For example, setting high-pass filter mode and the threshold of 500 indicates to filter out the audio signal below 500; high-pass filter and low-pass filter will work simultaneously.
   * @return None
   */
  void openFilter(int type, float fc);

  /**
   * @fn closeFilter
   * @brief Disable the audio filter
   * @return None
   */
  void closeFilter(void);

  /**
   * @fn reverseLeftRightChannels
   * @brief Reverse left and right channels, When you find that the left
   * @n  and right channels play opposite, you can call this interface to adjust
   * @return None
   */
  void reverseLeftRightChannels(void);

AI硬件创业社区

智能硬件社区聚焦AI智能硬件技术生态，汇聚嵌入式AI、物联网硬件开发者，打造交流分享平台，同步全国赛事资讯、开展 OPC 核心人才招募，助力技术落地与开发者成长。

更多推荐

Kubernetes Pod 网络策略安全实现

通过实施Pod网络策略（NetworkPolicy），管理员可以精细控制Pod间的网络流量，实现零信任安全模型。本文将深入探讨Pod网络策略的核心实现方式，帮助读者构建更安全的Kubernetes环境。通过"podSelector"与"namespaceSelector"组合实现跨空间控制，利用IP块（ipBlock）限制外部访问。例如，仅允许带有"role=db"标签的Pod接收来自"role=

AI硬件创业社区

单片机ucos3任务实验

单片机：STM32F407。开发板：DMF407电机开发板。平台：keilV5.31。六、ucos3统计功能实验。五、空闲任务钩子函数实验。七、共享资源冲突访问实验。一、任务创建与删除实验。二、任务挂起与恢复实验。三、任务优先级修改实验。

AI硬件创业社区

网络安全应急响应流程

在数字化时代，网络安全事件频发，从数据泄露到勒索软件攻击，企业和组织面临的威胁日益复杂。网络安全应急响应流程（Incident Response, IR）是应对这些威胁的核心机制，它通过系统化的步骤快速识别、遏制和修复安全事件，最大限度减少损失。一个高效的应急响应流程不仅能降低风险，还能提升组织的安全韧性。例如，在勒索软件攻击中，快速隔离受感染的服务器能防止横向移动，保护其他系统。通过实战演练和团
