ESP-IDF环境下的蓝牙传输实现
·
引言
蓝牙技术在物联网设备中广泛应用，ESP-IDF作为乐鑫官方开发框架，提供了完整的蓝牙协议栈支持。文章将介绍如何在ESP-IDF环境下实现蓝牙数据传输。
硬件与软件准备
- ESP32系列开发板（如ESP32-WROOM-32）
- ESP-IDF开发环境（版本4.4或更高）
蓝牙协议栈概述
- ESP-IDF支持的蓝牙模式：经典蓝牙（BT）和低功耗蓝牙（BLE）
- BLE协议栈分层结构（GAP、GATT、ATT等）
- 关键术语：服务（Service）、特征（Characteristic）、UUID
项目配置与初始化
- 在

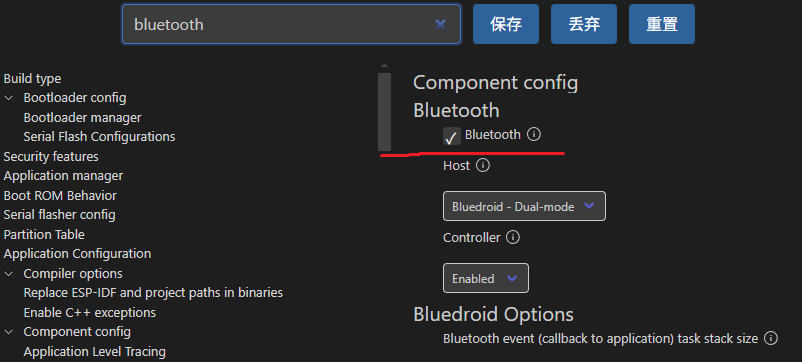

menuconfig中启用蓝牙支持

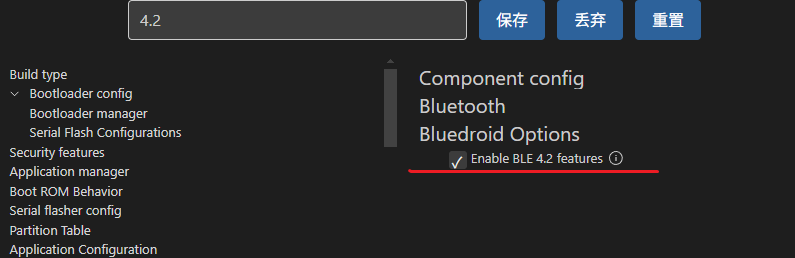

- 打开Bluedorid Opentions下的BLE 4.2
GAP角色实现
- 广播者（Advertiser）配置
- 扫描者（Scanner）配置
- 设置设备名称和广播参数
GATT服务与特征设计
- 自定义服务UUID生成

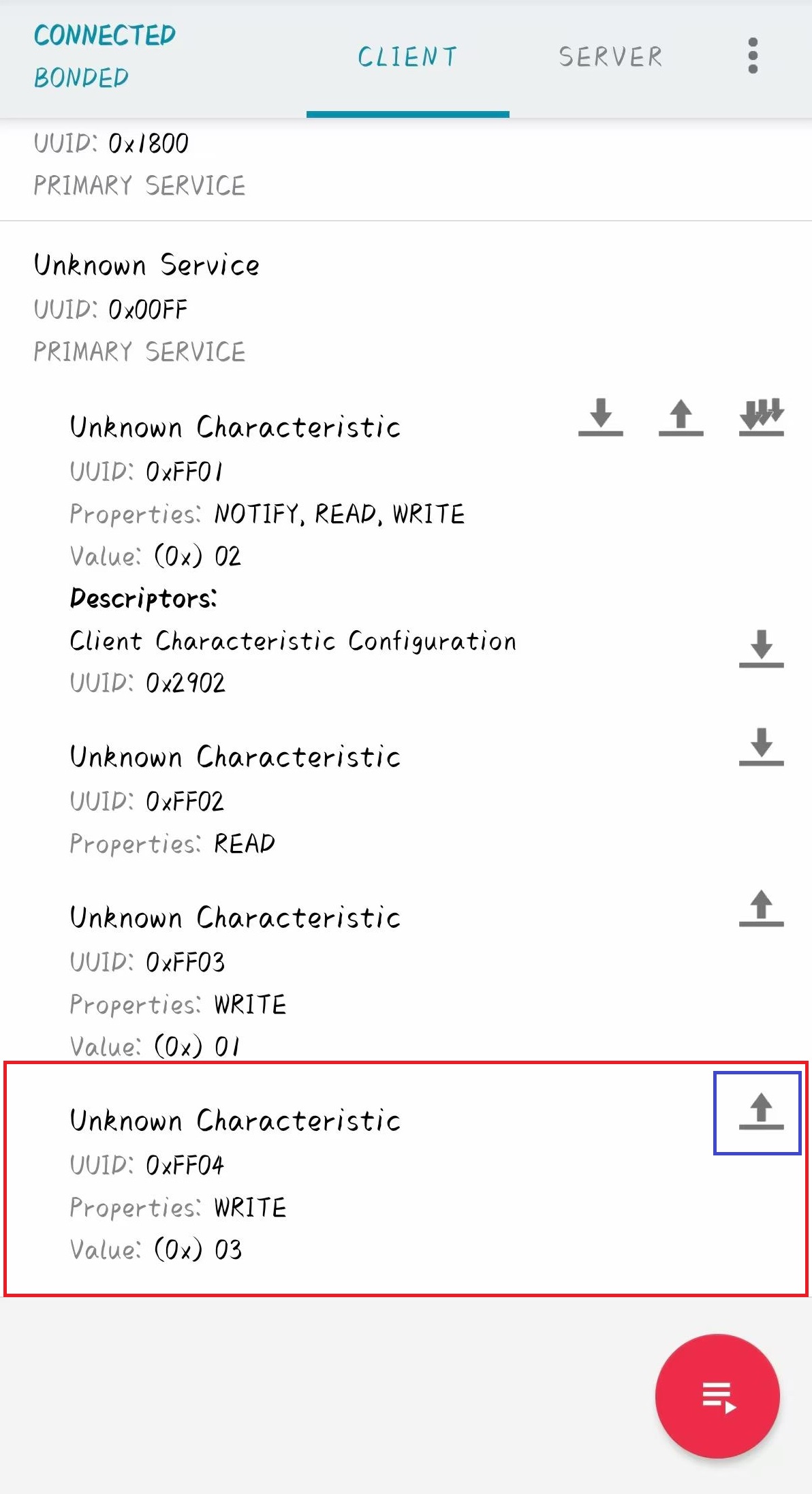

- 特征的属性配置（读/写/通知权限）
- 特征值回调函数实现
数据传输实现
- 通过特征值实现数据收发
- 处理写请求和通知事件
- 数据分包与重组策略（针对MTU限制）
代码实现
/*
* SPDX-FileCopyrightText: 2021-2023 Espressif Systems (Shanghai) CO LTD
*
* SPDX-License-Identifier: Unlicense OR CC0-1.0
*/
/****************************************************************************
*
* This demo showcases creating a GATT database using a predefined attribute table.
* It acts as a GATT server and can send adv data, be connected by client.
* Run the gatt_client demo, the client demo will automatically connect to the gatt_server_service_table demo.
* Client demo will enable GATT server's notify after connection. The two devices will then exchange
* data.
*
****************************************************************************/
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "freertos/event_groups.h"
#include "esp_system.h"
#include "esp_log.h"
#include "nvs_flash.h"
#include "esp_bt.h"
#include "esp_gap_ble_api.h"
#include "esp_gatts_api.h"
#include "esp_bt_main.h"
#include "esp_bt_device.h"
#include "Dri_BLE.h"
#include "esp_gatt_common_api.h"
#define GATTS_TABLE_TAG "GATTS_TABLE_DEMO"
#define PROFILE_NUM 1
#define PROFILE_APP_IDX 0
#define ESP_APP_ID 0x55
#define SAMPLE_DEVICE_NAME "ESP_GATTS_DEMO"
#define SVC_INST_ID 0
/* The max length of characteristic value. When the GATT client performs a write or prepare write operation,
* the data length must be less than GATTS_DEMO_CHAR_VAL_LEN_MAX.
*/
#define GATTS_DEMO_CHAR_VAL_LEN_MAX 500
#define PREPARE_BUF_MAX_SIZE 1024
#define CHAR_DECLARATION_SIZE (sizeof(uint8_t))
#define ADV_CONFIG_FLAG (1 << 0)
#define SCAN_RSP_CONFIG_FLAG (1 << 1)
static uint8_t adv_config_done = 0;
uint16_t heart_rate_handle_table[HRS_IDX_NB];
typedef struct
{
uint8_t *prepare_buf;
int prepare_len;
} prepare_type_env_t;
static prepare_type_env_t prepare_write_env;
#define CONFIG_SET_RAW_ADV_DATA
#ifdef CONFIG_SET_RAW_ADV_DATA
static uint8_t raw_adv_data[] = {
/* Flags */
0x02, ESP_BLE_AD_TYPE_FLAG, 0x06,
/* TX Power Level */
0x02, ESP_BLE_AD_TYPE_TX_PWR, 0xEB,
/* Complete 16-bit Service UUIDs */
0x03, ESP_BLE_AD_TYPE_16SRV_CMPL, 0xFF, 0x00,
/* Complete Local Name */
0x0F, ESP_BLE_AD_TYPE_NAME_CMPL,
'E', 'S', 'P', '_', 'D', 'E', 'M', 'O'};
static uint8_t raw_scan_rsp_data[] = {
/* Flags */
0x02, ESP_BLE_AD_TYPE_FLAG, 0x06,
/* TX Power Level */
0x02, ESP_BLE_AD_TYPE_TX_PWR, 0xEB,
/* Complete 16-bit Service UUIDs */
0x03, ESP_BLE_AD_TYPE_16SRV_CMPL, 0xFF, 0x00};
#else
static uint8_t service_uuid[16] = {
/* LSB <--------------------------------------------------------------------------------> MSB */
// first uuid, 16bit, [12],[13] is the value
0xfb,
0x34,
0x9b,
0x5f,
0x80,
0x00,
0x00,
0x80,
0x00,
0x10,
0x00,
0x00,
0xFF,
0x00,
0x00,
0x00,
};
/* The length of adv data must be less than 31 bytes */
static esp_ble_adv_data_t adv_data = {
.set_scan_rsp = false,
.include_name = true,
.include_txpower = true,
.min_interval = 0x0006, // slave connection min interval, Time = min_interval * 1.25 msec
.max_interval = 0x0010, // slave connection max interval, Time = max_interval * 1.25 msec
.appearance = 0x00,
.manufacturer_len = 0, // TEST_MANUFACTURER_DATA_LEN,
.p_manufacturer_data = NULL, // test_manufacturer,
.service_data_len = 0,
.p_service_data = NULL,
.service_uuid_len = sizeof(service_uuid),
.p_service_uuid = service_uuid,
.flag = (ESP_BLE_ADV_FLAG_GEN_DISC | ESP_BLE_ADV_FLAG_BREDR_NOT_SPT),
};
// scan response data
static esp_ble_adv_data_t scan_rsp_data = {
.set_scan_rsp = true,
.include_name = true,
.include_txpower = true,
.min_interval = 0x0006,
.max_interval = 0x0010,
.appearance = 0x00,
.manufacturer_len = 0, // TEST_MANUFACTURER_DATA_LEN,
.p_manufacturer_data = NULL, //&test_manufacturer[0],
.service_data_len = 0,
.p_service_data = NULL,
.service_uuid_len = sizeof(service_uuid),
.p_service_uuid = service_uuid,
.flag = (ESP_BLE_ADV_FLAG_GEN_DISC | ESP_BLE_ADV_FLAG_BREDR_NOT_SPT),
};
#endif /* CONFIG_SET_RAW_ADV_DATA */
static esp_ble_adv_params_t adv_params = {
.adv_int_min = 0x20,
.adv_int_max = 0x40,
.adv_type = ADV_TYPE_IND,
.own_addr_type = BLE_ADDR_TYPE_PUBLIC,
.channel_map = ADV_CHNL_ALL,
.adv_filter_policy = ADV_FILTER_ALLOW_SCAN_ANY_CON_ANY,
};
struct gatts_profile_inst
{
esp_gatts_cb_t gatts_cb;
uint16_t gatts_if;
uint16_t app_id;
uint16_t conn_id;
uint16_t service_handle;
esp_gatt_srvc_id_t service_id;
uint16_t char_handle;
esp_bt_uuid_t char_uuid;
esp_gatt_perm_t perm;
esp_gatt_char_prop_t property;
uint16_t descr_handle;
esp_bt_uuid_t descr_uuid;
};
static void gatts_profile_event_handler(esp_gatts_cb_event_t event,
esp_gatt_if_t gatts_if, esp_ble_gatts_cb_param_t *param);
/* One gatt-based profile one app_id and one gatts_if, this array will store the gatts_if returned by ESP_GATTS_REG_EVT */
static struct gatts_profile_inst heart_rate_profile_tab[PROFILE_NUM] = {
[PROFILE_APP_IDX] = {
.gatts_cb = gatts_profile_event_handler,
.gatts_if = ESP_GATT_IF_NONE, /* Not get the gatt_if, so initial is ESP_GATT_IF_NONE */
},
};
// Define a new command characteristic UUID
static const uint16_t GATTS_CHAR_UUID_CMD = 0xFF04; // New UUID for command characteristic
/* Service */
// 定义服务UUID和特征UUID
static const uint16_t GATTS_SERVICE_UUID_TEST = 0x00FF; // 主服务UUID
static const uint16_t GATTS_CHAR_UUID_TEST_A = 0xFF01; // 特征A UUID
static const uint16_t GATTS_CHAR_UUID_TEST_B = 0xFF02; // 特征B UUID
static const uint16_t GATTS_CHAR_UUID_TEST_C = 0xFF03; // 特征C UUID
// 标准UUID定义
static const uint16_t primary_service_uuid = ESP_GATT_UUID_PRI_SERVICE; // 主服务标准UUID
static const uint16_t character_declaration_uuid = ESP_GATT_UUID_CHAR_DECLARE; // 特征声明标准UUID
static const uint16_t character_client_config_uuid = ESP_GATT_UUID_CHAR_CLIENT_CONFIG; // 客户端特征配置描述符UUID
// 特征属性定义
static const uint8_t char_prop_read = ESP_GATT_CHAR_PROP_BIT_READ; // 只读属性
static const uint8_t char_prop_write = ESP_GATT_CHAR_PROP_BIT_WRITE; // 只写属性
static const uint8_t char_prop_read_write_notify = ESP_GATT_CHAR_PROP_BIT_WRITE | ESP_GATT_CHAR_PROP_BIT_READ | ESP_GATT_CHAR_PROP_BIT_NOTIFY; // 读写+通知属性
// 特征值和配置数据
static const uint8_t heart_measurement_ccc[2] = {0x00, 0x00}; // 客户端特征配置描述符初始值
static const uint8_t char_value[4] = {0x11, 0x22, 0x33, 0x44}; // 特征初始值
/* GATT数据库 - 用于定义BLE服务的属性和特征 */
static const esp_gatts_attr_db_t gatt_db[HRS_IDX_NB] =
{
// 主服务声明
[IDX_SVC] = {
{ESP_GATT_AUTO_RSP}, // 自动响应标志
{ESP_UUID_LEN_16, (uint8_t *)&primary_service_uuid, ESP_GATT_PERM_READ, // UUID类型、指针、权限
sizeof(uint16_t), sizeof(GATTS_SERVICE_UUID_TEST), (uint8_t *)&GATTS_SERVICE_UUID_TEST} // 值长度、值大小、值指针
},
// 特征A声明
[IDX_CHAR_A] = {
{ESP_GATT_AUTO_RSP}, {ESP_UUID_LEN_16, (uint8_t *)&character_declaration_uuid, ESP_GATT_PERM_READ, CHAR_DECLARATION_SIZE, CHAR_DECLARATION_SIZE, (uint8_t *)&char_prop_read_write_notify} // 特征属性：读写+通知
},
// 特征A值
[IDX_CHAR_VAL_A] = {
{ESP_GATT_AUTO_RSP}, {ESP_UUID_LEN_16, (uint8_t *)&GATTS_CHAR_UUID_TEST_A, ESP_GATT_PERM_READ | ESP_GATT_PERM_WRITE, GATTS_DEMO_CHAR_VAL_LEN_MAX, sizeof(char_value), (uint8_t *)char_value} // 最大长度500，初始值char_value
},
// 特征A的客户端配置描述符
[IDX_CHAR_CFG_A] = {
{ESP_GATT_AUTO_RSP}, {ESP_UUID_LEN_16, (uint8_t *)&character_client_config_uuid, ESP_GATT_PERM_READ | ESP_GATT_PERM_WRITE, sizeof(uint16_t), sizeof(heart_measurement_ccc), (uint8_t *)heart_measurement_ccc} // 配置描述符初始值全0
},
// 特征B声明
[IDX_CHAR_B] = {
{ESP_GATT_AUTO_RSP}, {ESP_UUID_LEN_16, (uint8_t *)&character_declaration_uuid, ESP_GATT_PERM_READ, CHAR_DECLARATION_SIZE, CHAR_DECLARATION_SIZE, (uint8_t *)&char_prop_read} // 只读属性
},
// 特征B值
[IDX_CHAR_VAL_B] = {{ESP_GATT_AUTO_RSP}, {ESP_UUID_LEN_16, (uint8_t *)&GATTS_CHAR_UUID_TEST_B, ESP_GATT_PERM_READ | ESP_GATT_PERM_WRITE, GATTS_DEMO_CHAR_VAL_LEN_MAX, sizeof(char_value), (uint8_t *)char_value}},
// 特征C声明
[IDX_CHAR_C] = {
{ESP_GATT_AUTO_RSP}, {ESP_UUID_LEN_16, (uint8_t *)&character_declaration_uuid, ESP_GATT_PERM_READ, CHAR_DECLARATION_SIZE, CHAR_DECLARATION_SIZE, (uint8_t *)&char_prop_write} // 只写属性
},
// 特征C值
[IDX_CHAR_VAL_C] = {{ESP_GATT_AUTO_RSP}, {ESP_UUID_LEN_16, (uint8_t *)&GATTS_CHAR_UUID_TEST_C, ESP_GATT_PERM_READ | ESP_GATT_PERM_WRITE, GATTS_DEMO_CHAR_VAL_LEN_MAX, sizeof(char_value), (uint8_t *)char_value}},
// 命令特征声明
[IDX_CMD_CHAR] = {
{ESP_GATT_AUTO_RSP}, {ESP_UUID_LEN_16, (uint8_t *)&character_declaration_uuid, ESP_GATT_PERM_READ, CHAR_DECLARATION_SIZE, CHAR_DECLARATION_SIZE, (uint8_t *)&char_prop_write} // 只写属性
},
// 命令特征值
[IDX_CMD_CHAR_VAL] = {
{ESP_GATT_AUTO_RSP}, {ESP_UUID_LEN_16, (uint8_t *)&GATTS_CHAR_UUID_CMD, ESP_GATT_PERM_READ | ESP_GATT_PERM_WRITE, GATTS_DEMO_CHAR_VAL_LEN_MAX, 0, NULL} // 初始值为空，由客户端写入
}};
static void gap_event_handler(esp_gap_ble_cb_event_t event, esp_ble_gap_cb_param_t *param)
{
switch (event)
{
#ifdef CONFIG_SET_RAW_ADV_DATA
case ESP_GAP_BLE_ADV_DATA_RAW_SET_COMPLETE_EVT:
adv_config_done &= (~ADV_CONFIG_FLAG);
if (adv_config_done == 0)
{
esp_ble_gap_start_advertising(&adv_params);
}
break;
case ESP_GAP_BLE_SCAN_RSP_DATA_RAW_SET_COMPLETE_EVT:
adv_config_done &= (~SCAN_RSP_CONFIG_FLAG);
if (adv_config_done == 0)
{
esp_ble_gap_start_advertising(&adv_params);
}
break;
#else
case ESP_GAP_BLE_ADV_DATA_SET_COMPLETE_EVT:
adv_config_done &= (~ADV_CONFIG_FLAG);
if (adv_config_done == 0)
{
esp_ble_gap_start_advertising(&adv_params);
}
break;
case ESP_GAP_BLE_SCAN_RSP_DATA_SET_COMPLETE_EVT:
adv_config_done &= (~SCAN_RSP_CONFIG_FLAG);
if (adv_config_done == 0)
{
esp_ble_gap_start_advertising(&adv_params);
}
break;
#endif
case ESP_GAP_BLE_ADV_START_COMPLETE_EVT:
/* advertising start complete event to indicate advertising start successfully or failed */
if (param->adv_start_cmpl.status != ESP_BT_STATUS_SUCCESS)
{
ESP_LOGE(GATTS_TABLE_TAG, "advertising start failed");
}
else
{
ESP_LOGI(GATTS_TABLE_TAG, "advertising start successfully");
}
break;
case ESP_GAP_BLE_ADV_STOP_COMPLETE_EVT:
if (param->adv_stop_cmpl.status != ESP_BT_STATUS_SUCCESS)
{
ESP_LOGE(GATTS_TABLE_TAG, "Advertising stop failed");
}
else
{
ESP_LOGI(GATTS_TABLE_TAG, "Stop adv successfully");
}
break;
case ESP_GAP_BLE_UPDATE_CONN_PARAMS_EVT:
ESP_LOGI(GATTS_TABLE_TAG, "update connection params status = %d, conn_int = %d, latency = %d, timeout = %d",
param->update_conn_params.status,
param->update_conn_params.conn_int,
param->update_conn_params.latency,
param->update_conn_params.timeout);
break;
default:
break;
}
}
void example_prepare_write_event_env(esp_gatt_if_t gatts_if, prepare_type_env_t *prepare_write_env, esp_ble_gatts_cb_param_t *param)
{
ESP_LOGI(GATTS_TABLE_TAG, "prepare write, handle = %d, value len = %d", param->write.handle, param->write.len);
esp_gatt_status_t status = ESP_GATT_OK;
if (param->write.offset > PREPARE_BUF_MAX_SIZE)
{
status = ESP_GATT_INVALID_OFFSET;
}
else if ((param->write.offset + param->write.len) > PREPARE_BUF_MAX_SIZE)
{
status = ESP_GATT_INVALID_ATTR_LEN;
}
if (status == ESP_GATT_OK && prepare_write_env->prepare_buf == NULL)
{
prepare_write_env->prepare_buf = (uint8_t *)malloc(PREPARE_BUF_MAX_SIZE * sizeof(uint8_t));
prepare_write_env->prepare_len = 0;
if (prepare_write_env->prepare_buf == NULL)
{
ESP_LOGE(GATTS_TABLE_TAG, "%s, Gatt_server prep no mem", __func__);
status = ESP_GATT_NO_RESOURCES;
}
}
/*send response when param->write.need_rsp is true */
if (param->write.need_rsp)
{
esp_gatt_rsp_t *gatt_rsp = (esp_gatt_rsp_t *)malloc(sizeof(esp_gatt_rsp_t));
if (gatt_rsp != NULL)
{
gatt_rsp->attr_value.len = param->write.len;
gatt_rsp->attr_value.handle = param->write.handle;
gatt_rsp->attr_value.offset = param->write.offset;
gatt_rsp->attr_value.auth_req = ESP_GATT_AUTH_REQ_NONE;
memcpy(gatt_rsp->attr_value.value, param->write.value, param->write.len);
esp_err_t response_err = esp_ble_gatts_send_response(gatts_if, param->write.conn_id, param->write.trans_id, status, gatt_rsp);
if (response_err != ESP_OK)
{
ESP_LOGE(GATTS_TABLE_TAG, "Send response error");
}
free(gatt_rsp);
}
else
{
ESP_LOGE(GATTS_TABLE_TAG, "%s, malloc failed", __func__);
status = ESP_GATT_NO_RESOURCES;
}
}
if (status != ESP_GATT_OK)
{
return;
}
memcpy(prepare_write_env->prepare_buf + param->write.offset,
param->write.value,
param->write.len);
prepare_write_env->prepare_len += param->write.len;
}
void example_exec_write_event_env(prepare_type_env_t *prepare_write_env, esp_ble_gatts_cb_param_t *param)
{
if (param->exec_write.exec_write_flag == ESP_GATT_PREP_WRITE_EXEC && prepare_write_env->prepare_buf)
{
esp_log_buffer_hex(GATTS_TABLE_TAG, prepare_write_env->prepare_buf, prepare_write_env->prepare_len);
}
else
{
ESP_LOGI(GATTS_TABLE_TAG, "ESP_GATT_PREP_WRITE_CANCEL");
}
if (prepare_write_env->prepare_buf)
{
free(prepare_write_env->prepare_buf);
prepare_write_env->prepare_buf = NULL;
}
prepare_write_env->prepare_len = 0;
}
static void gatts_profile_event_handler(esp_gatts_cb_event_t event, esp_gatt_if_t gatts_if, esp_ble_gatts_cb_param_t *param)
{
switch (event)
{
case ESP_GATTS_REG_EVT:
{
esp_err_t set_dev_name_ret = esp_ble_gap_set_device_name(SAMPLE_DEVICE_NAME);
if (set_dev_name_ret)
{
ESP_LOGE(GATTS_TABLE_TAG, "set device name failed, error code = %x", set_dev_name_ret);
}
#ifdef CONFIG_SET_RAW_ADV_DATA
esp_err_t raw_adv_ret = esp_ble_gap_config_adv_data_raw(raw_adv_data, sizeof(raw_adv_data));
if (raw_adv_ret)
{
ESP_LOGE(GATTS_TABLE_TAG, "config raw adv data failed, error code = %x ", raw_adv_ret);
}
adv_config_done |= ADV_CONFIG_FLAG;
esp_err_t raw_scan_ret = esp_ble_gap_config_scan_rsp_data_raw(raw_scan_rsp_data, sizeof(raw_scan_rsp_data));
if (raw_scan_ret)
{
ESP_LOGE(GATTS_TABLE_TAG, "config raw scan rsp data failed, error code = %x", raw_scan_ret);
}
adv_config_done |= SCAN_RSP_CONFIG_FLAG;
#else
// config adv data
esp_err_t ret = esp_ble_gap_config_adv_data(&adv_data);
if (ret)
{
ESP_LOGE(GATTS_TABLE_TAG, "config adv data failed, error code = %x", ret);
}
adv_config_done |= ADV_CONFIG_FLAG;
// config scan response data
ret = esp_ble_gap_config_adv_data(&scan_rsp_data);
if (ret)
{
ESP_LOGE(GATTS_TABLE_TAG, "config scan response data failed, error code = %x", ret);
}
adv_config_done |= SCAN_RSP_CONFIG_FLAG;
#endif
esp_err_t create_attr_ret = esp_ble_gatts_create_attr_tab(gatt_db, gatts_if, HRS_IDX_NB, SVC_INST_ID);
if (create_attr_ret)
{
ESP_LOGE(GATTS_TABLE_TAG, "create attr table failed, error code = %x", create_attr_ret);
}
}
break;
case ESP_GATTS_READ_EVT:
ESP_LOGI(GATTS_TABLE_TAG, "ESP_GATTS_READ_EVT");
break;
case ESP_GATTS_WRITE_EVT:
if (param->write.handle == heart_rate_handle_table[IDX_CMD_CHAR_VAL])
{
uint8_t cmd_id = param->write.value[0]; // 读取指令
ESP_LOGI(GATTS_TABLE_TAG, "Received command: 0x%02X", cmd_id); // 打印接收到的指令
uint8_t *params = ¶m->write.value[1]; // 剩余的参数
uint16_t length = param->write.len - 1; // 剩余数据长度
// 调用执行指令的函数
execute_command(cmd_id, params, length);
// 如果需要响应
if (param->write.need_rsp)
{
esp_ble_gatts_send_response(gatts_if, param->write.conn_id, param->write.trans_id, ESP_GATT_OK, NULL);
}
}
break;
case ESP_GATTS_EXEC_WRITE_EVT:
// the length of gattc prepare write data must be less than GATTS_DEMO_CHAR_VAL_LEN_MAX.
ESP_LOGI(GATTS_TABLE_TAG, "ESP_GATTS_EXEC_WRITE_EVT");
example_exec_write_event_env(&prepare_write_env, param);
break;
case ESP_GATTS_MTU_EVT:
ESP_LOGI(GATTS_TABLE_TAG, "ESP_GATTS_MTU_EVT, MTU %d", param->mtu.mtu);
break;
case ESP_GATTS_CONF_EVT:
ESP_LOGI(GATTS_TABLE_TAG, "ESP_GATTS_CONF_EVT, status = %d, attr_handle %d", param->conf.status, param->conf.handle);
break;
case ESP_GATTS_START_EVT:
ESP_LOGI(GATTS_TABLE_TAG, "SERVICE_START_EVT, status %d, service_handle %d", param->start.status, param->start.service_handle);
break;
case ESP_GATTS_CONNECT_EVT:
ESP_LOGI(GATTS_TABLE_TAG, "ESP_GATTS_CONNECT_EVT, conn_id = %d", param->connect.conn_id);
App_OLED_ShowIcon();
esp_log_buffer_hex(GATTS_TABLE_TAG, param->connect.remote_bda, 6);
esp_ble_conn_update_params_t conn_params = {0};
memcpy(conn_params.bda, param->connect.remote_bda, sizeof(esp_bd_addr_t));
/* For the iOS system, please refer to Apple official documents about the BLE connection parameters restrictions. */
conn_params.latency = 0;
conn_params.max_int = 0x20; // max_int = 0x20*1.25ms = 40ms
conn_params.min_int = 0x10; // min_int = 0x10*1.25ms = 20ms
conn_params.timeout = 400; // timeout = 400*10ms = 4000ms
// start sent the update connection parameters to the peer device.
esp_ble_gap_update_conn_params(&conn_params);
break;
case ESP_GATTS_DISCONNECT_EVT:
ESP_LOGI(GATTS_TABLE_TAG, "ESP_GATTS_DISCONNECT_EVT, reason = 0x%x", param->disconnect.reason);
App_OLED_Clear(0, 2);
esp_ble_gap_start_advertising(&adv_params);
break;
case ESP_GATTS_CREAT_ATTR_TAB_EVT:
{
if (param->add_attr_tab.status != ESP_GATT_OK)
{
ESP_LOGE(GATTS_TABLE_TAG, "create attribute table failed, error code=0x%x", param->add_attr_tab.status);
}
else if (param->add_attr_tab.num_handle != HRS_IDX_NB)
{
ESP_LOGE(GATTS_TABLE_TAG, "create attribute table abnormally, num_handle (%d) \
doesn't equal to HRS_IDX_NB(%d)",
param->add_attr_tab.num_handle, HRS_IDX_NB);
}
else
{
ESP_LOGI(GATTS_TABLE_TAG, "create attribute table successfully, the number handle = %d", param->add_attr_tab.num_handle);
memcpy(heart_rate_handle_table, param->add_attr_tab.handles, sizeof(heart_rate_handle_table));
esp_ble_gatts_start_service(heart_rate_handle_table[IDX_SVC]);
}
break;
}
case ESP_GATTS_STOP_EVT:
case ESP_GATTS_OPEN_EVT:
case ESP_GATTS_CANCEL_OPEN_EVT:
case ESP_GATTS_CLOSE_EVT:
case ESP_GATTS_LISTEN_EVT:
case ESP_GATTS_CONGEST_EVT:
case ESP_GATTS_UNREG_EVT:
case ESP_GATTS_DELETE_EVT:
default:
break;
}
}
static void gatts_event_handler(esp_gatts_cb_event_t event, esp_gatt_if_t gatts_if, esp_ble_gatts_cb_param_t *param)
{
/* If event is register event, store the gatts_if for each profile */
if (event == ESP_GATTS_REG_EVT)
{
if (param->reg.status == ESP_GATT_OK)
{
heart_rate_profile_tab[PROFILE_APP_IDX].gatts_if = gatts_if;
}
else
{
ESP_LOGE(GATTS_TABLE_TAG, "reg app failed, app_id %04x, status %d",
param->reg.app_id,
param->reg.status);
return;
}
}
do
{
int idx;
for (idx = 0; idx < PROFILE_NUM; idx++)
{
/* ESP_GATT_IF_NONE, not specify a certain gatt_if, need to call every profile cb function */
if (gatts_if == ESP_GATT_IF_NONE || gatts_if == heart_rate_profile_tab[idx].gatts_if)
{
if (heart_rate_profile_tab[idx].gatts_cb)
{
heart_rate_profile_tab[idx].gatts_cb(event, gatts_if, param);
}
}
}
} while (0);
}
void Dri_BLE_Init(void)
{
esp_err_t ret;
/* Initialize NVS. */
ret = nvs_flash_init();
if (ret == ESP_ERR_NVS_NO_FREE_PAGES || ret == ESP_ERR_NVS_NEW_VERSION_FOUND)
{
ESP_ERROR_CHECK(nvs_flash_erase());
ret = nvs_flash_init();
}
ESP_ERROR_CHECK(ret);
ESP_ERROR_CHECK(esp_bt_controller_mem_release(ESP_BT_MODE_CLASSIC_BT));
esp_bt_controller_config_t bt_cfg = BT_CONTROLLER_INIT_CONFIG_DEFAULT();
ret = esp_bt_controller_init(&bt_cfg);
if (ret)
{
ESP_LOGE(GATTS_TABLE_TAG, "%s enable controller failed: %s", __func__, esp_err_to_name(ret));
return;
}
ret = esp_bt_controller_enable(ESP_BT_MODE_BLE);
if (ret)
{
ESP_LOGE(GATTS_TABLE_TAG, "%s enable controller failed: %s", __func__, esp_err_to_name(ret));
return;
}
ret = esp_bluedroid_init();
if (ret)
{
ESP_LOGE(GATTS_TABLE_TAG, "%s init bluetooth failed: %s", __func__, esp_err_to_name(ret));
return;
}
ret = esp_bluedroid_enable();
if (ret)
{
ESP_LOGE(GATTS_TABLE_TAG, "%s enable bluetooth failed: %s", __func__, esp_err_to_name(ret));
return;
}
ret = esp_ble_gatts_register_callback(gatts_event_handler);
if (ret)
{
ESP_LOGE(GATTS_TABLE_TAG, "gatts register error, error code = %x", ret);
return;
}
ret = esp_ble_gap_register_callback(gap_event_handler);
if (ret)
{
ESP_LOGE(GATTS_TABLE_TAG, "gap register error, error code = %x", ret);
return;
}
ret = esp_ble_gatts_app_register(ESP_APP_ID);
if (ret)
{
ESP_LOGE(GATTS_TABLE_TAG, "gatts app register error, error code = %x", ret);
return;
}
esp_err_t local_mtu_ret = esp_ble_gatt_set_local_mtu(500);
if (local_mtu_ret)
{
ESP_LOGE(GATTS_TABLE_TAG, "set local MTU failed, error code = %x", local_mtu_ret);
}
}
调试与优化
- 具体代码可参考本地官方代码Espressif\frameworks\esp-idf-v5.3.2\examples\bluetooth\bluedroid\ble\gatt_server_service_table
- 在这里我加入了一个GATTS_CHAR_UUID_CMD的UUID也就是0xFF04，以及一个指令执行函数execute_command();具体的指令实现可自己加入
- 手机端使用nRF Connect连接蓝牙，使用0xFF04这个UUID就可以发送指令了
实际应用案例
- 传感器数据透传（如温湿度数据）
- 远程控制指令传输
- 与手机APP通信的完整流程
智能硬件社区聚焦AI智能硬件技术生态，汇聚嵌入式AI、物联网硬件开发者，打造交流分享平台，同步全国赛事资讯、开展 OPC 核心人才招募，助力技术落地与开发者成长。
更多推荐
4
0- 0
已为社区贡献1条内容
所有评论(0)
