本文详细介绍基于STM32的刷卡指纹智能门禁系统。

获取资料/指导答疑/技术交流/选题/帮助，请点链接：

https://gitee.com/zengzhaorong/share_contact/blob/master/stm32.txt

1 系统功能
1.2 功能概述
本系统是由stm32硬件端和机智云APP构成，两者通过WIFI无线连接，采用机智云官方协议通信，硬件端由STM32和外设模块（HLM8032电压电流功率传感器、ESP8266WIFI模块，继电器，DHT11温湿度传感器，MQ2烟雾传感器，OLED,AMS1117电源转换模块，家用排插）组成。主要实现以下功能：
1.远程控制插座开关，可定时关闭插座；
2.远程监控插座电压，电流，功率，温湿度等参数；
3.当插座电压，电流，功率，温湿度等参数超过APP设定的阈值，自动断开插座电源，并发送警报信息到机智云APP;
4.OLED实时显示电压，电流，功率，温湿度，定时时间等。

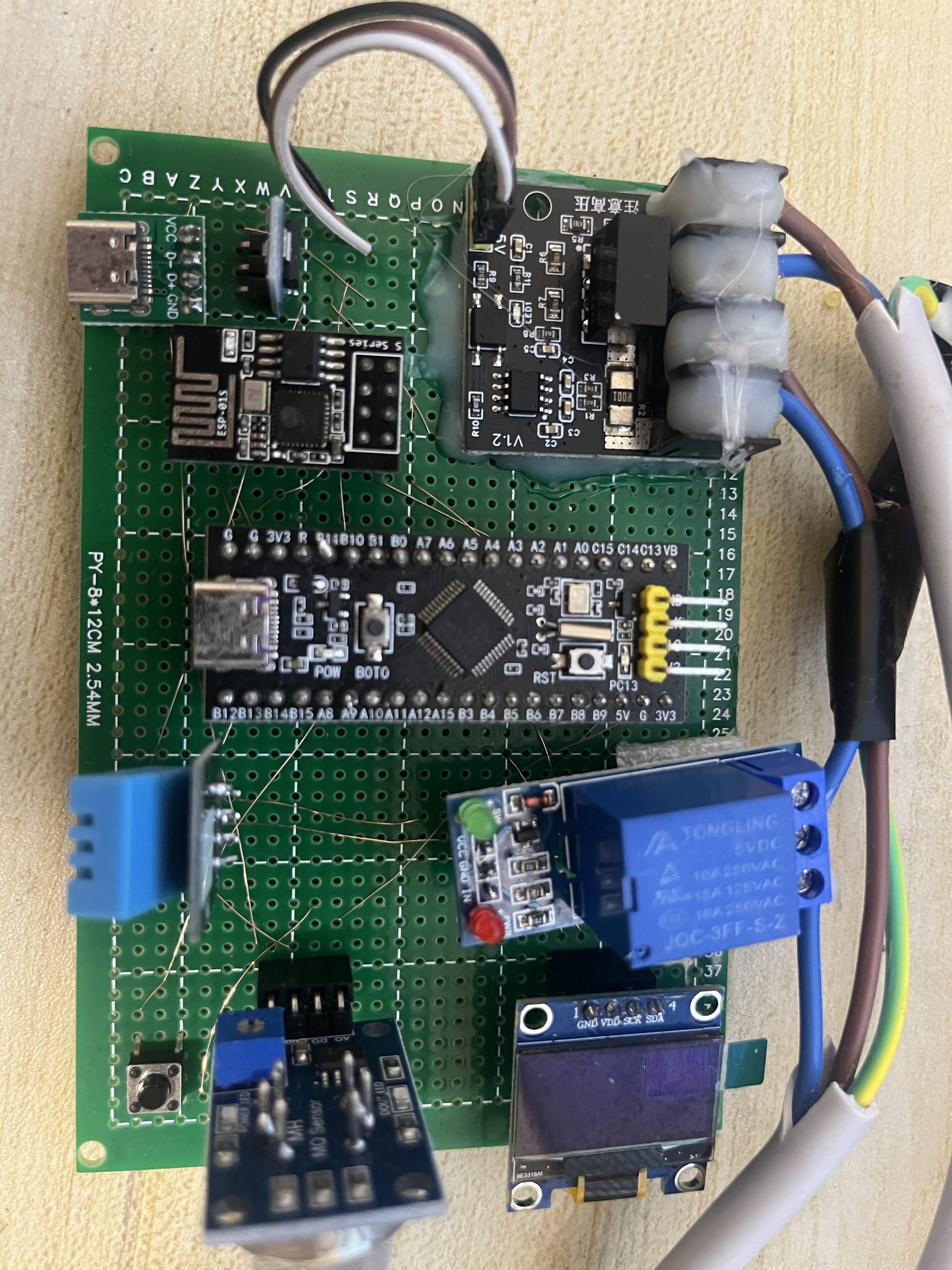

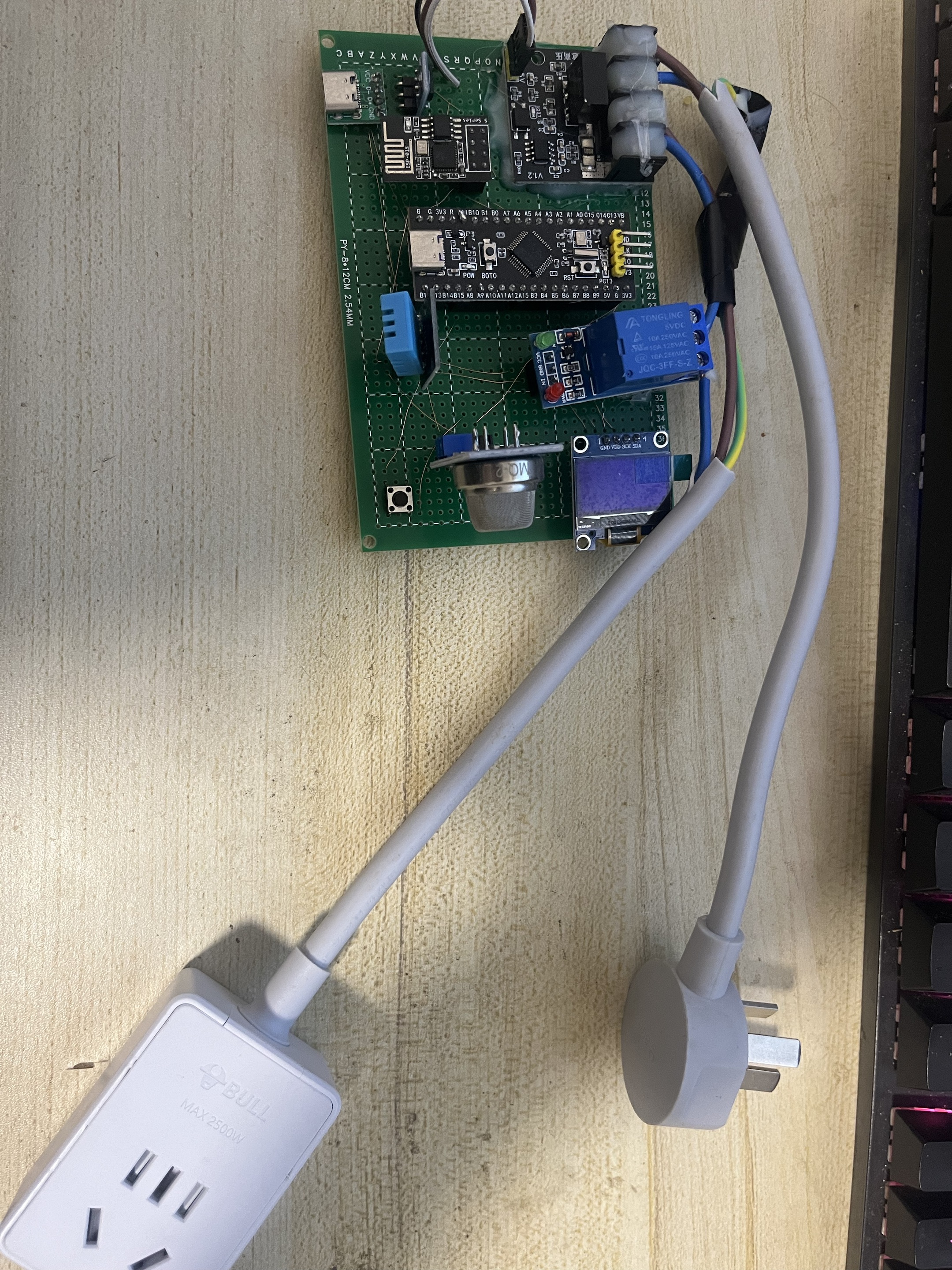

1.2 实物图
在这里插入图片描述
在这里插入图片描述
1.3 主要功能图解

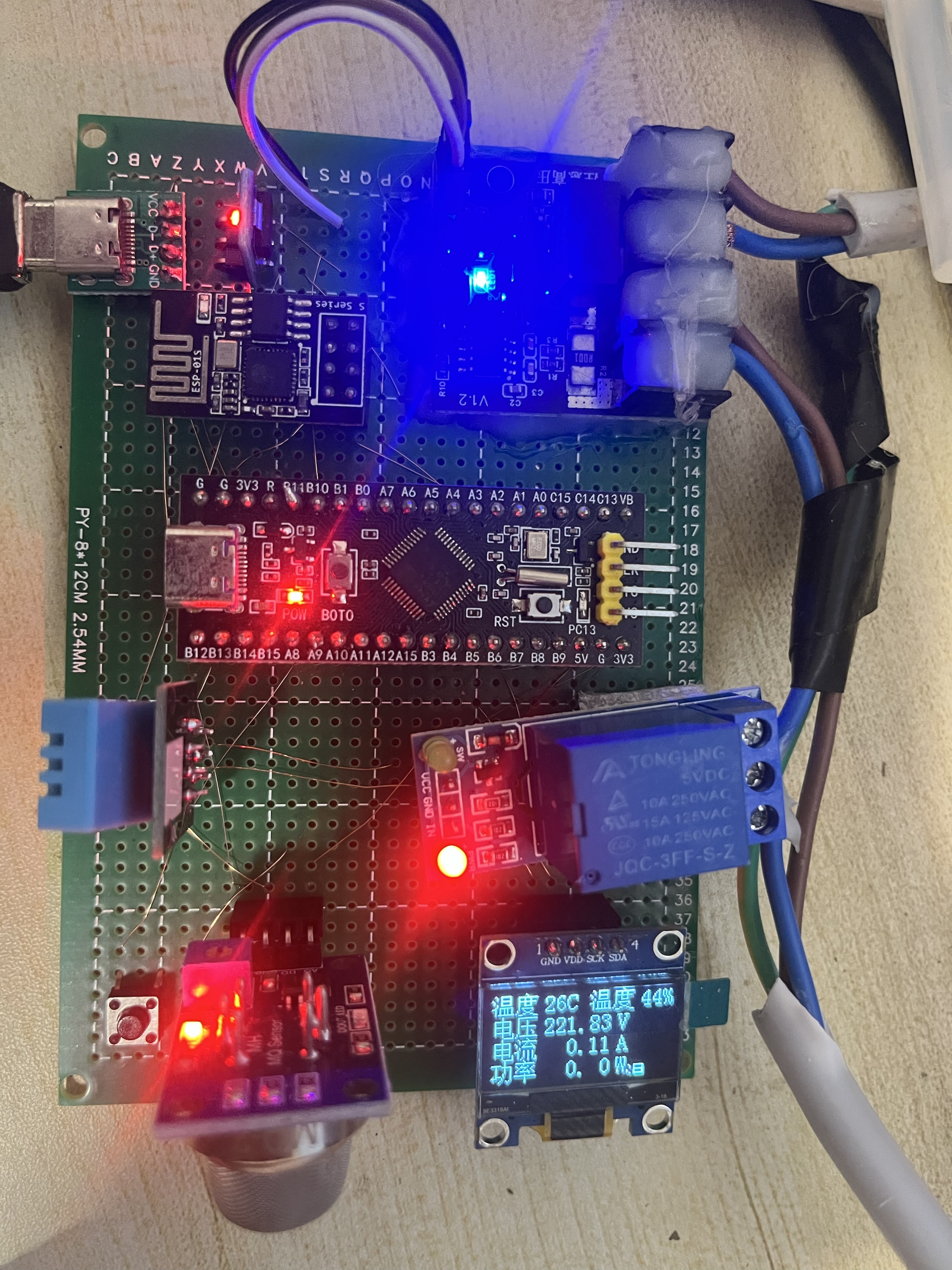

1.3.1 OLED实时显示电压，电流，功率，温湿度
在这里插入图片描述

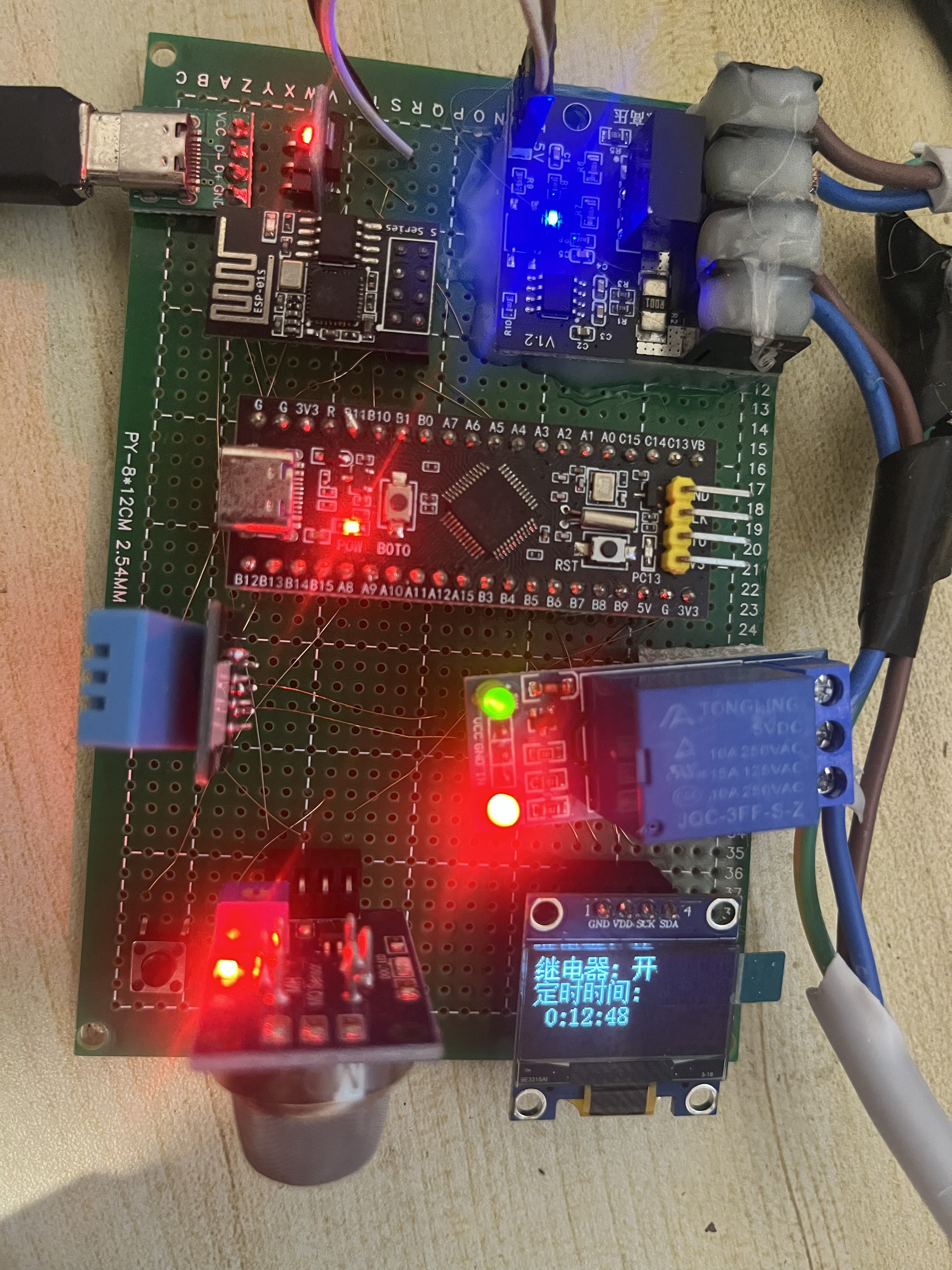

1.3.2 继电器定时关闭
在这里插入图片描述

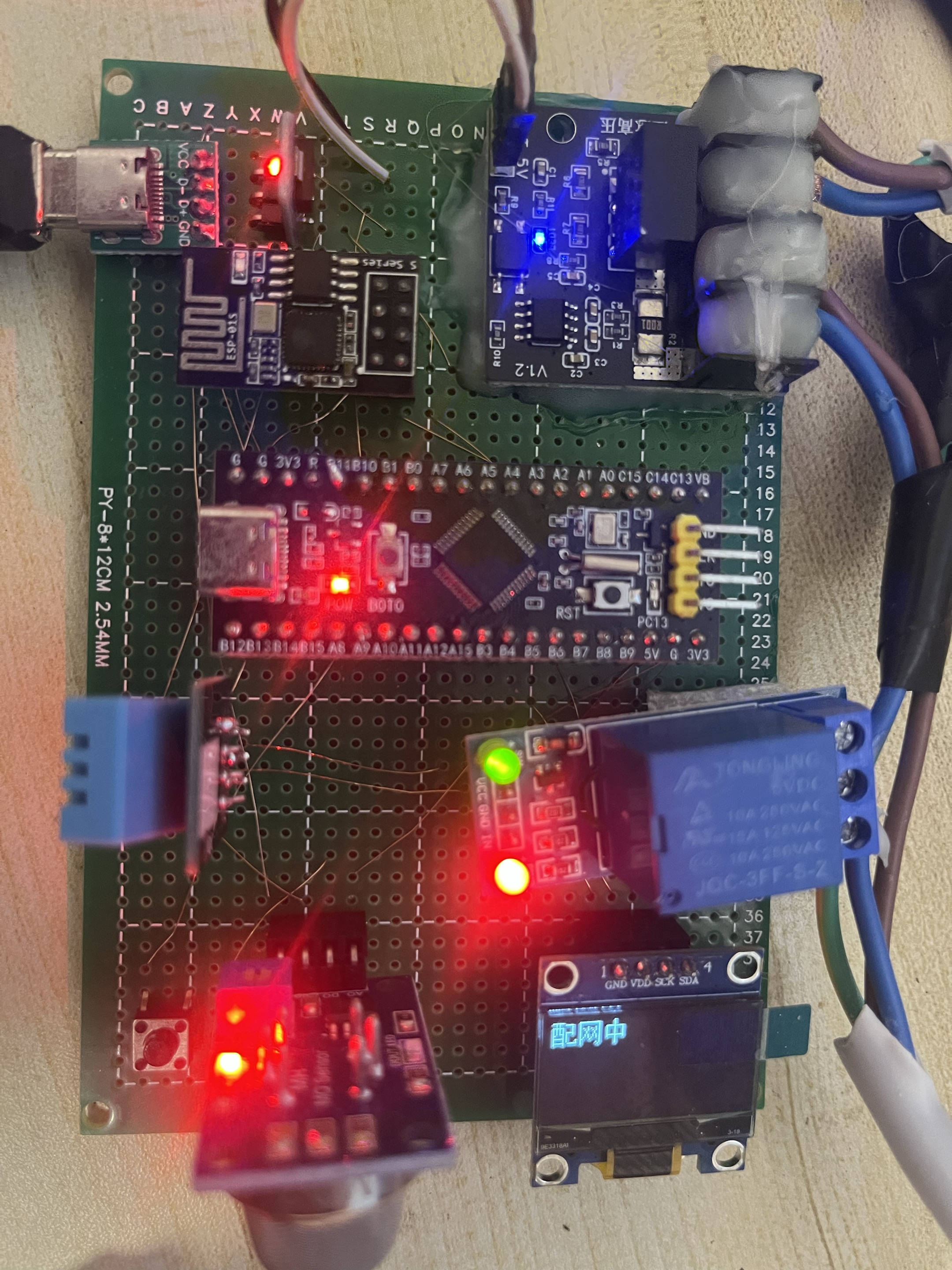

1.3.3 ESP8266 WIFI配网
在这里插入图片描述

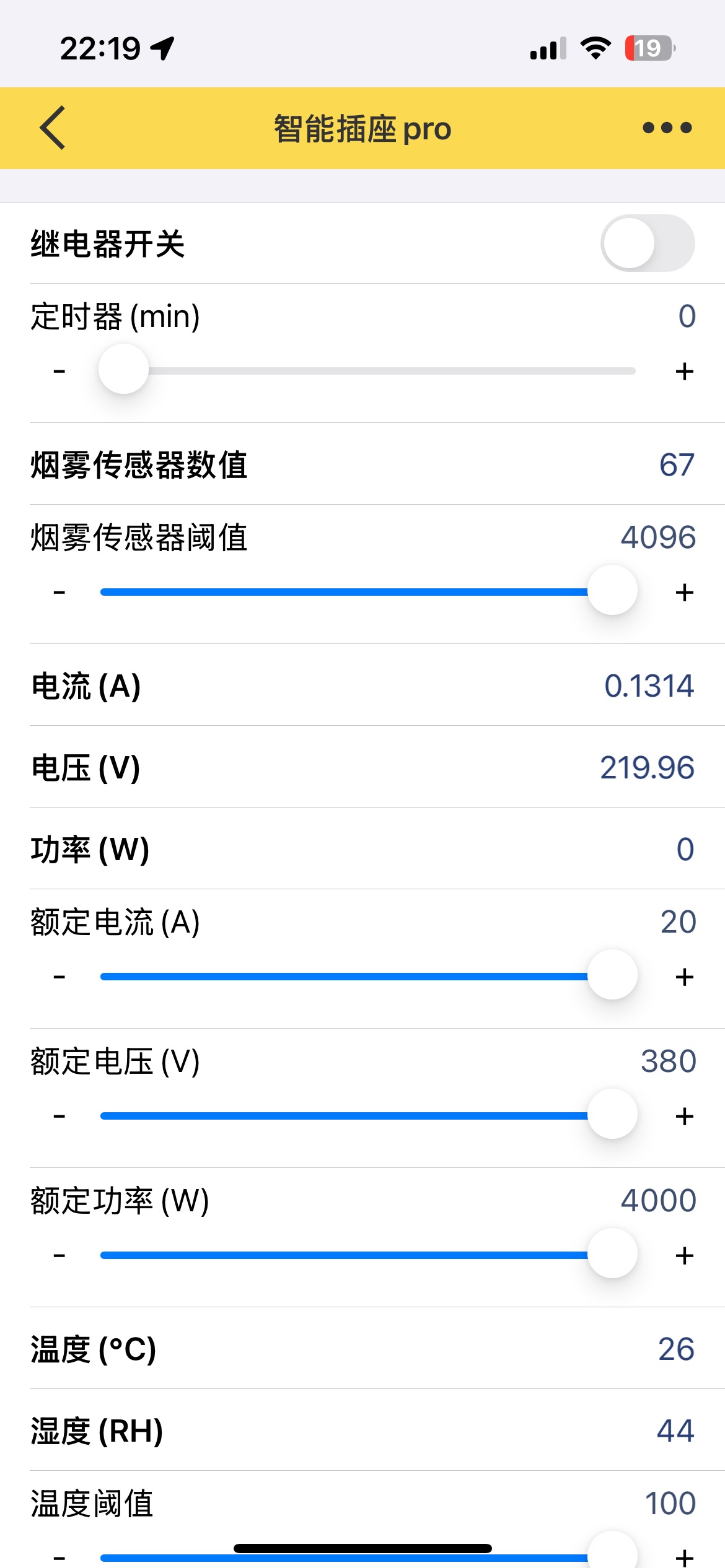

1.3.4 机智云APP功能展示
在这里插入图片描述

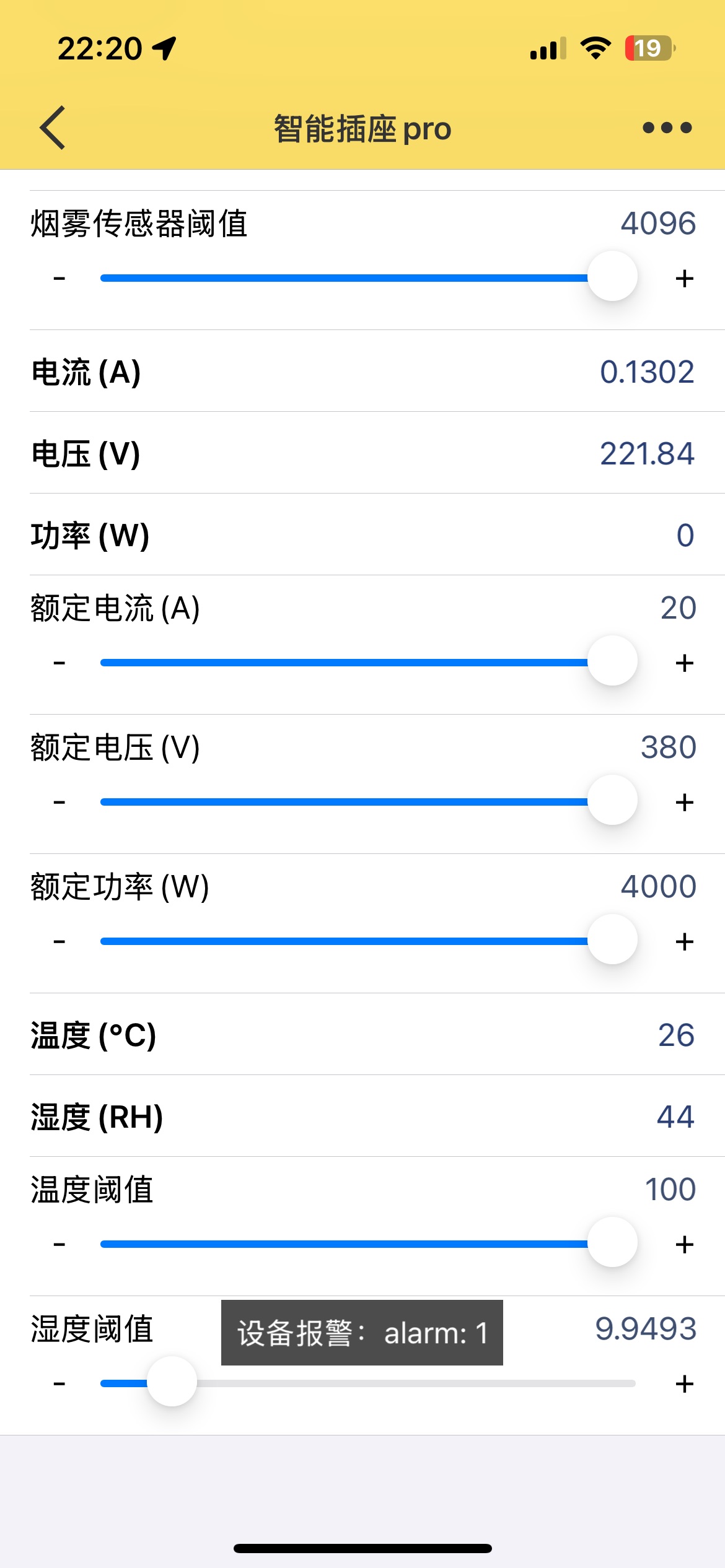

1.3.5 传感器数据监测异常报警
在这里插入图片描述
2 硬件概述

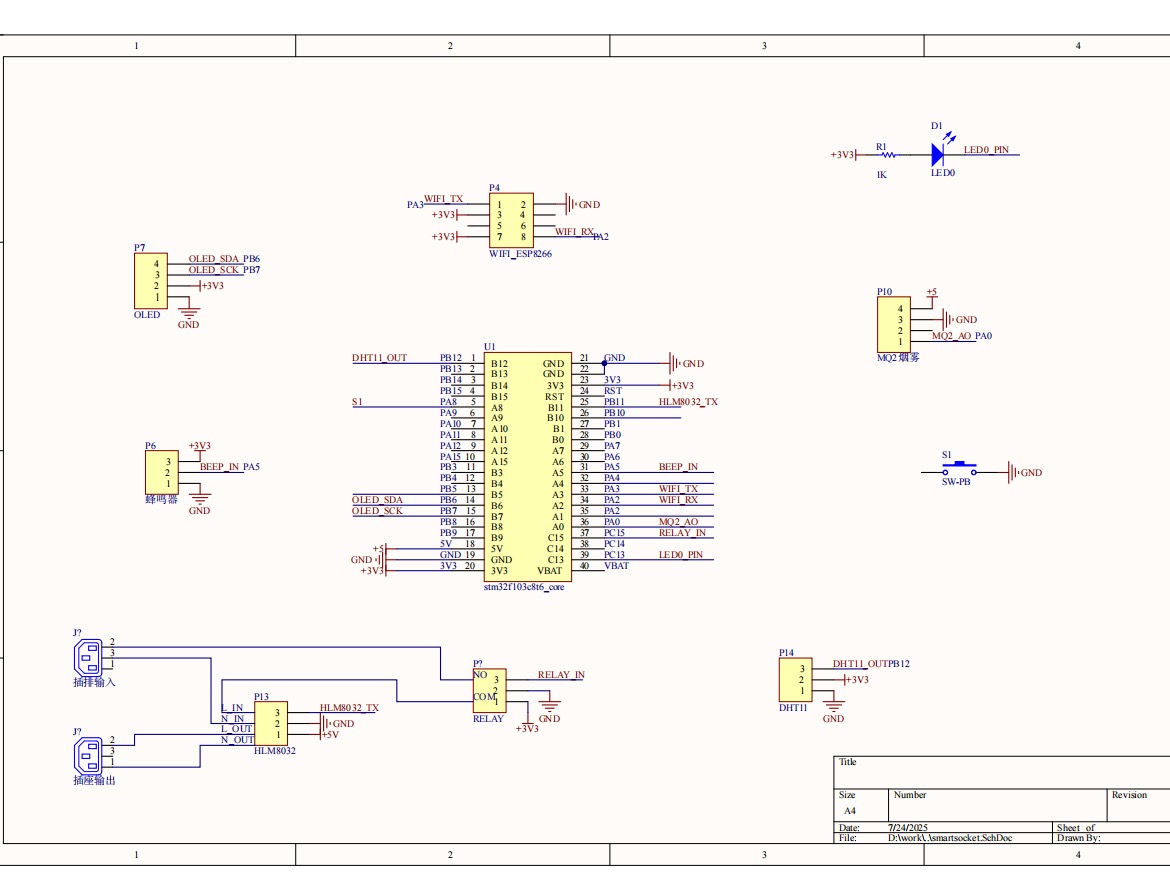

2.1 原理图
在这里插入图片描述
3 软件实现（部分代码展示）
3.1 hlm8032串口初始化

static void MX_USART3_UART_Init(void)
{

  huart3.Instance = USART3;
  huart3.Init.BaudRate = 4800;
  huart3.Init.WordLength = UART_WORDLENGTH_8B;
  huart3.Init.StopBits = UART_STOPBITS_1;
  huart3.Init.Parity = UART_PARITY_NONE;
  huart3.Init.Mode = UART_MODE_TX_RX;
  huart3.Init.HwFlowCtl = UART_HWCONTROL_NONE;
  huart3.Init.OverSampling = UART_OVERSAMPLING_16;
  if (HAL_UART_Init(&huart3) != HAL_OK)
  {
    _Error_Handler(__FILE__, __LINE__);
  }

}

3.2 hlm8032接收数据处理

void hlm8032_data_analysis(hlm8032_data_st *data,uint8_t *src)
{
	static uint8_t k=0;
	uint32_t VP_REG=0,V_REG=0,CP_REG=0,C_REG=0,PP_REG=0,P_REG=0,PF_COUNT=0,PF=0;
	if(src[0]!=0xaa)//оƬÎó²îÐÞÕý¹¦ÄÜÕý³££¬²ÎÊýÕý³£
	{
		VP_REG=src[2]*65536+src[3]*256+src[4];//¼ÆËãµçѹ²ÎÊý¼Ä´æÆ÷
		V_REG=src[5]*65536+src[6]*256+src[7];//¼ÆËãµçѹ¼Ä´æÆ÷
		data->voltage = (VP_REG/V_REG)*Ue;//¼ÆËãµçѹֵ£¬1.88ΪµçѹϵÊý£¬¸ù¾ÝËù²ÉÓõķÖѹµç×è´óСÀ´È·¶¨
		//printf("µçѹֵ£º%0.2fV; ",data->voltage);

		CP_REG=src[8]*65536+src[9]*256+src[10];//¼ÆËãµçÁ÷²ÎÊý¼Ä´æÆ÷
		C_REG=src[11]*65536+src[12]*256+src[13];//¼ÆËãµçÁ÷¼Ä´æÆ÷
		data->current = ((CP_REG*Ce*100)/C_REG)/100.0;//¼ÆËãµçÁ÷Öµ
		//printf("µçÁ÷Öµ£º%0.3fA; ",data->current);
		//printf(" %X ",src[0]);

		if(src[0]>0xf0)//ÅжÏʵʱ¹¦ÂÊÊÇ·ñδÒç³ö
		{
			//printf("δ½ÓÓõçÉ豸!");
		}
		else
		{
			PP_REG=src[14]*65536+src[15]*256+src[16];//¼ÆË㹦ÂʲÎÊý¼Ä´æ
			P_REG=src[17]*65536+src[18]*256+src[19];//¼ÆË㹦ÂʼĴæÆ÷
			data->power = (PP_REG/P_REG)*Ue*Ce;//¼ÆËãÓÐЧ¹¦ÂÊ
			//printf("ÓÐЧ¹¦ÂÊ£º%0.2fW; ",data->power);
		}

		if((src[20]&0x80)!=old_reg)//ÅжÏÊý¾Ý¸üмĴæÆ÷×î¸ßλÓÐûÓз­×ª
		{
			k++;
			old_reg=src[20]&0x80;
		}
		PF=(k*65536)+(src[21]*256)+src[22];//¼ÆËãÒÑÓõçÁ¿Âö³åÊý
		PF_COUNT=((100000*3600)/(PP_REG*Ue*Ce))*10000;//¼ÆËã1¶Èµç¶ÔÓ¦µÄÂö³åÊýÁ¿
		data->power_consumption = ((PF*10000)/PF_COUNT)/10000.0;//¼ÆËãÒÑÓõçÁ¿
		//printf(" %d %d ",PF,PF_COUNT);
		//printf("ÒÑÓõçÁ¿£º%0.4f¡ã\r\n",data->power_consumption);
	}
	else//оƬÎó²îÐÞÕý¹¦ÄÜʧЧ
	{
		printf("data error\r\n");
	}

}

3.3 机智云下发数据处理

int8_t gizwitsEventProcess(eventInfo_t *info, uint8_t *gizdata, uint32_t len)
{
    uint8_t i = 0;
    dataPoint_t *dataPointPtr = (dataPoint_t *)gizdata;
    moduleStatusInfo_t *wifiData = (moduleStatusInfo_t *)gizdata;
    protocolTime_t *ptime = (protocolTime_t *)gizdata;

#if MODULE_TYPE
    gprsInfo_t *gprsInfoData = (gprsInfo_t *)gizdata;
#else
    moduleInfo_t *ptModuleInfo = (moduleInfo_t *)gizdata;
#endif

    if((NULL == info) || (NULL == gizdata))
    {
        return -1;
    }

    for(i=0; i<info->num; i++)
    {
        switch(info->event[i])
        {
        case EVENT_relay_switch:
            currentDataPoint.valuerelay_switch = dataPointPtr->valuerelay_switch;
            GIZWITS_LOG("Evt: EVENT_relay_switch %d \n", currentDataPoint.valuerelay_switch);
            if(0x01 == currentDataPoint.valuerelay_switch)
            {
            //user handle
            }
            else
            {
            //user handle
            }
            break;


        case EVENT_relay_timer:
            currentDataPoint.valuerelay_timer = dataPointPtr->valuerelay_timer;
            GIZWITS_LOG("Evt:EVENT_relay_timer %d\n",currentDataPoint.valuerelay_timer);
			time_change(currentDataPoint.valuerelay_timer,&relay_timer);
            //user handle
            break;
        case EVENT_mq2_limit:
            currentDataPoint.valuemq2_limit = dataPointPtr->valuemq2_limit;
            GIZWITS_LOG("Evt:EVENT_mq2_limit %d\n",currentDataPoint.valuemq2_limit);
            //user handle
            break;
        case EVENT_current_limit:
            currentDataPoint.valuecurrent_limit = dataPointPtr->valuecurrent_limit;
            GIZWITS_LOG("Evt:EVENT_current_limit %4f\n",currentDataPoint.valuecurrent_limit);
            //user handle
            break;
        case EVENT_vol_limit:
            currentDataPoint.valuevol_limit = dataPointPtr->valuevol_limit;
            GIZWITS_LOG("Evt:EVENT_vol_limit %4f\n",currentDataPoint.valuevol_limit);
            //user handle
            break;
        case EVENT_power_limit:
            currentDataPoint.valuepower_limit = dataPointPtr->valuepower_limit;
            GIZWITS_LOG("Evt:EVENT_power_limit %4f\n",currentDataPoint.valuepower_limit);
            //user handle
            break;
        case EVENT_temp_limit:
            currentDataPoint.valuetemp_limit = dataPointPtr->valuetemp_limit;
            GIZWITS_LOG("Evt:EVENT_temp_limit %4f\n",currentDataPoint.valuetemp_limit);
            //user handle
            break;
        case EVENT_humi_limit:
            currentDataPoint.valuehumi_limit = dataPointPtr->valuehumi_limit;
            GIZWITS_LOG("Evt:EVENT_humi_limit %4f\n",currentDataPoint.valuehumi_limit);
            //user handle
            break;


        case WIFI_SOFTAP:
            break;
        case WIFI_AIRLINK:
            break;
        case WIFI_STATION:
            break;
        case WIFI_CON_ROUTER:

            break;
        case WIFI_DISCON_ROUTER:

            break;
        case WIFI_CON_M2M:

            break;
        case WIFI_DISCON_M2M:
            break;
        case WIFI_RSSI:
            GIZWITS_LOG("RSSI %d\n", wifiData->rssi);
            break;
        case TRANSPARENT_DATA:
            GIZWITS_LOG("TRANSPARENT_DATA \n");
            //user handle , Fetch data from [data] , size is [len]
            break;
        case WIFI_NTP:
            GIZWITS_LOG("WIFI_NTP : [%d-%d-%d %02d:%02d:%02d][%d] \n",ptime->year,ptime->month,ptime->day,ptime->hour,ptime->minute,ptime->second,ptime->ntp);
            break;
        case MODULE_INFO:
            GIZWITS_LOG("MODULE INFO ...\n");
#if MODULE_TYPE
            GIZWITS_LOG("GPRS MODULE ...\n");
            //Format By gprsInfo_t
            GIZWITS_LOG("moduleType : [%d] \n",gprsInfoData->Type);
#else
            GIZWITS_LOG("WIF MODULE ...\n");
            //Format By moduleInfo_t
            GIZWITS_LOG("moduleType : [%d] \n",ptModuleInfo->moduleType);
#endif
        break;
        default:
            break;
        }
    }

    return 0;
}

3.4 机智云上传数据处理

static void upstream_data_hdl(void)
{
	currentDataPoint.valuetemp = temperature;//Add Sensor Data Collection
    currentDataPoint.valuehumi = humirity;//Add Sensor Data Collection
	currentDataPoint.valuemq2 = mq2_value;
	currentDataPoint.valuerelay_vol = hlm8032.voltage;
	currentDataPoint.valuerelay_current = hlm8032.current;
	currentDataPoint.valuepower = hlm8032.power;
	if(relay_timer.hours || relay_timer.mins || relay_timer.seconds){
		currentDataPoint.valuerelay_timer = relay_timer.hours*60 + relay_timer.mins+1;
	}else{
		currentDataPoint.valuerelay_timer = 0;
	}

}
