【SoC】【SF32】初次体验黄山派的超详细教程
版权所有（C） Microsoft Corporation。保留所有权利。安装最新的 PowerShell，了解新功能和改进！.\install.ps1 : 无法加载文件 E:\Git_Projects\sifli-sdk\install.ps1，因为在此系统上禁止运行脚本。有关详细信息，请参阅 htLinkID=135170 中的 about_Execution_Policies。所在位置 行:
·
一、简介

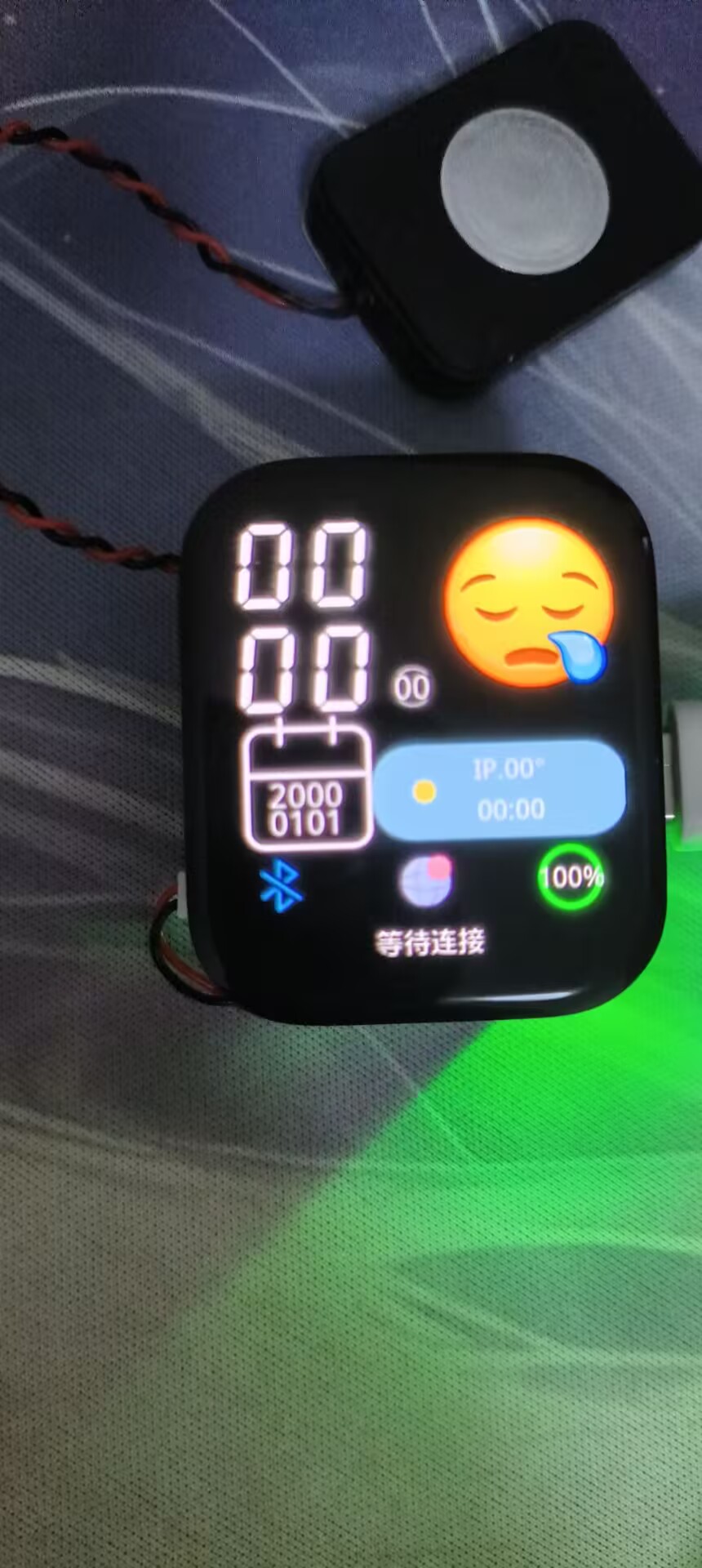

立创黄山派是立创开发板团队打造的一款基于思澈科技 SF32LB52-MOD-1 模组的开发板，也是智能手表手环的原型机。以下是其详细介绍：
- 芯片模组：板载基于 SF32LB52x 芯片的 SF32LB52x-MOD-1-N16R8 模组，标配 SF32LB525UC6 芯片，内置合封配置为 8MB OPI-PSRAM，接口频率 144MHz，128Mb QSPI-NOR Flash，接口频率 72MHz，STR 模式，48MHz 晶体，32.768KHz 晶体，板载 PCBA 天线。
- 显示屏幕：配备 1.85 寸 MOLED 屏幕，型号为 ZC-A1D85W-010，分辨率为 390*450 像素，亮度 800cd/m²，采用 Quad SPI 显示接口，OLED Driver IC 为 CO5300AF-01，Power IC 为 BV6802W，TP IC 为 FT6146-M00。
- 接口方面：有专用屏幕接口，支持 SPI/DSPI/Quad SPI，支持 DDR 模式 QSPI，通过 22pin FPC 和 40pin 排针引出，也支持 I2C 接口屏幕；Type C-UART 接口，板载 CH340N 串口芯片，可实现程序下载和软件 DEBUG，支持 USB2.0 FS，通过 30p 接口引出；支持采用 SPI 接口的 TF 卡，板载 Micro SD 卡插槽。
- 其他外设：板载集成 Mems MIC，模拟音频输出，板载 Class-D 音频 PA，可外接 GH-1.25mm 接口的 3W/4 欧或 2W/8 欧喇叭；有 1x 功能按键，1x 开关机按键，支持长按 10S 复位功能；1xRGB-LED，SK6812MINI-HS，GPIO 控制；板载马达驱动电路，预留外接马达焊接点；配备六轴 IMU - 惯性测量单元 LSM6DS3TR-C，三轴地磁传感器 MMC5603NJ，环境光传感器 LTR-303ALS-01。
- 电源系统：采用 OVP：SY5320，Charger：SY6103，Loadswitch：LP5240HVF，LDO：ETA5055V330DS2F，支持外接 GH1.25mm 正向线序接口的锂电池，最高充电电压 4.5V，最大充电电流 500mA。
- 开发特点：黄山派的软硬件全部开源，其核心思想是做一个适合大家学习和做产品原型的开发板，定位低功耗、显示、无线场景，可满足手表、码表、小智 AI、mp4 播放器、桌面助手等多种产品的开发需求
二、环境搭建
2.1 安装git
https://git-scm.com/book/zh/v2/%E8%B5%B7%E6%AD%A5-%E5%AE%89%E8%A3%85-Git
2.2 安装python3.9以上版本，但是不要太新的版本
2.3 克隆SDK
git clone --recursive https://github.com/OpenSiFli/SiFli-SDK
git clone --recursive git@gitee.com:SiFli/sifli-sdk.git2.4 在SDK文件夹下打开powershell(管理员运行)
# 如果第一次运行出现无法识别.\install.ps1脚本命令
Set-ExecutionPolicy RemoteSigned2.5 声明工具链安装路径以及使用国内源加速，运行对应的系统下的脚本，我的是Windows脚本则运行.\install.ps1，通过python工具创建虚拟运行环境，以运行.ps1 windows脚本，如果没有设置toolchains的安装路径，默认在C:\user\name\.sifli其中会安装对应虚拟环境下需要的toolchains
$env:SIFLI_SDK_TOOLS_PATH="D:\DevEnv\SIFLI_Toolchain"
$env:SIFLI_SDK_GITHUB_ASSETS="downloads.sifli.com/github_assets"
$env:PIP_INDEX_URL="https://mirrors.ustc.edu.cn/pypi/simple"
.\install.ps12.6 一定注意！！！出现以下结果才可以关闭命令行窗口
All done! You can now run:
export.ps12.7 以后每次启用该SDK，一定要使用.\export.ps1声明环境变量，如果自定义了toolchains路径则需要先声明toolchains路径再使用.\export.ps1
cd E:\Git_Projects\sifli-sdk
$env:SIFLI_SDK_TOOLS_PATH="D:\DevEnv\SIFLI_Toolchain"
.\export.ps1错误过程记录（可略，原因：权限问题以及python3.14不支持）：
Windows PowerShell
版权所有（C） Microsoft Corporation。保留所有权利。
安装最新的 PowerShell，了解新功能和改进！https://aka.ms/PSWindows
PS E:\Git_Projects\sifli-sdk> .\install.ps1
.\install.ps1 : 无法加载文件 E:\Git_Projects\sifli-sdk\install.ps1，因为在此系统上禁止运行脚本。有关详细信息，请参阅 ht
tps:/go.microsoft.com/fwlink/?LinkID=135170 中的 about_Execution_Policies。
所在位置 行:1 字符: 1
+ .\install.ps1
+ ~~~~~~~~~~~~~
+ CategoryInfo : SecurityError: (:) []，PSSecurityException
+ FullyQualifiedErrorId : UnauthorizedAccess
PS E:\Git_Projects\sifli-sdk> Set-ExecutionPolicy RemoteSigned
Set-ExecutionPolicy : 对注册表项“HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\PowerShell\1\ShellIds\Microsoft.PowerShell”的
访问被拒绝。 要更改默认(LocalMachine)作用域的执行策略，请使用“以管理员身份运行”选项启动 Windows PowerShell。要更改当
前用户的执行策略，请运行 "Set-ExecutionPolicy -Scope CurrentUser"。
所在位置 行:1 字符: 1
+ Set-ExecutionPolicy RemoteSigned
+ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
+ CategoryInfo : PermissionDenied: (:) [Set-ExecutionPolicy], UnauthorizedAccessException
+ FullyQualifiedErrorId : System.UnauthorizedAccessException,Microsoft.PowerShell.Commands.SetExecutionPolicyComma
nd
PS E:\Git_Projects\sifli-sdk> Set-ExecutionPolicy -Scope CurrentUser
位于命令管道位置 1 的 cmdlet Set-ExecutionPolicy
请为以下参数提供值:
ExecutionPolicy: RemoteSigned
PS E:\Git_Projects\sifli-sdk> $env:SIFLI_SDK_GITHUB_ASSETS="downloads.sifli.com/github_assets"
PS E:\Git_Projects\sifli-sdk> $env:PIP_INDEX_URL="https://mirrors.ustc.edu.cn/pypi/simple"
PS E:\Git_Projects\sifli-sdk> .\install.ps1
INFO: Using SIFLI_SDK_PATH 'E:\Git_Projects\sifli-sdk' for installation.
Setting up Python environment
Creating a new Python environment in C:\Users\zky\.sifli\python_env\sifli-sdk2.4_py3.14_env
Downloading https://downloads.sifli.com/dl/sifli-sdk/sdk.constraints.v2.4.txt (SSL verification disabled)
Destination: C:\Users\zky\.sifli\sdk.constraints.v2.4.txt.tmp
Done
Upgrading pip...
Looking in indexes: https://mirrors.ustc.edu.cn/pypi/simple
Requirement already satisfied: pip in c:\users\zky\.sifli\python_env\sifli-sdk2.4_py3.14_env\lib\site-packages (25.2)
Upgrading setuptools...
Looking in indexes: https://mirrors.ustc.edu.cn/pypi/simple
Collecting setuptools
Downloading https://mirrors.ustc.edu.cn/pypi/packages/01/82/a2c6c0a1612c89bdb21dc4d9196ba9e7dcbc2e285afda93ebdf663ba2ada/setuptools-71.0.0-py3-none-any.whl (908 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 908.4/908.4 kB 13.9 MB/s 0:00:00
Installing collected packages: setuptools
Successfully installed setuptools-71.0.0
Installing Python packages
Constraint file: C:\Users\zky\.sifli\sdk.constraints.v2.4.txt
Requirement files:
- E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt
Looking in indexes: https://mirrors.ustc.edu.cn/pypi/simple, https://dl.espressif.com/pypi
Ignoring importlib_metadata: markers 'python_version < "3.8"' don't match your environment
Requirement already satisfied: setuptools in c:\users\zky\.sifli\python_env\sifli-sdk2.4_py3.14_env\lib\site-packages (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 7)) (71.0.0)
Collecting packaging (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 8))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/20/12/38679034af332785aac8774540895e234f4d07f7545804097de4b666afd8/packaging-25.0-py3-none-any.whl (66 kB)
Collecting requests (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 11))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/1e/db/4254e3eabe8020b458f1a747140d32277ec7a271daf1d235b70dc0b4e6e3/requests-2.32.5-py3-none-any.whl (64 kB)
Collecting click (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 12))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/db/d3/9dcc0f5797f070ec8edf30fbadfb200e71d9db6b84d211e3b2085a7589a0/click-8.3.0-py3-none-any.whl (107 kB)
Collecting pyserial (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 13))
Downloading https://dl.espressif.cn/pypi/pyserial/pyserial-3.5-py2.py3-none-any.whl (90 kB)
Collecting cryptography (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 14))
Downloading https://dl.espressif.cn/pypi/cryptography/cryptography-43.0.3-cp39-abi3-win_amd64.whl (3.1 MB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 3.1/3.1 MB 16.3 MB/s 0:00:00
Collecting pyparsing (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 15))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/10/5e/1aa9a93198c6b64513c9d7752de7422c06402de6600a8767da1524f9570b/pyparsing-3.2.5-py3-none-any.whl (113 kB)
Collecting pyelftools (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 16))
Downloading https://dl.espressif.cn/pypi/pyelftools/pyelftools-0.32-py3-none-any.whl (188 kB)
Collecting pyclang (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 17))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/fb/78/81a490810908e675b80de332262aa17e4f2b485a412f817819bf78717fb1/pyclang-0.6.3-py3-none-any.whl (12 kB)
Collecting construct (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 18))
Downloading https://dl.espressif.cn/pypi/construct/construct-2.10.70-py3-none-any.whl (63 kB)
Collecting rich (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 19))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/25/7a/b0178788f8dc6cafce37a212c99565fa1fe7872c70c6c9c1e1a372d9d88f/rich-14.2.0-py3-none-any.whl (243 kB)
Collecting psutil (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 20))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/bf/e9/b44c4f697276a7a95b8e94d0e320a7bf7f3318521b23de69035540b39838/psutil-7.1.0-cp37-abi3-win_amd64.whl (247 kB)
Collecting scons (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 21))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/11/36/25bcc902d714fd0c36cc67642c88126e7a139b2e4b89686450f5aa676052/scons-4.10.0-py3-none-any.whl (4.1 MB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 4.1/4.1 MB 47.6 MB/s 0:00:00
Collecting esp-idf-kconfig (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 22))
Downloading https://dl.espressif.cn/pypi/esp-idf-kconfig/esp_idf_kconfig-2.5.0-py3-none-any.whl (143 kB)
Collecting pycryptodome (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 23))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/54/2f/e97a1b8294db0daaa87012c24a7bb714147c7ade7656973fd6c736b484ff/pycryptodome-3.23.0-cp37-abi3-win_amd64.whl (1.8 MB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1.8/1.8 MB 37.6 MB/s 0:00:00
Collecting pyyaml (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 24))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/23/20/bb6982b26a40bb43951265ba29d4c246ef0ff59c9fdcdf0ed04e0687de4d/pyyaml-6.0.3-cp314-cp314-win_amd64.whl (156 kB)
Collecting tqdm (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 25))
Downloading https://dl.espressif.cn/pypi/tqdm/tqdm-4.67.1-py3-none-any.whl (78 kB)
Collecting charset_normalizer<4,>=2 (from requests->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 11))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/ee/7a/36fbcf646e41f710ce0a563c1c9a343c6edf9be80786edeb15b6f62e17db/charset_normalizer-3.4.3-cp314-cp314-win_amd64.whl (107 kB)
Collecting idna<4,>=2.5 (from requests->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 11))
Downloading https://dl.espressif.cn/pypi/idna/idna-3.10-py3-none-any.whl (70 kB)
Collecting urllib3<3,>=1.21.1 (from requests->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 11))
Downloading https://dl.espressif.cn/pypi/urllib3/urllib3-1.26.20-py2.py3-none-any.whl (144 kB)
Collecting certifi>=2017.4.17 (from requests->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 11))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/e4/37/af0d2ef3967ac0d6113837b44a4f0bfe1328c2b9763bd5b1744520e5cfed/certifi-2025.10.5-py3-none-any.whl (163 kB)
Collecting colorama (from click->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 12))
Downloading https://dl.espressif.cn/pypi/colorama/colorama-0.4.6-py2.py3-none-any.whl (25 kB)
Collecting cffi>=1.12 (from cryptography->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 14))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/bb/92/882c2d30831744296ce713f0feb4c1cd30f346ef747b530b5318715cc367/cffi-2.0.0-cp314-cp314-win_amd64.whl (185 kB)
Collecting markdown-it-py>=2.2.0 (from rich->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 19))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/94/54/e7d793b573f298e1c9013b8c4dade17d481164aa517d1d7148619c2cedbf/markdown_it_py-4.0.0-py3-none-any.whl (87 kB)
Collecting pygments<3.0.0,>=2.13.0 (from rich->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 19))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/c7/21/705964c7812476f378728bdf590ca4b771ec72385c533964653c68e86bdc/pygments-2.19.2-py3-none-any.whl (1.2 MB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1.2/1.2 MB 51.4 MB/s 0:00:00
INFO: pip is looking at multiple versions of esp-idf-kconfig to determine which version is compatible with other requirements. This could take a while.
Collecting esp-idf-kconfig (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 22))
Downloading https://dl.espressif.cn/pypi/esp-idf-kconfig/esp_idf_kconfig-2.4.1-py3-none-any.whl (141 kB)
Downloading https://dl.espressif.cn/pypi/esp-idf-kconfig/esp_idf_kconfig-2.4.0-py3-none-any.whl (140 kB)
Downloading https://dl.espressif.cn/pypi/esp-idf-kconfig/esp_idf_kconfig-2.3.0-py3-none-any.whl (128 kB)
Downloading https://dl.espressif.cn/pypi/esp-idf-kconfig/esp_idf_kconfig-2.2.0-py3-none-any.whl (141 kB)
Downloading https://dl.espressif.cn/pypi/esp-idf-kconfig/esp_idf_kconfig-2.1.0-py3-none-any.whl (44 kB)
Collecting kconfiglib>=13.7.1 (from esp-idf-kconfig->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 22))
Downloading https://dl.espressif.cn/pypi/kconfiglib/kconfiglib-14.1.0-py2.py3-none-any.whl (145 kB)
Collecting esp-idf-kconfig (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 22))
Downloading https://dl.espressif.cn/pypi/esp-idf-kconfig/esp_idf_kconfig-2.0.2-py3-none-any.whl (44 kB)
Collecting setuptools (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 7))
Downloading https://dl.espressif.cn/pypi/setuptools/setuptools-71.0.0-py3-none-any.whl (908 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 908.4/908.4 kB 9.5 MB/s 0:00:00
INFO: pip is still looking at multiple versions of esp-idf-kconfig to determine which version is compatible with other requirements. This could take a while.
INFO: This is taking longer than usual. You might need to provide the dependency resolver with stricter constraints to reduce runtime. See https://pip.pypa.io/warnings/backtracking for guidance. If you want to abort this run, press Ctrl + C.
Collecting scons (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 21))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/45/92/50b739021983b131dcacd57aa8b04d31c5acc2e7e0eb4ed4a362f438c6b7/scons-4.9.1-py3-none-any.whl (4.1 MB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 4.1/4.1 MB 16.0 MB/s 0:00:00
Collecting pygments<3.0.0,>=2.13.0 (from rich->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 19))
Downloading https://dl.espressif.cn/pypi/pygments/pygments-2.19.1-py3-none-any.whl (1.2 MB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1.2/1.2 MB 10.0 MB/s 0:00:00
Collecting rich (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 19))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/e3/30/3c4d035596d3cf444529e0b2953ad0466f6049528a879d27534700580395/rich-14.1.0-py3-none-any.whl (243 kB)
Collecting construct (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 18))
Downloading https://dl.espressif.cn/pypi/construct/construct-2.10.69-py3-none-any.whl (62 kB)
Collecting pyclang (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 17))
Downloading https://dl.espressif.cn/pypi/pyclang/pyclang-0.6.0-py3-none-any.whl (12 kB)
Collecting pyelftools (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 16))
Downloading https://dl.espressif.cn/pypi/pyelftools/pyelftools-0.31-py3-none-any.whl (180 kB)
Collecting pyparsing (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 15))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/53/b8/fbab973592e23ae313042d450fc26fa24282ebffba21ba373786e1ce63b4/pyparsing-3.2.4-py3-none-any.whl (113 kB)
Collecting cryptography (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 14))
Downloading https://dl.espressif.cn/pypi/cryptography/cryptography-43.0.1-cp39-abi3-win_amd64.whl (3.1 MB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 3.1/3.1 MB 19.3 MB/s 0:00:00
Collecting pyserial (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 13))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/0d/e4/2a744dd9e3be04a0c0907414e2a01a7c88bb3915cbe3c8cc06e209f59c30/pyserial-3.4-py2.py3-none-any.whl (193 kB)
Collecting click (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 12))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/85/32/10bb5764d90a8eee674e9dc6f4db6a0ab47c8c4d0d83c27f7c39ac415a4d/click-8.2.1-py3-none-any.whl (102 kB)
Collecting urllib3<3,>=1.21.1 (from requests->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 11))
Downloading https://dl.espressif.cn/pypi/urllib3/urllib3-1.26.19-py2.py3-none-any.whl (143 kB)
Collecting idna<4,>=2.5 (from requests->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 11))
Downloading https://dl.espressif.cn/pypi/idna/idna-3.9-py3-none-any.whl (71 kB)
Collecting charset_normalizer<4,>=2 (from requests->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 11))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/20/94/c5790835a017658cbfabd07f3bfb549140c3ac458cfc196323996b10095a/charset_normalizer-3.4.2-py3-none-any.whl (52 kB)
Collecting requests (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 11))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/7c/e4/56027c4a6b4ae70ca9de302488c5ca95ad4a39e190093d6c1a8ace08341b/requests-2.32.4-py3-none-any.whl (64 kB)
Collecting packaging (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 8))
Downloading https://dl.espressif.cn/pypi/packaging/packaging-24.2-py3-none-any.whl (65 kB)
ERROR: Cannot install -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 22) because these package versions have conflicting dependencies.
The conflict is caused by:
esp-idf-kconfig 2.5.0 depends on windows-curses>=2.4.1; sys_platform == "win32" and python_version >= "3.13"
esp-idf-kconfig 2.4.1 depends on windows-curses; platform_system == "Windows"
esp-idf-kconfig 2.4.0 depends on windows-curses; platform_system == "Windows"
esp-idf-kconfig 2.3.0 depends on windows-curses; platform_system == "Windows"
esp-idf-kconfig 2.2.0 depends on windows-curses; platform_system == "Windows"
esp-idf-kconfig 2.1.0 depends on windows-curses; platform_system == "Windows"
esp-idf-kconfig 2.0.2 depends on windows-curses; platform_system == "Windows"
To fix this you could try to:
1. loosen the range of package versions you've specified
2. remove package versions to allow pip to attempt to solve the dependency conflict
ERROR: ResolutionImpossible: for help visit https://pip.pypa.io/en/latest/topics/dependency-resolution/#dealing-with-dependency-conflicts
Traceback (most recent call last):
File "E:\Git_Projects\sifli-sdk/tools/sifli_sdk_tools.py", line 3192, in <module>
main(sys.argv[1:])
~~~~^^^^^^^^^^^^^^
File "E:\Git_Projects\sifli-sdk/tools/sifli_sdk_tools.py", line 3184, in main
action_func(args)
~~~~~~~~~~~^^^^^^
File "E:\Git_Projects\sifli-sdk/tools/sifli_sdk_tools.py", line 2614, in action_install_python_env
subprocess.check_call(run_args, stdout=sys.stdout, stderr=sys.stderr, env=env_copy)
~~~~~~~~~~~~~~~~~~~~~^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
File "D:\Python\Python314\Lib\subprocess.py", line 419, in check_call
raise CalledProcessError(retcode, cmd)
subprocess.CalledProcessError: Command '['C:\\Users\\zky\\.sifli\\python_env\\sifli-sdk2.4_py3.14_env\\Scripts\\python.exe', '-m', 'pip', 'install', '--no-warn-script-location', '-r', 'E:\\Git_Projects\\sifli-sdk\\tools\\requirements\\requirements.core.txt', '--upgrade', '--constraint', 'C:\\Users\\zky\\.sifli\\sdk.constraints.v2.4.txt', '--extra-index-url', 'https://dl.espressif.com/pypi']' returned non-zero exit status 1.
PS E:\Git_Projects\sifli-sdk> python -V
Python 3.14.0
PS E:\Git_Projects\sifli-sdk>成功过程记录（略）：
PS E:\Git_Projects\sifli-sdk> $env:SIFLI_SDK_TOOLS_PATH="D:\DevEnv\SIFLI_Toolchain"
PS E:\Git_Projects\sifli-sdk> $env:SIFLI_SDK_GITHUB_ASSETS="downloads.sifli.com/github_assets"
PS E:\Git_Projects\sifli-sdk> $env:PIP_INDEX_URL="https://mirrors.ustc.edu.cn/pypi/simple"
PS E:\Git_Projects\sifli-sdk> .\install.ps1
INFO: Using SIFLI_SDK_PATH 'E:\Git_Projects\sifli-sdk' for installation.
Setting up Python environment
Python 3.9.13
pip 22.0.4 from D:\DevEnv\SIFLI_Toolchain\python_env\sifli-sdk2.4_py3.9_env\lib\site-packages\pip (python 3.9)
Skipping the download of D:\DevEnv\SIFLI_Toolchain\sdk.constraints.v2.4.txt because it was downloaded recently.
Upgrading pip...
Looking in indexes: https://mirrors.ustc.edu.cn/pypi/simple
Requirement already satisfied: pip in d:\devenv\sifli_toolchain\python_env\sifli-sdk2.4_py3.9_env\lib\site-packages (22.0.4)
Collecting pip
Downloading https://mirrors.ustc.edu.cn/pypi/packages/b7/3f/945ef7ab14dc4f9d7f40288d2df998d1837ee0888ec3659c813487572faa/pip-25.2-py3-none-any.whl (1.8 MB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1.8/1.8 MB 7.0 MB/s eta 0:00:00
Installing collected packages: pip
Attempting uninstall: pip
Found existing installation: pip 22.0.4
Uninstalling pip-22.0.4:
Successfully uninstalled pip-22.0.4
Successfully installed pip-25.2
Upgrading setuptools...
Looking in indexes: https://mirrors.ustc.edu.cn/pypi/simple
Requirement already satisfied: setuptools in d:\devenv\sifli_toolchain\python_env\sifli-sdk2.4_py3.9_env\lib\site-packages (58.1.0)
Collecting setuptools
Using cached https://mirrors.ustc.edu.cn/pypi/packages/01/82/a2c6c0a1612c89bdb21dc4d9196ba9e7dcbc2e285afda93ebdf663ba2ada/setuptools-71.0.0-py3-none-any.whl (908 kB)
Installing collected packages: setuptools
Attempting uninstall: setuptools
Found existing installation: setuptools 58.1.0
Uninstalling setuptools-58.1.0:
Successfully uninstalled setuptools-58.1.0
Successfully installed setuptools-71.0.0
Installing Python packages
Constraint file: D:\DevEnv\SIFLI_Toolchain\sdk.constraints.v2.4.txt
Requirement files:
- E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt
Looking in indexes: https://mirrors.ustc.edu.cn/pypi/simple, https://dl.espressif.com/pypi
Ignoring importlib_metadata: markers 'python_version < "3.8"' don't match your environment
Requirement already satisfied: setuptools in d:\devenv\sifli_toolchain\python_env\sifli-sdk2.4_py3.9_env\lib\site-packages (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 7)) (71.0.0)
Collecting packaging (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 8))
Using cached https://mirrors.ustc.edu.cn/pypi/packages/20/12/38679034af332785aac8774540895e234f4d07f7545804097de4b666afd8/packaging-25.0-py3-none-any.whl (66 kB)
Collecting requests (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 11))
Using cached https://mirrors.ustc.edu.cn/pypi/packages/1e/db/4254e3eabe8020b458f1a747140d32277ec7a271daf1d235b70dc0b4e6e3/requests-2.32.5-py3-none-any.whl (64 kB)
Collecting click (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 12))
Downloading https://dl.espressif.cn/pypi/click/click-8.1.8-py3-none-any.whl (98 kB)
Collecting pyserial (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 13))
Using cached https://dl.espressif.cn/pypi/pyserial/pyserial-3.5-py2.py3-none-any.whl (90 kB)
Collecting cryptography (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 14))
Using cached https://dl.espressif.cn/pypi/cryptography/cryptography-43.0.3-cp39-abi3-win_amd64.whl (3.1 MB)
Collecting pyparsing (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 15))
Using cached https://mirrors.ustc.edu.cn/pypi/packages/10/5e/1aa9a93198c6b64513c9d7752de7422c06402de6600a8767da1524f9570b/pyparsing-3.2.5-py3-none-any.whl (113 kB)
Collecting pyelftools (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 16))
Using cached https://dl.espressif.cn/pypi/pyelftools/pyelftools-0.32-py3-none-any.whl (188 kB)
Collecting pyclang (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 17))
Using cached https://mirrors.ustc.edu.cn/pypi/packages/fb/78/81a490810908e675b80de332262aa17e4f2b485a412f817819bf78717fb1/pyclang-0.6.3-py3-none-any.whl (12 kB)
Collecting construct (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 18))
Using cached https://dl.espressif.cn/pypi/construct/construct-2.10.70-py3-none-any.whl (63 kB)
Collecting rich (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 19))
Using cached https://mirrors.ustc.edu.cn/pypi/packages/25/7a/b0178788f8dc6cafce37a212c99565fa1fe7872c70c6c9c1e1a372d9d88f/rich-14.2.0-py3-none-any.whl (243 kB)
Collecting psutil (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 20))
Using cached https://mirrors.ustc.edu.cn/pypi/packages/bf/e9/b44c4f697276a7a95b8e94d0e320a7bf7f3318521b23de69035540b39838/psutil-7.1.0-cp37-abi3-win_amd64.whl (247 kB)
Collecting scons (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 21))
Using cached https://mirrors.ustc.edu.cn/pypi/packages/11/36/25bcc902d714fd0c36cc67642c88126e7a139b2e4b89686450f5aa676052/scons-4.10.0-py3-none-any.whl (4.1 MB)
Collecting esp-idf-kconfig (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 22))
Using cached https://dl.espressif.cn/pypi/esp-idf-kconfig/esp_idf_kconfig-2.5.0-py3-none-any.whl (143 kB)
Collecting pycryptodome (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 23))
Using cached https://mirrors.ustc.edu.cn/pypi/packages/54/2f/e97a1b8294db0daaa87012c24a7bb714147c7ade7656973fd6c736b484ff/pycryptodome-3.23.0-cp37-abi3-win_amd64.whl (1.8 MB)
Collecting pyyaml (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 24))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/f0/0c/25113e0b5e103d7f1490c0e947e303fe4a696c10b501dea7a9f49d4e876c/pyyaml-6.0.3-cp39-cp39-win_amd64.whl (158 kB)
Collecting tqdm (from -r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 25))
Using cached https://dl.espressif.cn/pypi/tqdm/tqdm-4.67.1-py3-none-any.whl (78 kB)
Collecting charset_normalizer<4,>=2 (from requests->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 11))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/ce/d6/7e805c8e5c46ff9729c49950acc4ee0aeb55efb8b3a56687658ad10c3216/charset_normalizer-3.4.3-cp39-cp39-win_amd64.whl (107 kB)
Collecting idna<4,>=2.5 (from requests->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 11))
Using cached https://dl.espressif.cn/pypi/idna/idna-3.10-py3-none-any.whl (70 kB)
Collecting urllib3<3,>=1.21.1 (from requests->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 11))
Using cached https://dl.espressif.cn/pypi/urllib3/urllib3-1.26.20-py2.py3-none-any.whl (144 kB)
Collecting certifi>=2017.4.17 (from requests->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 11))
Using cached https://mirrors.ustc.edu.cn/pypi/packages/e4/37/af0d2ef3967ac0d6113837b44a4f0bfe1328c2b9763bd5b1744520e5cfed/certifi-2025.10.5-py3-none-any.whl (163 kB)
Collecting colorama (from click->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 12))
Using cached https://dl.espressif.cn/pypi/colorama/colorama-0.4.6-py2.py3-none-any.whl (25 kB)
Collecting cffi>=1.12 (from cryptography->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 14))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/54/8f/a1e836f82d8e32a97e6b29cc8f641779181ac7363734f12df27db803ebda/cffi-2.0.0-cp39-cp39-win_amd64.whl (182 kB)
Collecting markdown-it-py>=2.2.0 (from rich->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 19))
Downloading https://dl.espressif.cn/pypi/markdown-it-py/markdown_it_py-3.0.0-py3-none-any.whl (87 kB)
Collecting pygments<3.0.0,>=2.13.0 (from rich->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 19))
Using cached https://mirrors.ustc.edu.cn/pypi/packages/c7/21/705964c7812476f378728bdf590ca4b771ec72385c533964653c68e86bdc/pygments-2.19.2-py3-none-any.whl (1.2 MB)
Collecting windows-curses (from esp-idf-kconfig->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 22))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/58/de/b050bb1dc40ce48afb477198fb65abe51580c03a165492fce1e8fa61efd5/windows_curses-2.4.1-cp39-cp39-win_amd64.whl (89 kB)
Collecting pycparser (from cffi>=1.12->cryptography->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 14))
Downloading https://mirrors.ustc.edu.cn/pypi/packages/a0/e3/59cd50310fc9b59512193629e1984c1f95e5c8ae6e5d8c69532ccc65a7fe/pycparser-2.23-py3-none-any.whl (118 kB)
Collecting mdurl~=0.1 (from markdown-it-py>=2.2.0->rich->-r E:\Git_Projects\sifli-sdk\tools\requirements\requirements.core.txt (line 19))
Downloading https://dl.espressif.cn/pypi/mdurl/mdurl-0.1.2-py3-none-any.whl (10.0 kB)
Installing collected packages: windows-curses, pyserial, pyelftools, urllib3, scons, pyyaml, pyparsing, pygments, pycryptodome, pycparser, pyclang, psutil, packaging, mdurl, idna, esp-idf-kconfig, construct, colorama, charset_normalizer, certifi, tqdm, requests, markdown-it-py, click, cffi, rich, cryptography
Successfully installed certifi-2025.10.5 cffi-2.0.0 charset_normalizer-3.4.3 click-8.1.8 colorama-0.4.6 construct-2.10.70 cryptography-43.0.3 esp-idf-kconfig-2.5.0 idna-3.10 markdown-it-py-3.0.0 mdurl-0.1.2 packaging-25.0 psutil-7.1.0 pyclang-0.6.3 pycparser-2.23 pycryptodome-3.23.0 pyelftools-0.32 pygments-2.19.2 pyparsing-3.2.5 pyserial-3.5 pyyaml-6.0.3 requests-2.32.5 rich-14.2.0 scons-4.10.0 tqdm-4.67.1 urllib3-1.26.20 windows-curses-2.4.1
Installing SIFLI-SDK tools
Updating D:\DevEnv\SIFLI_Toolchain\sifli-sdk-env.json
Selected targets are: sf32lb52
Current system platform: win64
Installing tools: sftool, sdk-exe, cmake, arm-none-eabi-gcc
Installing sftool@0.1.12
Using GitHub assets mirror for URL: https://github.com/OpenSiFli/sftool/releases/download/0.1.12/sftool-0.1.12-x86_64-pc-windows-msvc.zip => https://downloads.sifli.com/github_assets/OpenSiFli/sftool/releases/download/0.1.12/sftool-0.1.12-x86_64-pc-windows-msvc.zip
Downloading https://downloads.sifli.com/github_assets/OpenSiFli/sftool/releases/download/0.1.12/sftool-0.1.12-x86_64-pc-windows-msvc.zip
Destination: D:\DevEnv\SIFLI_Toolchain\dist\sftool-0.1.12-x86_64-pc-windows-msvc.zip.tmp
Done
Extracting D:\DevEnv\SIFLI_Toolchain\dist\sftool-0.1.12-x86_64-pc-windows-msvc.zip to D:\DevEnv\SIFLI_Toolchain\tools\sftool\0.1.12
Installing sdk-exe@0.1.1
Using GitHub assets mirror for URL: https://github.com/OpenSiFli/sifli_sdk_wrapper/releases/download/0.1.1/sdk-py-v0.1.1.zip => https://downloads.sifli.com/github_assets/OpenSiFli/sifli_sdk_wrapper/releases/download/0.1.1/sdk-py-v0.1.1.zip
Downloading https://downloads.sifli.com/github_assets/OpenSiFli/sifli_sdk_wrapper/releases/download/0.1.1/sdk-py-v0.1.1.zip
Destination: D:\DevEnv\SIFLI_Toolchain\dist\sdk-py-v0.1.1.zip.tmp
Done
Extracting D:\DevEnv\SIFLI_Toolchain\dist\sdk-py-v0.1.1.zip to D:\DevEnv\SIFLI_Toolchain\tools\sdk-exe\0.1.1
Installing cmake@3.30.2
Using GitHub assets mirror for URL: https://github.com/Kitware/CMake/releases/download/v3.30.2/cmake-3.30.2-windows-x86_64.zip => https://downloads.sifli.com/github_assets/Kitware/CMake/releases/download/v3.30.2/cmake-3.30.2-windows-x86_64.zip
Downloading https://downloads.sifli.com/github_assets/Kitware/CMake/releases/download/v3.30.2/cmake-3.30.2-windows-x86_64.zip
Destination: D:\DevEnv\SIFLI_Toolchain\dist\cmake-3.30.2-windows-x86_64.zip.tmp
Done
Extracting D:\DevEnv\SIFLI_Toolchain\dist\cmake-3.30.2-windows-x86_64.zip to D:\DevEnv\SIFLI_Toolchain\tools\cmake\3.30.2
Installing arm-none-eabi-gcc@14.2.1
Using GitHub assets mirror for URL: https://github.com/OpenSiFli/crosstool-ng/releases/download/14.2.0-20250221/arm-none-eabi-14.2.0-x86_64-w64-mingw32.zip => https://downloads.sifli.com/github_assets/OpenSiFli/crosstool-ng/releases/download/14.2.0-20250221/arm-none-eabi-14.2.0-x86_64-w64-mingw32.zip
Downloading https://downloads.sifli.com/github_assets/OpenSiFli/crosstool-ng/releases/download/14.2.0-20250221/arm-none-eabi-14.2.0-x86_64-w64-mingw32.zip
Destination: D:\DevEnv\SIFLI_Toolchain\dist\arm-none-eabi-14.2.0-x86_64-w64-mingw32.zip.tmp
Done
Extracting D:\DevEnv\SIFLI_Toolchain\dist\arm-none-eabi-14.2.0-x86_64-w64-mingw32.zip to D:\DevEnv\SIFLI_Toolchain\tools\arm-none-eabi-gcc\14.2.1
All done! You can now run:
export.ps1
PS E:\Git_Projects\sifli-sdk> $env:SIFLI_SDK_TOOLS_PATH="D:\DevEnv\SIFLI_Toolchain"
PS E:\Git_Projects\sifli-sdk> ls
目录: E:\Git_Projects\sifli-sdk
Mode LastWriteTime Length Name
---- ------------- ------ ----
d----- 2025/10/12 21:19 .devcontainer
d----- 2025/10/12 21:19 .github
d----- 2025/10/12 21:19 .gitlab
d----- 2025/10/12 21:19 customer
d----- 2025/10/12 21:19 docs
d----- 2025/10/12 21:19 drivers
d----- 2025/10/12 21:19 example
d----- 2025/10/12 21:19 external
d----- 2025/10/12 21:19 img
d----- 2025/10/12 21:19 middleware
d----- 2025/10/12 21:19 rtos
d----- 2025/10/12 22:22 tools
-a---- 2025/10/12 21:19 338 .clang-format
-a---- 2025/10/12 21:19 351 .commit_template
-a---- 2025/10/12 21:19 333 .gitattributes
-a---- 2025/10/12 21:19 157 .gitignore
-a---- 2025/10/12 21:19 767 .gitlab-ci.yml
-a---- 2025/10/12 21:19 97 .gitmodules
-a---- 2025/10/12 21:19 25 .version
-a---- 2025/10/12 21:19 11417 build_config.yaml
-a---- 2025/10/12 21:19 10219 build_config_gcc.yaml
-a---- 2025/10/12 21:19 920 export.ps1
-a---- 2025/10/12 21:19 2275 export.sh
-a---- 2025/10/12 21:19 1285 init_commit_env.bat
-a---- 2025/10/12 21:19 1893 install.ps1
-a---- 2025/10/12 21:19 1385 install.sh
-a---- 2025/10/12 21:19 2585 Jenkinsfile
-a---- 2025/10/12 21:19 1958 Kconfig
-a---- 2025/10/12 21:19 1518 Kconfig.v2
-a---- 2025/10/12 21:19 11558 LICENSE
-a---- 2025/10/12 21:19 347 msvc_setup.bat
-a---- 2025/10/12 21:19 3733 README.md
-a---- 2025/10/12 21:19 4153 README_EN.md
-a---- 2025/10/12 21:19 311 SConscript
-a---- 2025/10/12 21:19 1982 set_env.bat
-a---- 2025/10/12 21:19 6 version.txt
PS E:\Git_Projects\sifli-sdk> .\export.ps1
Activating SIFLI_SDK 2.4
Setting SIFLI_SDK_PATH to 'E:\Git_Projects\sifli-sdk'.
* Checking python version ... 3.9.13
* Checking python dependencies ... OK
* Deactivating the current SiFli-SDK environment (if any) ... OK
* Establishing a new SiFli-SDK environment ... OK
* Identifying shell ... powershell.exe
* Detecting outdated tools in system ... OK - no outdated tools found
Done! You can now compile SiFli-SDK projects.
Go to the project directory and run:
You can refer to the https://docs.sifli.com/projects/sdk/latest/sf32lb52x/quickstart/build.html to continue
PS E:\Git_Projects\sifli-sdk>三、烧录官方SDK例程程序
3.1 使用vscode打开sdk文件夹，然后，进入vscode设置搜索terminal.integrated.profiles.windows，然后将其添加到setting.json中配置一下
"terminal.integrated.profiles.windows": {
"PowerShell": {
"source": "PowerShell",
"icon": "terminal-powershell"
},
"Command Prompt": {
"path": [
"${env:windir}\\Sysnative\\cmd.exe",
"${env:windir}\\System32\\cmd.exe"
],
"args": [],
"icon": "terminal-cmd"
},
"Git Bash": {
"source": "Git Bash"
},
,
"SF32": {
"path": "C:\\WINDOWS\\System32\\WindowsPowerShell\\v1.0\\powershell.exe",
"args": [
"-ExecutionPolicy",
"Bypass", // 绕过执行策略（必须，否则无法运行脚本）
"-NoExit", // 终端启动后不退出（方便后续操作）
"-Command", // 新增：执行「设置环境变量」的命令
// 1. 设置工具链路径
// 2. 将 Python 3.9.13 的安装目录添加到 PATH（请替换为你的实际路径）
// 3. 执行 export.ps1 脚本
// 注意：（1）命令用单引号包裹路径（避免转义问题），变量和脚本执行用分号分隔 （2）移除原有的 "-File" 参数！因为 "-Command" 和 "-File" 不能同时使用（二选一）
"$env:SIFLI_SDK_TOOLS_PATH='D:\\DevEnv\\SIFLI_Toolchain'; $env:PATH='D:\\Python\\Python39\\;D:\\Python\\Python39\\Scripts\\;' + $env:PATH; . 'E:\\Git_Projects\\sifli-sdk\\export.ps1'"
],
"icon": "terminal-powershell"
}
}
}3.2 在vscoe终端启用SF32开发环境终端
3.3 进入项目目录，进行编译
cd E:\Git_Projects\sifli-sdk\example\get-started\hello_world\rtt\project
scons --board=sf32lb52-lchspi-ulp -j8注：若是出现下面报错是子模块没有初始化，需要执行下面的命令：
git submodule update --init --recursive编译成功过程（可略）：
PS E:\Git_Projects\sifli-sdk> cd .\example\get-started\hello_world\rtt\project
PS E:\Git_Projects\sifli-sdk\example\get-started\hello_world\rtt\project> scons --board=sf32lb52-lchspi-ulp -j8
scons: Reading SConscript files ...
Board: sf32lb52-lchspi-ulp_hcpu
========
Multi-Project Info
--------
full_name main.bootloader
parent main
bsp_root E:\Git_Projects\sifli-sdk\example\boot_loader\project\butterflmicro\ram_v2
build_dir build_sf32lb52-lchspi-ulp_hcpu/bootloader
link_script E:\Git_Projects\sifli-sdk/example/boot_loader/project/butterflmicro/ram_v2\link
ptab E:/Git_Projects/sifli-sdk/customer/boards/sf32lb52-lchspi-ulp\ptab.json
embedded: False
--------
full_name main
parent
bsp_root E:\Git_Projects\sifli-sdk\example\get-started\hello_world\rtt\project
build_dir build_sf32lb52-lchspi-ulp_hcpu/
link_script E:\Git_Projects\sifli-sdk/drivers/cmsis/sf32lb52x/Templates/gcc/hcpu/link
ptab E:/Git_Projects/sifli-sdk/customer/boards/sf32lb52-lchspi-ulp\ptab.json
--------
full_name main.ftab
parent main
bsp_root E:\Git_Projects\sifli-sdk\example\flash_table\sf32lb52x_common_v2
build_dir build_sf32lb52-lchspi-ulp_hcpu/ftab
link_script E:\Git_Projects\sifli-sdk/drivers/cmsis/sf32lb52x/Templates/gcc/hcpu/link
ptab E:/Git_Projects/sifli-sdk/customer/boards/sf32lb52-lchspi-ulp\ptab.json
embedded: False
========
scons: done reading SConscript files.
scons: Building targets ...
scons: building associated VariantDir targets: build_sf32lb52-lchspi-ulp_hcpu . .
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\board\bf0_ap_hal_msp.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\board\board.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\board\board_psram.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\board\boot_flash.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\board\efuse.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\board\main.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\board\sd_emmc_ops.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\board\sd_nand_drv.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\board\sd_nand_ops.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\board\secboot.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\customer\boards\common\bsp_common.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\customer\boards\common\flash.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\customer\boards\sf32lb52-lchspi-ulp_base\bsp_init.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\customer\boards\sf32lb52-lchspi-ulp_base\bsp_lcd_tp.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\customer\boards\sf32lb52-lchspi-ulp_base\bsp_pinmux.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\customer\boards\sf32lb52-lchspi-ulp_base\bsp_power.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\cmsis\sf32lb52x\bf0_pin_const.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\cmsis\sf32lb52x\Templates\system_bf0_ap.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\cmsis\sf32lb52x\lcpu_config_type.o
AS build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\cmsis\sf32lb52x\Templates\gcc\startup_bf0_hcpu.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_adc.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_aes.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_aes_ns.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_audcodec_m.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_audprc.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_bleaon.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_busmon.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_cortex.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_crc.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_dma.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_dsi.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_efuse.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_epic.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_ext_dma.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_ezip.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_facc.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_fft.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_gpio.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_hcd.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_hlp.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_hpaon.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_i2c.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_i2s.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_lcdc.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_lcpu_config.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_lpaon.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_lpcomp.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_lptim.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_lrc_cal.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_mailbox.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_mpi.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_mpi_ex.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_mpi_psram.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_nn_acc.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_patch.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_pcd.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_pdm.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_pinmux.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_pmu.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_psram.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_ptc.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_rcc.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_rng.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_rtc.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_sd_ex.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_sdadc.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_sdhci.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_sdmmc.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_secu.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_spi.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_tim.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_tim_ex.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_tsen.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_uart.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_hal_wdt.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\bf0_sys_cfg.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\flash_table.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\nand_table.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\drivers\hal\sifli_bbm.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\external\mbedtls\library\aes.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\external\mbedtls\library\cipher.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\external\mbedtls\library\cipher_wrap.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\external\mbedtls\library\md.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\external\mbedtls\library\md_wrap.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\external\mbedtls\library\platform.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\external\mbedtls\library\sha256.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\external\mbedtls\library\sha512.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\external\mbedtls\library\asn1parse.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\external\mbedtls\library\bignum.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\external\mbedtls\library\oid.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\external\mbedtls\library\pk.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\external\mbedtls\library\pkparse.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\external\mbedtls\library\pk_wrap.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\external\mbedtls\library\rsa.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\external\mbedtls\library\sm2.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\external\mbedtls\library\sm3.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\external\mbedtls\library\ecp.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\external\mbedtls\library\ecp_curves.o
CC build_sf32lb52-lchspi-ulp_hcpu\bootloader\sifli_sdk\external\mbedtls\library\ctr_drbg.o
Generating build_sf32lb52-lchspi-ulp_hcpu\bootloader\link_copy.lds ...
LINK build_sf32lb52-lchspi-ulp_hcpu\bootloader\bootloader.elf
Building compilation database build_sf32lb52-lchspi-ulp_hcpu\bootloader\compile_commands.json
Building compilation database build_sf32lb52-lchspi-ulp_hcpu\compile_commands.json
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\customer\boards\common\bsp_common.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\customer\boards\common\flash.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\customer\boards\sf32lb52-lchspi-ulp_base\bsp_init.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\customer\boards\sf32lb52-lchspi-ulp_base\bsp_lcd_tp.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\customer\boards\sf32lb52-lchspi-ulp_base\bsp_pinmux.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\customer\boards\sf32lb52-lchspi-ulp_base\bsp_power.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\customer\peripherals\co5300\co5300.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\customer\peripherals\ft6146\ft6146.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\customer\peripherals\pa\AW8155\sifli_aw8155.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\cmsis\sf32lb52x\bf0_pin_const.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\cmsis\sf32lb52x\Templates\system_bf0_ap.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\cmsis\sf32lb52x\lcpu_config_type.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\cmsis\sf32lb52x\lcpu_patch.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\cmsis\sf32lb52x\lcpu_patch_rev_b.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\cmsis\sf32lb52x\bt_rf_fulcal.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\cmsis\sf32lb52x\bt_rf_cw_config.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\cmsis\sf32lb52x\bt_power_config.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\cmsis\sf32lb52x\bf0_lcpu_init.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\cmsis\sf32lb52x\bt_rf_test.o
AS build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\cmsis\sf32lb52x\Templates\gcc\startup_bf0_hcpu.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_adc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_aes.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_aes_ns.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_audcodec_m.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_audprc.o
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-closer.o): in function `_close_r':
closer.c:(.text._close_r+0xc): warning: _close is not implemented and will always fail
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-closer.o): note: the message above does not take linker garbage collection into account
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-fstatr.o): in function `_fstat_r':
fstatr.c:(.text._fstat_r+0xe): warning: _fstat is not implemented and will always fail
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe:CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_bleaon.o
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-fstatr.o): note: the message above does not take linker garbage collection into account
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-isattyr.o): in function `_isatty_r':
isattyr.c:(.text._isatty_r+0xc): warning: _isatty is not implemented and will always fail
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-isattyr.o): note: the message above does not take linker garbage collection into account
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-lseekr.o): in function `_lseek_r':
lseekr.c:(.text._lseek_r+0x10): warning: _lseek is not implemented and will always fail
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_busmon.o
ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-lseekr.o): note: the message above does not take linker garbage collection into account
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-openr.o): in function `_open_r':
openr.c:(.text._open_r+0x10): warning: _open is not implemented and will always fail
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-openr.o): note: the message above does not take linker garbage collection into account
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-readr.o): in function `_read_r':
readr.c:(.text._read_r+0x10): warning: _read is not implemented and will always fail
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-readr.o): note: the message above does not take linker garbage collection into account
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-writer.o): in function `_write_r':
writer.c:(.text._write_r+0x10): warning: _write is not implemented and will always fail
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-writer.o): note: the message above does not take linker garbage collection into account
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_cortex.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_crc.o
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: warning: build_sf32lb52-lchspi-ulp_hcpu\bootloader\bootloader.elf has a LOAD segment with RWX permissions
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_dma.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_dsi.o
Generating build_sf32lb52-lchspi-ulp_hcpu\bootloader\bootloader.asm ...
Generating build_sf32lb52-lchspi-ulp_hcpu\bootloader\bootloader.bin ...
Generating build_sf32lb52-lchspi-ulp_hcpu\bootloader\bootloader.hex ...
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_efuse.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_epic.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_ext_dma.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_ezip.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_facc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_fft.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_gpio.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_hcd.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_hlp.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_hpaon.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_i2c.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_i2s.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_lcdc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_lcpu_config.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_lpaon.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_lpcomp.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_lptim.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_lrc_cal.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_mailbox.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_mpi.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_mpi_ex.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_mpi_psram.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_nn_acc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_patch.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_pcd.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_pdm.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_pinmux.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_pmu.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_psram.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_ptc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_rcc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_rng.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_rtc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_sd_ex.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_sdadc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_sdhci.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_sdmmc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_secu.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_spi.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_tim.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_tim_ex.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_tsen.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_uart.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_hal_wdt.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\bf0_sys_cfg.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\flash_table.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\nand_table.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\drivers\hal\sifli_bbm.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\system\bf0_common.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\os_adaptor\src\os_adaptor_rtthread.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_dma.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_gpio.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_usart.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_hwtimer.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_pwm.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_pwm_lptim.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_spi.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_soft_i2c.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_i2c.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_adc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_rtc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_spi_flash.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_spi_nand.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_sys_cfg.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_ext_dma.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_audprc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_audcodec_m.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_lcd_private.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_lcd.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_ram_lcd.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_lcd_test.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_lcd_fb.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_touch.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_epic.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_epic_mask.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_psram.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_mpi.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_aes.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_common.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_dbg.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\main.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\clock.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\components.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\cpu.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\device.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\idle.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\ipc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\irq.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\kservice.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\mem.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\mempool.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\object.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\scheduler.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\signal.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\thread.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\timer.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\libcpu\arm\cortex-m33\cpuport.o
AS build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\libcpu\arm\cortex-m33\context_gcc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\libcpu\arm\common\backtrace.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\libcpu\arm\common\div0.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\libcpu\arm\common\showmem.o
CXX build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\cplusplus\cxx_crt.o
CXX build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\cplusplus\cxx_mutex.o
CXX build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\cplusplus\cxx_semaphore.o
CXX build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\cplusplus\cxx_thread.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\cplusplus\cxx_crt_init.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\src\dfs.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\src\dfs_file.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\src\dfs_fs.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\src\dfs_posix.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\src\poll.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\src\select.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\filesystems\devfs\devfs.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\finsh\shell.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\finsh\symbol.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\finsh\cmd.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\finsh\msh.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\finsh\msh_cmd.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\finsh\msh_file.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\libc\compilers\common\gmtime_r.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\libc\compilers\newlib\libc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\libc\compilers\newlib\libc_syms.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\libc\compilers\newlib\stdio.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\libc\compilers\newlib\syscalls.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\libc\compilers\newlib\time.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\utilities\llt_mem\llt_mem.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\audio\audio.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\audio\audio_pipe.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\hwtimer\hwtimer.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\i2c\i2c_core.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\i2c\i2c_dev.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\i2c\i2c-bit-ops.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\misc\pin.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\misc\adc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\misc\rt_drv_pwm.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\mtd\mtd_nor.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\rtc\rtc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\serial\serial.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\spi\spi_core.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\spi\spi_dev.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\src\completion.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\src\dataqueue.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\src\pipe.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\src\ringblk_buf.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\src\ringbuffer.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\src\waitqueue.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\src\workqueue.o
Generating build_sf32lb52-lchspi-ulp_hcpu\link_copy.lds ...
Generating build_sf32lb52-lchspi-ulp_hcpu\ftab\link_copy.lds ...
Building compilation database build_sf32lb52-lchspi-ulp_hcpu\ftab\compile_commands.json
LINK build_sf32lb52-lchspi-ulp_hcpu\main.elf
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: warning: build_sf32lb52-lchspi-ulp_hcpu\main.elf has a LOAD segment with RWX permissions
Generating build_sf32lb52-lchspi-ulp_hcpu\main.bin ...
Generating build_sf32lb52-lchspi-ulp_hcpu\main.asm ...
Generating build_sf32lb52-lchspi-ulp_hcpu\main.hex ...
Generating build_sf32lb52-lchspi-ulp_hcpu\ftab\board\ftab.c ...
CC build_sf32lb52-lchspi-ulp_hcpu\ftab\board\ftab.o
LINK build_sf32lb52-lchspi-ulp_hcpu\ftab\ftab.elf
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-closer.o): in function `_close_r':
closer.c:(.text._close_r+0xc): warning: _close is not implemented and will always fail
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-closer.o): note: the message above does not take linker garbage collection into account
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-lseekr.o): in function `_lseek_r':
lseekr.c:(.text._lseek_r+0x10): warning: _lseek is not implemented and will always fail
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-lseekr.o): note: the message above does not take linker garbage collection into account
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-readr.o): in function `_read_r':
readr.c:(.text._read_r+0x10): warning: _read is not implemented and will always fail
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-readr.o): note: the message above does not take linker garbage collection into account
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-writer.o): in function `_write_r':
writer.c:(.text._write_r+0x10): warning: _write is not implemented and will always fail
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-writer.o): note: the message above does not take linker garbage collection into account
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: warning: cannot find entry symbol entry; defaulting to 12000000
Generating build_sf32lb52-lchspi-ulp_hcpu\ftab\ftab.hex ...
Generating build_sf32lb52-lchspi-ulp_hcpu\ftab\ftab.bin ...
Generating build_sf32lb52-lchspi-ulp_hcpu\ftab\ftab.asm ...
Generating build_sf32lb52-lchspi-ulp_hcpu\download.bat ...
Generated sftool param: build_sf32lb52-lchspi-ulp_hcpu/sftool_param.json
scons: done building targets.
PS E:\Git_Projects\sifli-sdk\example\get-started\hello_world\rtt\project> 3.4 烧写官方SDK例程程序，注意硬件链接，与电脑链接，后查看是否有ch340相关的端口，输入指令，回车，选择端口号，回车，然后打开软件助手sscom5.13.1.exe，波特率1000000，选择对应端口然后打开串口，本来的RTS是没有勾选的，然后你勾选又取消就可以实现软件复位了
build_sf32lb52-lchspi-ulp_hcpu\uart_download.bat- 正常运行时要求：5-6、7-8和11-12脚加跳线帽短接，不要插错了，不要插错了，不插错了，重要的事情说三遍。
烧录完成记录：
PS E:\Git_Projects\sifli-sdk\example\get-started\hello_world\rtt\project> build_sf32lb52-lchspi-ulp_hcpu\uart_download.bat
Uart Download
please input the serial port num:6
com6
[0x00] Connected success!
[0x01] Download stub success!
[0x02] Need to re-download
[0x03] Download success! ================================================================================================================================================ 57.22 KiB/s 100.000%[0x04] Verify success!
[0x05] Need to re-download
[0x06] Download success! ================================================================================================================================================ 84.10 KiB/s 100.000%[0x07] Verify success!
[0x08] Need to re-download
[0x09] Download success! ================================================================================================================================================ 54.91 KiB/s 100.000%[0x0A] Verify success!
请按任意键继续. . .
3.5 查看交互命令
输入help
四、烧录小智程序
4.1 来到官方仓库，进入AI小智的子仓库拉取源码，一定要拉取子模块
git clone --recursive git@github.com:78/xiaozhi-sf32.git4.2 vscode打开xiaozhi-sf32，进入SF32环境终端，编译烧录
cd app/project
scons --board=sf32lb52-lchspi-ulp -j8E:\Git_Projects\xiaozhi-sf32\app\project\build_sf32lb52-lchspi-ulp_hcpu\uart_download.bat
由于我的版本可能不对应，就将注释PrepareEnv(board_search_path="../boards")，改为PrepareEnv()
# PrepareEnv(board_search_path="../boards")
PrepareEnv()
4.3 下载烧录工具，可烧写现成文件
下载最新版本的小智 AI 固件，通过 sftool 的 Flash 烧录工具（sftool），先将黄山派开发板中原本的代码擦除，再选择小智AI的固件进行下载。
https://github.com/OpenSiFli/sftool/releases
注：用最新版即可
4.4 实现效果
详细编译过程繁杂（可略）：
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\lvgl_v9\src\widgets\scale\lv_scale.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\lvgl_v9\src\widgets\slider\lv_slider.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\lvgl_v9\src\widgets\span\lv_span.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\lvgl_v9\src\widgets\spinbox\lv_spinbox.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\lvgl_v9\src\widgets\spinner\lv_spinner.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\lvgl_v9\src\widgets\switch\lv_switch.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\lvgl_v9\src\widgets\table\lv_table.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\lvgl_v9\src\widgets\tabview\lv_tabview.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\lvgl_v9\src\widgets\textarea\lv_textarea.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\lvgl_v9\src\widgets\tileview\lv_tileview.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\lvgl_v9\src\widgets\win\lv_win.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\aes.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\aesni.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\arc4.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\aria.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\asn1parse.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\asn1write.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\base64.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\bignum.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\blowfish.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\camellia.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\ccm.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\certs.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\chacha20.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\chachapoly.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\cipher.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\cipher_wrap.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\cmac.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\constant_time.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\ctr_drbg.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\debug.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\des.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\dhm.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\ecdh.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\ecdsa.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\ecjpake.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\ecp.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\ecp_curves.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\entropy.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\entropy_poll.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\error.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\gcm.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\havege.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\hkdf.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\hmac_drbg.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\md.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\md2.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\md4.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\md5.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\memory_buffer_alloc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\mps_reader.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\mps_trace.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\nist_kw.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\oid.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\padlock.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\pem.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\pk.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\pk_wrap.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\pkcs11.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\pkcs12.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\pkcs5.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\pkparse.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\pkwrite.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\platform.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\platform_util.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\poly1305.o
In file included from E:\Git_Projects\sifli-sdk\external\mbedtls_228\mbedtls\library\pkwrite.c:24:
In function 'mbedtls_pk_ec',
inlined from 'mbedtls_pk_write_pubkey_der' at E:\Git_Projects\sifli-sdk\external\mbedtls_228\mbedtls\library\pkwrite.c:260:9:
E:\Git_Projects\sifli-sdk\external\mbedtls_228\mbedtls\include/mbedtls/pk.h:677:19: warning: potential null pointer dereference [-Wnull-dereference]
677 | return( NULL );
| ^
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\psa_crypto.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\psa_crypto_aead.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\psa_crypto_cipher.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\psa_crypto_client.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\psa_crypto_driver_wrappers.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\psa_crypto_ecp.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\psa_crypto_hash.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\psa_crypto_mac.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\psa_crypto_rsa.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\psa_crypto_se.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\psa_crypto_slot_management.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\psa_crypto_storage.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\psa_its_file.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\ripemd160.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\rsa.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\rsa_internal.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\sha1.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\sha256.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\sha512.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\ssl_cache.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\ssl_ciphersuites.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\ssl_cli.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\ssl_cookie.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\ssl_msg.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\ssl_srv.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\ssl_ticket.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\ssl_tls.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\ssl_tls13_keys.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\threading.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\timing.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\version.o
In function 'ssl_check_key_curve',
inlined from 'ssl_pick_cert' at E:\Git_Projects\sifli-sdk\external\mbedtls_228\mbedtls\library\ssl_srv.c:1005:13,
inlined from 'ssl_ciphersuite_match' at E:\Git_Projects\sifli-sdk\external\mbedtls_228\mbedtls\library\ssl_srv.c:1156:9,
inlined from 'ssl_parse_client_hello' at E:\Git_Projects\sifli-sdk\external\mbedtls_228\mbedtls\library\ssl_srv.c:2246:25,
inlined from 'mbedtls_ssl_handshake_server_step' at E:\Git_Projects\sifli-sdk\external\mbedtls_228\mbedtls\library\ssl_srv.c:4759:19:
E:\Git_Projects\sifli-sdk\external\mbedtls_228\mbedtls\library\ssl_srv.c:931:26: warning: potential null pointer dereference [-Wnull-dereference]
931 | mbedtls_ecp_group_id grp_id = mbedtls_pk_ec( *pk )->grp.id;
| ^~~~~~
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\version_features.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\x509.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\x509_create.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\x509_crl.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\x509_crt.o
In function 'ssl_parse_certificate_verify',
inlined from 'mbedtls_ssl_parse_certificate' at E:\Git_Projects\sifli-sdk\external\mbedtls_228\mbedtls\library\ssl_tls.c:2948:11:
E:\Git_Projects\sifli-sdk\external\mbedtls_228\mbedtls\library\ssl_tls.c:2722:13: warning: potential null pointer dereference [-Wnull-dereference]
2722 | mbedtls_ssl_check_curve( ssl, mbedtls_pk_ec( *pk )->grp.id ) != 0 )
| ^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\x509_csr.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\x509write_crt.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\x509write_csr.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\mbedtls\library\xtea.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\ports\src\aes_alt.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\ports\src\arc4_alt.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\ports\src\des_alt.o
E:\Git_Projects\sifli-sdk\external\mbedtls_228\mbedtls\library\x509_crt.c: In function 'x509_profile_check_key':
E:\Git_Projects\sifli-sdk\external\mbedtls_228\mbedtls\library\x509_crt.c:213:36: warning: potential null pointer dereference [-Wnull-dereference]
213 | const mbedtls_ecp_group_id gid = mbedtls_pk_ec( *pk )->grp.id;
| ^~~
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\ports\src\md5_alt.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\ports\src\rsa_alt.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\ports\src\sha1_alt.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\ports\src\sha256_alt.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\ports\src\sha512_alt.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\ports\src\timing_alt.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\ports\src\tls_certificate.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\ports\src\tls_client.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\ports\src\tls_hardware.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\mbedtls_228\ports\src\tls_net.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\state_machine-latest\src\state_machine.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\webclient\src\webclient.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\audio\audio_bt_voice\audio_bt_voice.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\audio\audio_bt_voice\audio_cvsd.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\audio\audio_bt_voice\audio_filter.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\audio\audio_bt_voice\audio_msbc_plc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\audio\audio_bt_voice\bt_audiopath.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\audio\audio_local_music\audio_loopback_demo.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\audio\audio_local_music\audio_mp3ctrl.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\audio\audio_local_music\mp3id3parse.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\audio\audio_local_music\sifli_resample.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\audio\audio_manager\audio_server.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\audio\audio_manager\audio_test_demo.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\audio\audio_port\audio_eq_config.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\audio\audio_port\audio_mem.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\audio\audio_port\audio_pa_api.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\audio\audio_voice_proc\audio_3a.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\porting\rtt\rw_rtt.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bluetooth.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\bf0_ble_gap.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\bf0_sibles.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\bf0_sibles_advertising.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\bf0_sibles_advertising_internal.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\bf0_sibles_util.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\ble_connection_manager.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\gatt_service\bf0_ble_basc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\gatt_service\bf0_ble_cppc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\gatt_service\bf0_ble_cscpc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\gatt_service\bf0_ble_hrpc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\gatt_service\bf0_ble_tipc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\gatt_service\bf0_ble_tips.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\gatt_service\bf0_sible_ams.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\gatt_service\bf0_sibles_ancs.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\gatt_service\bf0_sibles_bass.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\gatt_service\bf0_sibles_console.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\gatt_service\bf0_sibles_dfu.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\gatt_service\bf0_sibles_diss.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\gatt_service\bf0_sibles_eq_config.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\gatt_service\bf0_sibles_fmpt.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\gatt_service\bf0_sibles_ias.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\gatt_service\bf0_sibles_log.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\gatt_service\bf0_sibles_pxpr.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\gatt_service\bf0_sibles_serial_trans_client.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\gatt_service\bf0_sibles_serial_trans_service.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\gatt_service\bf0_sibles_tpss.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\ble\gatt_service\bf0_sibles_watchface.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_audio\a2dp_relay_sink_service.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_audio\a2dp_relay_src_service.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_audio\hfp_audio_api.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_cm\bt_connection_manager.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_cm\bt_connection_service.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_av.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_av_snk.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_av_src.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_avrcp.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_bt_dis.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_bt_gatt.o
E:\Git_Projects\sifli-sdk\middleware\bluetooth\service\bt\bt_cm\bt_connection_manager.c: In function 'bt_cm':
E:\Git_Projects\sifli-sdk\middleware\bluetooth\service\bt\bt_cm\bt_connection_manager.c:1782:25: warning: iteration 1 invokes undefined behavior [-Waggressive-loop-optimizations]
1782 | if (conn->state >= BT_CM_ACL_STATE_CONNECTED)
| ~~~~^~~~~~~
E:\Git_Projects\sifli-sdk\middleware\bluetooth\service\bt\bt_cm\bt_connection_manager.c:1779:35: note: within this loop
1779 | for (uint8_t i = 0; i < BT_CM_MAX_BOND; i++)
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_bt_l2cap_profile.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_cardparser.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_demo.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_generic.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_hfp_ag.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_hfp_hf.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_hid.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_interface.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_main.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_menu.o
E:\Git_Projects\sifli-sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_main.c:CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_pan.o
In function 'bts2_main':
E:\Git_Projects\sifli-sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_main.c:131:5: warning: 'CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_pbap_c.o
bts2_init' accessing 64 bytes in a region of size 11 [CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_spp.o
-Wstringop-overflow=]
131 | CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_sys.o
bts2_init((U8 *)"bts2_sm.db");
| ^~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_main.c:131:5: note: referencing argument 1 of type 'U8[64]' {aka 'unsigned char[64]'}
In file included from E:\Git_Projects\sifli-sdk\middleware\bluetooth\include/bts2_global.h:29,
from E:\Git_Projects\sifli-sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_inc.h:26,
from E:\Git_Projects\sifli-sdk\middleware\bluetooth\service\bt\bt_finsh\bts2_app_main.c:8:
E:\Git_Projects\sifli-sdk\middleware\bluetooth\include/bts2_api.h:29:4: note: in a call to function 'bts2_init'
29 | U8 bts2_init(BTS2S_DB_FILE_PATH path);
| ^~~~~~~~~
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\common\bf0_bt_common.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\common\bf0_bt_hci.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\common\bf0_bt_metrics.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\common\bf0_bt_nvds.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\common\bluetooth_hci_flash.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\internal\bluetooth_config.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\service\internal\bluetooth_misc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\lib\dummy.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\button\button.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\cpu_usage_profiler\cpu_usage_profiler.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\ipc_queue\common\circular_buf.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\ipc_queue\common\ipc_hw.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\ipc_queue\common\ipc_queue.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\ipc_queue\porting\sf32lb52x\hcpu\ipc_hw_port.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\littlevgl2rtt.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf_perf.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf_font_v9\lv_font_ubuntu.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lv_drivers_v9\lv_gpu.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lv_drivers_v9\lv_keypad.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lv_drivers_v9\lv_lcd.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lv_drivers_v9\lv_touch.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lv_drivers_v9\lvgl_drv.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lv_drivers_v9\lvsf_img_decoder.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lv_drivers_v9\sifli\lv_draw_epic.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lv_drivers_v9\sifli\lv_draw_epic_arc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lv_drivers_v9\sifli\lv_draw_epic_border.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lv_drivers_v9\sifli\lv_draw_epic_fill.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lv_drivers_v9\sifli\lv_draw_epic_img.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lv_drivers_v9\sifli\lv_draw_epic_label.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lv_drivers_v9\sifli\lv_epic_utils.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\sifli_lib\lib\agif.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\sifli_lib\lib\dummy.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\system\bf0_common.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\system\bf0_pm.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\system\gui_app_pm.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\env\packages\packages\iot\netutils\iperf\iperf.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\env\packages\packages\iot\netutils\ntp\ntp.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\os_adaptor\src\os_adaptor_rtthread.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_dma.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_gpio.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_usart.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_hwtimer.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_pwm.o
C:\Users\zky\AppData\Local\Temp\ccvk763H.s: Assembler messages:
C:\Users\zky\AppData\Local\Temp\ccvk763H.s:2279: writing to APSR without specifying a bitmask is deprecated
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_pwm_lptim.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_spi.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_soft_i2c.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_i2c.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_adc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_rtc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_spi_flash.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_spi_nand.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_sys_cfg.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_ext_dma.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_audprc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_audcodec_m.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_lcd_private.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_lcd.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_ram_lcd.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_lcd_test.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_lcd_fb.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_touch.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_epic.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_epic_mask.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_psram.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_mpi.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_aes.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_common.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\rtthread\bsp\sifli\drivers\drv_dbg.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\DroidSansFallback_font.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\main.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\opus_heap.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\xiaozhi_array.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\xiaozhi_audio.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\xiaozhi_client_public.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\xiaozhi_mqtt.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\xiaozhi_ui.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\xiaozhi_websocket.o
CXX build_sf32lb52-lchspi-ulp_hcpu\src\mcp\mcp_api.o
CXX build_sf32lb52-lchspi-ulp_hcpu\src\mcp\mcp_server.o
CXX build_sf32lb52-lchspi-ulp_hcpu\src\mcp\rgbled_mcp.o
CXX build_sf32lb52-lchspi-ulp_hcpu\src\iot\iot_c_api.o
CXX build_sf32lb52-lchspi-ulp_hcpu\src\iot\screen.o
CXX build_sf32lb52-lchspi-ulp_hcpu\src\iot\speaker.o
CXX build_sf32lb52-lchspi-ulp_hcpu\src\iot\thing.o
CXX build_sf32lb52-lchspi-ulp_hcpu\src\iot\thing_manager.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\kws\app_recorder_process.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\kws\bsp_et_asr_ctrl.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\kws\et_asr_default_state.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\kws\et_decoder_patch.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\kws\et_keyword.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\kws\et_thres_list.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\kws\et_weights.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\weather\weather.o
CC build_sf32lb52-lchspi-ulp_hcpu\font\xiaozhi_font.o
CXX build_sf32lb52-lchspi-ulp_hcpu\hardware\sf32lb52-lchspi-ulp.o
Generating build_sf32lb52-lchspi-ulp_hcpu\lcpu\lcpu.c ...
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\clock.o
CC build_sf32lb52-lchspi-ulp_hcpu\lcpu\lcpu.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\components.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\cpu.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\device.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\idle.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\ipc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\irq.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\kservice.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\mem.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\memheap.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\mempool.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\object.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\scheduler.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\signal.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\thread.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\timer.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\libcpu\arm\cortex-m33\cpuport.o
AS build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\libcpu\arm\cortex-m33\context_gcc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\libcpu\arm\common\backtrace.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\libcpu\arm\common\div0.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\libcpu\arm\common\showmem.o
CXX build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\cplusplus\cxx_crt.o
CXX build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\cplusplus\cxx_mutex.o
CXX build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\cplusplus\cxx_semaphore.o
CXX build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\cplusplus\cxx_thread.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\cplusplus\cxx_crt_init.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\src\dfs.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\src\dfs_file.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\src\dfs_fs.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\src\dfs_posix.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\src\poll.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\src\select.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\filesystems\devfs\devfs.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\filesystems\elmfat\dfs_elm.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\filesystems\elmfat\ff.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\filesystems\elmfat\ffunicode.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\finsh\shell.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\finsh\symbol.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\finsh\cmd.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\finsh\msh.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\finsh\msh_cmd.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\finsh\msh_file.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\libc\compilers\common\gmtime_r.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\libc\compilers\newlib\libc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\libc\compilers\newlib\libc_syms.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\libc\compilers\newlib\stdio.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\libc\compilers\newlib\syscalls.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\libc\compilers\newlib\time.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\init.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\def.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\dns.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\inet_chksum.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\ip.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\memp.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\netif.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\pbuf.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\raw.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\stats.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\sys.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\tcp.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\tcp_in.o
E:\Git_Projects\sifli-sdk\rtos\rtthread\components\net\lwip\lwip-2.1.2\src\core\pbuf.c: In function 'pbuf_realloc':
E:\Git_Projects\sifli-sdk\rtos\rtthread\components\net\lwip\lwip-2.1.2\src\core\pbuf.c:476:10: warning: potential null pointer dereference [-Wnull-dereference]
476 | if (q->next != NULL)
| ~^~~~~~
E:\Git_Projects\sifli-sdk\rtos\rtthread\components\net\lwip\lwip-2.1.2\src\core\pbuf.c:473:16: warning: potential null pointer dereference [-Wnull-dereference]
473 | q->tot_len = q->len;
| ~~~~~~~~~~~^~~~~~~~
E:\Git_Projects\sifli-sdk\rtos\rtthread\components\net\lwip\lwip-2.1.2\src\core\pbuf.c:472:12: warning: potential null pointer dereference [-Wnull-dereference]
472 | q->len = rem_len;
| ~~~~~~~^~~~~~~~~
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\tcp_out.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\timeouts.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\udp.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\altcp.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\altcp_alloc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\altcp_tcp.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\api\api_lib.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\api\api_msg.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\api\err.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\api\if_api.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\api\netbuf.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\api\netdb.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\api\netifapi.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\api\sockets.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\api\tcpip.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\netif\ethernet.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\netif\lowpan6.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\ipv4\autoip.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\ipv4\dhcp.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\ipv4\etharp.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\ipv4\icmp.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\ipv4\igmp.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\ipv4\ip4_frag.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\ipv4\ip4.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\core\ipv4\ip4_addr.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\apps\ping\ping.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\apps\mqtt\mqtt.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\apps\websocket\base64-decode.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\apps\websocket\sha-1.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\apps\websocket\websocket_client.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\apps\altcp_tls\altcp_tls_mbedtls.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\apps\altcp_tls\altcp_tls_mbedtls_mem.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\lwip-2.1.2\src\apps\snmp\snmpv3_mbedtls.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\port\ethernetif.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\net\lwip\port\sys_arch.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\utilities\llt_mem\llt_mem.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\utilities\ulog\ulog.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\utilities\ulog\backend\console_be.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\utilities\ymodem\ymodem.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\libhelix-mp3\real\bitstream.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\libhelix-mp3\real\buffers.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\libhelix-mp3\real\dct32.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\libhelix-mp3\real\dequant.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\libhelix-mp3\real\dqchan.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\libhelix-mp3\real\huffman.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\libhelix-mp3\real\hufftabs.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\libhelix-mp3\real\imdct.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\libhelix-mp3\real\polyphase.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\libhelix-mp3\real\scalfact.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\libhelix-mp3\real\stproc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\libhelix-mp3\real\subband.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\libhelix-mp3\real\trigtabs.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\libhelix-mp3\mp3tabs.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\libhelix-mp3\mp3dec.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\celt\bands.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\celt\celt.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\celt\celt_decoder.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\celt\celt_encoder.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\celt\celt_lpc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\celt\cwrs.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\celt\entcode.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\celt\entdec.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\celt\entenc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\celt\kiss_fft.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\celt\laplace.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\celt\mathops.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\celt\mdct.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\celt\modes.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\celt\pitch.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\celt\quant_bands.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\celt\rate.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\celt\vq.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\A2NLSF.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\CNG.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\HP_variable_cutoff.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\LPC_analysis_filter.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\LPC_fit.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\LPC_inv_pred_gain.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\LP_variable_cutoff.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\NLSF2A.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\NLSF_VQ.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\NLSF_VQ_weights_laroia.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\NLSF_decode.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\NLSF_del_dec_quant.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\NLSF_encode.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\NLSF_stabilize.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\NLSF_unpack.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\NSQ.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\NSQ_del_dec.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\PLC.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\VAD.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\VQ_WMat_EC.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\ana_filt_bank_1.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\biquad_alt.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\bwexpander.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\bwexpander_32.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\check_control_input.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\code_signs.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\control_SNR.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\control_audio_bandwidth.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\control_codec.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\debug.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\dec_API.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\decode_core.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\decode_frame.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\decode_indices.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\decode_parameters.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\decode_pitch.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\decode_pulses.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\decoder_set_fs.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\enc_API.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\encode_indices.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\encode_pulses.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\gain_quant.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\init_decoder.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\init_encoder.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\inner_prod_aligned.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\interpolate.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\lin2log.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\log2lin.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\pitch_est_tables.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\process_NLSFs.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\quant_LTP_gains.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\resampler.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\resampler_down2.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\resampler_down2_3.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\resampler_private_AR2.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\resampler_private_IIR_FIR.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\resampler_private_down_FIR.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\resampler_private_up2_HQ.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\resampler_rom.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\shell_coder.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\sigm_Q15.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\sort.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\stereo_LR_to_MS.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\stereo_MS_to_LR.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\stereo_decode_pred.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\stereo_encode_pred.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\stereo_find_predictor.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\stereo_quant_pred.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\sum_sqr_shift.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\table_LSF_cos.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\tables_LTP.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\tables_NLSF_CB_NB_MB.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\tables_NLSF_CB_WB.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\tables_gain.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\tables_other.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\tables_pitch_lag.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\tables_pulses_per_block.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\LTP_analysis_filter_FIX.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\LTP_scale_ctrl_FIX.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\apply_sine_window_FIX.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\autocorr_FIX.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\burg_modified_FIX.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\corrMatrix_FIX.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\find_LPC_FIX.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\find_LTP_FIX.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\find_pitch_lags_FIX.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\find_pred_coefs_FIX.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\k2a_FIX.o
In file included from CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\k2a_Q16_FIX.o
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\structs_FIX.h:32,
from E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\main_FIX.h:32,
from E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:33:
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c: In function 'silk_LBRR_encode_FIX':
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:296:18: warning: 'silk_NSQ_del_dec_c' reading 64 bytes from a region of size 32 [-Wstringop-overread]
296 | ((void)(arch),silk_NSQ_del_dec_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
297 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:434:13: note: in expansion of macro 'silk_NSQ_del_dec'
434 | silk_NSQ_del_dec( &psEnc->sCmn, &sNSQ_LBRR, psIndices_LBRR, x16,
| ^~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:296:18: note: referencing argument 6 of type 'const opus_int16[32]' {aka 'const short int[32]'}
296 | ((void)(arch),silk_NSQ_del_dec_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
297 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:434:13: note: in expansion of macro 'silk_NSQ_del_dec'
434 | silk_NSQ_del_dec( &psEnc->sCmn, &sNSQ_LBRR, psIndices_LBRR, x16,
| ^~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:296:18: note: referencing argument 7 of type 'const opus_int16[20]' {aka 'const short int[20]'}
296 | ((void)(arch),silk_NSQ_del_dec_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
297 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:434:13: note: in expansion of macro 'silk_NSQ_del_dec'
434 | silk_NSQ_del_dec( &psEnc->sCmn, &sNSQ_LBRR, psIndices_LBRR, x16,
| ^~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:296:18: note: referencing argument 8 of type 'const opus_int16[96]' {aka 'const short int[96]'}
296 | ((void)(arch),silk_NSQ_del_dec_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
297 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:434:13: note: in expansion of macro 'silk_NSQ_del_dec'
434 | silk_NSQ_del_dec( &psEnc->sCmn, &sNSQ_LBRR, psIndices_LBRR, x16,
| ^~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:296:18: note: referencing argument 9 of type 'const int[4]'
296 | ((void)(arch),silk_NSQ_del_dec_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
297 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:434:13: note: in expansion of macro 'silk_NSQ_del_dec'
434 | silk_NSQ_del_dec( &psEnc->sCmn, &sNSQ_LBRR, psIndices_LBRR, x16,
| ^~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:296:18: note: referencing argument 10 of type 'const int[4]'
296 | ((void)(arch),silk_NSQ_del_dec_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
297 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:434:13: note: in expansion of macro 'silk_NSQ_del_dec'
434 | silk_NSQ_del_dec( &psEnc->sCmn, &sNSQ_LBRR, psIndices_LBRR, x16,
| ^~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:296:18: note: referencing argument 11 of type 'const opus_int32[4]' {aka 'const long int[4]'}
296 | ((void)(arch),silk_NSQ_del_dec_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
297 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:434:13: note: in expansion of macro 'silk_NSQ_del_dec'
434 | silk_NSQ_del_dec( &psEnc->sCmn, &sNSQ_LBRR, psIndices_LBRR, x16,
| ^~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:296:18: note: referencing argument 12 of type 'const opus_int32[4]' {aka 'const long int[4]'}
296 | ((void)(arch),silk_NSQ_del_dec_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
297 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:434:13: note: in expansion of macro 'silk_NSQ_del_dec'
434 | silk_NSQ_del_dec( &psEnc->sCmn, &sNSQ_LBRR, psIndices_LBRR, x16,
| ^~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:296:18: note: referencing argument 13 of type 'const int[4]'
296 | ((void)(arch),silk_NSQ_del_dec_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
297 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:434:13: note: in expansion of macro 'silk_NSQ_del_dec'
434 | silk_NSQ_del_dec( &psEnc->sCmn, &sNSQ_LBRR, psIndices_LBRR, x16,
| ^~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:275:6: note: in a call to function 'silk_NSQ_del_dec_c'
275 | void silk_NSQ_del_dec_c(
| ^~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:270:18: warning: 'silk_NSQ_c' reading 64 bytes from a region of size 32 [-Wstringop-overread]
270 | ((void)(arch),silk_NSQ_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
271 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:439:13: note: in expansion of macro 'silk_NSQ'
439 | silk_NSQ( &psEnc->sCmn, &sNSQ_LBRR, psIndices_LBRR, x16,
| ^~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:270:18: note: referencing argument 6 of type 'const opus_int16[32]' {aka 'const short int[32]'}
270 | ((void)(arch),silk_NSQ_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
271 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:439:13: note: in expansion of macro 'silk_NSQ'
439 | silk_NSQ( &psEnc->sCmn, &sNSQ_LBRR, psIndices_LBRR, x16,
| ^~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:270:18: note: referencing argument 7 of type 'const opus_int16[20]' {aka 'const short int[20]'}
270 | ((void)(arch),silk_NSQ_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
271 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:439:13: note: in expansion of macro 'silk_NSQ'
439 | silk_NSQ( &psEnc->sCmn, &sNSQ_LBRR, psIndices_LBRR, x16,
| ^~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:270:18: note: referencing argument 8 of type 'const opus_int16[96]' {aka 'const short int[96]'}
270 | ((void)(arch),silk_NSQ_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
271 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:439:13: note: in expansion of macro 'silk_NSQ'
439 | silk_NSQ( &psEnc->sCmn, &sNSQ_LBRR, psIndices_LBRR, x16,
| ^~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:270:18: note: referencing argument 9 of type 'const int[4]'
270 | ((void)(arch),silk_NSQ_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
271 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:439:13: note: in expansion of macro 'silk_NSQ'
439 | silk_NSQ( &psEnc->sCmn, &sNSQ_LBRR, psIndices_LBRR, x16,
| ^~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:270:18: note: referencing argument 10 of type 'const int[4]'
270 | ((void)(arch),silk_NSQ_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
271 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:439:13: note: in expansion of macro 'silk_NSQ'
439 | silk_NSQ( &psEnc->sCmn, &sNSQ_LBRR, psIndices_LBRR, x16,
| ^~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:270:18: note: referencing argument 11 of type 'const opus_int32[4]' {aka 'const long int[4]'}
270 | ((void)(arch),silk_NSQ_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
271 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:439:13: note: in expansion of macro 'silk_NSQ'
439 | silk_NSQ( &psEnc->sCmn, &sNSQ_LBRR, psIndices_LBRR, x16,
| ^~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:270:18: note: referencing argument 12 of type 'const opus_int32[4]' {aka 'const long int[4]'}
270 | ((void)(arch),silk_NSQ_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
271 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:439:13: note: in expansion of macro 'silk_NSQ'
439 | silk_NSQ( &psEnc->sCmn, &sNSQ_LBRR, psIndices_LBRR, x16,
| ^~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:270:18: note: referencing argument 13 of type 'const int[4]'
270 | ((void)(arch),silk_NSQ_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
271 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:439:13: note: in expansion of macro 'silk_NSQ'
439 | silk_NSQ( &psEnc->sCmn, &sNSQ_LBRR, psIndices_LBRR, x16,
| ^~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:249:6: note: in a call to function 'CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\noise_shape_analysis_FIX.o
silk_NSQ_c'
249 | void silk_NSQ_c(
| ^~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c: In function 'silk_encode_frame_FIX':
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:296:18: warning: 'silk_NSQ_del_dec_c' reading 64 bytes from a region of size 32 [-Wstringop-overread]
296 | ((void)(arch),silk_NSQ_del_dec_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
297 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:201:21: note: in expansion of macro 'silk_NSQ_del_dec'
201 | silk_NSQ_del_dec( &psEnc->sCmn, &psEnc->sCmn.sNSQ, &psEnc->sCmn.indices, x_frame, psEnc->sCmn.pulses,
| ^~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:296:18: note: referencing argument 6 of type 'const opus_int16[32]' {aka 'const short int[32]'}
296 | ((void)(arch),silk_NSQ_del_dec_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
297 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:201:21: note: in expansion of macro 'silk_NSQ_del_dec'
201 | silk_NSQ_del_dec( &psEnc->sCmn, &psEnc->sCmn.sNSQ, &psEnc->sCmn.indices, x_frame, psEnc->sCmn.pulses,
| ^~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:296:18: note: referencing argument 7 of type 'const opus_int16[20]' {aka 'const short int[20]'}
296 | ((void)(arch),silk_NSQ_del_dec_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
297 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:201:21: note: in expansion of macro 'silk_NSQ_del_dec'
201 | silk_NSQ_del_dec( &psEnc->sCmn, &psEnc->sCmn.sNSQ, &psEnc->sCmn.indices, x_frame, psEnc->sCmn.pulses,
| ^~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:296:18: note: referencing argument 8 of type 'const opus_int16[96]' {aka 'const short int[96]'}
296 | ((void)(arch),silk_NSQ_del_dec_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
297 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:201:21: note: in expansion of macro 'silk_NSQ_del_dec'
201 | silk_NSQ_del_dec( &psEnc->sCmn, &psEnc->sCmn.sNSQ, &psEnc->sCmn.indices, x_frame, psEnc->sCmn.pulses,
| ^~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:296:18: note: referencing argument 9 of type 'const int[4]'
296 | ((void)(arch),silk_NSQ_del_dec_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
297 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:201:21: note: in expansion of macro 'silk_NSQ_del_dec'
201 | silk_NSQ_del_dec( &psEnc->sCmn, &psEnc->sCmn.sNSQ, &psEnc->sCmn.indices, x_frame, psEnc->sCmn.pulses,
| ^~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:296:18: note: referencing argument 10 of type 'const int[4]'
296 | ((void)(arch),silk_NSQ_del_dec_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
297 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:201:21: note: in expansion of macro 'silk_NSQ_del_dec'
201 | silk_NSQ_del_dec( &psEnc->sCmn, &psEnc->sCmn.sNSQ, &psEnc->sCmn.indices, x_frame, psEnc->sCmn.pulses,
| ^~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:296:18: note: referencing argument 11 of type 'const opus_int32[4]' {aka 'const long int[4]'}
296 | ((void)(arch),silk_NSQ_del_dec_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
297 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:201:21: note: in expansion of macro 'silk_NSQ_del_dec'
201 | silk_NSQ_del_dec( &psEnc->sCmn, &psEnc->sCmn.sNSQ, &psEnc->sCmn.indices, x_frame, psEnc->sCmn.pulses,
| ^~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:296:18: note: referencing argument 12 of type 'const opus_int32[4]' {aka 'const long int[4]'}
296 | ((void)(arch),silk_NSQ_del_dec_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
297 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:201:21: note: in expansion of macro 'silk_NSQ_del_dec'
201 | silk_NSQ_del_dec( &psEnc->sCmn, &psEnc->sCmn.sNSQ, &psEnc->sCmn.indices, x_frame, psEnc->sCmn.pulses,
| ^~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:296:18: note: referencing argument 13 of type 'const int[4]'
296 | ((void)(arch),silk_NSQ_del_dec_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
297 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:201:21: note: in expansion of macro 'silk_NSQ_del_dec'
201 | silk_NSQ_del_dec( &psEnc->sCmn, &psEnc->sCmn.sNSQ, &psEnc->sCmn.indices, x_frame, psEnc->sCmn.pulses,
| ^~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:275:6: note: in a call to function 'silk_NSQ_del_dec_c'
275 | void silk_NSQ_del_dec_c(
| ^~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:270:18: warning: 'silk_NSQ_c' reading 64 bytes from a region of size 32 [-Wstringop-overread]
270 | ((void)(arch),silk_NSQ_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
271 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:206:21: note: in expansion of macro 'silk_NSQ'
206 | silk_NSQ( &psEnc->sCmn, &psEnc->sCmn.sNSQ, &psEnc->sCmn.indices, x_frame, psEnc->sCmn.pulses,
| ^~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:270:18: note: referencing argument 6 of type 'const opus_int16[32]' {aka 'const short int[32]'}
270 | ((void)(arch),silk_NSQ_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
271 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:206:21: note: in expansion of macro 'silk_NSQ'
206 | silk_NSQ( &psEnc->sCmn, &psEnc->sCmn.sNSQ, &psEnc->sCmn.indices, x_frame, psEnc->sCmn.pulses,
| ^~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:270:18: note: referencing argument 7 of type 'const opus_int16[20]' {aka 'const short int[20]'}
270 | ((void)(arch),silk_NSQ_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
271 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:206:21: note: in expansion of macro 'silk_NSQ'
206 | silk_NSQ( &psEnc->sCmn, &psEnc->sCmn.sNSQ, &psEnc->sCmn.indices, x_frame, psEnc->sCmn.pulses,
| ^~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:270:18: note: referencing argument 8 of type 'const opus_int16[96]' {aka 'const short int[96]'}
270 | ((void)(arch),silk_NSQ_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
271 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:206:21: note: in expansion of macro 'silk_NSQ'
206 | CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\pitch_analysis_core_FIX.o
silk_NSQ( &psEnc->sCmn, &psEnc->sCmn.sNSQ, &psEnc->sCmn.indices, x_frame, psEnc->sCmn.pulses,
| ^~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:270:18: note: referencing argument 9 of type 'const int[4]'
270 | ((void)(arch),silk_NSQ_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
271 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:206:21: note: in expansion of macro 'silk_NSQ'
206 | silk_NSQ( &psEnc->sCmn, &psEnc->sCmn.sNSQ, &psEnc->sCmn.indices, x_frame, psEnc->sCmn.pulses,
| ^~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:270:18: note: referencing argument 10 of type 'const int[4]'
270 | ((void)(arch),silk_NSQ_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
271 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:206:21: note: in expansion of macro 'silk_NSQ'
206 | silk_NSQ( &psEnc->sCmn, &psEnc->sCmn.sNSQ, &psEnc->sCmn.indices, x_frame, psEnc->sCmn.pulses,
| ^~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:270:18: note: referencing argument 11 of type 'const opus_int32[4]' {aka 'const long int[4]'}
270 | ((void)(arch),silk_NSQ_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
271 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:206:21: note: in expansion of macro 'silk_NSQ'
206 | silk_NSQ( &psEnc->sCmn, &psEnc->sCmn.sNSQ, &psEnc->sCmn.indices, x_frame, psEnc->sCmn.pulses,
| ^~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:270:18: note: referencing argument 12 of type 'const opus_int32[4]' {aka 'const long int[4]'}
270 | ((void)(arch),silk_NSQ_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
271 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:206:21: note: in expansion of macro 'silk_NSQ'
206 | silk_NSQ( &psEnc->sCmn, &psEnc->sCmn.sNSQ, &psEnc->sCmn.indices, x_frame, psEnc->sCmn.pulses,
| ^~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:270:18: note: referencing argument 13 of type 'const int[4]'
270 | ((void)(arch),silk_NSQ_c(psEncC, NSQ, psIndices, x16, pulses, PredCoef_Q12, LTPCoef_Q14, AR_Q13, \
| ~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
271 | HarmShapeGain_Q14, Tilt_Q14, LF_shp_Q14, Gains_Q16, pitchL, Lambda_Q10, LTP_scale_Q14))
| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk\fixed\encode_frame_FIX.c:206:21: note: in expansion of macro 'silk_NSQ'
206 | silk_NSQ( &psEnc->sCmn, &psEnc->sCmn.sNSQ, &psEnc->sCmn.indices, x_frame, psEnc->sCmn.pulses,
| ^~~~~~~~
E:\Git_Projects\sifli-sdk\external\opus-1.4\silk/main.h:249:6: note: in a call to function 'silk_NSQ_c'
249 | void CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\process_gains_FIX.o
silk_NSQ_c(
| ^~~~~~~~~~
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\regularize_correlations_FIX.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\residual_energy16_FIX.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\residual_energy_FIX.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\schur64_FIX.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\schur_FIX.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\vector_ops_FIX.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\silk\fixed\warped_autocorrelation_FIX.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\src\analysis.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\src\mapping_matrix.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\src\mlp.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\src\mlp_data.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\src\opus.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\src\opus_decoder.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\src\opus_encoder.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\src\opus_multistream.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\src\opus_multistream_decoder.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\src\opus_multistream_encoder.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\src\opus_projection_decoder.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\src\opus_projection_encoder.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\src\opus_test.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\opus-1.4\src\repacketizer.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\fft4g.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\ring_buffer.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\vad\vad_core.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\vad\vad_filterbank.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\vad\vad_gmm.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\vad\vad_sp.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\vad\webrtc_vad.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\auto_corr_to_refl_coef.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\auto_correlation.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\complex_bit_reverse.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\complex_fft.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\copy_set_operations.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\cross_correlation.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\division_operations.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\dot_product_with_scale.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\downsample_fast.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\energy.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\filter_ar.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\filter_ar_fast_q12.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\filter_ma_fast_q12.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\get_hanning_window.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\get_scaling_square.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\ilbc_specific_functions.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\levinson_durbin.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\lpc_to_refl_coef.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\min_max_operations.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\randomization_functions.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\real_fft.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\refl_coef_to_lpc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\resample.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\resample_48khz.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\resample_by_2.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\resample_by_2_internal.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\resample_fractional.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\spl_init.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\spl_sqrt.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\spl_sqrt_floor.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\splitting_filter.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\sqrt_of_one_minus_x_squared.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\common_audio\signal_processing\vector_scaling_operations.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\modules\audio_processing\ns\noise_suppression_x.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\modules\audio_processing\ns\nsx_core.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\modules\audio_processing\ns\nsx_core_c.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\modules\audio_processing\agc\legacy\analog_agc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\modules\audio_processing\agc\legacy\digital_agc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\modules\audio_processing\aecm\aecm_core.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\modules\audio_processing\aecm\aecm_core_c.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\modules\audio_processing\aecm\echo_control_mobile.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\modules\audio_processing\utility\delay_estimator.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\modules\audio_processing\utility\delay_estimator_wrapper.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\modules\audio_processing\dc_correction\dc_correction.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\modules\audio_processing\ramp_in\ramp_in.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc\modules\audio_processing\ramp_out\ramp_out.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\external\WebRTC_audio_processing\webrtc_vad_test.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\porting\rtt\bt_pan\bt_lwip.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\porting\rtt\bt_pan\bt_lwip_pan_dev.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\bluetooth\porting\rtt\bt_pan\bt_prot.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\audio\audio.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\audio\audio_pipe.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\hwmailbox\hwmailbox.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\hwtimer\hwtimer.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\i2c\i2c_core.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\i2c\i2c_dev.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\i2c\i2c-bit-ops.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\misc\pin.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\misc\adc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\misc\rt_drv_pwm.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\misc\rt_drv_encoder.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\mtd\mtd_nor.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\pm\pm.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\rtc\rtc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\rtc\alarm.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\serial\serial.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\spi\spi_core.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\spi\spi_dev.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\src\completion.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\src\dataqueue.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\src\pipe.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\src\ringblk_buf.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\src\ringbuffer.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\src\waitqueue.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\src\workqueue.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf_v9\lv_ex_data.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf_v9\lv_ext_resource_manager.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf_v9\lv_ext_resource_manager_builtin.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf_v9\lv_seqimg.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf_v9\lvsf_input.o
Generating build_sf32lb52-lchspi-ulp_hcpu\link_copy.lds ...
Generating build_sf32lb52-lchspi-ulp_hcpu\ftab\link_copy.lds ...
Building compilation database build_sf32lb52-lchspi-ulp_hcpu\ftab\compile_commands.json
Building compilation database build_sf32lb52-lchspi-ulp_hcpu\lcpu\compile_commands.json
Generating build_sf32lb52-lchspi-ulp_hcpu\lcpu\lcpu.asm ...
LINK build_sf32lb52-lchspi-ulp_hcpu\main.elf
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: warning: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard/crtn.o: missing .note.GNU-stack section implies executable stack
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: NOTE: This behaviour is deprecated and will be removed in a future version of the linker
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: warning: build_sf32lb52-lchspi-ulp_hcpu\main.elf has a LOAD segment with RWX permissions
Generating build_sf32lb52-lchspi-ulp_hcpu\main.bin ...
Generating build_sf32lb52-lchspi-ulp_hcpu\main.asm ...
Generating build_sf32lb52-lchspi-ulp_hcpu\main.hex ...
Generating build_sf32lb52-lchspi-ulp_hcpu\ftab\board\ftab.c ...
CC build_sf32lb52-lchspi-ulp_hcpu\ftab\board\ftab.o
LINK build_sf32lb52-lchspi-ulp_hcpu\ftab\ftab.elf
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-closer.o): in function `_close_r':
closer.c:(.text._close_r+0xc): warning: _close is not implemented and will always fail
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-closer.o): note: the message above does not take linker garbage collection into account
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-lseekr.o): in function `_lseek_r':
lseekr.c:(.text._lseek_r+0x10): warning: _lseek is not implemented and will always fail
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-lseekr.o): note: the message above does not take linker garbage collection into account
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-readr.o): in function `_read_r':
readr.c:(.text._read_r+0x10): warning: _read is not implemented and will always fail
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-readr.o): note: the message above does not take linker garbage collection into account
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-writer.o): in function `_write_r':
writer.c:(.text._write_r+0x10): warning: _write is not implemented and will always fail
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-writer.o): note: the message above does not take linker garbage collection into account
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: warning: cannot find entry symbol entry; defaulting to 12000000
Generating build_sf32lb52-lchspi-ulp_hcpu\ftab\ftab.bin ...
Generating build_sf32lb52-lchspi-ulp_hcpu\ftab\ftab.asm ...
Generating build_sf32lb52-lchspi-ulp_hcpu\ftab\ftab.hex ...
Generating build_sf32lb52-lchspi-ulp_hcpu\download.bat ...
Generated sftool param: build_sf32lb52-lchspi-ulp_hcpu/sftool_param.json
scons: done building targets.
PS E:\Git_Projects\xiaozhi-sf32\app\project> E:\Git_Projects\xiaozhi-sf32\app\project\build_sf32lb52-lchspi-ulp_hcpu>cd E:\Git_Projects\xiaozhi-sf32\app\project
PS E:\Git_Projects\xiaozhi-sf32\app\project> E:\Git_Projects\xiaozhi-sf32\app\project\build_sf32lb52-lchspi-ulp_hcpu\uart_download.bat
Uart Download
please input the serial port num:6
com6
[0x00] Connected success!
[0x01] Download stub success!
[0x02] No need to re-download, skip!
[0x03] Need to re-download
[0x04] Download success! ============================================================================================================================================================= 87.82 KiB/s 100.000%[0x05] Verify success!
[0x06] Need to re-download
[0x07] Download success! ============================================================================================================================================================= 88.20 KiB/s 100.000%[0x08] Verify success!
[0x09] Need to re-download
[0x0A] Download success! ============================================================================================================================================================= 88.77 KiB/s 100.000%[0x0B] Verify success!
[0x0C] Need to re-download
[0x0D] Download success! ============================================================================================================================================================= 52.88 KiB/s 100.000%[0x0E] Verify success!
请按任意键继续. . .五、烧录Watch UI程序
5.1 来到SiFli科技，准备拉取watch ui源码
git clone --recursive https://github.com/OpenSiFli/lckfb-hspi-ulp_example
git clone --recursive git@github.com:OpenSiFli/lckfb-hspi-ulp_example.git5.2 使用vscode打开立创黄山派例程仓库，进入watch ui工程，打开之前的SF32终端环境配置，看readme，编译并下载
scons --board=sf32lb52-lchspi-ulp -j8
build_sf32lb52-lchspi-ulp_hcpu\uart_download.bat
烧录watch ui全过程记录（可略）：
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\no_ezip\fashion_sec.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 1 -dpt 1
fashion_min.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\no_ezip\fashion_hr.tmp.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\no_ezip\fashion_min.tmp.o
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\no_ezip\fashion_sec.png color RGB565 -------------
d3d_rotate.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
fashion_sec.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\no_ezip\compass_arrow.tmp.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\no_ezip\fashion_sec.tmp.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\no_ezip\d3d_rotate.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\no_ezip\hour_hand2.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 1 -dpt 1
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\no_ezip\kaleidoscope.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 1 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\no_ezip\hour_hand2.png color RGB565 -------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\no_ezip\kaleidoscope.png color RGB565 -------------
hour_hand2.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\no_ezip\hour_hand2.tmp.o
kaleidoscope.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\no_ezip\minute_hand2.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 1 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\no_ezip\minute_hand2.png color RGB565 -------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\no_ezip\kaleidoscope.tmp.o
minute_hand2.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\no_ezip\minute_hand2.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\no_ezip\second_hand2.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 1 -dpt 1
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\airplane.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\no_ezip\second_hand2.png color RGB565 -------------
second_hand2.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\airplane.png color RGB565 -------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\bluetooth.tmp.c
airplane.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\no_ezip\second_hand2.tmp.o
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\bluetooth.png color RGB565 -------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\airplane.tmp.o
bluetooth.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\bluetooth.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\clock_40.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\clock_40.png color RGB565 -------------
clock_40.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\clock_40.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\clock_80.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\clock_80.png color RGB565 -------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\clock_mickey_eyes01.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
clock_80.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\clock_mickey_eyes02.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\clock_mickey_eyes03.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\clock_80.tmp.o
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\clock_mickey_eyes01.png color RGB565 -------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\clock_mickey_eyes02.png color RGB565 -------------
clock_mickey_eyes01.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
clock_mickey_eyes02.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\clock_mickey_shoe01.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\clock_mickey_eyes03.png color RGB565 -------------
clock_mickey_eyes03.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\clock_mickey_eyes01.tmp.o
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\clock_mickey_shoe01.png color RGB565 -------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\clock_mickey_eyes03.tmp.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\clock_mickey_eyes02.tmp.o
clock_mickey_shoe01.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\clock_mickey_shoe01.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\clock_mickey_shoe02.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\clock_mickey_shoe02.png color RGB565 -------------
clock_mickey_shoe02.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\clock_mickey_shoe03.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\clock_mickey_shoe02.tmp.o
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\clock_mickey_shoe03.png color RGB565 -------------
clock_mickey_shoe03.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\clock_mickey_shoe03.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\clock_mickey_shoe04.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\clock_mickey_shoe04.png color RGB565 -------------
clock_mickey_shoe04.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\clock_mickey_shoe05.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\clock_mickey_shoe04.tmp.o
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\clock_mickey_shoe05.png color RGB565 -------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\compass_arrow_shadow.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\dn.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
clock_mickey_shoe05.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\dn.png color RGB565 -------------
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\compass_arrow_shadow.png color RGB565 -------------
dn.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
compass_arrow_shadow.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\down_arrow.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\clock_mickey_shoe05.tmp.o
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\down_arrow.png color RGB565 -------------
down_arrow.png converted!!!
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\compass_arrow_shadow.tmp.o
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\dn.tmp.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\down_arrow.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\eco.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\eco.png color RGB565 -------------
eco.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\eco.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\gra_corner_clock1.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\gra_corner_clock1.png color RGB565 -------------
gra_corner_clock1.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\gra_corner_clock1.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\gra_corner_clock2.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\gra_corner_clock2.png color RGB565 -------------
gra_corner_clock2.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\gra_corner_clock2.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\house.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\house.png color RGB565 -------------
house.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\house.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\human1.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\human1.png color RGB565 -------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\human2.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
human1.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_LiChuang.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\human2.png color RGB565 -------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\human1.tmp.o
human2.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_activity.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_LiChuang.png color RGB565 -------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_activity.png color RGB565 -------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\human2.tmp.o
img_LiChuang.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
img_activity.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_alarm.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_LiChuang.tmp.o
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_alarm.png color RGB565 -------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_activity.tmp.o
img_alarm.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_alarm.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_alarm_2.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_alarm_2.png color RGB565 -------------
img_alarm_2.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_calendar.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_alarm_2.tmp.o
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_calendar.png color RGB565 -------------
img_calendar.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_calendar.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_camera.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_camera.png color RGB565 -------------
img_camera.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_camera.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_clock.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_clock.png color RGB565 -------------
img_clock.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_compass.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_clock.tmp.o
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_compass.png color RGB565 -------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_ecg.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
img_compass.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_group.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_ecg.png color RGB565 -------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_group.png color RGB565 -------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_compass.tmp.o
img_ecg.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_itunes.tmp.c
img_group.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_ecg.tmp.o
ezip version: 2.4.0_2025_08_11 lvgl_c_file
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_group.tmp.o
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_itunes.png color RGB565 -------------
img_itunes.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_left_arrow.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_itunes.tmp.o
ezip version: 2.4.0_2025_08_11 lvgl_c_file
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_mail.tmp.c
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_left_arrow.png color RGB565 -------------
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
img_left_arrow.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_mail.png color RGB565 -------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_left_arrow.tmp.o
img_mail.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_mail.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_maps.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_maps.png color RGB565 -------------
img_maps.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_maps.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_messages.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_messages.png color RGB565 -------------
img_messages.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_messages.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_mountion.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_passbook.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_phone.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_mountion.png color RGB565 -------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_passbook.png color RGB565 -------------
img_mountion.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
img_passbook.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_phone.png color RGB565 -------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_photos.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
img_phone.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_passbook.tmp.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_phone.tmp.o
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_photos.png color RGB565 -------------
img_photos.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_mountion.tmp.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_photos.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_red_heart.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_remote.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_red_heart.png color RGB565 -------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_remote.png color RGB565 -------------
img_remote.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
img_red_heart.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_settings.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_red_heart.tmp.o
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_settings.png color RGB565 -------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_remote.tmp.o
img_settings.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_settings.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_stocks.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_stocks.png color RGB565 -------------
img_stocks.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_stocks.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_stopwatch.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_workout.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_world_clock.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_stopwatch.png color RGB565 -------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\ms_earth.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
img_stopwatch.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_workout.png color RGB565 -------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\img_world_clock.png color RGB565 -------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\ms_earth.png color RGB565 -------------
img_world_clock.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
img_workout.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_stopwatch.tmp.o
ms_earth.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_world_clock.tmp.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\ms_earth.tmp.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\img_workout.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\ms_water.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\up_arrow.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\ms_water.png color RGB565 -------------
ms_water.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\up_arrow.png color RGB565 -------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\weather.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
up_arrow.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\ms_water.tmp.o
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\weather.png color RGB565 -------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\up_arrow.tmp.o
weather.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\weather.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\wt_circle.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\wt_circle.png color RGB565 -------------
wt_circle.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\wt_circle.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\wt_clock.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\wt_cloudy.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\wt_clock.png color RGB565 -------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\wt_compass.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\wt_cloudy.png color RGB565 -------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\wt_earth.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
wt_clock.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
wt_cloudy.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\wt_compass.png color RGB565 -------------
wt_compass.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\wt_earth.png color RGB565 -------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\wt_clock.tmp.o
wt_earth.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\wt_cloudy.tmp.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\wt_earth.tmp.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\wt_compass.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\wt_rain.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\wt_snow.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\wt_rain.png color RGB565 -------------
wt_rain.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\wt_snow.png color RGB565 -------------
wt_snow.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\wt_sunny.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\wt_rain.tmp.o
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\wt_sunny.png color RGB565 -------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\wt_snow.tmp.o
wt_sunny.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\wt_sunny.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\wt_weather.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\wt_weather.png color RGB565 -------------
wt_weather.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\wt_weather.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\ezip\wt_wind.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 1
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\barometer.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 4 -ers 64
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\clock_dashes.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 4 -ers 64
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\ezip\wt_wind.png color RGB565 -------------
wt_wind.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\clock_digital_bg.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 4 -ers 64
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\large_ezip\barometer.png color RGB565 -------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\clock_dashes.tmp.o
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 4 -ers 64
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 4 -ers 64
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\large_ezip\clock_mickey_body.png color RGB565 -------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\large_ezip\clock_mickey_head.png color RGB565 -------------
clock_mickey_body.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
clock_mickey_head.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\clock_mickey_body.tmp.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\clock_mickey_head.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\clock_simple_bg.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 4 -ers 64
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\large_ezip\clock_simple_bg.png color RGB565 -------------
clock_mickey_bg.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\clock_mickey_bg.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\compass_bg.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 4 -ers 64
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\large_ezip\compass_bg.png color RGB565 -------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\digital_b_time_0.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 4 -ers 64
compass_bg.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\large_ezip\digital_b_time_0.png color RGB565 -------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\compass_bg.tmp.o
clock_simple_bg.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\digital_b_time_1.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 4 -ers 64
digital_b_time_0.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\large_ezip\digital_b_time_1.png color RGB565 -------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\clock_simple_bg.tmp.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\digital_b_time_0.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\digital_b_time_2.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 4 -ers 64
digital_b_time_1.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\large_ezip\digital_b_time_2.png color RGB565 -------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\digital_b_time_1.tmp.o
digital_b_time_2.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\digital_b_time_2.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\digital_b_time_3.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 4 -ers 64
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\digital_b_time_4.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 4 -ers 64
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\large_ezip\digital_b_time_4.png color RGB565 -------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\large_ezip\digital_b_time_3.png color RGB565 -------------
digital_b_time_3.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
digital_b_time_4.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\digital_b_time_3.tmp.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\digital_b_time_4.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\digital_b_time_5.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 4 -ers 64
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\large_ezip\digital_b_time_5.png color RGB565 -------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\digital_b_time_6.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 4 -ers 64
digital_b_time_5.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\large_ezip\digital_b_time_6.png color RGB565 -------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\digital_b_time_5.tmp.o
digital_b_time_6.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\digital_b_time_7.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 4 -ers 64
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\digital_b_time_6.tmp.o
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\large_ezip\digital_b_time_7.png color RGB565 -------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\digital_b_time_8.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 4 -ers 64
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\digital_b_time_9.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 4 -ers 64
digital_b_time_7.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\large_ezip\digital_b_time_8.png color RGB565 -------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\large_ezip\digital_b_time_9.png color RGB565 -------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\digital_b_time_7.tmp.o
digital_b_time_9.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
digital_b_time_8.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\elevation.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 4 -ers 64
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\digital_b_time_8.tmp.o
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\large_ezip\elevation.png color RGB565 -------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\digital_b_time_9.tmp.o
elevation.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\elevation.tmp.o
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\hr_region.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 4 -ers 64
GenImgFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\img_dial_bg.tmp.c
ImgFileBuilder= -rgb565 -section ROM3_IMG -cfile 2 -dpt 4 -ers 64
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\large_ezip\hr_region.png color RGB565 -------------
ezip version: 2.4.0_2025_08_11 lvgl_c_file
------------- ezip convert begin: ezip -convert E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\images\common\large_ezip\img_dial_bg.png color RGB565 -------------
hr_region.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\hr_region.tmp.o
GenFontFile build_sf32lb52-lchspi-ulp_hcpu\src\resource\fonts\freetype\lvsf_tiny_font_tiny55_full.c
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\strings\en_us.o
ttf.c origin! E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\resource\fonts\freetype\tiny55_full.ttf
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\strings\zh_cn.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\strings\lang_pack.o
ttf.c generated! lvsf_tiny_font_tiny55_full.c
CC build_sf32lb52-lchspi-ulp_hcpu\src\app_utils\main.o
img_dial_bg.png converted!!!
---------------------------------------- ezip convert end !!! --------------------------------------
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\fonts\freetype\lvsf_tiny_font_tiny55_full.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\resource\images\common\large_ezip\img_dial_bg.tmp.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\clock.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\components.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\cpu.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\device.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\idle.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\ipc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\irq.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\kservice.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\mem.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\memheap.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\mempool.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\object.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\scheduler.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\signal.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\thread.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\src\timer.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\libcpu\arm\cortex-m33\cpuport.o
AS build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\libcpu\arm\cortex-m33\context_gcc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\libcpu\arm\common\backtrace.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\libcpu\arm\common\div0.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\libcpu\arm\common\showmem.o
CXX build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\cplusplus\cxx_crt.o
CXX build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\cplusplus\cxx_mutex.o
CXX build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\cplusplus\cxx_semaphore.o
CXX build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\cplusplus\cxx_thread.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\cplusplus\cxx_crt_init.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\src\dfs.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\src\dfs_file.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\src\dfs_fs.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\src\dfs_posix.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\src\poll.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\src\select.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\filesystems\devfs\devfs.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\filesystems\elmfat\dfs_elm.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\filesystems\elmfat\ff.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\dfs\filesystems\elmfat\ffunicode.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\finsh\shell.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\finsh\symbol.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\finsh\cmd.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\finsh\msh.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\finsh\msh_cmd.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\finsh\msh_file.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\libc\compilers\common\gmtime_r.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\libc\compilers\newlib\libc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\libc\compilers\newlib\libc_syms.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\libc\compilers\newlib\stdio.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\libc\compilers\newlib\syscalls.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\libc\compilers\newlib\time.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\utilities\llt_mem\llt_mem.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\utilities\ulog\ulog.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\utilities\ulog\backend\console_be.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lv_ex_data.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lv_ext_resource_manager.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lv_ext_resource_manager_builtin.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lv_ext_resource_manager_dl_impl.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lv_freetype.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lvsf_analogclk.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lvsf_barcode.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lvsf_comp.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lvsf_composite.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lvsf_corner.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lvsf_curvetext.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lvsf_emoji.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lvsf_ezipa.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lvsf_font.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lvsf_gesture.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lvsf_header.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lvsf_idximg.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lvsf_input.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lvsf_popup.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lvsf_rlottie.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lvsf_theme_1.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\middleware\lvgl\lvsf\lvsf_utils.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\gui_apps\watch_demo.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\gui_apps\clock\app_clock_dial.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\gui_apps\clock\app_clock_main.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\gui_apps\clock\app_clock_rotate_bg.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\gui_apps\clock\app_clock_simple.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\gui_apps\clock\app_clock_status_bar.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\gui_apps\LC_Hello_World\main.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\gui_apps\main\app_mainmenu.o
E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\gui_apps\clock\app_clock_main.c: In function 'tileview_event_cb_t':
E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\src\gui_apps\clock\app_clock_main.c:395:34: warning: cast from pointer to integer of different size [-Wpointer-to-int-cast]
395 | rt_uint16_t active_pos = (rt_uint16_t)lv_event_get_param(event);
| ^
CC build_sf32lb52-lchspi-ulp_hcpu\src\gui_apps\rotation3d\rotation3d.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\gui_apps\utils\custom_trans_anim.o
CC build_sf32lb52-lchspi-ulp_hcpu\src\gui_apps\mem\app_mem.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\audio\audio.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\audio\audio_pipe.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\hwmailbox\hwmailbox.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\hwtimer\hwtimer.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\i2c\i2c_core.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\i2c\i2c_dev.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\i2c\i2c-bit-ops.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\misc\pin.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\misc\adc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\misc\rt_drv_pwm.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\mtd\mtd_nor.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\rtc\rtc.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\serial\serial.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\spi\spi_core.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\spi\spi_dev.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\src\completion.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\src\dataqueue.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\src\pipe.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\src\ringblk_buf.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\src\ringbuffer.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\src\waitqueue.o
CC build_sf32lb52-lchspi-ulp_hcpu\sifli_sdk\rtos\kernel\components\drivers\src\workqueue.o
Generating build_sf32lb52-lchspi-ulp_hcpu\link_copy.lds ...
Generating build_sf32lb52-lchspi-ulp_hcpu\ftab\link_copy.lds ...
Building compilation database build_sf32lb52-lchspi-ulp_hcpu\ftab\compile_commands.json
LINK build_sf32lb52-lchspi-ulp_hcpu\main.elf
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: warning: build_sf32lb52-lchspi-ulp_hcpu\main.elf has a LOAD segment with RWX permissions
Generating build_sf32lb52-lchspi-ulp_hcpu\main.hex ...
Generating build_sf32lb52-lchspi-ulp_hcpu\main.asm ...
Generating build_sf32lb52-lchspi-ulp_hcpu\main.bin ...
Generating build_sf32lb52-lchspi-ulp_hcpu\ftab\board\ftab.c ...
CC build_sf32lb52-lchspi-ulp_hcpu\ftab\board\ftab.o
LINK build_sf32lb52-lchspi-ulp_hcpu\ftab\ftab.elf
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-closer.o): in function `_close_r':
closer.c:(.text._close_r+0xc): warning: _close is not implemented and will always fail
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-closer.o): note: the message above does not take linker garbage collection into account
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-lseekr.o): in function `_lseek_r':
lseekr.c:(.text._lseek_r+0x10): warning: _lseek is not implemented and will always fail
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-lseekr.o): note: the message above does not take linker garbage collection into account
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-readr.o): in function `_read_r':
readr.c:(.text._read_r+0x10): warning: _read is not implemented and will always fail
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-readr.o): note: the message above does not take linker garbage collection into account
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-writer.o): in function `_write_r':
writer.c:(.text._write_r+0x10): warning: _write is not implemented and will always fail
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/thumb/v8-m.main+fp/hard\libg_nano.a(libc_a-writer.o): note: the message above does not take linker garbage collection into account
D:/DevEnv/SIFLI_Toolchain/tools/arm-none-eabi-gcc/14.2.1/bin/../lib/gcc/arm-none-eabi/14.2.1/../../../../arm-none-eabi/bin/ld.exe: warning: cannot find entry symbol entry; defaulting to 12000000
Generating build_sf32lb52-lchspi-ulp_hcpu\ftab\ftab.bin ...
Generating build_sf32lb52-lchspi-ulp_hcpu\ftab\ftab.asm ...
Generating build_sf32lb52-lchspi-ulp_hcpu\ftab\ftab.hex ...
Generating build_sf32lb52-lchspi-ulp_hcpu\download.bat ...
Generated sftool param: build_sf32lb52-lchspi-ulp_hcpu/sftool_param.json
scons: done building targets.
PS E:\Git_Projects\lckfb-hspi-ulp_example\lvgl\watch\project> build_sf32lb52-lchspi-ulp_hcpu\uart_download.bat
Uart Download
please input the serial port num:6
com6
[0x00] Connected success!
[0x01] Download stub success!
[0x02] No need to re-download, skip!
[0x03] Need to re-download
[0x04] Download success! ================================================================================================================================================ 88.52 KiB/s 100.000%[0x05] Verify success!
[0x06] Need to re-download
[0x07] Download success! ================================================================================================================================================ 52.78 KiB/s 100.000%[0x08] Verify success!
请按任意键继续. . .5.3 实验效果
[01:36:41.652]收←◆SFBL
[01:36:43.785]收←◆Serial:c2,Chip:4,Package:3,Rev:3 Reason:00000000
\ | /
- SiFli Corporation
/ | \ build on Oct 13 2025, 2.4.0 build b9d1b6be
2020 - 2022 Copyright by SiFli team
mount /dev sucess
[2330] I/drv.rtc main: PSCLR=0x80000100 DivAI=128 DivAF=0 B=256
[2359] I/drv.rtc main: RTC use LXT RTC_CR=00000001
[2381] I/drv.rtc main: Init RTC, wake = 0
[2542] I/drv.audprc main: init 00 ADC_PATH_CFG0 0x606
[2563] I/drv.audprc main: HAL_AUDPRC_Init res 0
[2584] I/drv.audcodec main: HAL_AUDCODEC_Init res 0
[2606] I/TOUCH main: Regist touch screen driver, probe=0x120264a9
lvsf_font_load: faces 1 ft_cache_size 300000
call par CFG1(3313)
fc 9, xtal 2000, pll 2117
call par CFG1(3313)
fc 7, xtal 2000, pll 1696
[3146] I/drv.lcd app_watc: [NONE] -> [OPENING]
[3168] I/drv.lcd lcd_task: open
[3182] I/drv.epic lcd_task: drv_gpu opened.
[3199] I/drv.lcd lcd_task: HW open
[3234] I/drv.lcd lcd_task: Try registered LCD driver...
msh />
[01:36:43.886]收←◆
CO5300_ReadID 0x331100
[5555] I/co5300 lcd_task: LCD module use CO5300 IC
[01:36:44.077]收←◆
CO5300_ReadID 0x331100
[11804] I/co5300 lcd_task: LCD module use CO5300 IC
[11825] I/drv.lcd lcd_task: Found lcd co5300 id:331100h
[11846] I/drv.lcd lcd_task: HW open done.
[11863] I/drv.lcd lcd_task: [OPENING] -> [INITIALIZED]
[11883] I/drv.lcd lcd_task: open done.
[11902] I/drv.lcd_fb app_watc: drv_lcd_fb_init
[11923] I/drv.lcd_fb app_watc: drv_lcd_fb_init done.
[11961] I/TOUCH app_watc: Open
[11979] I/TOUCH tp_init: Find touch screen driver...
[11999] I/TOUCH tp_init: Probe 120264a9
[12017] I/TOUCH tp_init: touch screen found driver 0x200354b8, ft6146
[12045] I/TOUCH app_watc: Opened.
[12127] I/LVGL app_watc: [littlevgl2rtt] Welcome to the littlevgl2rtt lib.
[12217] D/APP.FWK app_watc: send msg[GUI_APP_MSG_RUN_APP] [Main] to gui_app_mbx tick:303.
[12255] I/APP.FWK.INT app_watc: [Main]
[01:36:44.122]收←◆[13252] I/drv.lcd lcd_task: Auto turn on display.
[13274] I/drv.lcd lcd_task: set brightness 50
[13294] I/drv.lcd lcd_task: display on
[13309] I/drv.lcd lcd_task: [INITIALIZED] -> [ON]
[13330] I/drv.lcd lcd_task: set brightness 100
[13348] I/drv.lcd lcd_task: display on
[13366] D/APP.SCHE app_watc: ----------------app_schedule_task---------------start
[13397] I/APP.SCHE app_watc: >>Execute msg[GUI_APP_MSG_RUN_APP] tick:303
[13426] I/APP.SCHE app_watc: app[Main] do LOAD, 200441c4
[13448] I/APP.FWK app_watc: finding Main in builtin apps...
[13471] D/APP.SCHE app_watc: app[Main] tgt_state [LAUNCHED] -> [RUNNING]
[13499] I/APP.SCHE app_watc: app[Main] do START, 200441c4
[13522] I/APP.FWK.INT app_watc: [Main]
[13539] D/APP.FWK app_watc: send msg[GUI_APP_MSG_OPEN_PAGE] [0x200441c4] to gui_app_mbx tick:344.
[13575] I/APP.SCHE app_watc: >>Execute msg[GUI_APP_MSG_OPEN_PAGE] tick:344
[13604] D/APP.SCHE app_watc: app[Main] create page[root] 20044290
[13629] D/APP.SCHE app_watc: page[Main][root] tgt_state [CREATED] -> [RESUMED]
[13659] D/APP.SCHE app_watc: Stop all app, and return to main app
[13697] I/APP.SCHE app_watc: page[Main][root] do ONSTART, 20044290
[01:36:44.169]收←◆[14813] E/drv.ft6146 tp_init: ft6146 id_H=64
[14837] E/drv.ft6146 tp_init: ft6146 id_L=56
[14958] I/APP.SCHE app_watc: page[Main][root] do ONRESUME, 20044290
[14987] I/APP.SCHE app_watc: Try setup trans-anim
[15007] I/APP.SCHE app_watc: Trans-anim is OFF, skip.
[15028] D/APP.SCHE app_watc: app_schedule_task done.
智能硬件社区聚焦AI智能硬件技术生态，汇聚嵌入式AI、物联网硬件开发者，打造交流分享平台，同步全国赛事资讯、开展 OPC 核心人才招募，助力技术落地与开发者成长。
更多推荐
8
0- 0
已为社区贡献22条内容
所有评论(0)
