1. 工具调用概述

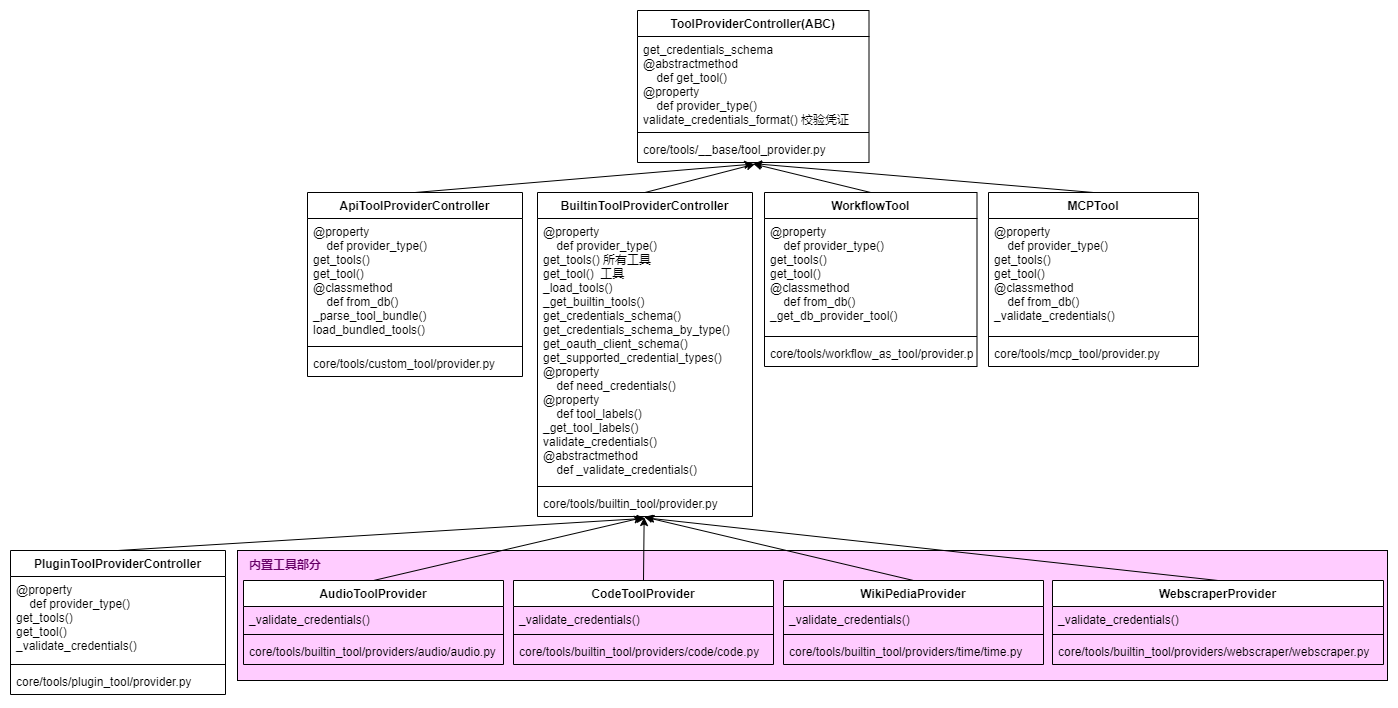

1.1. provider 继承关系

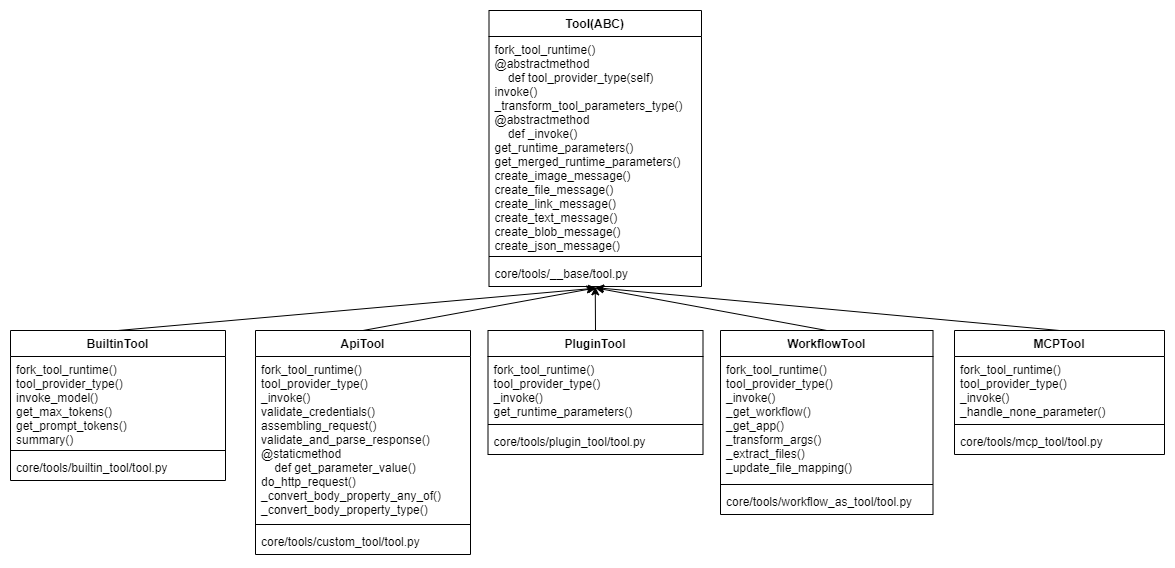

1.2. 工具类继承关系

1.3. 执行逻辑

1.3.1. ToolManager

/api/core/tools/tool_manager.py

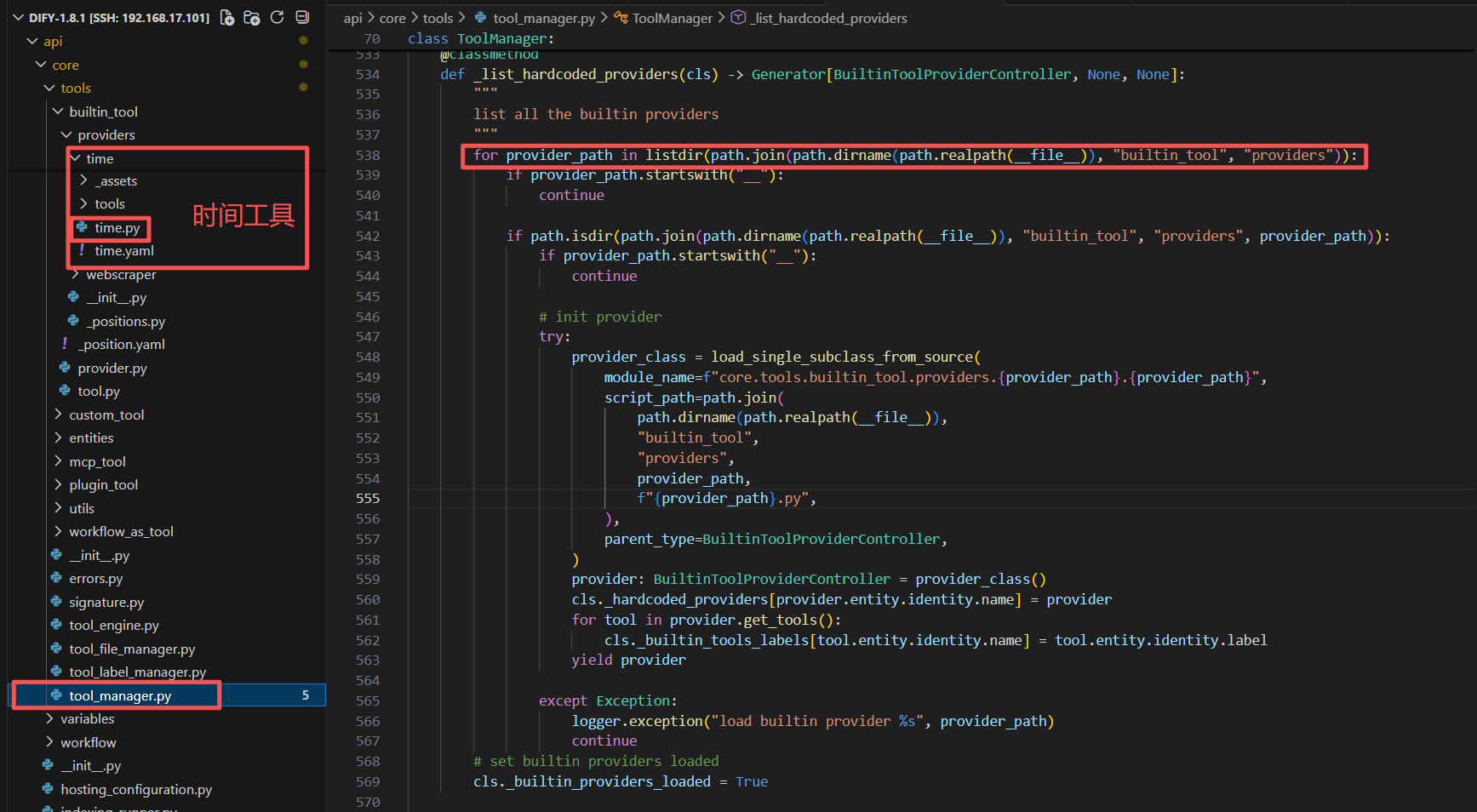

ToolManager 管理不同的 *ProviderController

1.3.2. *ProviderController

core/tools/__base/tool_provider.py
core/tools/builtin_tool/provider.py
core/tools/custom_tool/provider.py
core/tools/workflow_as_tool/provider.py
core/tools/plugin_tool/provider.py
core/tools/mcp_tool/provider.py
*ProviderController 管理不同的提供者

内置工具 provider
core/tools/builtin_tool/providers/audio/audio.py
core/tools/builtin_tool/providers/code/code.py
core/tools/builtin_tool/providers/time/time.py
core/tools/builtin_tool/providers/webscraper/webscraper.py

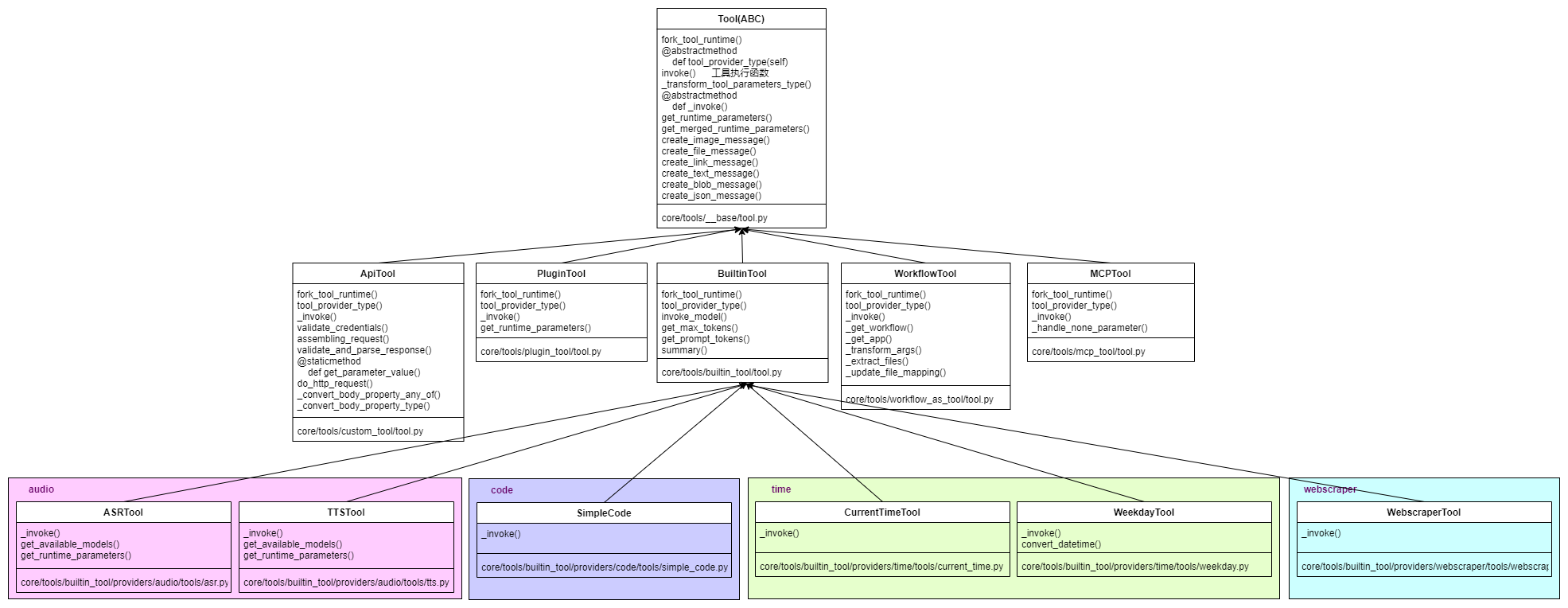

1.3.3. *Tool

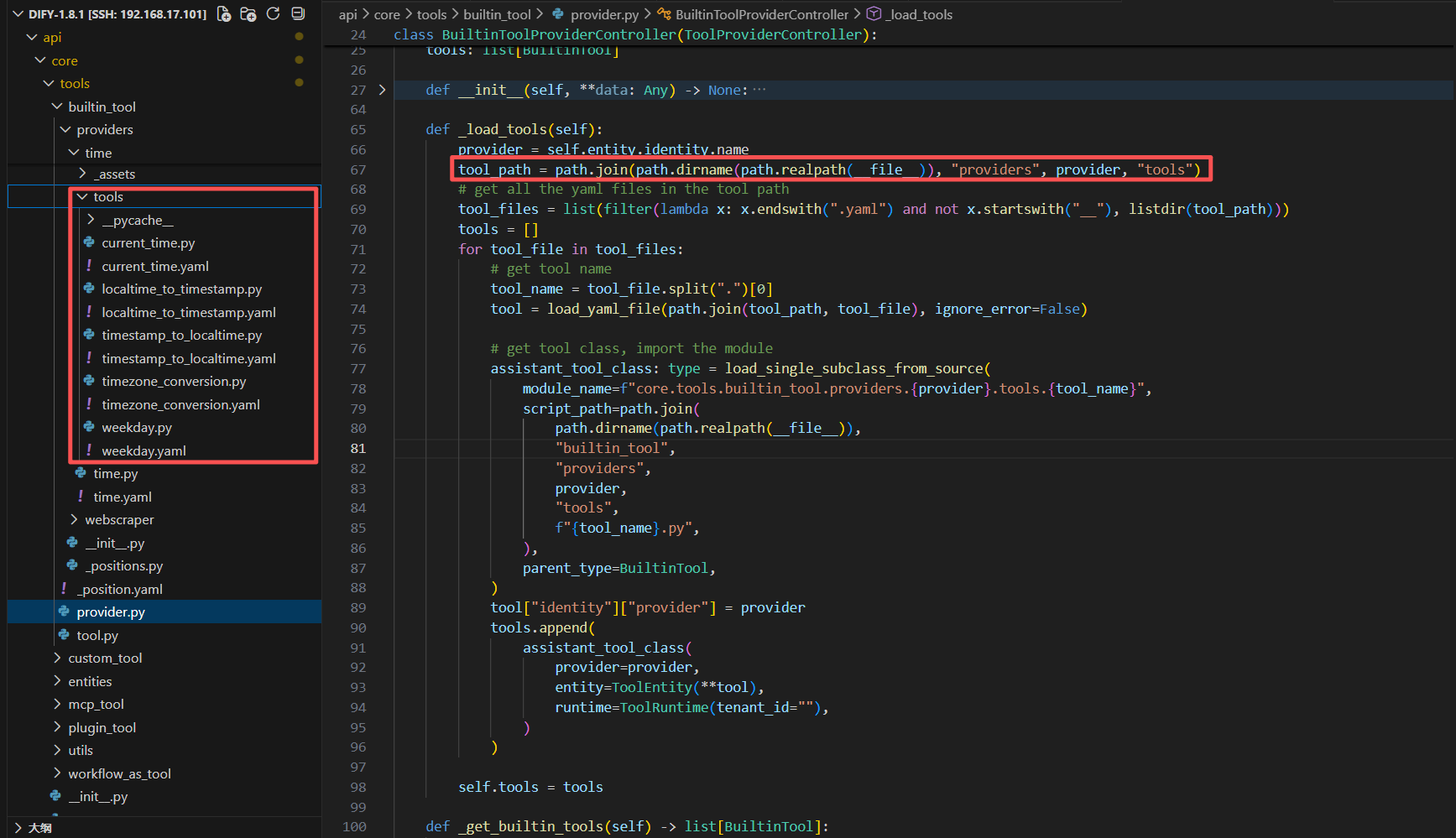

BuiltinToolProviderController 加载诸工具

2. BaseAgentRunner 调用流程

class CotAgentRunner(BaseAgentRunner, ABC):
    _is_first_iteration = True
    _ignore_observation_providers = ["wenxin"]
    _historic_prompt_messages: list[PromptMessage]
    _agent_scratchpad: list[AgentScratchpadUnit]
    _instruction: str
    _query: str
    _prompt_messages_tools: Sequence[PromptMessageTool]

    def run(
        self,
        message: Message,
        query: str,
        inputs: Mapping[str, str],
    ) -> Generator:
        """
        Run Cot agent application
        """

        app_generate_entity = self.application_generate_entity
        self._repack_app_generate_entity(app_generate_entity)
        self._init_react_state(query)

        trace_manager = app_generate_entity.trace_manager

        # check model mode
        if "Observation" not in app_generate_entity.model_conf.stop:
            if app_generate_entity.model_conf.provider not in self._ignore_observation_providers:
                app_generate_entity.model_conf.stop.append("Observation")

        app_config = self.app_config
        assert app_config.agent

        # init instruction
        inputs = inputs or {}
        instruction = app_config.prompt_template.simple_prompt_template or ""
        self._instruction = self._fill_in_inputs_from_external_data_tools(instruction, inputs)

        iteration_step = 1
        max_iteration_steps = min(app_config.agent.max_iteration, 99) + 1

        # convert tools into ModelRuntime Tool format
        # 初始化工具集
        # _init_prompt_tools 方法整合所有可用工具（应用配置的工具 + 数据集工具），
        # 生成 tool_instances（工具实例，用于实际调用）和 prompt_messages_tools（模型可识别的工具列表）。
        tool_instances, prompt_messages_tools = self._init_prompt_tools()
        self._prompt_messages_tools = prompt_messages_tools

        function_call_state = True
        llm_usage: dict[str, Optional[LLMUsage]] = {"usage": None}
        final_answer = ""

        def increase_usage(final_llm_usage_dict: dict[str, Optional[LLMUsage]], usage: LLMUsage):
            ......

        model_instance = self.model_instance

        while function_call_state and iteration_step <= max_iteration_steps:
            # continue to run until there is not any tool call
            function_call_state = False

            if iteration_step == max_iteration_steps:
                # the last iteration, remove all tools
                self._prompt_messages_tools = []

            message_file_ids: list[str] = []

            # 1. 创建本轮思考记录（数据库中保存）
            agent_thought_id = self.create_agent_thought(
                message_id=message.id, message="", tool_name="", tool_input="", messages_ids=message_file_ids
            )

            if iteration_step > 1:
                self.queue_manager.publish(
                    QueueAgentThoughtEvent(agent_thought_id=agent_thought_id), PublishFrom.APPLICATION_MANAGER
                )

            # recalc llm max tokens
            # 2. 调用LLM生成思考或工具调用指令
            prompt_messages = self._organize_prompt_messages()
            self.recalc_llm_max_tokens(self.model_config, prompt_messages)
            # invoke model
            # 模型输出
            chunks = model_instance.invoke_llm(
                prompt_messages=prompt_messages,
                model_parameters=app_generate_entity.model_conf.parameters,
                tools=[],
                stop=app_generate_entity.model_conf.stop,
                stream=True,
                user=self.user_id,
                callbacks=[],
            )

            usage_dict: dict[str, Optional[LLMUsage]] = {}
            # 3. 解析LLM输出，提取思考和工具调用指令
            # 记录本轮思考的细节（思考内容、行动指令等）
            react_chunks = CotAgentOutputParser.handle_react_stream_output(chunks, usage_dict)
            scratchpad = AgentScratchpadUnit(
                agent_response="",
                thought="",
                action_str="",
                observation="",
                action=None,
            )

            # publish agent thought if it's first iteration
            if iteration_step == 1:
                self.queue_manager.publish(
                    QueueAgentThoughtEvent(agent_thought_id=agent_thought_id), PublishFrom.APPLICATION_MANAGER
                )

            for chunk in react_chunks:
                if isinstance(chunk, AgentScratchpadUnit.Action): # 若输出是工具调用指令
                    action = chunk
                    # detect action
                    assert scratchpad.agent_response is not None
                    scratchpad.agent_response += json.dumps(chunk.model_dump())
                    scratchpad.action_str = json.dumps(chunk.model_dump())
                    scratchpad.action = action
                else: # 若输出是自然语言思考
                    assert scratchpad.agent_response is not None
                    scratchpad.agent_response += chunk
                    assert scratchpad.thought is not None
                    scratchpad.thought += chunk
                    yield LLMResultChunk(
                        model=self.model_config.model,
                        prompt_messages=prompt_messages,
                        system_fingerprint="",
                        delta=LLMResultChunkDelta(index=0, message=AssistantPromptMessage(content=chunk), usage=None),
                    )

            assert scratchpad.thought is not None
            scratchpad.thought = scratchpad.thought.strip() or "I am thinking about how to help you"
            self._agent_scratchpad.append(scratchpad)

            # get llm usage
            ......

            self.save_agent_thought(......)

            # 4. 判断是否需要调用工具
            if not scratchpad.is_final():
                self.queue_manager.publish(
                    QueueAgentThoughtEvent(agent_thought_id=agent_thought_id), PublishFrom.APPLICATION_MANAGER
                )

            if not scratchpad.action:
                # failed to extract action, return final answer directly
                final_answer = ""
            else:
                # 若代理决定输出最终答案
                if scratchpad.action.action_name.lower() == "final answer":
                    # action is final answer, return final answer directly
                    try:
                        if isinstance(scratchpad.action.action_input, dict):
                            final_answer = json.dumps(scratchpad.action.action_input, ensure_ascii=False)
                        elif isinstance(scratchpad.action.action_input, str):
                            final_answer = scratchpad.action.action_input
                        else:
                            final_answer = f"{scratchpad.action.action_input}"
                    except TypeError:
                        final_answer = f"{scratchpad.action.action_input}"
                # 若代理决定调用工具
                else:
                    # 继续下一轮迭代
                    function_call_state = True
                    # action is tool call, invoke tool
                    # 调用工具并获取结果
                    tool_invoke_response, tool_invoke_meta = self._handle_invoke_action(
                        action=scratchpad.action,
                        tool_instances=tool_instances,
                        message_file_ids=message_file_ids,
                        trace_manager=trace_manager,
                    )
                    # 记录工具返回结果
                    scratchpad.observation = tool_invoke_response
                    scratchpad.agent_response = tool_invoke_response

                    # 使用了 message_file_ids，这个参数是工具返回的
                    self.save_agent_thought(
                        agent_thought_id=agent_thought_id,
                        tool_name=scratchpad.action.action_name,
                        tool_input={scratchpad.action.action_name: scratchpad.action.action_input},
                        thought=scratchpad.thought or "",
                        observation={scratchpad.action.action_name: tool_invoke_response},
                        tool_invoke_meta={scratchpad.action.action_name: tool_invoke_meta.to_dict()},
                        answer=scratchpad.agent_response,
                        messages_ids=message_file_ids,
                        llm_usage=usage_dict["usage"],
                    )

                    self.queue_manager.publish(
                        QueueAgentThoughtEvent(agent_thought_id=agent_thought_id), PublishFrom.APPLICATION_MANAGER
                    )

                # update prompt tool message
                for prompt_tool in self._prompt_messages_tools:
                    self.update_prompt_message_tool(tool_instances[prompt_tool.name], prompt_tool)

            iteration_step += 1

        yield LLMResultChunk(
            model=model_instance.model,
            prompt_messages=prompt_messages,
            delta=LLMResultChunkDelta(
                index=0, message=AssistantPromptMessage(content=final_answer), usage=llm_usage["usage"]
            ),
            system_fingerprint="",
        )

        # save agent thought
        self.save_agent_thought(......)
        # publish end event
        self.queue_manager.publish(
            QueueMessageEndEvent(
                llm_result=LLMResult(
                    model=model_instance.model,
                    prompt_messages=prompt_messages,
                    message=AssistantPromptMessage(content=final_answer),
                    usage=llm_usage["usage"] or LLMUsage.empty_usage(),
                    system_fingerprint="",
                )
            ),
            PublishFrom.APPLICATION_MANAGER,
        )

2.1. _init_prompt_tools（初始化并转换工具信息）

class BaseAgentRunner(AppRunner):
    ......
    def _init_prompt_tools(self) -> tuple[dict[str, Tool], list[PromptMessageTool]]:
        """
        Init tools
        """
        tool_instances = {}
        prompt_messages_tools = []

        # 将所有工具转换成 提示消息工具
        for tool in self.app_config.agent.tools or [] if self.app_config.agent else []:
            try:
                prompt_tool, tool_entity = self._convert_tool_to_prompt_message_tool(tool)
            except Exception:
                # api tool may be deleted
                continue
            # save tool entity
            tool_instances[tool.tool_name] = tool_entity
            # save prompt tool
            prompt_messages_tools.append(prompt_tool)

        # convert dataset tools into ModelRuntime Tool format
        # 数据集工具
        for dataset_tool in self.dataset_tools:
            prompt_tool = self._convert_dataset_retriever_tool_to_prompt_message_tool(dataset_tool)
            # save prompt tool
            prompt_messages_tools.append(prompt_tool)
            # save tool entity
            tool_instances[dataset_tool.entity.identity.name] = dataset_tool

        return tool_instances, prompt_messages_tools
    ......

2.1.1. _convert_tool_to_prompt_message_tool

get_agent_tool_runtime 智能体工具加载
并合并工具参数

class BaseAgentRunner(AppRunner):
    ......
    def _convert_tool_to_prompt_message_tool(self, tool: AgentToolEntity) -> tuple[PromptMessageTool, Tool]:
        """
        convert tool to prompt message tool
        """
        # 转换工具 为 提示词信息工具
        # 此处是智能体工具调用的核心函数
        tool_entity = ToolManager.get_agent_tool_runtime(
            tenant_id=self.tenant_id,
            app_id=self.app_config.app_id,
            agent_tool=tool,
            invoke_from=self.application_generate_entity.invoke_from,
        )
        assert tool_entity.entity.description
        message_tool = PromptMessageTool(
            name=tool.tool_name,
            description=tool_entity.entity.description.llm,
            parameters={
                "type": "object",
                "properties": {},
                "required": [],
            },
        )

        # 合并工具参数
        parameters = tool_entity.get_merged_runtime_parameters()
        for parameter in parameters:
            if parameter.form != ToolParameter.ToolParameterForm.LLM:
                continue

            parameter_type = parameter.type.as_normal_type()
            if parameter.type in {
                ToolParameter.ToolParameterType.SYSTEM_FILES,
                ToolParameter.ToolParameterType.FILE,
                ToolParameter.ToolParameterType.FILES,
            }:
                continue
            enum = []
            if parameter.type == ToolParameter.ToolParameterType.SELECT:
                enum = [option.value for option in parameter.options] if parameter.options else []

            message_tool.parameters["properties"][parameter.name] = (
                {
                    "type": parameter_type,
                    "description": parameter.llm_description or "",
                }
                if parameter.input_schema is None
                else parameter.input_schema
            )

            if len(enum) > 0:
                message_tool.parameters["properties"][parameter.name]["enum"] = enum

            if parameter.required:
                message_tool.parameters["required"].append(parameter.name)

        # 返回 两个数据
        return message_tool, tool_entity
    ......

• PromptMessageTool 实际为 json

    def _convert_tool_to_prompt_message_tool(self, tool: AgentToolEntity) -> tuple[PromptMessageTool, Tool]:
        ......
        message_tool = PromptMessageTool(
            name=tool.tool_name,
            description=tool_entity.entity.description.llm,
            parameters={
                "type": "object",
                "properties": {},
                "required": [],
            },
        )

# 工具名称（name）、描述（description）—— 告诉模型 “这个工具能做什么”；
# 参数定义（parameters）—— 告诉模型 “调用时需要传哪些参数”（如查询的时间范围 start_date、end_date）。
# name="dataset_search",
# description="查询指定时间范围的产品销量数据",
# parameters={
#    "properties": {
#        "start_date": {
#            "type": "string",
#            "description": "开始日期，格式YYYY-MM-DD"
#        },
#        "end_date": {
#            "type": "string",
#            "description": "结束日期，格式YYYY-MM-DD"
#        }
#    },
#    "required": [
#        "start_date",
#        "end_date"
#    ]
# }

2.1.1.1. get_agent_tool_runtime（智能体工具逻辑）

core/tools/tool_manager.py

class ToolManager:
    ......
    # 智能体工具
    @classmethod
    def get_agent_tool_runtime(
        cls,
        tenant_id: str,
        app_id: str,
        agent_tool: AgentToolEntity, # 工作流该参数不同
        invoke_from: InvokeFrom = InvokeFrom.DEBUGGER,
        variable_pool: Optional[VariablePool] = None,
    ) -> Tool:
        """
        get the agent tool runtime
        """
        # 获取代理工具运行时
        tool_entity = cls.get_tool_runtime(
            provider_type=agent_tool.provider_type,
            provider_id=agent_tool.provider_id,
            tool_name=agent_tool.tool_name,
            tenant_id=tenant_id,
            invoke_from=invoke_from,
            tool_invoke_from=ToolInvokeFrom.AGENT,
            credential_id=agent_tool.credential_id,
        )
        runtime_parameters = {}
        #
        parameters = tool_entity.get_merged_runtime_parameters()
        #
        runtime_parameters = cls._convert_tool_parameters_type(
            parameters, variable_pool, agent_tool.tool_parameters, typ="agent"
        )
        # decrypt runtime parameters
        encryption_manager = ToolParameterConfigurationManager(
            tenant_id=tenant_id,
            tool_runtime=tool_entity,
            provider_name=agent_tool.provider_id,
            provider_type=agent_tool.provider_type,
            identity_id=f"AGENT.{app_id}",
        )
        runtime_parameters = encryption_manager.decrypt_tool_parameters(runtime_parameters)
        # 工作流没有判断
        if tool_entity.runtime is None or tool_entity.runtime.runtime_parameters is None:
            raise ValueError("runtime not found or runtime parameters not found")

        tool_entity.runtime.runtime_parameters.update(runtime_parameters)
        return tool_entity

    # 工作流工具
    @classmethod
    def get_workflow_tool_runtime(......)
    ......

2.1.1.2. get_tool_runtime（工具加载，区分类型）

• 内置工具
• 接口工具
• 工作流
• APP （直接抛出异常了）
• 插件
• MCP

  core/tools/tool_manager.py

class ToolManager:
    ......
    @classmethod
    def get_tool_runtime(
        cls,
        provider_type: ToolProviderType,
        provider_id: str,
        tool_name: str,
        tenant_id: str,
        invoke_from: InvokeFrom = InvokeFrom.DEBUGGER,
        tool_invoke_from: ToolInvokeFrom = ToolInvokeFrom.AGENT,
        credential_id: Optional[str] = None,
    ) -> Union[BuiltinTool, PluginTool, ApiTool, WorkflowTool, MCPTool]:
        """
        get the tool runtime

        :param provider_type: the type of the provider
        :param provider_id: the id of the provider
        :param tool_name: the name of the tool
        :param tenant_id: the tenant id
        :param invoke_from: invoke from
        :param tool_invoke_from: the tool invoke from
        :param credential_id: the credential id

        :return: the tool
        """
        # 内置工具
        if provider_type == ToolProviderType.BUILT_IN:
            # check if the builtin tool need credentials
            # 检查内置工具是否需要凭据（根据工具id 和 用户id）
            provider_controller = cls.get_builtin_provider(provider_id, tenant_id)

            # 根据工具名返回工具
            builtin_tool = provider_controller.get_tool(tool_name)
            if not builtin_tool:
                raise ToolProviderNotFoundError(f"builtin tool {tool_name} not found")

            # 不需要验证 直接返回
            if not provider_controller.need_credentials:
                return cast(
                    BuiltinTool,
                    builtin_tool.fork_tool_runtime(
                        runtime=ToolRuntime(
                            tenant_id=tenant_id,
                            credentials={},
                            invoke_from=invoke_from,
                            tool_invoke_from=tool_invoke_from,
                        )
                    ),
                )

            # 验证工具
            builtin_provider = None
            if isinstance(provider_controller, PluginToolProviderController):
                provider_id_entity = ToolProviderID(provider_id)
                # get specific credentials
                if is_valid_uuid(credential_id):
                    try:
                        builtin_provider_stmt = select(BuiltinToolProvider).where(
                            BuiltinToolProvider.tenant_id == tenant_id,
                            BuiltinToolProvider.id == credential_id,
                        )
                        builtin_provider = db.session.scalar(builtin_provider_stmt)
                    except Exception as e:
                        builtin_provider = None
                        logger.info("Error getting builtin provider %s:%s", credential_id, e, exc_info=True)
                    # if the provider has been deleted, raise an error
                    if builtin_provider is None:
                        raise ToolProviderNotFoundError(f"provider has been deleted: {credential_id}")

                # fallback to the default provider
                # 回退到默认提供程序
                if builtin_provider is None:
                    # use the default provider
                    builtin_provider = (
                        db.session.query(BuiltinToolProvider)
                        .where(
                            BuiltinToolProvider.tenant_id == tenant_id,
                            (BuiltinToolProvider.provider == str(provider_id_entity))
                            | (BuiltinToolProvider.provider == provider_id_entity.provider_name),
                        )
                        .order_by(BuiltinToolProvider.is_default.desc(), BuiltinToolProvider.created_at.asc())
                        .first()
                    )
                    if builtin_provider is None:
                        raise ToolProviderNotFoundError(f"no default provider for {provider_id}")
            else:
                builtin_provider = (
                    db.session.query(BuiltinToolProvider)
                    .where(BuiltinToolProvider.tenant_id == tenant_id, (BuiltinToolProvider.provider == provider_id))
                    .order_by(BuiltinToolProvider.is_default.desc(), BuiltinToolProvider.created_at.asc())
                    .first()
                )

                if builtin_provider is None:
                    raise ToolProviderNotFoundError(f"builtin provider {provider_id} not found")

            encrypter, cache = create_provider_encrypter(
                tenant_id=tenant_id,
                config=[
                    x.to_basic_provider_config()
                    for x in provider_controller.get_credentials_schema_by_type(builtin_provider.credential_type)
                ],
                cache=ToolProviderCredentialsCache(
                    tenant_id=tenant_id, provider=provider_id, credential_id=builtin_provider.id
                ),
            )

            # decrypt the credentials
            decrypted_credentials: Mapping[str, Any] = encrypter.decrypt(builtin_provider.credentials)

            # check if the credentials is expired
            # 检查凭据是否已过期
            if builtin_provider.expires_at != -1 and (builtin_provider.expires_at - 60) < int(time.time()):
                # TODO: circular import
                from services.tools.builtin_tools_manage_service import BuiltinToolManageService

                # refresh the credentials
                # 刷新凭据
                tool_provider = ToolProviderID(provider_id)
                provider_name = tool_provider.provider_name
                redirect_uri = f"{dify_config.CONSOLE_API_URL}/console/api/oauth/plugin/{provider_id}/tool/callback"
                system_credentials = BuiltinToolManageService.get_oauth_client(tenant_id, provider_id)
                oauth_handler = OAuthHandler()
                # refresh the credentials
                # 刷新凭据
                refreshed_credentials = oauth_handler.refresh_credentials(
                    tenant_id=tenant_id,
                    user_id=builtin_provider.user_id,
                    plugin_id=tool_provider.plugin_id,
                    provider=provider_name,
                    redirect_uri=redirect_uri,
                    system_credentials=system_credentials or {},
                    credentials=decrypted_credentials,
                )
                # update the credentials
                # 更新凭据
                builtin_provider.encrypted_credentials = (
                    TypeAdapter(dict[str, Any])
                    .dump_json(encrypter.encrypt(dict(refreshed_credentials.credentials)))
                    .decode("utf-8")
                )
                builtin_provider.expires_at = refreshed_credentials.expires_at
                db.session.commit()
                decrypted_credentials = refreshed_credentials.credentials
                cache.delete()

            # 返回工具信息
            return cast(
                BuiltinTool,
                builtin_tool.fork_tool_runtime(
                    runtime=ToolRuntime(
                        tenant_id=tenant_id,
                        credentials=dict(decrypted_credentials),
                        credential_type=CredentialType.of(builtin_provider.credential_type),
                        runtime_parameters={},
                        invoke_from=invoke_from,
                        tool_invoke_from=tool_invoke_from,
                    )
                ),
            )
        # 接口工具
        elif provider_type == ToolProviderType.API:
            api_provider, credentials = cls.get_api_provider_controller(tenant_id, provider_id)
            encrypter, _ = create_tool_provider_encrypter(
                tenant_id=tenant_id,
                controller=api_provider,
            )
            return api_provider.get_tool(tool_name).fork_tool_runtime(
                runtime=ToolRuntime(
                    tenant_id=tenant_id,
                    credentials=encrypter.decrypt(credentials),
                    invoke_from=invoke_from,
                    tool_invoke_from=tool_invoke_from,
                )
            )
        # 工作流
        elif provider_type == ToolProviderType.WORKFLOW:
            workflow_provider_stmt = select(WorkflowToolProvider).where(
                WorkflowToolProvider.tenant_id == tenant_id, WorkflowToolProvider.id == provider_id
            )
            workflow_provider = db.session.scalar(workflow_provider_stmt)

            if workflow_provider is None:
                raise ToolProviderNotFoundError(f"workflow provider {provider_id} not found")

            controller = ToolTransformService.workflow_provider_to_controller(db_provider=workflow_provider)
            controller_tools: list[WorkflowTool] = controller.get_tools(tenant_id=workflow_provider.tenant_id)
            if controller_tools is None or len(controller_tools) == 0:
                raise ToolProviderNotFoundError(f"workflow provider {provider_id} not found")

            return controller.get_tools(tenant_id=workflow_provider.tenant_id)[0].fork_tool_runtime(
                runtime=ToolRuntime(
                    tenant_id=tenant_id,
                    credentials={},
                    invoke_from=invoke_from,
                    tool_invoke_from=tool_invoke_from,
                )
            )
        #
        elif provider_type == ToolProviderType.APP:
            raise NotImplementedError("app provider not implemented")
        # 插件工具
        elif provider_type == ToolProviderType.PLUGIN:
            return cls.get_plugin_provider(provider_id, tenant_id).get_tool(tool_name)
        # MCP 工具
        elif provider_type == ToolProviderType.MCP:
            return cls.get_mcp_provider_controller(tenant_id, provider_id).get_tool(tool_name)
        else:
            raise ToolProviderNotFoundError(f"provider type {provider_type.value} not found")
    ......

2.1.1.3. get_merged_runtime_parameters（尚未分析）

后续分析

2.1.2. _convert_dataset_retriever_tool_to_prompt_message_tool

后续分析

2.2. handle_react_stream_output（模型返回分析）

…

2.3. _handle_invoke_action（调用工具）

class CotAgentRunner(BaseAgentRunner, ABC):
    _is_first_iteration = True
    _ignore_observation_providers = ["wenxin"]
    _historic_prompt_messages: list[PromptMessage]
    _agent_scratchpad: list[AgentScratchpadUnit]
    _instruction: str
    _query: str
    _prompt_messages_tools: Sequence[PromptMessageTool]

    def run(......) -> Generator:
        """
        Run Cot agent application
        """
        ......

    def _handle_invoke_action(
        self,
        action: AgentScratchpadUnit.Action,
        tool_instances: Mapping[str, Tool],
        message_file_ids: list[str],
        trace_manager: Optional[TraceQueueManager] = None,
    ) -> tuple[str, ToolInvokeMeta]:
        """
        handle invoke action
        :param action: action
        :param tool_instances: tool instances
        :param message_file_ids: message file ids
        :param trace_manager: trace manager
        :return: observation, meta
        """
        # action is tool call, invoke tool
        # 获取工具实例
        tool_call_name = action.action_name
        tool_call_args = action.action_input
        tool_instance = tool_instances.get(tool_call_name)

        if not tool_instance:
            answer = f"there is not a tool named {tool_call_name}"
            return answer, ToolInvokeMeta.error_instance(answer)

        # 解析工具参数（如将JSON字符串转为字典）
        if isinstance(tool_call_args, str):
            try:
                tool_call_args = json.loads(tool_call_args)
            except json.JSONDecodeError:
                pass

        # invoke tool
        # 调用工具
        tool_invoke_response, message_files, tool_invoke_meta = ToolEngine.agent_invoke(
            tool=tool_instance,
            tool_parameters=tool_call_args,
            user_id=self.user_id,
            tenant_id=self.tenant_id,
            message=self.message,
            invoke_from=self.application_generate_entity.invoke_from,
            agent_tool_callback=self.agent_callback,
            trace_manager=trace_manager,
        )

        # publish files
        # 发布工具返回的文件（如图表）
        for message_file_id in message_files:
            # publish message file
            self.queue_manager.publish(
                QueueMessageFileEvent(message_file_id=message_file_id), PublishFrom.APPLICATION_MANAGER
            )
            # add message file ids
            message_file_ids.append(message_file_id)

        return tool_invoke_response, tool_invoke_meta

2.3.1. ToolEngine.agent_invoke（工具执行）

/api/core/tools/tool_engine.py

class ToolEngine:
    """
    Tool runtime engine take care of the tool executions.
    """

    @staticmethod
    def agent_invoke(
        tool: Tool,
        tool_parameters: Union[str, dict],
        user_id: str,
        tenant_id: str,
        message: Message,
        invoke_from: InvokeFrom,
        agent_tool_callback: DifyAgentCallbackHandler,
        trace_manager: Optional[TraceQueueManager] = None,
        conversation_id: Optional[str] = None,
        app_id: Optional[str] = None,
        message_id: Optional[str] = None,
    ) -> tuple[str, list[str], ToolInvokeMeta]:
        """
        Agent invokes the tool with the given arguments.
        """
        # check if arguments is a string
        # 检查参数
        if isinstance(tool_parameters, str):
            # check if this tool has only one parameter
            parameters = [
                parameter
                for parameter in tool.get_runtime_parameters()
                if parameter.form == ToolParameter.ToolParameterForm.LLM
            ]
            if parameters and len(parameters) == 1:
                tool_parameters = {parameters[0].name: tool_parameters}
            else:
                with contextlib.suppress(Exception):
                    tool_parameters = json.loads(tool_parameters)
                if not isinstance(tool_parameters, dict):
                    raise ValueError(f"tool_parameters should be a dict, but got a string: {tool_parameters}")

        try:
            # hit the callback handler
            # 点击回调处理程序（开始）
            agent_tool_callback.on_tool_start(tool_name=tool.entity.identity.name, tool_inputs=tool_parameters)

            # 工具执行
            messages = ToolEngine._invoke(tool, tool_parameters, user_id, conversation_id, app_id, message_id)
            invocation_meta_dict: dict[str, ToolInvokeMeta] = {}

            #
            def message_callback(
                invocation_meta_dict: dict, messages: Generator[ToolInvokeMessage | ToolInvokeMeta, None, None]
            ):
                for message in messages:
                    if isinstance(message, ToolInvokeMeta):
                        invocation_meta_dict["meta"] = message
                    else:
                        yield message

            # 解析工具返回数据
            messages = ToolFileMessageTransformer.transform_tool_invoke_messages(
                messages=message_callback(invocation_meta_dict, messages),
                user_id=user_id,
                tenant_id=tenant_id,
                conversation_id=message.conversation_id,
            )

            message_list = list(messages)

            # extract binary data from tool invoke message
            # 从工具调用消息中提取二进制数据
            binary_files = ToolEngine._extract_tool_response_binary_and_text(message_list)
            # create message file
            # 创建文件
            message_files = ToolEngine._create_message_files(
                tool_messages=binary_files, agent_message=message, invoke_from=invoke_from, user_id=user_id
            )

            #
            plain_text = ToolEngine._convert_tool_response_to_str(message_list)

            meta = invocation_meta_dict["meta"]

            # hit the callback handler
            # 点击回调处理程序（结束）
            agent_tool_callback.on_tool_end(
                tool_name=tool.entity.identity.name,
                tool_inputs=tool_parameters,
                tool_outputs=plain_text,
                message_id=message.id,
                trace_manager=trace_manager,
            )

            # transform tool invoke message to get LLM friendly message
            # 把工具调用消息 转换成 对LLM友好的消息，返回
            return plain_text, message_files, meta
        except ToolProviderCredentialValidationError as e:
            ......
        except Exception as e:
            error_response = f"unknown error: {e}"
            agent_tool_callback.on_tool_error(e)

        return error_response, [], ToolInvokeMeta.error_instance(error_response)

    @staticmethod
    def _invoke(
        tool: Tool,
        tool_parameters: dict,
        user_id: str,
        conversation_id: Optional[str] = None,
        app_id: Optional[str] = None,
        message_id: Optional[str] = None,
    ) -> Generator[ToolInvokeMessage | ToolInvokeMeta, None, None]:
        """
        Invoke the tool with the given arguments.
        """
        started_at = datetime.now(UTC)
        meta = ToolInvokeMeta(
            time_cost=0.0,
            error=None,
            tool_config={
                "tool_name": tool.entity.identity.name,
                "tool_provider": tool.entity.identity.provider,
                "tool_provider_type": tool.tool_provider_type().value,
                "tool_parameters": deepcopy(tool.runtime.runtime_parameters),
                "tool_icon": tool.entity.identity.icon,
            },
        )
        try:
            # 工具基类的核心函数
            yield from tool.invoke(user_id, tool_parameters, conversation_id, app_id, message_id)
        except Exception as e:
            meta.error = str(e)
            raise ToolEngineInvokeError(meta)
        finally:
            ended_at = datetime.now(UTC)
            meta.time_cost = (ended_at - started_at).total_seconds()
            yield meta

2.3.1.1. on_tool_start

2.3.1.2. tool.invoke（调用子类的重载函数）

class Tool(ABC):
    """
    The base class of a tool
    """
    ......
    def invoke(
        self,
        user_id: str,
        tool_parameters: dict[str, Any],
        conversation_id: Optional[str] = None,
        app_id: Optional[str] = None,
        message_id: Optional[str] = None,
    ) -> Generator[ToolInvokeMessage]:
        if self.runtime and self.runtime.runtime_parameters:
            tool_parameters.update(self.runtime.runtime_parameters)

        # try parse tool parameters into the correct type
        tool_parameters = self._transform_tool_parameters_type(tool_parameters)

        # 调用子类的重载函数
        result = self._invoke(
            user_id=user_id,
            tool_parameters=tool_parameters,
            conversation_id=conversation_id,
            app_id=app_id,
            message_id=message_id,
        )

        if isinstance(result, ToolInvokeMessage):

            def single_generator() -> Generator[ToolInvokeMessage, None, None]:
                yield result

            return single_generator()
        elif isinstance(result, list):

            def generator() -> Generator[ToolInvokeMessage, None, None]:
                yield from result

            return generator()
        else:
            return result

2.3.1.3. transform_tool_invoke_messages

解析工具返回的数据
文件、图片还支持下载。
此处先默认解析为json数据。

2.3.1.4. ToolEngine._extract_tool_response_binary_and_text

从工具调用消息中提取二进制数据

2.3.1.5. ToolEngine._create_message_files

创建文件

2.3.1.6. ToolEngine._convert_tool_response_to_str

    @staticmethod
    def _convert_tool_response_to_str(tool_response: list[ToolInvokeMessage]) -> str:
        """
        Handle tool response
        """
        result = ""
        for response in tool_response:
            if response.type == ToolInvokeMessage.MessageType.TEXT:
                result += cast(ToolInvokeMessage.TextMessage, response.message).text
            elif response.type == ToolInvokeMessage.MessageType.LINK:
                result += (
                    f"result link: {cast(ToolInvokeMessage.TextMessage, response.message).text}."
                    + " please tell user to check it."
                )
            elif response.type in {ToolInvokeMessage.MessageType.IMAGE_LINK, ToolInvokeMessage.MessageType.IMAGE}:
                result += (
                    "image has been created and sent to user already, "
                    + "you do not need to create it, just tell the user to check it now."
                )
            elif response.type == ToolInvokeMessage.MessageType.JSON:
                result += json.dumps(
                    safe_json_value(cast(ToolInvokeMessage.JsonMessage, response.message).json_object),
                    ensure_ascii=False,
                )
            else:
                result += str(response.message)

        return result

2.3.1.7. on_tool_start

2.3.1.8. on_tool_error

3. 工具初始化

3.1. 内置工具（初始化）

class ToolManager:
    ......
    @classmethod
    def get_tool_runtime(
        cls,
        provider_type: ToolProviderType,
        provider_id: str,
        tool_name: str,
        tenant_id: str,
        invoke_from: InvokeFrom = InvokeFrom.DEBUGGER,
        tool_invoke_from: ToolInvokeFrom = ToolInvokeFrom.AGENT,
        credential_id: Optional[str] = None,
    ) -> Union[BuiltinTool, PluginTool, ApiTool, WorkflowTool, MCPTool]:
        """
        get the tool runtime

        :param provider_type: the type of the provider
        :param provider_id: the id of the provider
        :param tool_name: the name of the tool
        :param tenant_id: the tenant id
        :param invoke_from: invoke from
        :param tool_invoke_from: the tool invoke from
        :param credential_id: the credential id

        :return: the tool
        """
        # 内置工具
        if provider_type == ToolProviderType.BUILT_IN:
            # check if the builtin tool need credentials
            # 检查内置工具是否需要凭据（根据工具id 和 用户id）
            provider_controller = cls.get_builtin_provider(provider_id, tenant_id)

            # 根据工具名返回工具
            builtin_tool = provider_controller.get_tool(tool_name)
            if not builtin_tool:
                raise ToolProviderNotFoundError(f"builtin tool {tool_name} not found")

            # 不需要验证 直接返回
            if not provider_controller.need_credentials:
                return cast(
                    BuiltinTool,
                    builtin_tool.fork_tool_runtime(
                        runtime=ToolRuntime(
                            tenant_id=tenant_id,
                            credentials={},
                            invoke_from=invoke_from,
                            tool_invoke_from=tool_invoke_from,
                        )
                    ),
                )

            # 验证工具
            builtin_provider = None
            if isinstance(provider_controller, PluginToolProviderController):
                provider_id_entity = ToolProviderID(provider_id)
                # get specific credentials
                if is_valid_uuid(credential_id):
                    try:
                        builtin_provider_stmt = select(BuiltinToolProvider).where(
                            BuiltinToolProvider.tenant_id == tenant_id,
                            BuiltinToolProvider.id == credential_id,
                        )
                        builtin_provider = db.session.scalar(builtin_provider_stmt)
                    except Exception as e:
                        builtin_provider = None
                        logger.info("Error getting builtin provider %s:%s", credential_id, e, exc_info=True)
                    # if the provider has been deleted, raise an error
                    if builtin_provider is None:
                        raise ToolProviderNotFoundError(f"provider has been deleted: {credential_id}")

                # fallback to the default provider
                # 回退到默认提供程序
                if builtin_provider is None:
                    # use the default provider
                    builtin_provider = (
                        db.session.query(BuiltinToolProvider)
                        .where(
                            BuiltinToolProvider.tenant_id == tenant_id,
                            (BuiltinToolProvider.provider == str(provider_id_entity))
                            | (BuiltinToolProvider.provider == provider_id_entity.provider_name),
                        )
                        .order_by(BuiltinToolProvider.is_default.desc(), BuiltinToolProvider.created_at.asc())
                        .first()
                    )
                    if builtin_provider is None:
                        raise ToolProviderNotFoundError(f"no default provider for {provider_id}")
            else:
                builtin_provider = (
                    db.session.query(BuiltinToolProvider)
                    .where(BuiltinToolProvider.tenant_id == tenant_id, (BuiltinToolProvider.provider == provider_id))
                    .order_by(BuiltinToolProvider.is_default.desc(), BuiltinToolProvider.created_at.asc())
                    .first()
                )

                if builtin_provider is None:
                    raise ToolProviderNotFoundError(f"builtin provider {provider_id} not found")

            encrypter, cache = create_provider_encrypter(
                tenant_id=tenant_id,
                config=[
                    x.to_basic_provider_config()
                    for x in provider_controller.get_credentials_schema_by_type(builtin_provider.credential_type)
                ],
                cache=ToolProviderCredentialsCache(
                    tenant_id=tenant_id, provider=provider_id, credential_id=builtin_provider.id
                ),
            )

            # decrypt the credentials
            decrypted_credentials: Mapping[str, Any] = encrypter.decrypt(builtin_provider.credentials)

            # check if the credentials is expired
            # 检查凭据是否已过期
            if builtin_provider.expires_at != -1 and (builtin_provider.expires_at - 60) < int(time.time()):
                # TODO: circular import
                from services.tools.builtin_tools_manage_service import BuiltinToolManageService

                # refresh the credentials
                # 刷新凭据
                tool_provider = ToolProviderID(provider_id)
                provider_name = tool_provider.provider_name
                redirect_uri = f"{dify_config.CONSOLE_API_URL}/console/api/oauth/plugin/{provider_id}/tool/callback"
                system_credentials = BuiltinToolManageService.get_oauth_client(tenant_id, provider_id)
                oauth_handler = OAuthHandler()
                # refresh the credentials
                # 刷新凭据
                refreshed_credentials = oauth_handler.refresh_credentials(
                    tenant_id=tenant_id,
                    user_id=builtin_provider.user_id,
                    plugin_id=tool_provider.plugin_id,
                    provider=provider_name,
                    redirect_uri=redirect_uri,
                    system_credentials=system_credentials or {},
                    credentials=decrypted_credentials,
                )
                # update the credentials
                # 更新凭据
                builtin_provider.encrypted_credentials = (
                    TypeAdapter(dict[str, Any])
                    .dump_json(encrypter.encrypt(dict(refreshed_credentials.credentials)))
                    .decode("utf-8")
                )
                builtin_provider.expires_at = refreshed_credentials.expires_at
                db.session.commit()
                decrypted_credentials = refreshed_credentials.credentials
                cache.delete()

            # 返回工具信息
            return cast(
                BuiltinTool,
                builtin_tool.fork_tool_runtime(
                    runtime=ToolRuntime(
                        tenant_id=tenant_id,
                        credentials=dict(decrypted_credentials),
                        credential_type=CredentialType.of(builtin_provider.credential_type),
                        runtime_parameters={},
                        invoke_from=invoke_from,
                        tool_invoke_from=tool_invoke_from,
                    )
                ),
            )
        # 接口工具
        elif provider_type == ToolProviderType.API:
            ......
        # 工作流
        elif provider_type == ToolProviderType.WORKFLOW:
            ......
        # APP
        elif provider_type == ToolProviderType.APP:
            raise NotImplementedError("app provider not implemented")
        # 插件工具
        elif provider_type == ToolProviderType.PLUGIN:
            return cls.get_plugin_provider(provider_id, tenant_id).get_tool(tool_name)
        # MCP 工具
        elif provider_type == ToolProviderType.MCP:
            return cls.get_mcp_provider_controller(tenant_id, provider_id).get_tool(tool_name)
        else:
            raise ToolProviderNotFoundError(f"provider type {provider_type.value} not found")
    ......

3.1.1. get_builtin_provider (获取工具信息)

class ToolManager:
    _builtin_provider_lock = Lock()
    _hardcoded_providers: dict[str, BuiltinToolProviderController] = {}		# 存储信息
    _builtin_providers_loaded = False
    _builtin_tools_labels: dict[str, Union[I18nObject, None]] = {}
    ......
    # （根据工具id 和 用户id）获取工具信息
    @classmethod
    def get_builtin_provider(
        cls, provider: str, tenant_id: str
    ) -> BuiltinToolProviderController | PluginToolProviderController:
        """
        get the builtin provider

        :param provider: the name of the provider
        :param tenant_id: the id of the tenant
        :return: the provider
        """
        # split provider to
        # 首次判断 cls._hardcoded_providers 是否为空。如果为空则通过加载 py 文件加载工具
        if len(cls._hardcoded_providers) == 0:
            # init the builtin providers
            # 加载硬编码提供者缓存
            cls.load_hardcoded_providers_cache()

        # 如果provider 不在硬编码提供者列表中 则查找软编码？？
        # provider 此处为 provider_id
        if provider not in cls._hardcoded_providers:
            # get plugin provider
            plugin_provider = cls.get_plugin_provider(provider, tenant_id)
            if plugin_provider:
                return plugin_provider

        # 如果不存在则会异常吧？？
        return cls._hardcoded_providers[provider]
    ......

3.1.1.1. load_hardcoded_providers_cache（通过硬编码加载）

class ToolManager:
    _builtin_provider_lock = Lock()
    _hardcoded_providers: dict[str, BuiltinToolProviderController] = {}
    _builtin_providers_loaded = False
    _builtin_tools_labels: dict[str, Union[I18nObject, None]] = {}
    ......
    # 1. 加载硬编码缓存
    @classmethod
    def load_hardcoded_providers_cache(cls):
        for _ in cls.list_hardcoded_providers():
            pass

    # 2. 如果缓存存在则使用缓存，如果缓存不存在则使用py文件加载，并更新缓存
    @classmethod
    def list_hardcoded_providers(cls):
        # use cache first
        # 首先使用缓存 如果尚未加载
        if cls._builtin_providers_loaded:
            yield from list(cls._hardcoded_providers.values())
            return

        with cls._builtin_provider_lock:
            if cls._builtin_providers_loaded:
                yield from list(cls._hardcoded_providers.values())
                return
            # 通过文件路径加载
            yield from cls._list_hardcoded_providers()

    # 3. 通过本地py文件加载
    @classmethod
    def _list_hardcoded_providers(cls) -> Generator[BuiltinToolProviderController, None, None]:
        """
        list all the builtin providers
        """
        # 列举所有本地文件中的
        # api/core/tools/builtin_tool/providers
        for provider_path in listdir(path.join(path.dirname(path.realpath(__file__)), "builtin_tool", "providers")):
            # 跳过
            if provider_path.startswith("__"):
                continue

            # 判断是否是文件夹
            if path.isdir(path.join(path.dirname(path.realpath(__file__)), "builtin_tool", "providers", provider_path)):
                # 跳过
                if provider_path.startswith("__"):
                    continue

                # init provider
                try:
                    # 使用 importlib 加载py文件
                    # 在/api/core/helper/module_import_helper.py
                    provider_class = load_single_subclass_from_source(
                        module_name=f"core.tools.builtin_tool.providers.{provider_path}.{provider_path}",
                        script_path=path.join(
                            path.dirname(path.realpath(__file__)),
                            "builtin_tool",
                            "providers",
                            provider_path,
                            f"{provider_path}.py",
                        ),
                        parent_type=BuiltinToolProviderController,
                    )
                    # 内置工具基类
                    provider: BuiltinToolProviderController = provider_class()
                    cls._hardcoded_providers[provider.entity.identity.name] = provider
                    # 更新工具列表
                    for tool in provider.get_tools():
                        cls._builtin_tools_labels[tool.entity.identity.name] = tool.entity.identity.label
                    yield provider

                except Exception:
                    logger.exception("load builtin provider %s", provider_path)
                    continue
        # set builtin providers loaded
        # 修改加载标志
        cls._builtin_providers_loaded = True
    ......

3.1.1.1.1. load_single_subclass_from_source（从文件中加载）

从文件中加载，这个需要详细分析

3.1.1.1.2. BuiltinToolProviderController 基类

/api/core/tools/builtin_tool/provider.py

class BuiltinToolProviderController(ToolProviderController):
    tools: list[BuiltinTool]

    def __init__(self, **data: Any) -> None:
        self.tools = []

        # load provider yaml
        # 加载 yaml 文件
        provider = self.__class__.__module__.split(".")[-1]
        yaml_path = path.join(path.dirname(path.realpath(__file__)), "providers", provider, f"{provider}.yaml")
        try:
            provider_yaml = load_yaml_file(yaml_path, ignore_error=False)
        except Exception as e:
            raise ToolProviderNotFoundError(f"can not load provider yaml for {provider}: {e}")

        #### 以下 凭证 和 auth 基本都是空的。暂时忽略
        if "credentials_for_provider" in provider_yaml and provider_yaml["credentials_for_provider"] is not None:
            # set credentials name
            # 设置凭据名称
            for credential_name in provider_yaml["credentials_for_provider"]:
                provider_yaml["credentials_for_provider"][credential_name]["name"] = credential_name

        credentials_schema = []
        for credential in provider_yaml.get("credentials_for_provider", {}):
            credential_dict = provider_yaml.get("credentials_for_provider", {}).get(credential, {})
            credentials_schema.append(credential_dict)

        oauth_schema = None
        if provider_yaml.get("oauth_schema", None) is not None:
            oauth_schema = OAuthSchema(
                client_schema=provider_yaml.get("oauth_schema", {}).get("client_schema", []),
                credentials_schema=provider_yaml.get("oauth_schema", {}).get("credentials_schema", []),
            )
        #### 以上 凭证 和 auth 基本都是空的。暂时忽略

        super().__init__(
            entity=ToolProviderEntity(
                identity=provider_yaml["identity"],
                credentials_schema=credentials_schema, # 暂定为空
                oauth_schema=oauth_schema, # 暂定为空
            ),
        )

        self._load_tools()

    # provider 下还有多个工具，需要逐一解析 yaml 文件加载进来
    def _load_tools(self):
        provider = self.entity.identity.name
        tool_path = path.join(path.dirname(path.realpath(__file__)), "providers", provider, "tools")
        # get all the yaml files in the tool path
        tool_files = list(filter(lambda x: x.endswith(".yaml") and not x.startswith("__"), listdir(tool_path)))
        tools = []
        for tool_file in tool_files:
            # get tool name
            tool_name = tool_file.split(".")[0]
            tool = load_yaml_file(path.join(tool_path, tool_file), ignore_error=False)

            # get tool class, import the module
            assistant_tool_class: type = load_single_subclass_from_source(
                module_name=f"core.tools.builtin_tool.providers.{provider}.tools.{tool_name}",
                script_path=path.join(
                    path.dirname(path.realpath(__file__)),
                    "builtin_tool",
                    "providers",
                    provider,
                    "tools",
                    f"{tool_name}.py",
                ),
                parent_type=BuiltinTool,
            )
            tool["identity"]["provider"] = provider
            tools.append(
                assistant_tool_class(
                    provider=provider,
                    entity=ToolEntity(**tool),
                    runtime=ToolRuntime(tenant_id=""),
                )
            )

        self.tools = tools
    ......

此处也用到了 load_single_subclass_from_source 。

3.1.1.2. get_plugin_provider（插件工具管理）

class ToolManager:
    _builtin_provider_lock = Lock()
    _hardcoded_providers: dict[str, BuiltinToolProviderController] = {}
    _builtin_providers_loaded = False
    _builtin_tools_labels: dict[str, Union[I18nObject, None]] = {}
    ......
    @classmethod
    def get_plugin_provider(cls, provider: str, tenant_id: str) -> PluginToolProviderController:
        """
        get the plugin provider
        """
        # check if context is set
        try:
            contexts.plugin_tool_providers.get()
        except LookupError:
            contexts.plugin_tool_providers.set({})
            contexts.plugin_tool_providers_lock.set(Lock())

        plugin_tool_providers = contexts.plugin_tool_providers.get()
        if provider in plugin_tool_providers:
            return plugin_tool_providers[provider]

        with contexts.plugin_tool_providers_lock.get():
            # double check
            plugin_tool_providers = contexts.plugin_tool_providers.get()
            if provider in plugin_tool_providers:
                return plugin_tool_providers[provider]

            # 其他的没看懂，这里是重点
            manager = PluginToolManager()
            provider_entity = manager.fetch_tool_provider(tenant_id, provider)
            if not provider_entity:
                raise ToolProviderNotFoundError(f"plugin provider {provider} not found")

            controller = PluginToolProviderController(
                entity=provider_entity.declaration,
                plugin_id=provider_entity.plugin_id,
                plugin_unique_identifier=provider_entity.plugin_unique_identifier,
                tenant_id=tenant_id,
            )

            plugin_tool_providers[provider] = controller
            return controller
    ......

• contexts 封装（有点看不懂）

/api/contexts/init.py

from contextvars import ContextVar
from threading import Lock
from typing import TYPE_CHECKING

from contexts.wrapper import RecyclableContextVar

if TYPE_CHECKING:
    from core.model_runtime.entities.model_entities import AIModelEntity
    from core.plugin.entities.plugin_daemon import PluginModelProviderEntity
    from core.tools.plugin_tool.provider import PluginToolProviderController
    from core.workflow.entities.variable_pool import VariablePool


"""
To avoid race-conditions caused by gunicorn thread recycling, using RecyclableContextVar to replace with
"""
plugin_tool_providers: RecyclableContextVar[dict[str, "PluginToolProviderController"]] = RecyclableContextVar(
    ContextVar("plugin_tool_providers")
)

plugin_tool_providers_lock: RecyclableContextVar[Lock] = RecyclableContextVar(ContextVar("plugin_tool_providers_lock"))

plugin_model_providers: RecyclableContextVar[list["PluginModelProviderEntity"] | None] = RecyclableContextVar(
    ContextVar("plugin_model_providers")
)

plugin_model_providers_lock: RecyclableContextVar[Lock] = RecyclableContextVar(
    ContextVar("plugin_model_providers_lock")
)

plugin_model_schema_lock: RecyclableContextVar[Lock] = RecyclableContextVar(ContextVar("plugin_model_schema_lock"))

plugin_model_schemas: RecyclableContextVar[dict[str, "AIModelEntity"]] = RecyclableContextVar(
    ContextVar("plugin_model_schemas")
)

• RecyclableContextVar

/api/contexts/wrapper.py

from contextvars import ContextVar
from typing import Generic, TypeVar

T = TypeVar("T")


class HiddenValue:
    pass


_default = HiddenValue()


class RecyclableContextVar(Generic[T]):
    """
    RecyclableContextVar is a wrapper around ContextVar
    It's safe to use in gunicorn with thread recycling, but features like `reset` are not available for now

    NOTE: you need to call `increment_thread_recycles` before requests
    """

    _thread_recycles: ContextVar[int] = ContextVar("thread_recycles")

    @classmethod
    def increment_thread_recycles(cls):
        try:
            recycles = cls._thread_recycles.get()
            cls._thread_recycles.set(recycles + 1)
        except LookupError:
            cls._thread_recycles.set(0)

    def __init__(self, context_var: ContextVar[T]):
        self._context_var = context_var
        self._updates = ContextVar[int](context_var.name + "_updates", default=0)

    def get(self, default: T | HiddenValue = _default) -> T:
        thread_recycles = self._thread_recycles.get(0)
        self_updates = self._updates.get()
        if thread_recycles > self_updates:
            self._updates.set(thread_recycles)

        # check if thread is recycled and should be updated
        if thread_recycles < self_updates:
            return self._context_var.get()
        else:
            # thread_recycles >= self_updates, means current context is invalid
            if isinstance(default, HiddenValue) or default is _default:
                raise LookupError
            else:
                return default

    def set(self, value: T):
        # it leads to a situation that self.updates is less than cls.thread_recycles if `set` was never called before
        # increase it manually
        thread_recycles = self._thread_recycles.get(0)
        self_updates = self._updates.get()
        if thread_recycles > self_updates:
            self._updates.set(thread_recycles)

        if self._updates.get() == self._thread_recycles.get(0):
            # after increment,
            self._updates.set(self._updates.get() + 1)

        # set the context
        self._context_var.set(value)

3.1.2. get_tool（根据工具名返回工具）

/api/core/tools/builtin_tool/provider.py

class BuiltinToolProviderController(ToolProviderController):
    tools: list[BuiltinTool]
    ......
    # 此函数加载 provider 提供的所有工具
    def _load_tools(self):
        provider = self.entity.identity.name
        tool_path = path.join(path.dirname(path.realpath(__file__)), "providers", provider, "tools")
        # get all the yaml files in the tool path
        tool_files = list(filter(lambda x: x.endswith(".yaml") and not x.startswith("__"), listdir(tool_path)))
        tools = []
        for tool_file in tool_files:
            # get tool name
            tool_name = tool_file.split(".")[0]
            tool = load_yaml_file(path.join(tool_path, tool_file), ignore_error=False)

            # get tool class, import the module
            assistant_tool_class: type = load_single_subclass_from_source(
                module_name=f"core.tools.builtin_tool.providers.{provider}.tools.{tool_name}",
                script_path=path.join(
                    path.dirname(path.realpath(__file__)),
                    "builtin_tool",
                    "providers",
                    provider,
                    "tools",
                    f"{tool_name}.py",
                ),
                parent_type=BuiltinTool,
            )

            # 使用 json 初始化 ToolEntity
            # 没有 json 初始化 ToolRuntime
            tool["identity"]["provider"] = provider
            tools.append(
                assistant_tool_class(
                    provider=provider,
                    entity=ToolEntity(**tool),
                    runtime=ToolRuntime(tenant_id=""),
                )
            )
        # 被下面函数调用
        self.tools = tools

    # 被下面函数调用
    def _get_builtin_tools(self) -> list[BuiltinTool]:
        """
        returns a list of tools that the provider can provide

        :return: list of tools
        """
        return self.tools

    # 返回 provider 提供的所有工具
    def get_tools(self) -> list[BuiltinTool]:
        """
        returns a list of tools that the provider can provide

        :return: list of tools
        """
        return self._get_builtin_tools()
    ......

3.1.2.1. ToolEntity（使用 json 初始化）

/api/core/tools/entities/tool_entities.py

# 被核心类使用
class ToolParameter(PluginParameter):
    """
    Overrides type
    """

    class ToolParameterType(enum.StrEnum):
        """
        removes TOOLS_SELECTOR from PluginParameterType
        """

        STRING = PluginParameterType.STRING.value
        NUMBER = PluginParameterType.NUMBER.value
        BOOLEAN = PluginParameterType.BOOLEAN.value
        SELECT = PluginParameterType.SELECT.value
        SECRET_INPUT = PluginParameterType.SECRET_INPUT.value
        FILE = PluginParameterType.FILE.value
        FILES = PluginParameterType.FILES.value
        APP_SELECTOR = PluginParameterType.APP_SELECTOR.value
        MODEL_SELECTOR = PluginParameterType.MODEL_SELECTOR.value
        ANY = PluginParameterType.ANY.value
        DYNAMIC_SELECT = PluginParameterType.DYNAMIC_SELECT.value

        # MCP object and array type parameters
        ARRAY = MCPServerParameterType.ARRAY.value
        OBJECT = MCPServerParameterType.OBJECT.value

        # deprecated, should not use.
        SYSTEM_FILES = PluginParameterType.SYSTEM_FILES.value

        def as_normal_type(self):
            return as_normal_type(self)

        def cast_value(self, value: Any):
            return cast_parameter_value(self, value)

    class ToolParameterForm(Enum):
        SCHEMA = "schema"  # should be set while adding tool
        FORM = "form"  # should be set before invoking tool
        LLM = "llm"  # will be set by LLM

    type: ToolParameterType = Field(..., description="The type of the parameter")
    human_description: Optional[I18nObject] = Field(default=None, description="The description presented to the user")
    form: ToolParameterForm = Field(..., description="The form of the parameter, schema/form/llm")
    llm_description: Optional[str] = None
    # MCP object and array type parameters use this field to store the schema
    input_schema: Optional[dict] = None

    @classmethod
    def get_simple_instance(
        cls,
        name: str,
        llm_description: str,
        typ: ToolParameterType,
        required: bool,
        options: Optional[list[str]] = None,
    ) -> "ToolParameter":
        """
        get a simple tool parameter

        :param name: the name of the parameter
        :param llm_description: the description presented to the LLM
        :param typ: the type of the parameter
        :param required: if the parameter is required
        :param options: the options of the parameter
        """
        # convert options to ToolParameterOption
        if options:
            option_objs = [
                PluginParameterOption(value=option, label=I18nObject(en_US=option, zh_Hans=option))
                for option in options
            ]
        else:
            option_objs = []

        return cls(
            name=name,
            label=I18nObject(en_US="", zh_Hans=""),
            placeholder=None,
            human_description=I18nObject(en_US="", zh_Hans=""),
            type=typ,
            form=cls.ToolParameterForm.LLM,
            llm_description=llm_description,
            required=required,
            options=option_objs,
        )

    def init_frontend_parameter(self, value: Any):
        return init_frontend_parameter(self, self.type, value)

# 被核心类使用
class ToolIdentity(BaseModel):
    author: str = Field(..., description="The author of the tool")
    name: str = Field(..., description="The name of the tool")
    label: I18nObject = Field(..., description="The label of the tool")
    provider: str = Field(..., description="The provider of the tool")
    icon: Optional[str] = None

# 被核心类使用
class ToolDescription(BaseModel):
    human: I18nObject = Field(..., description="The description presented to the user")
    llm: str = Field(..., description="The description presented to the LLM")

# 核心类
class ToolEntity(BaseModel):
    identity: ToolIdentity
    parameters: list[ToolParameter] = Field(default_factory=list)
    description: Optional[ToolDescription] = None
    output_schema: Optional[dict] = None
    has_runtime_parameters: bool = Field(default=False, description="Whether the tool has runtime parameters")

    # pydantic configs
    model_config = ConfigDict(protected_namespaces=())

    @field_validator("parameters", mode="before")
    @classmethod
    def set_parameters(cls, v, validation_info: ValidationInfo) -> list[ToolParameter]:
        return v or []

3.1.2.2. ToolRuntime（传参初始化）

/api/core/tools/__base/tool_runtime.py

class ToolRuntime(BaseModel):
    """
    Meta data of a tool call processing
    """

    tenant_id: str
    tool_id: Optional[str] = None
    invoke_from: Optional[InvokeFrom] = None
    tool_invoke_from: Optional[ToolInvokeFrom] = None
    credentials: dict[str, Any] = Field(default_factory=dict)
    credential_type: CredentialType = Field(default=CredentialType.API_KEY)
    runtime_parameters: dict[str, Any] = Field(default_factory=dict)


class FakeToolRuntime(ToolRuntime):
    """
    Fake tool runtime for testing
    """

    def __init__(self):
        super().__init__(
            tenant_id="fake_tenant_id",
            tool_id="fake_tool_id",
            invoke_from=InvokeFrom.DEBUGGER,
            tool_invoke_from=ToolInvokeFrom.AGENT,
            credentials={},
            runtime_parameters={},
        )

3.1.3. 验证工具

目前看到的工具凭证基本都没有提供，后续再分析。

3.1.4. 返回工具（至此返回工具的 json 信息）

            ......
            # 不需要验证 直接返回
            if not provider_controller.need_credentials:
                return cast(
                    BuiltinTool,
                    builtin_tool.fork_tool_runtime(
                        runtime=ToolRuntime(
                            tenant_id=tenant_id,
                            credentials={},
                            invoke_from=invoke_from,
                            tool_invoke_from=tool_invoke_from,
                        )
                    ),
                )
            ......
            # 需要验证
            # 区别在于 credentials 是否为空
            return cast(
                BuiltinTool,
                builtin_tool.fork_tool_runtime(
                    runtime=ToolRuntime(
                        tenant_id=tenant_id,
                        credentials=dict(decrypted_credentials),
                        credential_type=CredentialType.of(builtin_provider.credential_type),
                        runtime_parameters={},
                        invoke_from=invoke_from,
                        tool_invoke_from=tool_invoke_from,
                    )
                ),
            )
            ......

3.1.4.1. fork_tool_runtime（返回 json）

entity 定义在父类，会在读取 yaml 文件，创建工具的时传入，实际为 pydantic 结构体。

class Tool(ABC):
    """
    The base class of a tool
    """
    # entity 在读取文件初始化工具的时候 已经提供。
    def __init__(self, entity: ToolEntity, runtime: ToolRuntime) -> None:
        self.entity = entity
        self.runtime = runtime
    ......

class BuiltinTool(Tool):
    """
    Builtin tool

    :param meta: the meta data of a tool call processing
    """

    def __init__(self, provider: str, **kwargs):
        super().__init__(**kwargs)
        self.provider = provider

    def fork_tool_runtime(self, runtime: ToolRuntime) -> "BuiltinTool":
        """
        fork a new tool with metadata
        :return: the new tool
        """
        return self.__class__(
            entity=self.entity.model_copy(),
            runtime=runtime,
            provider=self.provider,
        )

3.2. 接口工具

class ToolManager:
    ......
    @classmethod
    def get_tool_runtime(
        cls,
        provider_type: ToolProviderType,
        provider_id: str,
        tool_name: str,
        tenant_id: str,
        invoke_from: InvokeFrom = InvokeFrom.DEBUGGER,
        tool_invoke_from: ToolInvokeFrom = ToolInvokeFrom.AGENT,
        credential_id: Optional[str] = None,
    ) -> Union[BuiltinTool, PluginTool, ApiTool, WorkflowTool, MCPTool]:
        """
        get the tool runtime

        :param provider_type: the type of the provider
        :param provider_id: the id of the provider
        :param tool_name: the name of the tool
        :param tenant_id: the tenant id
        :param invoke_from: invoke from
        :param tool_invoke_from: the tool invoke from
        :param credential_id: the credential id

        :return: the tool
        """
        # 内置工具
        if provider_type == ToolProviderType.BUILT_IN:
        ......
        # 接口工具
        elif provider_type == ToolProviderType.API:
            api_provider, credentials = cls.get_api_provider_controller(tenant_id, provider_id)
            encrypter, _ = create_tool_provider_encrypter(
                tenant_id=tenant_id,
                controller=api_provider,
            )
            return api_provider.get_tool(tool_name).fork_tool_runtime(
                runtime=ToolRuntime(
                    tenant_id=tenant_id,
                    credentials=encrypter.decrypt(credentials),
                    invoke_from=invoke_from,
                    tool_invoke_from=tool_invoke_from,
                )
            )
        # 工作流
        elif provider_type == ToolProviderType.WORKFLOW:
            ......
        # APP
        elif provider_type == ToolProviderType.APP:
            raise NotImplementedError("app provider not implemented")
        # 插件工具
        elif provider_type == ToolProviderType.PLUGIN:
            return cls.get_plugin_provider(provider_id, tenant_id).get_tool(tool_name)
        # MCP 工具
        elif provider_type == ToolProviderType.MCP:
            return cls.get_mcp_provider_controller(tenant_id, provider_id).get_tool(tool_name)
        else:
            raise ToolProviderNotFoundError(f"provider type {provider_type.value} not found")
    ......

3.3. 工作流

3.4. APP（直接抛出异常）

3.5. 插件

3.6. MCP
