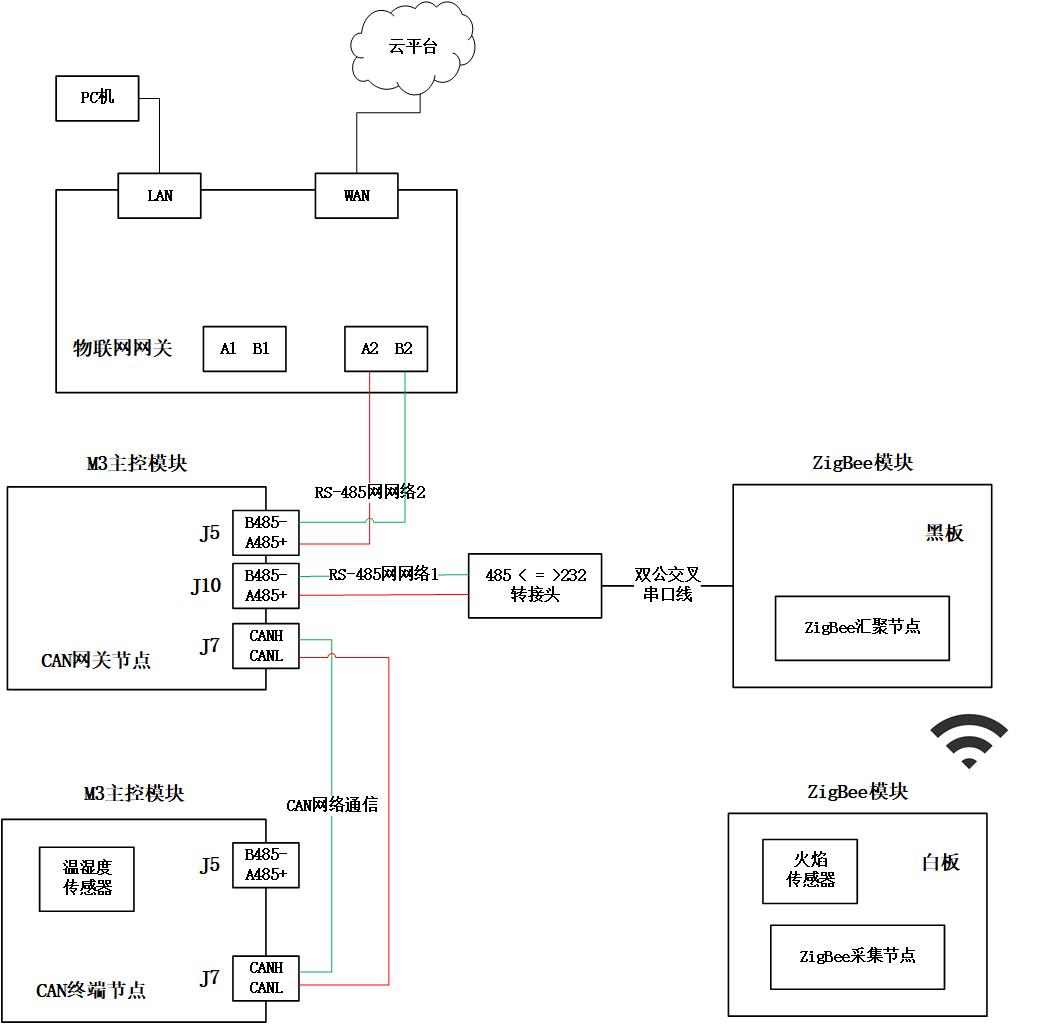

接线图

ZigBee传感器采集节点代码编写：

（1）在“fire_sensor.c”文件中配置BasicRF无线通信的参数为：RF_CHANNEL为20，PAN_ID为准考证号后4位。比如准考证号为20610003254400409876，则PAN_ID为0x9876

（2）在main()函数中添加代码实现以下功能：

①火焰传感器数据的采集；

②根据以下表1. ZigBee通信协议报文，将采集到的火焰传感器数据正确的填入pTxData[]数组中。（注意：数据域应该按照实际采集的数据进行填写。）

表1. ZigBee通信协议报文

组成部分	起始位	命令类型	数据长度	传感器数量	传感器类型	数据域	校验位
长度/字节	1	1	1	1	1	2	1
内容	0xCC	采集数据	LEN	0x01	3（火焰传感器）	Data	CHK
举例	0xCC	0x01	0x07	0x01	0x03	0x00 0x5A	0x32

#include "hal_defs.h"
#include "hal_cc8051.h"
#include "hal_int.h"
#include "hal_mcu.h"
#include "hal_board.h"
#include "hal_led.h"
#include "hal_adc.h"
#include "hal_rf.h"
#include "basic_rf.h"
#include "hal_uart.h"
#include "TIMER.h"
#include "get_adc.h"
#include "sh10.h"
#include "UART_PRINT.h"
#include "util.h"
#include <stdlib.h>
#include <string.h>
#include <stdio.h>
#include <math.h>

/*点对点通讯地址设置*/
/*.......答题区1开始：ZigBee模块通讯地址参数修改................*/
 //1.将ZigBee通信信道设置为20，网络ID设置为考证号后4位。比如准考证号为20610003254400409876，则PAN_ID为0x9876。

#define RF_CHANNEL  20 //频道11-26
#define PAN_ID 0x0007  //网络id

/*.......答题区1结束.............................*/

#define MY_ADDR                   0xBDC1     //本机模块地址
#define SEND_ADDR                 0xB4F3     //发送地址
/* 自定义消息格式 */
#define START_HEAD    0xCC//帧头
#define CMD_READ      0x01//读传感器数据
#define SENSOR_FIRE   0x03//火焰
/*  LED n 闪烁 time 毫秒 宏 */
#define FlashLed(n,time) do{\
                   halLedSet(n);\
                   halMcuWaitMs(time);\
                   halLedClear(n);\
                   }while(0)
/*数组大小*/
#define MAX_SEND_BUF_LEN  128 //无线数据最大发送长度

//#define CC2530_DEBUG //调试

/*变量*/
static basicRfCfg_t basicRfConfig;
static uint8 pTxData[MAX_SEND_BUF_LEN]; //定义无线发送缓冲区的大小

uint8   APP_SEND_DATA_FLAG;

/*****************************************************************************************
*函数：uint8 CheckSum(uint8 *buf, uint8 len)
*功能：计算校验和
*输入：uint8 *buf-指向输入缓存区, uint8 len输入数据字节个数
*输出：无
*返回：返回校验和
*特殊说明：无
*****************************************************************************************/
uint8 CheckSum(uint8 *buf, uint8 len)
{
  uint8 temp = 0;
  while(len--)
  {
    temp += *buf;
    buf++;
  }
  return (uint8)temp;
}


void ConfigRf_Init(void)
{
  basicRfConfig.panId       =   PAN_ID;        //zigbee的ID号设置
  basicRfConfig.channel     =   RF_CHANNEL;    //zigbee的频道设置
  basicRfConfig.myAddr      =   MY_ADDR;   //设置本机地址
  basicRfConfig.ackRequest  =   TRUE;          //应答信号
  while(basicRfInit(&basicRfConfig) == FAILED); //检测zigbee的参数是否配置成功
  basicRfReceiveOn();                // 打开RF
}

void main(void)
{
    halBoardInit();  //模块相关资源的初始化
    ConfigRf_Init(); //无线收发参数的配置初始化
    Timer4_Init(); //定时器初始化
    Timer4_On();  //打开定时器

    while(1)
    {   APP_SEND_DATA_FLAG = GetSendDataFlag();
        if(APP_SEND_DATA_FLAG == 1)   //定时时间到
        {   /*【传感器采集、处理】 开始*/
            uint16 FireAdc;

            /*.......答题区2开始.......................................*/
            //1.火焰传感器数据的采集。
            FireAdc = get_adc();

            /*.......答题区2结束.......................................*/

#ifdef CC2530_DEBUG
            //把采集数据传化成字符串，以便于在串口上显示观察
            uart_printf("火焰传感器,红外线(火焰)数字量：%dmV\r\n", FireAdc*10);
#endif /*CC2530_DEBUG*/

            memset(pTxData, '\0', MAX_SEND_BUF_LEN);
            pTxData[0]=START_HEAD;//帧头
            pTxData[1]=CMD_READ;//命令
            pTxData[2]=7;//长度
            pTxData[3]=1;//1组传感数据
            pTxData[4]=SENSOR_FIRE;//传感类型

            /*.......答题区3开始.......................................*/
            //1.根据协议将采集到的火焰传感器数据正确封装到pTxData[]数组中。
            pTxData[5] = (uint8)((FireAdc * 10) >> 8);
            pTxData[6] = (uint8)(FireAdc * 10);

            /*.......答题区3结束.......................................*/


            pTxData[7]=CheckSum((uint8 *)pTxData, pTxData[2]);
            //产生一个随机延时，减少信道冲突
            srand1(FireAdc);
            halMcuWaitMs(randr( 0, 3000 ));
            //把数据通过zigbee发送出去
            basicRfSendPacket((unsigned short)SEND_ADDR, (unsigned char *)pTxData, pTxData[2]+1);
            FlashLed(1,1000);//无无线发送指示，LED1亮1000ms
            Timer4_On();  //打开定时
         }  /*【传感器采集、处理】 结束*/
    }
}

ZigBee汇聚节点代码编写：

（1）参考“fire_sensor.c”，在“collect.c”文件中实现BasicRF无线通信参数配置。

（2）开启宏开关#define CC2530_DEBUG，使用考试资源包“4. 使用工具”文件夹中的串口调试助手打印火焰传感器数据并将截图保存至“图集.docx”中的3.png处。

（3）关闭宏开关//#define CC2530_DEBUG，将采集到的火焰传感器数据通过串口发送给M3网关节点。

#include "hal_defs.h"
#include "hal_cc8051.h"
#include "hal_int.h"
#include "hal_mcu.h"
#include "hal_board.h"
#include "hal_led.h"
#include "hal_rf.h"
#include "basic_rf.h"
#include "hal_uart.h"
#include "hal_pwm.h"
#include "UART_PRINT.h"
#include <stdlib.h>
#include <string.h>
#include <stdio.h>
#include "TIMER.h"
#include "get_adc.h"
#include "util.h"

/*点对点通讯地址设置*/
/*.......答题区4开始：ZigBee模块通讯地址参数修改................*/
 //1.将ZigBee通信信道设置为20，网络ID设置为考证号后4位。比如准考证号为20610003254400409876，则PAN_ID为0x9876.

#define RF_CHANNEL  20 //频道11-26
#define PAN_ID 0x0007  //网络id

/*.......答题区4结束.............................*/

#define MY_ADDR                   0xB4F3     //本机模块地址

/********无线数据缓存********/
#define MAX_RECV_BUF_LEN  128
static uint8 pRxData[MAX_RECV_BUF_LEN]; //定义无线接收缓冲区的大小
uint8 uart0_send_buf[8] = {0};//串口0发送缓冲区

/********变量********/
static basicRfCfg_t basicRfConfig;

/*.......答题区5开始................*/
//1.打印串口输出接收到的火焰传感器数据。
//#define CC2530_DEBUG //调试
/*.......答题区5结束................*/

/*  LED n 闪烁 time 毫秒 宏 */
#define FlashLed(n,time) do{\
                   halLedSet(n);\
                   halMcuWaitMs(time);\
                   halLedClear(n);\
                   }while(0)

//生成数组的16进制形式的字符串格式
uint8 GetHexStr(uint8 *input, uint8 len, uint8 *output)
{
  char str[128];
  memset(str, '\0', 128);
  for(uint8 i=0; i<len; i++)
  {
    sprintf(str+i*3,"%02X ", *input);
    input++;
  }
  strcpy((char *)output, (const char *)str);
  return strlen((const char *)str);
}

// 无线RF初始化
void ConfigRf_Init(void)
{
    basicRfConfig.panId       =   PAN_ID;        //zigbee的ID号设置
    basicRfConfig.channel     =   RF_CHANNEL;    //zigbee的频道设置
    basicRfConfig.myAddr      =   MY_ADDR;   //设置本机地址
    basicRfConfig.ackRequest  =   TRUE;          //应答信号
    while(basicRfInit(&basicRfConfig) == FAILED); //检测zigbee的参数是否配置成功
    basicRfReceiveOn();                // 打开RF
}

void main(void)
{
    halBoardInit();  //模块相关资源的初始化
    ConfigRf_Init(); //无线收发参数的配置初始化
    Timer3_Init(); //定时器初始化
    Timer3_On();  //打开定时器

    uint16 len = 0;

    while(1)
    {
        //无线数据接收处理
        if(basicRfPacketIsReady())   //查询有没收到无线信号
        {
            len = basicRfReceive(pRxData, MAX_RECV_BUF_LEN, NULL);//接收无线数据
#ifdef CC2530_DEBUG
            char DebugOutput[256];
            memset(DebugOutput, '\0', 256);
            GetHexStr((uint8 *)pRxData, len, (uint8 *)DebugOutput);
            uart_printf("接收到原始无线RF数据：%s\r\n",DebugOutput);
#else
            uart0_send_buf[0] = 0x55;
            uart0_send_buf[1] = pRxData[5]; //读取ADC数据高位寄存器
            uart0_send_buf[2] = pRxData[6]; //读取ADC数据低位寄存器
            uart0_send_buf[3] = 0xDD;
            halUartWrite(uart0_send_buf, 4); //发送数据

            FlashLed(2,1000);//无线发送指示，D4闪烁
#endif /*CC2530_DEBUG*/
        }
    }
}

M3网关节点工程代码编写：

（1）在“main.c”文件中添加代码实现以下功能：

①在main()函数中实现：开启UART5的空闲中断；

②在uart5_data_process()函数中实现：接收来自UART5的火焰传感器数据，按照高位在前低位在后正确封装赋值给adcx变量。

（2）在“process_m3.c”文件中添加代码实现以下功能：

①在Master_To_Gateway()函数中实现：将转换好的火焰传感器数据通过以下表2. RS-485网络数据帧格式协议中的网关节点举例，正确封装到MASTER_TX_BUF[]数组中，通过串口发送给物联网网关。（注意：数据域应该按照实际采集的数据进行填写。）

②在CAN_Master_To_Gateway()函数中实现：根据以下表2. RS-485网络数据帧格式的终端节点举例，采集CAN总线上的终端节点传感器数据。正确封装到MASTER_TX_BUF[]数组中，通过串口发送给物联网网关。（注意：数据域应该按照实际采集的数据进行填写。）

表2. RS-485网络数据帧格式

组成部分	帧起始符	地址域	命令码域	数据长度	传感器类型	数据域	校验码域
长度/字节	1	2	1	1	1	2	1
内容	0xDD	DstAddr	0x02（按RS-485网络上报）	Length	1（温湿度传感器） 3（火焰传感器）	Data	CheckSum
终端节点 举例	0xDD	0x0011	0x02	0x09	0x01	0x1A 0x28	0x3C
网关节点 举例	0xDD	0x0022	0x02	0x09	0x03	0x00 0x06	0x13

（3）编译下载到网关后，使用“4. 使用工具”里的“ M3主控模块配置工具”配置节点，将地址设置配置为0x0022，传感器列表配置为火焰，点击设置。并截图保存至“图集.docx”中的6.png处。

（4）使用CAN调试器USB线（TX,RX），连接主机节点J7的（CANH,CANL）。使用“4. 使用工具”里的“CAN调试助手”工具进行CAN通信数据的抓包并截图保存至“图集.docx”中的7.png处。

（注意：波特率为100k）

（5）将云平台上实时显示传感器数据信息的界面截图保存至“图集.docx”中的8.png处。

/* USER CODE BEGIN Header */
/**
  ******************************************************************************
  * @file           : main.c
  * @brief          : Main program body
  ******************************************************************************
  ** This notice applies to any and all portions of this file
  * that are not between comment pairs USER CODE BEGIN and
  * USER CODE END. Other portions of this file, whether
  * inserted by the user or by software development tools
  * are owned by their respective copyright owners.
  *
  * COPYRIGHT(c) 2019 STMicroelectronics
  *
  * Redistribution and use in source and binary forms, with or without modification,
  * are permitted provided that the following conditions are met:
  *   1. Redistributions of source code must retain the above copyright notice,
  *      this list of conditions and the following disclaimer.
  *   2. Redistributions in binary form must reproduce the above copyright notice,
  *      this list of conditions and the following disclaimer in the documentation
  *      and/or other materials provided with the distribution.
  *   3. Neither the name of STMicroelectronics nor the names of its contributors
  *      may be used to endorse or promote products derived from this software
  *      without specific prior written permission.
  *
  * THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
  * AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
  * IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
  * DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE
  * FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
  * DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
  * SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
  * CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
  * OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
  * OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
  *
  ******************************************************************************
  */
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include "user.h"
#include "user_time.h"  //用户添加头文件包含

/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */

/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/
ADC_HandleTypeDef hadc1;

CAN_HandleTypeDef hcan;

TIM_HandleTypeDef htim2;

UART_HandleTypeDef huart5;
UART_HandleTypeDef huart1;
UART_HandleTypeDef huart2;

/* USER CODE BEGIN PV */
uint16_t vol = 0;
float sensor_hum = 0; //湿度
float sensor_tem = 0; //温度
uint8_t switching = 0;
uint8_t sensor_number = 0;
uint16_t send_count = 0;
uint16_t Can_STD_ID = 0;
uint8_t flag_send_data = 0;
uint8_t Can_data[8] = {0};

/* UART5接收相关变量 */
uint8_t uart5RxBuf = 0; //UART5接收变量(1个字节)
uint8_t uart5RxCounter = 0; //UART5接收缓存索引号
uint8_t uart5RxCplt_flag = 0; //UART5接收完成标志位
uint8_t uart5_data_buf[64] = {0}; //UART5接收缓存区

/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
static void MX_GPIO_Init(void);
static void MX_CAN_Init(void);
static void MX_ADC1_Init(void);
static void MX_USART1_UART_Init(void);
static void MX_USART2_UART_Init(void);
static void MX_TIM2_Init(void);
static void MX_UART5_Init(void);
/* USER CODE BEGIN PFP */

/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */
/**
  * @brief  清除uart5接收相关缓存
  * @param  None
  * @retval None
  */
void clear_uart5_rxbuf(void)
{
  uart5RxBuf = 0;
	uart5RxCounter = 0;
	uart5RxCplt_flag = 0;
  memset(uart5_data_buf, 0, 64);
}

/**
  * @brief  uart5接收数据处理
  * @param  None
  * @retval None
  */
void uart5_data_process(uint8_t *data)
{
  uint16_t adcx = 0;
	/*.......答题区7开始.......................................*/
	//1.根据data[]数组，将接收到的火焰数据正确封装给adcx变量。
	//比如串口5接收到数据为“55 00 06 DD”，其中00 06是火焰数据，正确封装为adcx = 0006
	adcx = (uint16_t)data[1]<<8;
	adcx = adcx|data[2];



	/*.......答题区7结束.......................................*/

	vol = (adcx * 330) / 4096;
}


/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{
  /* USER CODE BEGIN 1 */
  uint8_t flag = 0x00;
  etError error; // error code
  ValueType Value_Type = Value_I2C;
  /* USER CODE END 1 */

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */

  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_CAN_Init();
  MX_ADC1_Init();
  MX_USART1_UART_Init();
  MX_USART2_UART_Init();
  MX_TIM2_Init();
  MX_UART5_Init();
  /* USER CODE BEGIN 2 */
  MAX3485_INIT();
  HAL_UART_Receive_IT(&huart5, &uart5RxBuf, 1); //开接收中断

	/*.......答题区6开始.......................................*/
	//1.开启UART5的空闲中断。
	__HAL_UART_ENABLE_IT(&huart5,UART_IT_IDLE);



	/*.......答题区6结束.......................................*/

#ifdef SHT3X
  error = SHT3X_Init(DEFAULT_SHT3X_ADDR);
  SHT3X_GetTempAndHumi(&sensor_tem, &sensor_hum, REPEATAB_HIGH, MODE_POLLING, 200);
#endif

#ifdef SHT1X
  if (error != NO_ERROR)
  {
    SHT1x_init();
    flag = 0x01;
  }
#endif
  //SHT1x_init();    //温湿度传感器初始化

  if (flag != 0x01)
  {
    printf("温湿度传感器型号：SHT3X\r\n");
  }
  else
  {
    //FLASH_Sensor_Type = 0x08030100;
    printf("温湿度传感器型号：SHT1X\r\n");
  }
  InfraredSensor_Init();

  Can_STD_ID = STMFLASH_ReadHalfWord(FLASE_M3_ADDR);        //配置CAN节点发送的标准帧ID
  Sensor_Type_t = STMFLASH_ReadHalfWord(FLASH_Sensor_Type); //配置M3主控模块采集的传感器类型
  open_usart1_receive_interrupt();                          //启动USART1串口中断

  CAN_User_Config(&hcan); //CAN总线配置
  can_start();  //启动CAN总线
	HAL_TIM_Base_Start_IT(&htim2);  //开启定时器2

  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  while (1)
  {
    Value_Type = ValueTypes(Sensor_Type_t);
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */

    /* 发送从CAN总线接收的其他节点数据至网关 */
    if (flag_send_data == 1)
    {
      CAN_Master_To_Gateway(Can_data, 9);
      flag_send_data = 0;
    }

    /* uart5接收完毕 */
    if(uart5RxCplt_flag == 1)
    {
      uart5RxCplt_flag = 0;

      /* 处理从uart5收到的数据存入vol变量*/
      uart5_data_process(uart5_data_buf);
      /* 发送从CC2530收到的火焰传感器数据至网关 */
      Master_To_Gateway(Can_STD_ID, Value_Type, vol, switching, sensor_hum, sensor_tem);

      clear_uart5_rxbuf();
    }

    //USART1 通过M3主控模块配置工具配置采集传感器类型 或 或者CAN发送标准帧ID （注标准帧不能超过0 to 0x7FF）
    if (!usart1_data_fifo_is_empty())
    {
      HAL_Delay(100);	//看着这里
      process_up();
    }

  }
  /* USER CODE END 3 */
}

/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};
  RCC_PeriphCLKInitTypeDef PeriphClkInit = {0};

  /** Initializes the RCC Oscillators according to the specified parameters
  * in the RCC_OscInitTypeDef structure.
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
  RCC_OscInitStruct.HSEState = RCC_HSE_ON;
  RCC_OscInitStruct.HSEPredivValue = RCC_HSE_PREDIV_DIV1;
  RCC_OscInitStruct.HSIState = RCC_HSI_ON;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
  RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MUL9;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }
  /** Initializes the CPU, AHB and APB buses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK)
  {
    Error_Handler();
  }
  PeriphClkInit.PeriphClockSelection = RCC_PERIPHCLK_ADC;
  PeriphClkInit.AdcClockSelection = RCC_ADCPCLK2_DIV6;
  if (HAL_RCCEx_PeriphCLKConfig(&PeriphClkInit) != HAL_OK)
  {
    Error_Handler();
  }
}

/**
  * @brief ADC1 Initialization Function
  * @param None
  * @retval None
  */
static void MX_ADC1_Init(void)
{

  /* USER CODE BEGIN ADC1_Init 0 */

  /* USER CODE END ADC1_Init 0 */

  ADC_ChannelConfTypeDef sConfig = {0};

  /* USER CODE BEGIN ADC1_Init 1 */

  /* USER CODE END ADC1_Init 1 */
  /** Common config
  */
  hadc1.Instance = ADC1;
  hadc1.Init.ScanConvMode = ADC_SCAN_ENABLE;
  hadc1.Init.ContinuousConvMode = DISABLE;
  hadc1.Init.DiscontinuousConvMode = DISABLE;
  hadc1.Init.ExternalTrigConv = ADC_SOFTWARE_START;
  hadc1.Init.DataAlign = ADC_DATAALIGN_RIGHT;
  hadc1.Init.NbrOfConversion = 2;
  if (HAL_ADC_Init(&hadc1) != HAL_OK)
  {
    Error_Handler();
  }
  /** Configure Regular Channel
  */
  sConfig.Channel = ADC_CHANNEL_0;
  sConfig.Rank = ADC_REGULAR_RANK_1;
  sConfig.SamplingTime = ADC_SAMPLETIME_1CYCLE_5;
  if (HAL_ADC_ConfigChannel(&hadc1, &sConfig) != HAL_OK)
  {
    Error_Handler();
  }
  /** Configure Regular Channel
  */
  sConfig.Rank = ADC_REGULAR_RANK_2;
  if (HAL_ADC_ConfigChannel(&hadc1, &sConfig) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN ADC1_Init 2 */

  /* USER CODE END ADC1_Init 2 */

}

/**
  * @brief CAN Initialization Function
  * @param None
  * @retval None
  */
static void MX_CAN_Init(void)
{

  /* USER CODE BEGIN CAN_Init 0 */

  /* USER CODE END CAN_Init 0 */

  /* USER CODE BEGIN CAN_Init 1 */

  /* USER CODE END CAN_Init 1 */
  hcan.Instance = CAN1;
  hcan.Init.Prescaler = 40;
  hcan.Init.Mode = CAN_MODE_NORMAL;
  hcan.Init.SyncJumpWidth = CAN_SJW_1TQ;
  hcan.Init.TimeSeg1 = CAN_BS1_6TQ;
  hcan.Init.TimeSeg2 = CAN_BS2_2TQ;
  hcan.Init.TimeTriggeredMode = DISABLE;
  hcan.Init.AutoBusOff = ENABLE;
  hcan.Init.AutoWakeUp = DISABLE;
  hcan.Init.AutoRetransmission = DISABLE;
  hcan.Init.ReceiveFifoLocked = DISABLE;
  hcan.Init.TransmitFifoPriority = DISABLE;
  if (HAL_CAN_Init(&hcan) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN CAN_Init 2 */

  /* USER CODE END CAN_Init 2 */

}

/**
  * @brief TIM2 Initialization Function
  * @param None
  * @retval None
  */
static void MX_TIM2_Init(void)
{

  /* USER CODE BEGIN TIM2_Init 0 */

  /* USER CODE END TIM2_Init 0 */

  TIM_ClockConfigTypeDef sClockSourceConfig = {0};
  TIM_MasterConfigTypeDef sMasterConfig = {0};

  /* USER CODE BEGIN TIM2_Init 1 */

  /* USER CODE END TIM2_Init 1 */
  htim2.Instance = TIM2;
  htim2.Init.Prescaler = 71;
  htim2.Init.CounterMode = TIM_COUNTERMODE_UP;
  htim2.Init.Period = 1000-1;
  htim2.Init.ClockDivision = TIM_CLOCKDIVISION_DIV1;
  htim2.Init.AutoReloadPreload = TIM_AUTORELOAD_PRELOAD_DISABLE;
  if (HAL_TIM_Base_Init(&htim2) != HAL_OK)
  {
    Error_Handler();
  }
  sClockSourceConfig.ClockSource = TIM_CLOCKSOURCE_INTERNAL;
  if (HAL_TIM_ConfigClockSource(&htim2, &sClockSourceConfig) != HAL_OK)
  {
    Error_Handler();
  }
  sMasterConfig.MasterOutputTrigger = TIM_TRGO_RESET;
  sMasterConfig.MasterSlaveMode = TIM_MASTERSLAVEMODE_DISABLE;
  if (HAL_TIMEx_MasterConfigSynchronization(&htim2, &sMasterConfig) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN TIM2_Init 2 */

  /* USER CODE END TIM2_Init 2 */

}

/**
  * @brief UART5 Initialization Function
  * @param None
  * @retval None
  */
static void MX_UART5_Init(void)
{

  /* USER CODE BEGIN UART5_Init 0 */

  /* USER CODE END UART5_Init 0 */

  /* USER CODE BEGIN UART5_Init 1 */

  /* USER CODE END UART5_Init 1 */
  huart5.Instance = UART5;
  huart5.Init.BaudRate = 115200;
  huart5.Init.WordLength = UART_WORDLENGTH_8B;
  huart5.Init.StopBits = UART_STOPBITS_1;
  huart5.Init.Parity = UART_PARITY_NONE;
  huart5.Init.Mode = UART_MODE_TX_RX;
  huart5.Init.HwFlowCtl = UART_HWCONTROL_NONE;
  huart5.Init.OverSampling = UART_OVERSAMPLING_16;
  if (HAL_UART_Init(&huart5) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN UART5_Init 2 */

  /* USER CODE END UART5_Init 2 */

}

/**
  * @brief USART1 Initialization Function
  * @param None
  * @retval None
  */
static void MX_USART1_UART_Init(void)
{

  /* USER CODE BEGIN USART1_Init 0 */

  /* USER CODE END USART1_Init 0 */

  /* USER CODE BEGIN USART1_Init 1 */

  /* USER CODE END USART1_Init 1 */
  huart1.Instance = USART1;
  huart1.Init.BaudRate = 115200;
  huart1.Init.WordLength = UART_WORDLENGTH_8B;
  huart1.Init.StopBits = UART_STOPBITS_1;
  huart1.Init.Parity = UART_PARITY_NONE;
  huart1.Init.Mode = UART_MODE_TX_RX;
  huart1.Init.HwFlowCtl = UART_HWCONTROL_NONE;
  huart1.Init.OverSampling = UART_OVERSAMPLING_16;
  if (HAL_UART_Init(&huart1) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN USART1_Init 2 */

  /* USER CODE END USART1_Init 2 */

}

/**
  * @brief USART2 Initialization Function
  * @param None
  * @retval None
  */
static void MX_USART2_UART_Init(void)
{

  /* USER CODE BEGIN USART2_Init 0 */

  /* USER CODE END USART2_Init 0 */

  /* USER CODE BEGIN USART2_Init 1 */

  /* USER CODE END USART2_Init 1 */
  huart2.Instance = USART2;
  huart2.Init.BaudRate = 115200;
  huart2.Init.WordLength = UART_WORDLENGTH_8B;
  huart2.Init.StopBits = UART_STOPBITS_1;
  huart2.Init.Parity = UART_PARITY_NONE;
  huart2.Init.Mode = UART_MODE_TX_RX;
  huart2.Init.HwFlowCtl = UART_HWCONTROL_NONE;
  huart2.Init.OverSampling = UART_OVERSAMPLING_16;
  if (HAL_UART_Init(&huart2) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN USART2_Init 2 */

  /* USER CODE END USART2_Init 2 */

}

/**
  * @brief GPIO Initialization Function
  * @param None
  * @retval None
  */
static void MX_GPIO_Init(void)
{
  GPIO_InitTypeDef GPIO_InitStruct = {0};

  /* GPIO Ports Clock Enable */
  __HAL_RCC_GPIOE_CLK_ENABLE();
  __HAL_RCC_GPIOC_CLK_ENABLE();
  __HAL_RCC_GPIOA_CLK_ENABLE();
  __HAL_RCC_GPIOD_CLK_ENABLE();

  /*Configure GPIO pin Output Level */
  HAL_GPIO_WritePin(LED4_GPIO_Port, LED4_Pin, GPIO_PIN_SET);

  /*Configure GPIO pin Output Level */
  HAL_GPIO_WritePin(U5_485TX_EN_GPIO_Port, U5_485TX_EN_Pin, GPIO_PIN_RESET);

  /*Configure GPIO pin : LED4_Pin */
  GPIO_InitStruct.Pin = LED4_Pin;
  GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
  GPIO_InitStruct.Pull = GPIO_NOPULL;
  GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_HIGH;
  HAL_GPIO_Init(LED4_GPIO_Port, &GPIO_InitStruct);

  /*Configure GPIO pin : U5_485TX_EN_Pin */
  GPIO_InitStruct.Pin = U5_485TX_EN_Pin;
  GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
  GPIO_InitStruct.Pull = GPIO_NOPULL;
  GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_HIGH;
  HAL_GPIO_Init(U5_485TX_EN_GPIO_Port, &GPIO_InitStruct);

}

/* USER CODE BEGIN 4 */
//当产生串口中断后，最终会跳到这
void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart)
{
  if (huart == &huart1) //判断是哪个串口产生的中断
  {
    usart1_data_fifo_put(usart1RxBuf); //向USART1串口缓冲区写入数据
    HAL_UART_Receive_IT(&huart1, &usart1RxBuf, 1);
  }

  if (huart == &huart2)
  {
    usart2_data_fifo_put(usart2RxBuf); //向USART2串口缓冲区写入数据
    HAL_UART_Receive_IT(&huart2, &usart2RxBuf, 1);
  }

  if (huart->Instance == UART5)
  {
    uart5_data_buf[uart5RxCounter++] = uart5RxBuf;
    HAL_UART_Receive_IT(&huart5, &uart5RxBuf, 1); //重新开接收中断
  }
}


void USER_IDLE_IRQHandler(UART_HandleTypeDef *huart)
{
  /* 判断是否是串口5空闲中断 */
  if (huart->Instance == UART5)
  {
    /* 判断是否是空闲中断 */
    if (__HAL_UART_GET_FLAG(&huart5, UART_FLAG_IDLE) != RESET)
    {
      uart5RxCplt_flag = 1; //接收完成标志位置1

      /* 清除空闲中断标志（否则会一直不断进入中断） */
      __HAL_UART_CLEAR_IDLEFLAG(&huart5);
    }
  }
}

//当串口出错，跳转到此
void HAL_UART_ErrorCallback(UART_HandleTypeDef *huart)
{
  printf("UART Error:%x\r\n", huart->ErrorCode); //报告错误编号
  huart->ErrorCode = HAL_UART_ERROR_NONE;

  if (huart == &huart1)
  {
    HAL_UART_Receive_IT(&huart1, &usart1RxBuf, 1); //重新打开USART1接收中断
  }

  if (huart == &huart2)
  {
    HAL_UART_Receive_IT(&huart2, &usart2RxBuf, 1); //重新打开USART2接收中断
  }
}
/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
  /* User can add his own implementation to report the HAL error return state */

  /* USER CODE END Error_Handler_Debug */
}

#ifdef  USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     tex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */

/************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE****/

#include "process_m3.h"


#define START 0xDD  //起始位
#define CMD   0x02  //命令类型
#define LEN   0x09  //数据长度


#define GATEWAY_ADDR	0xaa
#define MASTER_TX_BUF_LEN 0x08
#define CMD_READ_SENSOR 0x01
#define CMD_CONTROL_RELAY 0x02

extern uint16_t vol;
extern float sensor_hum; //湿度
extern float sensor_tem; //温度
extern uint8_t switching;
extern uint8_t sensor_number;

#ifdef  ADDR_ONE
static uint8_t MASTER_TX_BUF[USART2_DATA_FIFO_BUF_SIZE]={0};
static uint8_t MASTER_DATA[USART2_DATA_FIFO_BUF_SIZE]={0};
#endif

static uint8_t Type_Sensor=0;
//static uint8_t Count_Sensor=0;
//static uint8_t Data_Sensor=0;


static uint8_t Relay1_Status=0;
static uint8_t Relay2_Status=0;
static uint8_t Relay3_Status=0;


/*******************************************************************
*函数：uint8_t CHK(uint8_t *buf, uint8_t len)
*功能：计算累加和
*输入：uint8_t *buf ：需要累加的数
			 uint8_t len ：累加数的个数
*返回：累加和
*特殊说明：无
*******************************************************************/
uint8_t CHK(const uint8_t *buf, uint8_t len) //校验码
{
    uint8_t  RX_CHX=0;

    while(len--)
    {
        RX_CHX+= *buf;
        buf++;
    }

    return RX_CHX&=0xff;
}

/*******************************************************************
*函数：ValueType  ValueTypes(uint8_t sensor_type)
*功能：判断传感器值类型
*输入：uint8_t sensor_type:传感器类型
*返回：传感器值的类型
*特殊说明：无
*******************************************************************/
ValueType  ValueTypes(uint8_t sensor_type)
{
	ValueType ValueType_t;
	if(sensor_type==TemHum_Sensor)   //温湿度    心率
	{
		ValueType_t=Value_I2C;
	}
	else if((sensor_type==BodyInfrared_Sensor)||(sensor_type==Sound_Sensor)||(sensor_type==Infrared_Sensor))    //人体红外 声音  红外
	{
		ValueType_t=Value_Switch;
	}
	else
	{
		ValueType_t=Value_ADC;
	}
	return ValueType_t;
}

/*设备相关事项*/

#if defined (ADDR_TWO)|| defined (ADDR_THREE)

/*******************************************************************
*函数：Device_To_Master(uint8_t s_addr, uint8_t des_addr,uint8_t type_sensor,uint8_t count,uint8_t data_sensor)
*功能：节点向主控发送数据包
*输入：uint8_t s_addr ：源地址
			uint8_t des_addr ：目的地址
			uint8_t type_sensor ：传感器类型
			uint8_t count ：传感器个数，依据传感器种类决定，如采用温湿度传感器时，个数为2
			uint8_t data_sensor ：数据
*返回：无
*特殊说明：
*******************************************************************/
void Device_To_Master(uint8_t s_addr, uint8_t des_addr,uint8_t type_sensor,uint8_t count) //设备向主机发送协议

{
	uint8_t DEVICE_TX_BUF[USART2_REC_LEN]={0};
	uint8_t len=0;
	ValueType ValueType_t;

	DEVICE_TX_BUF[0]=START;
	DEVICE_TX_BUF[1]=s_addr;
	DEVICE_TX_BUF[2]=des_addr;

	DEVICE_TX_BUF[4]=type_sensor;
	DEVICE_TX_BUF[5]=count;

	ValueType_t=ValueTypes(type_sensor);

	switch(ValueType_t)
	{
		case Value_ADC:
			sprintf((char *)(DEVICE_TX_BUF+6),"%d%c%d%c",vol/100,'.',vol%100/10,'v');
			break;
		case Value_Switch:
			sprintf((char *)(DEVICE_TX_BUF+6),"%d",switching);
			break;
		case Value_I2C:
			sprintf((char *)(DEVICE_TX_BUF+6),"%c%d%c%c%c%d",'T',sensor_tem,',','R','H',sensor_hum);
			break;
		default:
			break;
	}
	len=strlen((const char *)(DEVICE_TX_BUF+6))+1+6;
	DEVICE_TX_BUF[3]=len;
	DEVICE_TX_BUF[len]=CHK(DEVICE_TX_BUF,len);


//	MAX3485_ConTx() ;
//	USART2_SendArr(DEVICE_TX_BUF,len+1);
//	MAX3485_ConRx();

	USART1_SendArr(DEVICE_TX_BUF,len+1);


}

/*******************************************************************
*函数：Device_Deal_Master(void)
*功能：节点处理主控下发的数据包
*输入：无
*返回：累加和
*特殊说明：
*******************************************************************/
void Device_Deal_Master(void) //设备处理主机下发协议
{
	uint8_t DEVICE_RX_BUF[USART2_REC_LEN]={0};
	uint8_t len=0;
	uint8_t des_addr=0,s_addr=0;
	uint8_t cmd=0;

	memset(DEVICE_RX_BUF,0x00,USART2_REC_LEN);
	memcpy(DEVICE_RX_BUF,USART2_RX_BUF,USART2_REC_LEN);

	len=DEVICE_RX_BUF[3];
	des_addr=DEVICE_RX_BUF[2];
	cmd=DEVICE_RX_BUF[4];
	s_addr=DEVICE_RX_BUF[1];

	if(DEVICE_RX_BUF[0]==START)
	{
		if(DEVICE_RX_BUF[len]==CHK(DEVICE_RX_BUF,len))
		{
			if(des_addr==M3_Addr)
			{
				switch(cmd)
					{
						case CMD_READ_SENSOR:
							Device_To_Master(M3_Addr, s_addr,Sensor_Type_t,sensor_number);
							break;

						case CMD_CONTROL_RELAY:
							Relay1_Status=DEVICE_RX_BUF[5];
						  Relay2_Status=DEVICE_RX_BUF[6];
						  Relay3_Status=DEVICE_RX_BUF[7];

						  Relay1_Status?LED1_ON:LED1_OFF;
							Relay2_Status?LED2_ON:LED2_OFF;
						  Relay3_Status?LED3_ON:LED3_OFF;

							break;

						default:
							break;
					}
			}

		}
	}
}

#endif

/*主机相关事项*/

#ifdef ADDR_ONE

/*******************************************************************
*函数：void Master_To_Device(uint8_t des_addr,uint8_t cmd,uint8_t relay1_status,uint8_t relay2_status,uint8_t relay3_status)
*功能：主控向节点发送数据包
*输入：uint8_t des_addr ：目的地址
			uint8_t cmd ：命令，1代表读取传感器数据；2代表控制节点继电器
			uint8_t relay1_status：继电器1状态（1代表开，0代表关）
      uint8_t relay2_status：继电器2状态（1代表开，0代表关）
			uint8_t relay3_status：继电器3状态（1代表开，0代表关）
*返回：无
*特殊说明：
*******************************************************************/
void Master_To_Device(uint8_t des_addr,uint8_t cmd,uint8_t relay1_status,uint8_t relay2_status,uint8_t relay3_status) //主机向设备发送协议
{
	memset(MASTER_TX_BUF,0x00,USART2_DATA_FIFO_BUF_SIZE);

	MASTER_TX_BUF[0]=START;
	MASTER_TX_BUF[1]=M3_Addr_1;
	MASTER_TX_BUF[2]=des_addr;
	MASTER_TX_BUF[3]=MASTER_TX_BUF_LEN;
	MASTER_TX_BUF[4]=cmd;
	switch(cmd)
	{
		case CMD_READ_SENSOR:
			MASTER_TX_BUF[5]=0x00;
			MASTER_TX_BUF[6]=0x00;
			MASTER_TX_BUF[7]=0x00;
			break;

		case CMD_CONTROL_RELAY:
			MASTER_TX_BUF[5]=relay1_status;
			MASTER_TX_BUF[6]=relay2_status;
			MASTER_TX_BUF[7]=relay3_status;
		  Relay1_Status=MASTER_TX_BUF[5];
		  Relay2_Status=MASTER_TX_BUF[6];
		  Relay3_Status=MASTER_TX_BUF[7];
			break;

		default:
			return;
	}
  MASTER_TX_BUF[8]=CHK(MASTER_TX_BUF,MASTER_TX_BUF_LEN);

//	MAX3485_ConTx() ;
	USART2_SendArr(MASTER_TX_BUF,9);
//	MAX3485_ConRx();

	memset(MASTER_TX_BUF,0x00,USART2_DATA_FIFO_BUF_SIZE);
}

/*******************************************************************
*函数：Master_Deal_Device(void)
*功能：主控处理节点上发的数据包
*输入：无
*返回：无
*特殊说明：
*******************************************************************/
void Master_Deal_Device(void) //主机处理设备上发协议
{
	uint8_t MASTER_RX_BUF[USART2_DATA_FIFO_BUF_SIZE]={0};
	uint8_t USART2_RX_DATA[USART2_DATA_FIFO_BUF_SIZE] = {0};
	uint8_t len=0;
	uint8_t s_addr=0;

	memset(USART2_RX_DATA,0x00,USART2_DATA_FIFO_BUF_SIZE);
	int usart2_data_len = usart2_data_fifo_len();
	while(1)
	{
		if(usart2_data_fifo_is_empty()) break;
		usart2_data_fifo_read(USART2_RX_DATA, usart2_data_len);

	}


	memset(MASTER_RX_BUF,0x00,USART2_DATA_FIFO_BUF_SIZE);
	memcpy(MASTER_RX_BUF,USART2_RX_DATA, usart2_data_len);

	len=MASTER_RX_BUF[3];
	s_addr=MASTER_RX_BUF[2];


	if(MASTER_RX_BUF[0]==START)
	{
		if(MASTER_RX_BUF[len]==CHK(MASTER_RX_BUF,len))
		{
			if(s_addr!=GATEWAY_ADDR)
			{
				Type_Sensor=MASTER_RX_BUF[4];
//			Count_Sensor=MASTER_RX_BUF[5];
			strcpy((char *)MASTER_DATA,(const char *)(MASTER_RX_BUF+6));
			}
			else
			{
				return;
			}

		}
	}

}


/*******************************************************************
*函数：Master_Deal_Gateway(void)
*功能：主控处理网关下发的数据包
*输入：无
*返回：无
*特殊说明：
*******************************************************************/
void Master_Deal_Gateway(void) //主机处理网关下发协议
{
	uint8_t MASTER_RX_BUF[USART2_DATA_FIFO_BUF_SIZE]={0};
	uint8_t USART2_RX_DATA[USART2_DATA_FIFO_BUF_SIZE] = {0};
	uint8_t len=0;
	uint8_t cmd=0;
	uint8_t d_addr=0;

	int usart2_data_len = usart2_data_fifo_len();
	memset(USART2_RX_DATA,0x00,USART2_DATA_FIFO_BUF_SIZE);
	while(1)
	{
		if(usart2_data_fifo_is_empty()) break;
		usart2_data_fifo_read(USART2_RX_DATA, usart2_data_len);

	}

	memset(MASTER_RX_BUF,0x00,USART2_DATA_FIFO_BUF_SIZE);
	memcpy(MASTER_RX_BUF,USART2_RX_DATA, usart2_data_len);

	len=MASTER_RX_BUF[3];
	d_addr=MASTER_RX_BUF[2];

	if(MASTER_RX_BUF[0]==START)
	{
		if(MASTER_RX_BUF[len]==CHK(MASTER_RX_BUF,len))
		{
			if(MASTER_RX_BUF[1]==GATEWAY_ADDR)
			{
				cmd=MASTER_RX_BUF[4];

				switch(cmd)
				{
					case CMD_READ_SENSOR:
						Master_To_Device(d_addr,CMD_READ_SENSOR,0,0,0);
						Master_Deal_Device();
//						Master_To_Gateway(d_addr);

						break;
					case CMD_CONTROL_RELAY:
						Relay1_Status=MASTER_RX_BUF[5];
					  Relay2_Status=MASTER_RX_BUF[6];
					  Relay3_Status=MASTER_RX_BUF[7];

						Master_To_Device(d_addr,CMD_CONTROL_RELAY,Relay1_Status,Relay2_Status,Relay3_Status);//主控向节点发送控制
						break;
					default:
						break;

				}

			}
		}
	}

}
// can
/*******************************************************************
*函数：Master_To_Gateway(void)
*功能：把板子自己的传感器数据上报至网关
*输入：无
*返回：无
*特殊说明：
*******************************************************************/

void Master_To_Gateway(uint16_t StdId,ValueType Value_Type,uint16_t vol,uint8_t  switching,uint16_t sensor_hum,uint16_t sensor_tem ) //CAN节点网关上发协议到网关 以便于在云平台展示
{

	memset(MASTER_TX_BUF,0x00,USART2_DATA_FIFO_BUF_SIZE);
	MASTER_TX_BUF[0]=START;
	MASTER_TX_BUF[1]=(uint8_t)StdId&0x00ff;    //取低两位做ID
	MASTER_TX_BUF[2]=StdId>>8;                 //高位在后
	MASTER_TX_BUF[3]=CMD;
	MASTER_TX_BUF[4]=LEN;
	MASTER_TX_BUF[5]=Sensor_Type_t;
	switch(Value_Type)
	{
		case Value_ADC:
			    /*.......答题区8开始.......................................*/
          //1.根据协议将vol值正确封装到	MASTER_TX_BUF[]数组中。
					MASTER_TX_BUF[6] = vol >> 8;
					MASTER_TX_BUF[7] = vol;



		      /*.......答题区8结束.......................................*/
			break;
		case Value_Switch:
					MASTER_TX_BUF[6] = 0x00;
					MASTER_TX_BUF[7] = switching;
			break;
		case Value_I2C:
			    MASTER_TX_BUF[6]=sensor_tem;
					MASTER_TX_BUF[7]=sensor_hum;
//			sprintf((char *)(DEVICE_TX_BUF+6),"%c%d%c%c%c%d",'T',sensor_tem,',','R','H',sensor_hum);
			break;
		default:
			break;
	}
	MASTER_TX_BUF[8]=CHK(MASTER_TX_BUF,8);
	MAX3485_ConTx();
	USART2_SendArr(MASTER_TX_BUF,LEN);
	MAX3485_ConRx();
	printf("发送本机传感器数据至网关 MASTER_TX_BUF = %02X %02X %02X %02X %02X %02X %02X %02X %02X  \r\n",MASTER_TX_BUF[0],MASTER_TX_BUF[1],MASTER_TX_BUF[2],MASTER_TX_BUF[3],MASTER_TX_BUF[4],MASTER_TX_BUF[5],MASTER_TX_BUF[6],MASTER_TX_BUF[7],MASTER_TX_BUF[8]);
}
/*******************************************************************
*函数：Master_To_Gateway(void)
*功能：把CAN总线上面的传感数据上报到网关
*输入：无
*返回：无
*特殊说明：
*******************************************************************/
void CAN_Master_To_Gateway( uint8_t *can_data,uint8_t len)
{
	memset(MASTER_TX_BUF,0x00,USART2_DATA_FIFO_BUF_SIZE);
	MASTER_TX_BUF[0]=START;
	MASTER_TX_BUF[1]=can_data[3];
	MASTER_TX_BUF[2]=can_data[4];
	MASTER_TX_BUF[3]=CMD;
	MASTER_TX_BUF[4]=LEN;

	/*.......答题区9开始.......................................*/
  //1.根据协议将终端节点上的传感器类型和传感器数据正确封装到MASTER_TX_BUF[]数组中。
	MASTER_TX_BUF[5] = can_data[0];
	MASTER_TX_BUF[6] = can_data[1];
	MASTER_TX_BUF[7] = can_data[2];


	/*.......答题区9结束.......................................*/


//sprintf((char *)(DEVICE_TX_BUF+6),"%c%d%c%c%c%d",'T',sensor_tem,',','R','H',sensor_hum);
	MASTER_TX_BUF[8]=CHK(MASTER_TX_BUF,8);

	MAX3485_ConTx() ;
	USART2_SendArr(MASTER_TX_BUF,LEN);
	MAX3485_ConRx();
	printf("发送CAN节点数据至网关 MASTER_TX_BUF = %02X %02X %02X %02X %02X %02X %02X %02X %02X \r\n\r\n",MASTER_TX_BUF[0],MASTER_TX_BUF[1],MASTER_TX_BUF[2],MASTER_TX_BUF[3],MASTER_TX_BUF[4],MASTER_TX_BUF[5],MASTER_TX_BUF[6],MASTER_TX_BUF[7],MASTER_TX_BUF[8]);

}

#endif

ps：题目和代码均来自新大陆，发布目的当作学习笔记，如侵权联系删除。
