单片机：STM32F407
开发板：DMF407电机开发板
平台：keil V5.31

HSE 为8MHZ
HSI为16MHZ

一、任务内嵌信号量实验

主函数

int main(void)
{
    HAL_Init();                         /* 初始化HAL库 */
    sys_stm32_clock_init(336, 8, 2, 7); /* 设置时钟,168Mhz */
    delay_init(168);                    /* 延时初始化 */
    usart_init(115200);                 /* 串口初始化为115200 */
    led_init();                         /* 初始化LED */
    lcd_init();                         /* 初始化LCD */
    key_init();                         /* 初始化按键 */
    my_mem_init(SRAMIN);                /* 初始化内部SRAM内存池 */
    my_mem_init(SRAMCCM);               /* 初始化内部SRAMCCM内存池 */

    uc_os3_demo();                      /* 运行uC/OS-III例程 */
}

ucos3

void uc_os3_demo(void)
{
    OS_ERR err;

    lcd_show_string(10, 10, 220, 32, 32, "STM32", RED);
    lcd_show_string(10, 47, 220, 24, 24, "Built-in Semaphore", RED);
    lcd_show_string(10, 76, 220, 16, 16, "ATOM@ALIENTEK", RED);

    lcd_show_string(44, 111, 200, 16, 16, "Task2 run   0 times", BLUE);
    lcd_draw_rectangle(5, 110, 234, 314, BLACK);
    lcd_draw_line(5, 130, 234, 130, BLACK);

    /* 初始化uC/OS-III */
    OSInit(&err);

    /* 创建Start Task */
    OSTaskCreate(   (OS_TCB        *)&StartTask_TCB,
                    (CPU_CHAR      *)"start_task",
                    (OS_TASK_PTR    )start_task,
                    (void          *)0,
                    (OS_PRIO        )START_TASK_PRIO,
                    (CPU_STK       *)StartTask_STK,
                    (CPU_STK_SIZE   )START_STK_SIZE / 10,
                    (CPU_STK_SIZE   )START_STK_SIZE,
                    (OS_MSG_QTY     )0,
                    (OS_TICK        )0,
                    (void          *)0,
                    (OS_OPT         )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
                    (OS_ERR        *)&err);

    /* 开始任务调度 */
    OSStart(&err);

    for (;;)
    {
        /* 不会进入这里 */
    }
}

task

void start_task(void *p_arg)
{
    OS_ERR err;
    CPU_INT32U cnts;

    /* 初始化CPU库 */
    CPU_Init();

    /* 根据配置的节拍频率配置SysTick */
    cnts = (CPU_INT32U)(HAL_RCC_GetSysClockFreq() / OSCfg_TickRate_Hz);
    OS_CPU_SysTickInit(cnts);

    /* 开启时间片调度，时间片设为默认值 */
    OSSchedRoundRobinCfg(OS_TRUE, 0, &err);

    /* 创建Task1 */
    Task1Task_STK = (CPU_STK *)mymalloc(SRAMIN, TASK1_STK_SIZE * sizeof(CPU_STK));
    OSTaskCreate(   (OS_TCB        *)&Task1Task_TCB,
                    (CPU_CHAR      *)"task1",
                    (OS_TASK_PTR    )task1,
                    (void          *)0,
                    (OS_PRIO        )TASK1_PRIO,
                    (CPU_STK       *)Task1Task_STK,
                    (CPU_STK_SIZE   )TASK1_STK_SIZE / 10,
                    (CPU_STK_SIZE   )TASK1_STK_SIZE,
                    (OS_MSG_QTY     )0,
                    (OS_TICK        )0,
                    (void          *)0,
                    (OS_OPT         )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
                    (OS_ERR        *)&err);

    /* 创建Task2 */
    Task2Task_STK = (CPU_STK *)mymalloc(SRAMIN, TASK2_STK_SIZE * sizeof(CPU_STK));
    OSTaskCreate(   (OS_TCB        *)&Task2Task_TCB,
                    (CPU_CHAR      *)"task2",
                    (OS_TASK_PTR    )task2,
                    (void          *)0,
                    (OS_PRIO        )TASK2_PRIO,
                    (CPU_STK       *)Task2Task_STK,
                    (CPU_STK_SIZE   )TASK2_STK_SIZE / 10,
                    (CPU_STK_SIZE   )TASK2_STK_SIZE,
                    (OS_MSG_QTY     )0,
                    (OS_TICK        )0,
                    (void          *)0,
                    (OS_OPT         )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
                    (OS_ERR        *)&err);

    /* 删除Start Task */
    OSTaskDel((OS_TCB *)0, &err);
}

void task1(void *p_arg)
{
    uint8_t key;
    OS_ERR err;

    while (1)
    {
        key = key_scan(0);

        switch (key)
        {
            case KEY0_PRES:
            {
                OSTaskSemPost(  (OS_TCB    *)&Task2Task_TCB,
                                (OS_OPT     )OS_OPT_POST_NONE,
                                (OS_ERR    *)&err);
                break;
            }
            default:
            {
                break;
            }
        }

        OSTimeDly(10, OS_OPT_TIME_DLY, &err);
    }
}


void task2(void *p_arg)
{
    OS_ERR err;
    uint32_t task2_num = 0;

    while (1)
    {
        OSTaskSemPend(  (OS_TICK    )0,
                        (OS_OPT     )OS_OPT_PEND_BLOCKING,
                        (CPU_TS    *)0,
                        (OS_ERR    *)&err);

        lcd_show_xnum(124, 111, ++task2_num, 3, 16, 0, BLUE);
        lcd_fill(6, 131, 233, 313, lcd_discolor[task2_num % 11]);
    }
}

测试结果

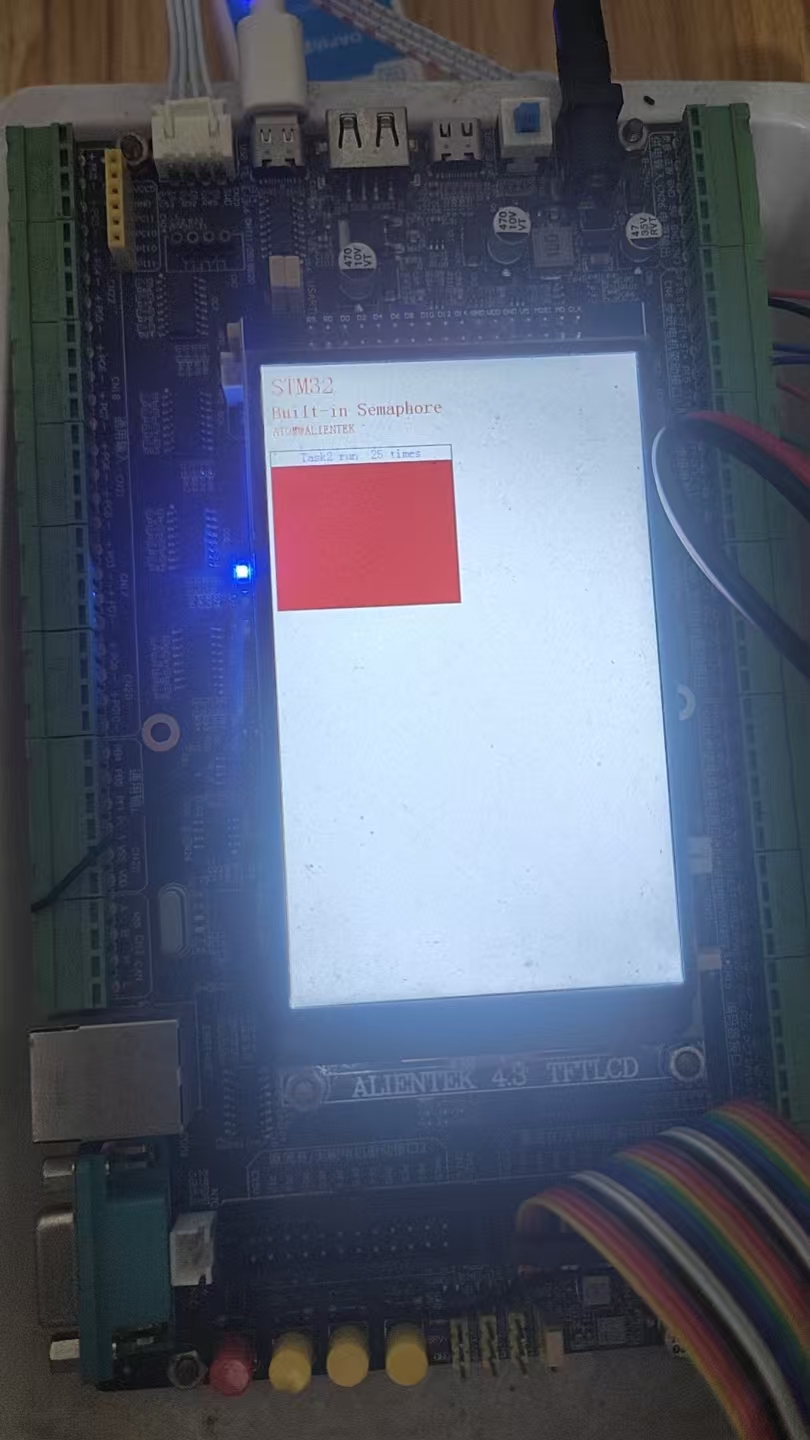

二、任务内嵌消息队列实验

主函数

int main(void)
{
    HAL_Init();                         /* 初始化HAL库 */
    sys_stm32_clock_init(336, 8, 2, 7); /* 设置时钟,168Mhz */
    delay_init(168);                    /* 延时初始化 */
    usart_init(115200);                 /* 串口初始化为115200 */
    led_init();                         /* 初始化LED */
    lcd_init();                         /* 初始化LCD */
    key_init();                         /* 初始化按键 */
    my_mem_init(SRAMIN);                /* 初始化内部SRAM内存池 */
    my_mem_init(SRAMCCM);               /* 初始化内部SRAMCCM内存池 */

    uc_os3_demo();                      /* 运行uC/OS-III例程 */
}

ucos3

void uc_os3_demo(void)
{
    OS_ERR err;

    lcd_show_string(10, 10, 220, 32, 32, "STM32", RED);
    lcd_show_string(10, 47, 220, 24, 24, "Built-in MQ", RED);
    lcd_show_string(10, 76, 220, 16, 16, "ATOM@ALIENTEK", RED);

    lcd_draw_rectangle(5, 130, 234, 314, BLACK);        /* 画矩形 */

    /* 初始化uC/OS-III */
    OSInit(&err);

    /* 创建Start Task */
    OSTaskCreate(   (OS_TCB        *)&StartTask_TCB,
                    (CPU_CHAR      *)"start_task",
                    (OS_TASK_PTR    )start_task,
                    (void          *)0,
                    (OS_PRIO        )START_TASK_PRIO,
                    (CPU_STK       *)StartTask_STK,
                    (CPU_STK_SIZE   )START_STK_SIZE / 10,
                    (CPU_STK_SIZE   )START_STK_SIZE,
                    (OS_MSG_QTY     )0,
                    (OS_TICK        )0,
                    (void          *)0,
                    (OS_OPT         )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
                    (OS_ERR        *)&err);

    /* 开始任务调度 */
    OSStart(&err);

    for (;;)
    {
        /* 不会进入这里 */
    }
}

task

void start_task(void *p_arg)
{
    OS_ERR err;
    CPU_INT32U cnts;

    /* 初始化CPU库 */
    CPU_Init();

    /* 根据配置的节拍频率配置SysTick */
    cnts = (CPU_INT32U)(HAL_RCC_GetSysClockFreq() / OSCfg_TickRate_Hz);
    OS_CPU_SysTickInit(cnts);

    /* 开启时间片调度，时间片设为默认值 */
    OSSchedRoundRobinCfg(OS_TRUE, 0, &err);

    /* 创建Task1 */
    Task1Task_STK = (CPU_STK *)mymalloc(SRAMIN, TASK1_STK_SIZE * sizeof(CPU_STK));
    OSTaskCreate(   (OS_TCB        *)&Task1Task_TCB,
                    (CPU_CHAR      *)"task1",
                    (OS_TASK_PTR    )task1,
                    (void          *)0,
                    (OS_PRIO        )TASK1_PRIO,
                    (CPU_STK       *)Task1Task_STK,
                    (CPU_STK_SIZE   )TASK1_STK_SIZE / 10,
                    (CPU_STK_SIZE   )TASK1_STK_SIZE,
                    (OS_MSG_QTY     )0,
                    (OS_TICK        )0,
                    (void          *)0,
                    (OS_OPT         )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
                    (OS_ERR        *)&err);

    /* 创建Task2 */
    Task2Task_STK = (CPU_STK *)mymalloc(SRAMIN, TASK2_STK_SIZE * sizeof(CPU_STK));
    OSTaskCreate(   (OS_TCB        *)&Task2Task_TCB,
                    (CPU_CHAR      *)"task2",
                    (OS_TASK_PTR    )task2,
                    (void          *)0,
                    (OS_PRIO        )TASK2_PRIO,
                    (CPU_STK       *)Task2Task_STK,
                    (CPU_STK_SIZE   )TASK2_STK_SIZE / 10,
                    (CPU_STK_SIZE   )TASK2_STK_SIZE,
                    (OS_MSG_QTY     )0,
                    (OS_TICK        )0,
                    (void          *)0,
                    (OS_OPT         )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
                    (OS_ERR        *)&err);

    /* 删除Start Task */
    OSTaskDel((OS_TCB *)0, &err);
}

void task1(void *p_arg)
{
    uint8_t key;
    OS_ERR err;

    while (1)
    {
        key = key_scan(0);

        if (key != 0)
        {
            OSTaskQPost((OS_TCB    *)&Task2Task_TCB,
                        (void      *)&key,
                        (OS_MSG_SIZE)sizeof(key),
                        (OS_OPT     )OS_OPT_POST_FIFO,
                        (OS_ERR    *)&err);
        }

        OSTimeDly(10, OS_OPT_TIME_DLY, &err);
    }
}


void task2(void *p_arg)
{
    uint8_t *key;
    OS_MSG_SIZE size;
    OS_ERR err;
    uint32_t task2_num = 0;

    while (1)
    {
        key = (uint8_t *)OSTaskQPend(   (OS_TICK        )0,
                                        (OS_OPT         )OS_OPT_PEND_BLOCKING,
                                        (OS_MSG_SIZE   *)&size,
                                        (CPU_TS        *)0,
                                        (OS_ERR        *)&err);

        switch (*key)
        {
            case KEY0_PRES:
            {
                lcd_fill(6, 131, 233, 313, lcd_discolor[++task2_num % 11]);
                break;
            }
            case KEY1_PRES:
            {
                LED0_TOGGLE();
                break;
            }
            default:
            {
                break;
            }
        }
    }
}

测试结果

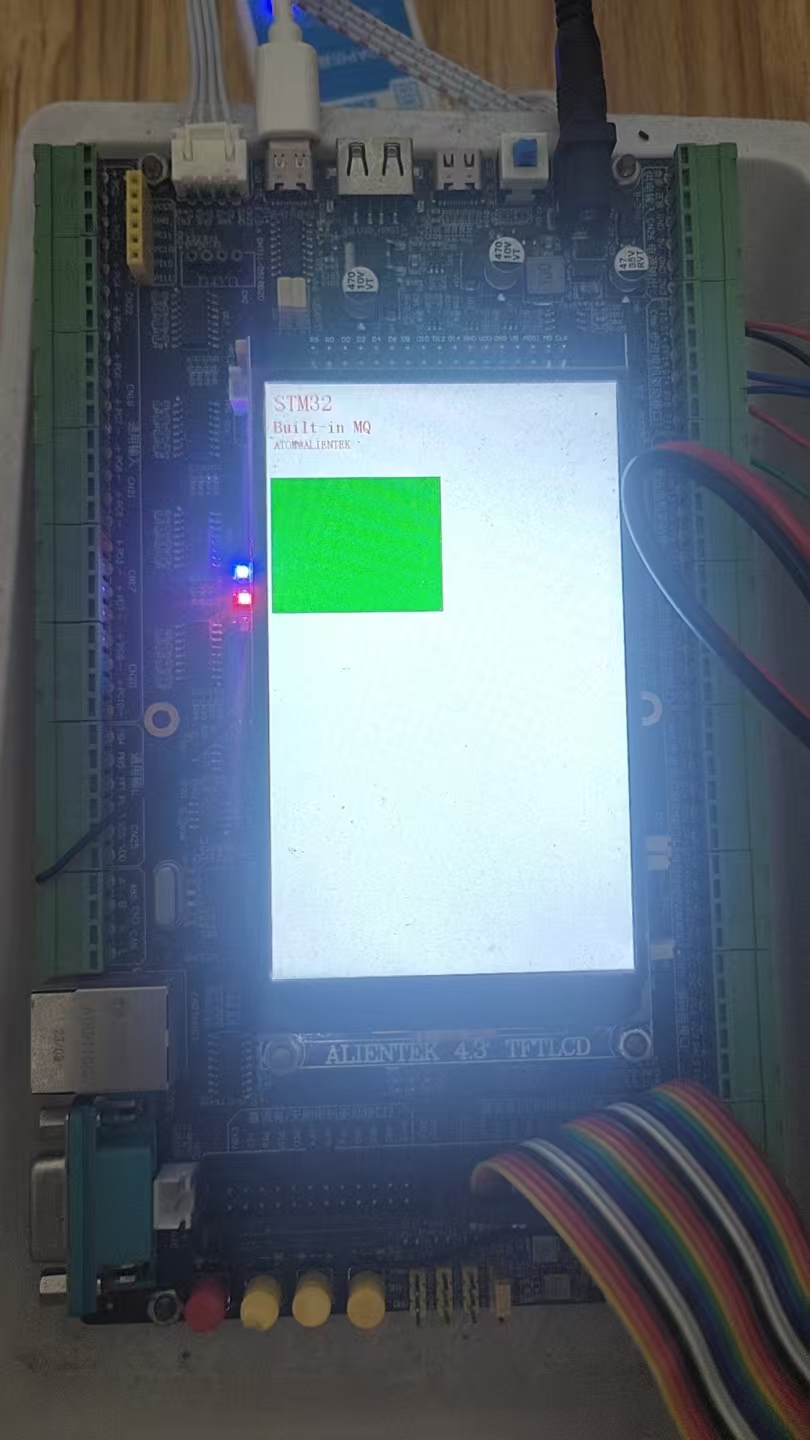

三、事件标志实验

主函数

int main(void)
{
    HAL_Init();                         /* 初始化HAL库 */
    sys_stm32_clock_init(336, 8, 2, 7); /* 设置时钟,168Mhz */
    delay_init(168);                    /* 延时初始化 */
    usart_init(115200);                 /* 串口初始化为115200 */
    led_init();                         /* 初始化LED */
    lcd_init();                         /* 初始化LCD */
    key_init();                         /* 初始化按键 */
    my_mem_init(SRAMIN);                /* 初始化内部SRAM内存池 */
    my_mem_init(SRAMCCM);               /* 初始化内部SRAMCCM内存池 */

    uc_os3_demo();                      /* 运行uC/OS-III例程 */
}

ucos3

void uc_os3_demo(void)
{
    OS_ERR err;

    lcd_show_string(10, 10, 220, 32, 32, "STM32", RED);
    lcd_show_string(10, 47, 220, 24, 24, "uC/OS-III Flag", RED);
    lcd_show_string(10, 76, 220, 16, 16, "ATOM@ALIENTEK", RED);

    lcd_draw_rectangle(5, 130, 234, 314, BLACK);         /* 画矩形 */
    lcd_show_string(59, 110, 220, 16, 16, "Flags Value: 0", BLUE);

    /* 初始化uC/OS-III */
    OSInit(&err);

    /* 创建Start Task */
    OSTaskCreate(   (OS_TCB        *)&StartTask_TCB,
                    (CPU_CHAR      *)"start_task",
                    (OS_TASK_PTR    )start_task,
                    (void          *)0,
                    (OS_PRIO        )START_TASK_PRIO,
                    (CPU_STK       *)StartTask_STK,
                    (CPU_STK_SIZE   )START_STK_SIZE / 10,
                    (CPU_STK_SIZE   )START_STK_SIZE,
                    (OS_MSG_QTY     )0,
                    (OS_TICK        )0,
                    (void          *)0,
                    (OS_OPT         )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
                    (OS_ERR        *)&err);

    /* 开始任务调度 */
    OSStart(&err);

    for (;;)
    {
        /* 不会进入这里 */
    }
}

task

void start_task(void *p_arg)
{
    OS_ERR err;
    CPU_INT32U cnts;

    /* 初始化CPU库 */
    CPU_Init();

    /* 根据配置的节拍频率配置SysTick */
    cnts = (CPU_INT32U)(HAL_RCC_GetSysClockFreq() / OSCfg_TickRate_Hz);
    OS_CPU_SysTickInit(cnts);

    /* 开启时间片调度，时间片设为默认值 */
    OSSchedRoundRobinCfg(OS_TRUE, 0, &err);

    /* 创建事件标志 */
    OSFlagCreate(   (OS_FLAG_GRP   *)&flag,
                    (CPU_CHAR      *)"flag",
                    (OS_FLAGS       )0,
                    (OS_ERR        *)&err);

    /* 创建Task1 */
    Task1Task_STK = (CPU_STK *)mymalloc(SRAMIN, TASK1_STK_SIZE * sizeof(CPU_STK));
    OSTaskCreate(   (OS_TCB        *)&Task1Task_TCB,
                    (CPU_CHAR      *)"task1",
                    (OS_TASK_PTR    )task1,
                    (void          *)0,
                    (OS_PRIO        )TASK1_PRIO,
                    (CPU_STK       *)Task1Task_STK,
                    (CPU_STK_SIZE   )TASK1_STK_SIZE / 10,
                    (CPU_STK_SIZE   )TASK1_STK_SIZE,
                    (OS_MSG_QTY     )0,
                    (OS_TICK        )0,
                    (void          *)0,
                    (OS_OPT         )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
                    (OS_ERR        *)&err);

    /* 创建Task2 */
    Task2Task_STK = (CPU_STK *)mymalloc(SRAMIN, TASK2_STK_SIZE * sizeof(CPU_STK));
    OSTaskCreate(   (OS_TCB        *)&Task2Task_TCB,
                    (CPU_CHAR      *)"task2",
                    (OS_TASK_PTR    )task2,
                    (void          *)0,
                    (OS_PRIO        )TASK2_PRIO,
                    (CPU_STK       *)Task2Task_STK,
                    (CPU_STK_SIZE   )TASK2_STK_SIZE / 10,
                    (CPU_STK_SIZE   )TASK2_STK_SIZE,
                    (OS_MSG_QTY     )0,
                    (OS_TICK        )0,
                    (void          *)0,
                    (OS_OPT         )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
                    (OS_ERR        *)&err);

    /* 创建Task3 */
    Task3Task_STK = (CPU_STK *)mymalloc(SRAMIN, TASK3_STK_SIZE * sizeof(CPU_STK));
    OSTaskCreate(   (OS_TCB        *)&Task3Task_TCB,
                    (CPU_CHAR      *)"task3",
                    (OS_TASK_PTR    )task3,
                    (void          *)0,
                    (OS_PRIO        )TASK3_PRIO,
                    (CPU_STK       *)Task3Task_STK,
                    (CPU_STK_SIZE   )TASK3_STK_SIZE / 10,
                    (CPU_STK_SIZE   )TASK3_STK_SIZE,
                    (OS_MSG_QTY     )0,
                    (OS_TICK        )0,
                    (void          *)0,
                    (OS_OPT         )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
                    (OS_ERR        *)&err);

    /* 删除Start Task */
    OSTaskDel((OS_TCB *)0, &err);
}

void task1(void *p_arg)
{
    uint8_t key;
    OS_ERR err;

    while (1)
    {
        key = key_scan(0);

        switch (key)
        {
            case KEY0_PRES:
            {
                OSFlagPost( (OS_FLAG_GRP   *)&flag,
                            (OS_FLAGS       )FLAGBIT_0,
                            (OS_OPT         )OS_OPT_POST_FLAG_SET,
                            (OS_ERR        *)&err);
                break;
            }
            case KEY1_PRES:
            {
                OSFlagPost( (OS_FLAG_GRP   *)&flag,
                            (OS_FLAGS       )FLAGBIT_1,
                            (OS_OPT         )OS_OPT_POST_FLAG_SET,
                            (OS_ERR        *)&err);
                break;
            }
            default:
            {
                break;
            }
        }

        OSTimeDly(10, OS_OPT_TIME_DLY, &err);
    }
}


void task2(void *p_arg)
{
    uint32_t task2_num = 0;
    OS_ERR err;
    CPU_SR_ALLOC();

    while (1)
    {
        OSFlagPend( (OS_FLAG_GRP   *)&flag,
                    (OS_FLAGS       )FLAGBIT_ALL,
                    (OS_TICK        )0,
                    (OS_OPT         )OS_OPT_PEND_FLAG_SET_ALL |
                                     OS_OPT_PEND_FLAG_CONSUME |
                                     OS_OPT_PEND_BLOCKING,
                    (CPU_TS        *)0,
                    (OS_ERR        *)&err);

        CPU_CRITICAL_ENTER();
        lcd_fill(6, 131, 233, 313, lcd_discolor[++task2_num % 11]);
        CPU_CRITICAL_EXIT();
    }
}


void task3(void *p_arg)
{
    OS_FLAGS flags;
    OS_ERR err;
    CPU_SR_ALLOC();

    while (1)
    {
        flags = flag.Flags;

        CPU_CRITICAL_ENTER();
        lcd_show_xnum(163, 110, flags, 1, 16, 0, BLUE);
        CPU_CRITICAL_EXIT();

        OSTimeDly(10, OS_OPT_TIME_DLY, &err);
    }
}

测试结果

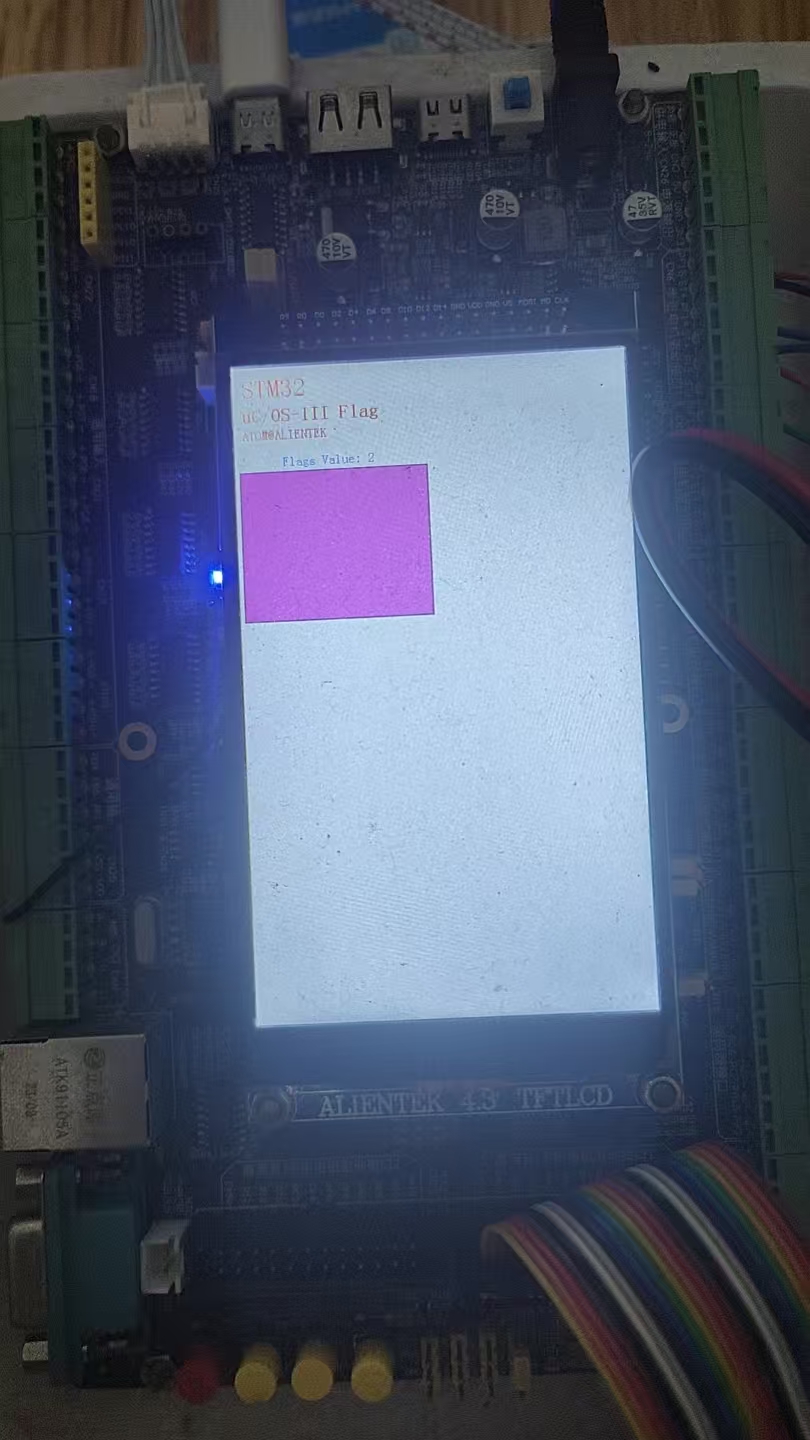

四、软件定时器实验

主函数

int main(void)
{
    HAL_Init();                         /* 初始化HAL库 */
    sys_stm32_clock_init(336, 8, 2, 7); /* 设置时钟,168Mhz */
    delay_init(168);                    /* 延时初始化 */
    usart_init(115200);                 /* 串口初始化为115200 */
    led_init();                         /* 初始化LED */
    lcd_init();                         /* 初始化LCD */
    key_init();                         /* 初始化按键 */
    my_mem_init(SRAMIN);                /* 初始化内部SRAM内存池 */
    my_mem_init(SRAMCCM);               /* 初始化内部SRAMCCM内存池 */

    uc_os3_demo();                      /* 运行uC/OS-III例程 */
}

ucos3

void uc_os3_demo(void)
{
    OS_ERR err;

    lcd_show_string(10, 10, 220, 32, 32, "STM32", RED);
    lcd_show_string(10, 47, 220, 24, 24, "uC/OS-III Timer", RED);
    lcd_show_string(10, 76, 220, 16, 16, "ATOM@ALIENTEK", RED);

    lcd_draw_rectangle(5, 110, 115, 314, BLACK);
    lcd_draw_rectangle(125, 110, 234, 314, BLACK);
    lcd_draw_line(5, 130, 115, 130, BLACK);
    lcd_draw_line(125, 130, 234, 130, BLACK);
    lcd_show_string(15, 111, 110, 16, 16, "Timer1: 000", BLUE);
    lcd_show_string(135, 111, 110, 16, 16, "Timer2: 000", BLUE);

    /* 初始化uC/OS-III */
    OSInit(&err);

    /* 创建Start Task */
    OSTaskCreate(   (OS_TCB        *)&StartTask_TCB,
                    (CPU_CHAR      *)"start_task",
                    (OS_TASK_PTR    )start_task,
                    (void          *)0,
                    (OS_PRIO        )START_TASK_PRIO,
                    (CPU_STK       *)StartTask_STK,
                    (CPU_STK_SIZE   )START_STK_SIZE / 10,
                    (CPU_STK_SIZE   )START_STK_SIZE,
                    (OS_MSG_QTY     )0,
                    (OS_TICK        )0,
                    (void          *)0,
                    (OS_OPT         )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
                    (OS_ERR        *)&err);

    /* 开始任务调度 */
    OSStart(&err);

    for (;;)
    {
        /* 不会进入这里 */
    }
}

task

void start_task(void *p_arg)
{
    OS_ERR err;
    CPU_INT32U cnts;

    /* 初始化CPU库 */
    CPU_Init();

    /* 根据配置的节拍频率配置SysTick */
    cnts = (CPU_INT32U)(HAL_RCC_GetSysClockFreq() / OSCfg_TickRate_Hz);
    OS_CPU_SysTickInit(cnts);

    /* 开启时间片调度，时间片设为默认值 */
    OSSchedRoundRobinCfg(OS_TRUE, 0, &err);

    /* 创建软件定时器1 */
    OSTmrCreate((OS_TMR            *)&Timer1,
                (CPU_CHAR          *)"Timer1",
                (OS_TICK            )10,
                (OS_TICK            )0,
                (OS_OPT             )OS_OPT_TMR_ONE_SHOT,
                (OS_TMR_CALLBACK_PTR)timer_cb,
                (void              *)0,
                (OS_ERR            *)&err);

    /* 创建软件定时器2 */
    OSTmrCreate((OS_TMR            *)&Timer2,
                (CPU_CHAR          *)"Timer2",
                (OS_TICK            )0,
                (OS_TICK            )10,
                (OS_OPT             )OS_OPT_TMR_PERIODIC,
                (OS_TMR_CALLBACK_PTR)timer_cb,
                (void              *)0,
                (OS_ERR            *)&err);

    /* 创建Task1 */
    Task1Task_STK = (CPU_STK *)mymalloc(SRAMIN, TASK1_STK_SIZE * sizeof(CPU_STK));
    OSTaskCreate(   (OS_TCB        *)&Task1Task_TCB,
                    (CPU_CHAR      *)"task1",
                    (OS_TASK_PTR    )task1,
                    (void          *)0,
                    (OS_PRIO        )TASK1_PRIO,
                    (CPU_STK       *)Task1Task_STK,
                    (CPU_STK_SIZE   )TASK1_STK_SIZE / 10,
                    (CPU_STK_SIZE   )TASK1_STK_SIZE,
                    (OS_MSG_QTY     )0,
                    (OS_TICK        )0,
                    (void          *)0,
                    (OS_OPT         )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
                    (OS_ERR        *)&err);

    /* 删除Start Task */
    OSTaskDel((OS_TCB *)0, &err);
}

void task1(void *p_arg)
{
    uint8_t key;
    OS_ERR err;

    while (1)
    {
        key = key_scan(0);

        switch (key)
        {
            case KEY0_PRES:         /* 启动软件定时器 */
            {
                OSTmrStart(&Timer1, &err);
                OSTmrStart(&Timer2, &err);
                break;
            }
            case KEY1_PRES:         /* 停止软件定时器 */
            {
                OSTmrStop(&Timer1, OS_OPT_TMR_NONE, NULL, &err);
                OSTmrStop(&Timer2, OS_OPT_TMR_NONE, NULL, &err);
                break;
            }
            default:
            {
                break;
            }
        }

        OSTimeDly(10, OS_OPT_TIME_DLY, &err);
    }
}


void timer_cb(void *p_tmr, void *p_arg)
{
    static uint32_t timer1_num = 0;
    static uint32_t timer2_num = 0;

    if (p_tmr == &Timer1)
    {
        lcd_fill(6, 131, 114, 313, lcd_discolor[++timer1_num % 11]);    /* LCD区域刷新 */
        lcd_show_xnum(79, 111, timer1_num, 3, 16, 0x80, BLUE);          /* 显示定时器1超时次数 */
    }
    else if (p_tmr == &Timer2)
    {
        lcd_fill(126, 131, 233, 313, lcd_discolor[++timer2_num % 11]);  /* LCD区域刷新 */
        lcd_show_xnum(199, 111, timer2_num, 3, 16, 0x80, BLUE);         /* 显示定时器2超时次数 */
    }
    else
    {
        /* 什么都不做 */
    }
}

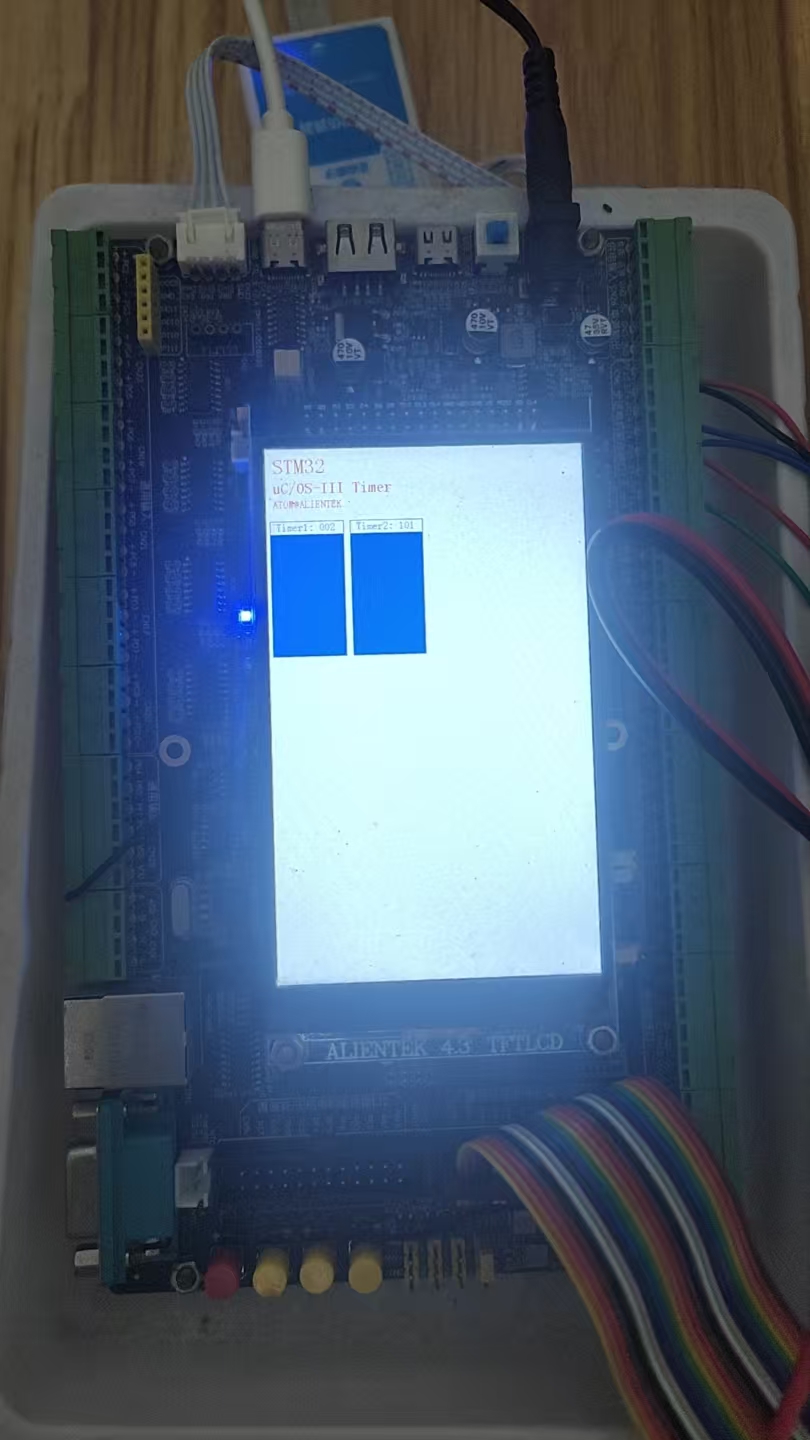

测试结果

五、时间戳实验‘

主函数

int main(void)
{
    HAL_Init();                         /* 初始化HAL库 */
    sys_stm32_clock_init(336, 8, 2, 7); /* 设置时钟,168Mhz */
    delay_init(168);                    /* 延时初始化 */
    usart_init(115200);                 /* 串口初始化为115200 */
    led_init();                         /* 初始化LED */
    lcd_init();                         /* 初始化LCD */
    key_init();                         /* 初始化按键 */
    my_mem_init(SRAMIN);                /* 初始化内部SRAM内存池 */
    my_mem_init(SRAMCCM);               /* 初始化内部SRAMCCM内存池 */

    uc_os3_demo();                      /* 运行uC/OS-III例程 */
}

ucos3

void uc_os3_demo(void)
{
    OS_ERR err;

    lcd_show_string(10, 10, 220, 32, 32, "STM32", RED);
    lcd_show_string(10, 47, 220, 24, 24, "uC/OS-III TS", RED);
    lcd_show_string(10, 76, 220, 16, 16, "ATOM@ALIENTEK", RED);

    lcd_draw_rectangle(5, 110, 234, 314, BLACK);
    lcd_draw_line(5, 130, 234, 130, BLACK);

    /* 初始化uC/OS-III */
    OSInit(&err);

    /* 创建Start Task */
    OSTaskCreate(   (OS_TCB        *)&StartTask_TCB,
                    (CPU_CHAR      *)"start_task",
                    (OS_TASK_PTR    )start_task,
                    (void          *)0,
                    (OS_PRIO        )START_TASK_PRIO,
                    (CPU_STK       *)StartTask_STK,
                    (CPU_STK_SIZE   )START_STK_SIZE / 10,
                    (CPU_STK_SIZE   )START_STK_SIZE,
                    (OS_MSG_QTY     )0,
                    (OS_TICK        )0,
                    (void          *)0,
                    (OS_OPT         )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
                    (OS_ERR        *)&err);

    /* 开始任务调度 */
    OSStart(&err);

    for (;;)
    {
        /* 不会进入这里 */
    }
}

task

void start_task(void *p_arg)
{
    OS_ERR err;
    CPU_INT32U cnts;

    /* 初始化CPU库 */
    CPU_Init();

    /* 根据配置的节拍频率配置SysTick */
    cnts = (CPU_INT32U)(HAL_RCC_GetSysClockFreq() / OSCfg_TickRate_Hz);
    OS_CPU_SysTickInit(cnts);

    /* 开启时间片调度，时间片设为默认值 */
    OSSchedRoundRobinCfg(OS_TRUE, 0, &err);

    /* 创建Task1 */
    Task1Task_STK = (CPU_STK *)mymalloc(SRAMIN, TASK1_STK_SIZE * sizeof(CPU_STK));
    OSTaskCreate(   (OS_TCB        *)&Task1Task_TCB,
                    (CPU_CHAR      *)"task1",
                    (OS_TASK_PTR    )task1,
                    (void          *)0,
                    (OS_PRIO        )TASK1_PRIO,
                    (CPU_STK       *)Task1Task_STK,
                    (CPU_STK_SIZE   )TASK1_STK_SIZE / 10,
                    (CPU_STK_SIZE   )TASK1_STK_SIZE,
                    (OS_MSG_QTY     )0,
                    (OS_TICK        )0,
                    (void          *)0,
                    (OS_OPT         )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
                    (OS_ERR        *)&err);

    /* 删除Start Task */
    OSTaskDel((OS_TCB *)0, &err);
}

void task1(void *p_arg)
{
    uint8_t key;
    CPU_TS_TMR start_ts, end_ts, delta_ts;
    CPU_INT64U delta_us;
    uint32_t task1_num = 0;
    OS_ERR err;

    while (1)
    {
        key = key_scan(0);

        switch (key)
        {
            case KEY0_PRES:
            {
                start_ts = OS_TS_GET();
                lcd_fill(6, 131, 233, 313, lcd_discolor[++task1_num % 11]);
                end_ts = OS_TS_GET();
                delta_ts = end_ts - start_ts;
                delta_us = CPU_TS32_to_uSec(delta_ts);
                lcd_show_string(54, 111, 200, 16, 16, "Delta Us:      us", BLUE);
                lcd_show_num(134, 111, delta_us, 5, 16, BLUE);
            }
            default:
            {
                break;
            }
        }

        OSTimeDly(10, OS_OPT_TIME_DLY, &err);
    }
}

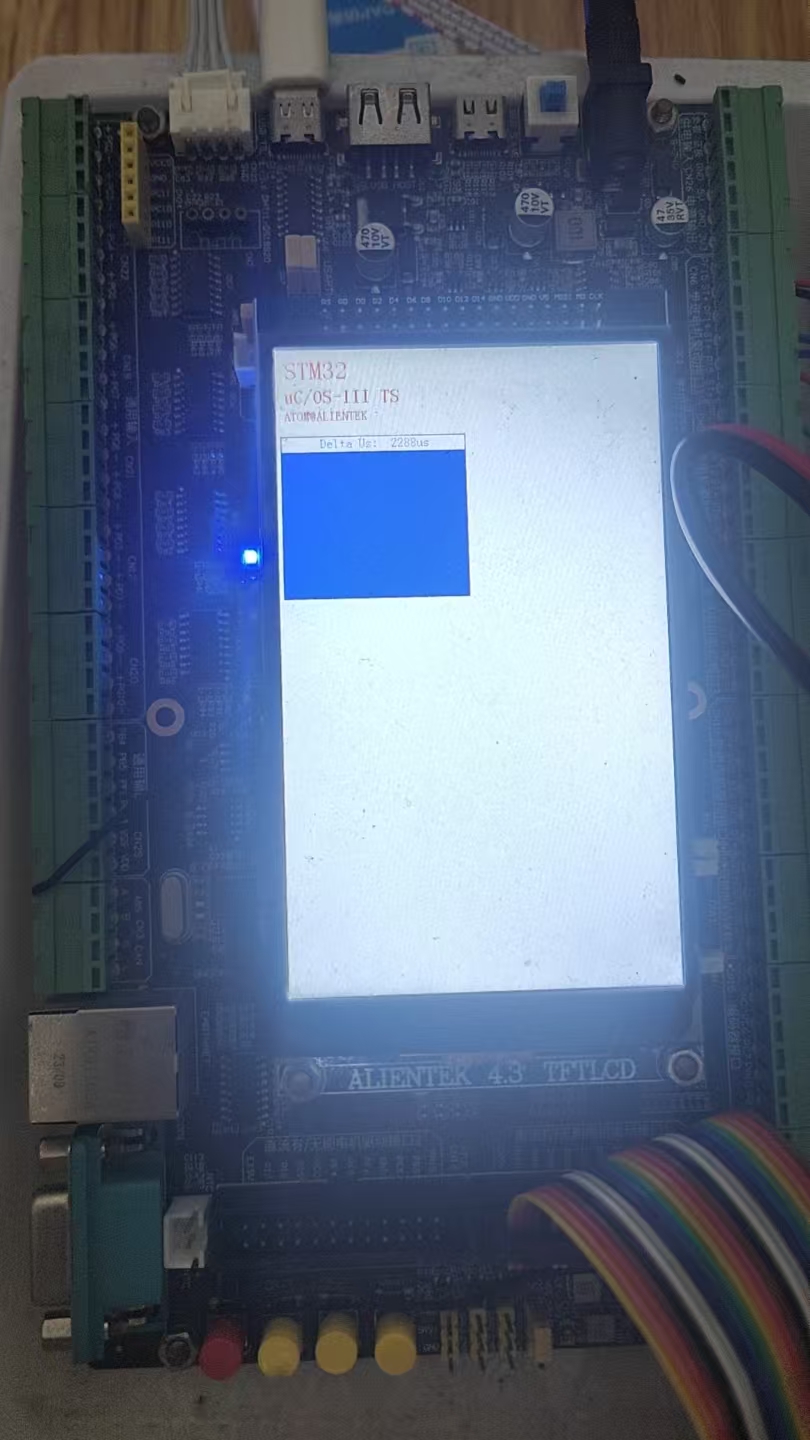

测试结果

六、内存管理实验

主函数

int main(void)
{
    HAL_Init();                         /* 初始化HAL库 */
    sys_stm32_clock_init(336, 8, 2, 7); /* 设置时钟,168Mhz */
    delay_init(168);                    /* 延时初始化 */
    usart_init(115200);                 /* 串口初始化为115200 */
    led_init();                         /* 初始化LED */
    lcd_init();                         /* 初始化LCD */
    key_init();                         /* 初始化按键 */
    my_mem_init(SRAMIN);                /* 初始化内部SRAM内存池 */
    my_mem_init(SRAMCCM);               /* 初始化内部SRAMCCM内存池 */

    uc_os3_demo();                      /* 运行uC/OS-III例程 */
}

ucos3

void uc_os3_demo(void)
{
    OS_ERR err;

    lcd_show_string(10, 10, 220, 32, 32, "STM32", RED);
    lcd_show_string(10, 47, 220, 24, 24, "Mem Manage", RED);
    lcd_show_string(10, 76, 220, 16, 16, "ATOM@ALIENTEK", RED);

    lcd_show_string(30, 118, 200, 16, 16, "Total Block Count:", RED);
    lcd_show_string(30, 139, 200, 16, 16, "Free  Block Count:", RED);
    lcd_show_string(30, 160, 200, 16, 16, "Get Block Addr:", RED);

    /* 初始化uC/OS-III */
    OSInit(&err);

    /* 创建Start Task */
    OSTaskCreate(   (OS_TCB        *)&StartTask_TCB,
                    (CPU_CHAR      *)"start_task",
                    (OS_TASK_PTR    )start_task,
                    (void          *)0,
                    (OS_PRIO        )START_TASK_PRIO,
                    (CPU_STK       *)StartTask_STK,
                    (CPU_STK_SIZE   )START_STK_SIZE / 10,
                    (CPU_STK_SIZE   )START_STK_SIZE,
                    (OS_MSG_QTY     )0,
                    (OS_TICK        )0,
                    (void          *)0,
                    (OS_OPT         )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
                    (OS_ERR        *)&err);

    /* 开始任务调度 */
    OSStart(&err);

    for (;;)
    {
        /* 不会进入这里 */
    }
}

task

void start_task(void *p_arg)
{
    OS_ERR err;
    CPU_INT32U cnts;

    /* 初始化CPU库 */
    CPU_Init();

    /* 根据配置的节拍频率配置SysTick */
    cnts = (CPU_INT32U)(HAL_RCC_GetSysClockFreq() / OSCfg_TickRate_Hz);
    OS_CPU_SysTickInit(cnts);

    /* 开启时间片调度，时间片设为默认值 */
    OSSchedRoundRobinCfg(OS_TRUE, 0, &err);

    /* 创建由uC/OS-III管理的内存 */
    OSMemCreate((OS_MEM *)&mem,
                (CPU_CHAR *)"mem",
                (void *)memory,
                (OS_MEM_QTY)MEM_BLOCK_CNT,
                (OS_MEM_SIZE)MEM_BLOCK_SIZE,
                (OS_ERR *)&err);

    /* 创建Task1 */
    Task1Task_STK = (CPU_STK *)mymalloc(SRAMIN, TASK1_STK_SIZE * sizeof(CPU_STK));
    OSTaskCreate(   (OS_TCB        *)&Task1Task_TCB,
                    (CPU_CHAR      *)"task1",
                    (OS_TASK_PTR    )task1,
                    (void          *)0,
                    (OS_PRIO        )TASK1_PRIO,
                    (CPU_STK       *)Task1Task_STK,
                    (CPU_STK_SIZE   )TASK1_STK_SIZE / 10,
                    (CPU_STK_SIZE   )TASK1_STK_SIZE,
                    (OS_MSG_QTY     )0,
                    (OS_TICK        )0,
                    (void          *)0,
                    (OS_OPT         )(OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR),
                    (OS_ERR        *)&err);

    /* 删除Start Task */
    OSTaskDel((OS_TCB *)0, &err);
}

void task1(void *p_arg)
{
    uint8_t key;
    OS_ERR err;
    uint8_t *buf = NULL;

    while (1)
    {
        key = key_scan(0);

        switch (key)
        {
            case KEY0_PRES:
            {
                buf = OSMemGet( (OS_MEM *)&mem,
                                (OS_ERR *)&err);
                if (buf != NULL)
                {
                    sprintf((char *)buf, "0x%p", buf);
                    lcd_show_string(158, 160, 200, 16, 16, (char *)buf, BLUE);
                }
                else
                {
                    lcd_show_string(158, 160, 200, 16, 16, "          ", RED);
                    lcd_show_string(158, 160, 200, 16, 16, "Failed!", RED);
                }
                break;
            }
            case KEY1_PRES:
            {
                if (buf != NULL)
                {
                    OSMemPut(   (OS_MEM *)&mem,
                                (void *)buf,
                                (OS_ERR *)&err);
                    buf = NULL;
                }
                break;
            }
            default:
            {
                break;
            }
        }

        lcd_show_xnum(182, 118, mem.NbrMax, 1, 16, 0, BLUE);
        lcd_show_xnum(182, 139, mem.NbrFree, 1, 16, 0, BLUE);

        OSTimeDly(10, OS_OPT_TIME_DLY, &err);
    }
}

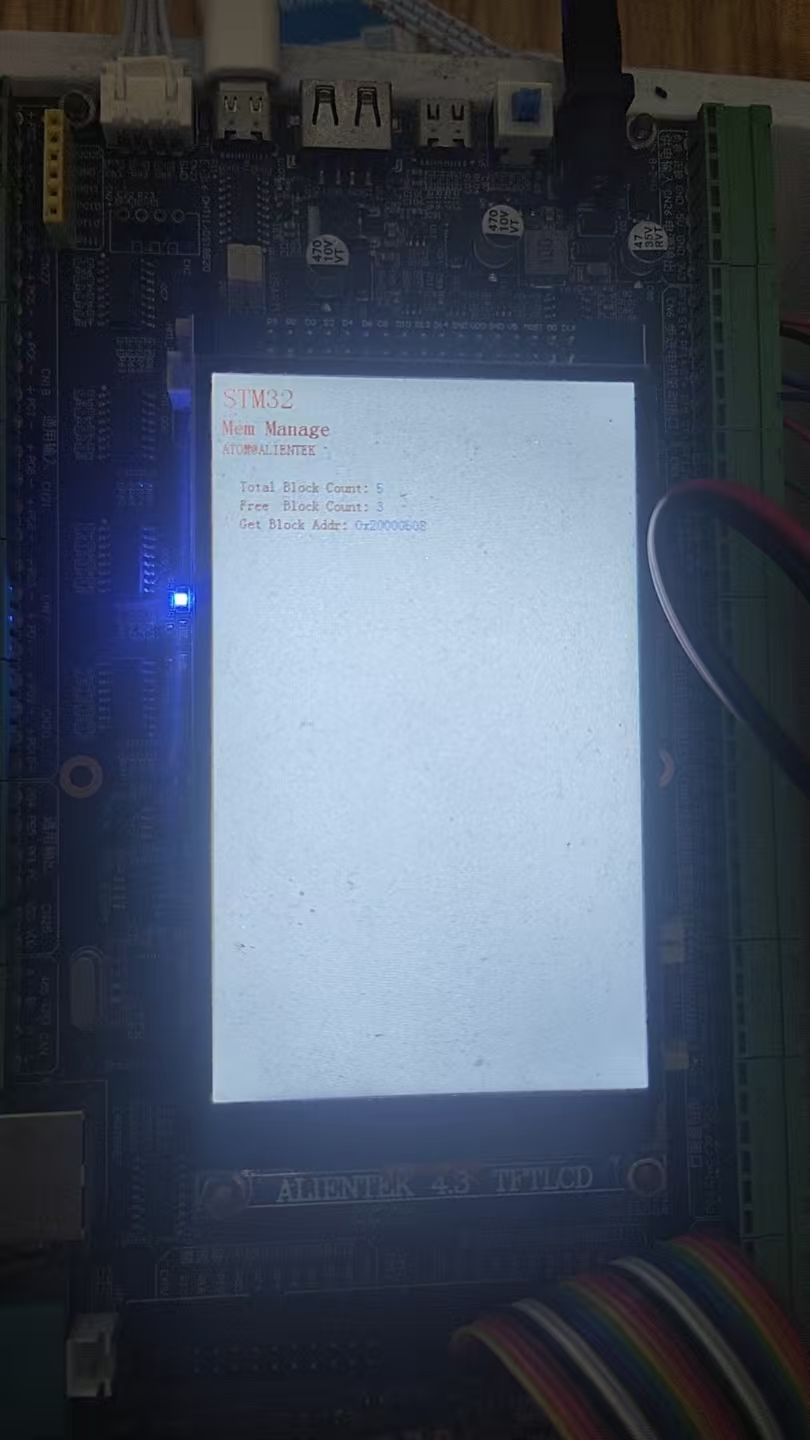

测试结果

AI硬件创业社区

智能硬件社区聚焦AI智能硬件技术生态，汇聚嵌入式AI、物联网硬件开发者，打造交流分享平台，同步全国赛事资讯、开展 OPC 核心人才招募，助力技术落地与开发者成长。

更多推荐

嵌入式开发入门：C语言与单片机

以点亮LED为例，通过配置GPIO引脚的电平输出，即可理解硬件控制的基本逻辑。进阶阶段可学习STM32的HAL库或寄存器开发，掌握更复杂的外设驱动，如ADC采样或PWM波形生成。在智能硬件飞速发展的今天，嵌入式系统已渗透到生活的方方面面，从智能家居到工业控制，处处可见其身影。本文将带你走进嵌入式开发的世界，从基础概念到实践技巧，助你快速掌握这一领域的核心技能。嵌入式开发是一门融合软硬件的技术，C语

AI硬件创业社区

STM32F103 + QMC5883LSSD1306 OLED 电子罗盘基于开源硬件与STM32Cube HAL的完整设计方案

系统启动后通过 I2C 总线探测多个候选地址（0x0D、0x1E、0x30、0x3C），通过读取 ID 寄存器区分 QMC5883L（0x0D 寄存器值为 0xFF）和 HMC5883L（0x00 寄存器值为 0x48）。系统采用 8MHz 外部晶振（HSE），通过 PLL 9 倍频得到 72MHz 系统时钟。QMC5883L 是 3 轴 AMR（各向异性磁阻）磁传感器，支持 I2C 接口（7位地

AI硬件创业社区

ESP8266-ESP32 物联网开发入门

安装完成后，添加ESP8266/ESP32开发板支持库，并配置正确的端口和参数。例如，使用ESP32向服务器发送传感器数据，或通过手机APP远程控制设备。掌握这些基础通信功能，是开发物联网项目的关键一步。作为物联网开发的热门选择，ESP8266和ESP32凭借低成本、高性能和丰富的开发资源，成为初学者和工程师的首选。本文将介绍如何快速入门ESP8266/ESP32开发，帮助读者掌握核心技能并实现创
