单片机IWIP SOCKET UDP实验

吴169

17人浏览 · 2026-06-29 23:04:13

吴169 · 2026-06-29 23:04:13 发布

单片机：STM32F407
开发板：DMF407电机开发板
平台：keil V5.31

HSE 为8MHZ
HSI为16MHZ

主函数

int main(void)
{
    HAL_Init();                         /* 初始化HAL库 */
    sys_stm32_clock_init(336, 8, 2, 7); /* 设置时钟,168Mhz */
    delay_init(168);                    /* 延时初始化 */
    usart_init(115200);                 /* 串口初始化为115200 */
    usmart_dev.init(84);                /* 初始化USMART */
    led_init();                         /* 初始化LED */
    lcd_init();                         /* 初始化LCD */
    key_init();                         /* 初始化按键 */

    my_mem_init(SRAMIN);                /* 初始化内部SRAM内存池 */
    my_mem_init(SRAMCCM);               /* 初始化内部SRAMCCM内存池 */

    freertos_demo();                    /* 创建lwIP的任务函数 */
}

void freertos_demo(void)
{
    /* start_task任务 */
    xTaskCreate((TaskFunction_t )start_task,
                (const char *   )"start_task",
                (uint16_t       )START_STK_SIZE,
                (void *         )NULL,
                (UBaseType_t    )START_TASK_PRIO,
                (TaskHandle_t * )&StartTask_Handler);

    vTaskStartScheduler(); /* 开启任务调度 */
}

void start_task(void *pvParameters)
{
    pvParameters = pvParameters;

    g_lwipdev.lwip_display_fn = lwip_test_ui;

    lwip_test_ui(1);    /* 加载后前部分UI */

    while (lwip_comm_init() != 0)
    {
        lcd_show_string(30, 110, 200, 16, 16, "lwIP Init failed!!", RED);
        delay_ms(500);
        lcd_fill(30, 50, 200 + 30, 50 + 16, WHITE);
        lcd_show_string(30, 110, 200, 16, 16, "Retrying...       ", RED);
        delay_ms(500);
        LED1_TOGGLE();
    }

    while (!ethernet_read_phy(PHY_SR))  /* 检查MCU与PHY芯片是否通信成功 */
    {
        printf("MCU与PHY芯片通信失败，请检查电路或者源码！！！！\r\n");
    }

    while ((g_lwipdev.dhcpstatus != 2)&&(g_lwipdev.dhcpstatus != 0XFF))  /* 等待DHCP获取成功/超时溢出 */
    {
        vTaskDelay(5);
    }



    taskENTER_CRITICAL();           /* 进入临界区 */

    g_display_queue = xQueueCreate(DISPLAYMSG_Q_NUM,200);      /* 创建消息Message_Queue,队列项长度是200长度 */

    /* 创建lwIP任务 */
    xTaskCreate((TaskFunction_t )lwip_demo_task,
                (const char*    )"lwip_demo_task",
                (uint16_t       )LWIP_DMEO_STK_SIZE,
                (void*          )NULL,
                (UBaseType_t    )LWIP_DMEO_TASK_PRIO,
                (TaskHandle_t*  )&LWIP_Task_Handler);

    /* key任务 */
    xTaskCreate((TaskFunction_t )key_task,
                (const char *   )"key_task",
                (uint16_t       )KEY_STK_SIZE,
                (void *         )NULL,
                (UBaseType_t    )KEY_TASK_PRIO,
                (TaskHandle_t * )&KEYTask_Handler);

    /* LED测试任务 */
    xTaskCreate((TaskFunction_t )led_task,
                (const char*    )"led_task",
                (uint16_t       )LED_STK_SIZE,
                (void*          )NULL,
                (UBaseType_t    )LED_TASK_PRIO,
                (TaskHandle_t*  )&LEDTask_Handler);

    /* 显示任务 */
    xTaskCreate((TaskFunction_t )display_task,
                (const char*    )"display_task",
                (uint16_t       )DISPLAY_STK_SIZE,
                (void*          )NULL,
                (UBaseType_t    )DISPLAY_TASK_PRIO,
                (TaskHandle_t*  )&DISPLAYTask_Handler);

    vTaskDelete(StartTask_Handler); /* 删除开始任务 */
    taskEXIT_CRITICAL();            /* 退出临界区 */

}

void lwip_demo_task(void *pvParameters)
{
    pvParameters = pvParameters;

    lwip_demo();            /* lwip测试代码 */

    while (1)
    {
        vTaskDelay(5);
    }
}

void lwip_demo(void)
{
    BaseType_t lwip_err;
    char *tbuf;
    lwip_data_send();                                   /* 创建发送数据线程 */
    memset(&g_local_info, 0, sizeof(struct sockaddr_in)); /* 将服务器地址清空 */
    g_local_info.sin_len = sizeof(g_local_info);
    g_local_info.sin_family = AF_INET;                    /* IPv4地址 */
    g_local_info.sin_port = htons(LWIP_DEMO_PORT);        /* 设置端口号 */
    g_local_info.sin_addr.s_addr = htons(INADDR_ANY);     /* 设置本地IP地址 */

    g_sock_fd = socket(AF_INET, SOCK_DGRAM, 0);           /* 建立一个新的socket连接 */

    tbuf = mymalloc(SRAMIN, 200); /* 申请内存 */
    sprintf((char *)tbuf, "Port:%d", LWIP_DEMO_PORT); /* 客户端端口号 */
    lcd_show_string(5, 150, 200, 16, 16, tbuf, BLUE);

    /* 建立绑定 */
    bind(g_sock_fd, (struct sockaddr *)&g_local_info, sizeof(struct sockaddr_in));

    while (1)
    {
        memset(g_lwip_demo_recvbuf, 0, sizeof(g_lwip_demo_recvbuf));
        recv(g_sock_fd, (void *)g_lwip_demo_recvbuf, sizeof(g_lwip_demo_recvbuf), 0);

        lwip_err = xQueueSend(g_display_queue,&g_lwip_demo_recvbuf,0);

        if (lwip_err == errQUEUE_FULL)
        {
            printf("队列Key_Queue已满，数据发送失败!\r\n");
        }
    }
}

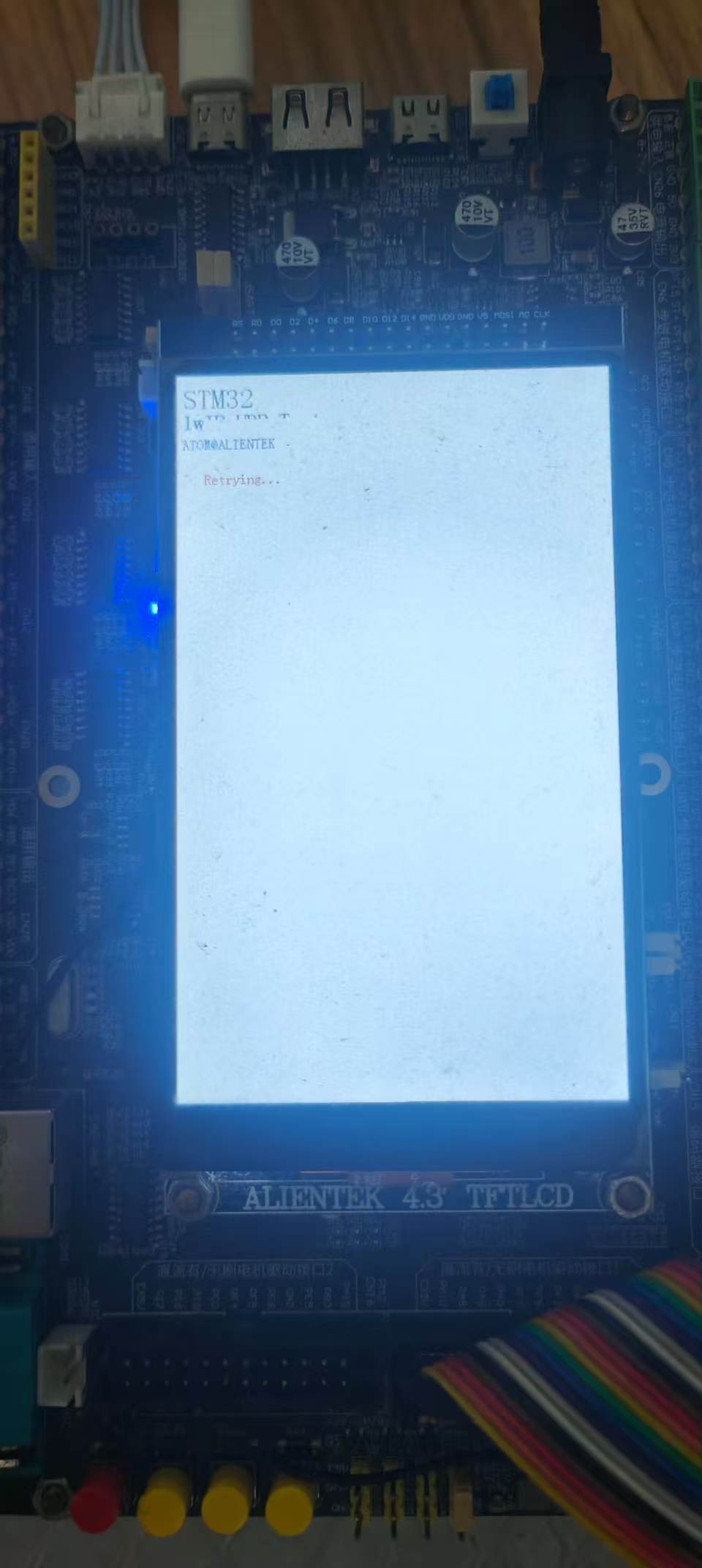

测试结果：

二、广播实验

主函数

int main(void)
{
    HAL_Init();                         /* 初始化HAL库 */
    sys_stm32_clock_init(336, 8, 2, 7); /* 设置时钟,168Mhz */
    delay_init(168);                    /* 延时初始化 */
    usart_init(115200);                 /* 串口初始化为115200 */
    usmart_dev.init(84);                /* 初始化USMART */
    led_init();                         /* 初始化LED */
    lcd_init();                         /* 初始化LCD */
    key_init();                         /* 初始化按键 */

    my_mem_init(SRAMIN);                /* 初始化内部SRAM内存池 */
    my_mem_init(SRAMCCM);               /* 初始化内部SRAMCCM内存池 */

    freertos_demo();                    /* 创建lwIP的任务函数 */
}

demo

void freertos_demo(void)
{
    /* start_task任务 */
    xTaskCreate((TaskFunction_t )start_task,
                (const char *   )"start_task",
                (uint16_t       )START_STK_SIZE,
                (void *         )NULL,
                (UBaseType_t    )START_TASK_PRIO,
                (TaskHandle_t * )&StartTask_Handler);

    vTaskStartScheduler(); /* 开启任务调度 */
}

void start_task(void *pvParameters)
{
    pvParameters = pvParameters;

    g_lwipdev.lwip_display_fn = lwip_test_ui;

    lwip_test_ui(1);    /* 加载后前部分UI */

    while (lwip_comm_init() != 0)
    {
        lcd_show_string(30, 110, 200, 16, 16, "lwIP Init failed!!", RED);
        delay_ms(500);
        lcd_fill(30, 50, 200 + 30, 50 + 16, WHITE);
        lcd_show_string(30, 110, 200, 16, 16, "Retrying...       ", RED);
        delay_ms(500);
        LED1_TOGGLE();
    }

    while (!ethernet_read_phy(PHY_SR))  /* 检查MCU与PHY芯片是否通信成功 */
    {
        printf("MCU与PHY芯片通信失败，请检查电路或者源码！！！！\r\n");
    }

    while ((g_lwipdev.dhcpstatus != 2) && (g_lwipdev.dhcpstatus != 0XFF))  /* 等待DHCP获取成功/超时溢出 */
    {
        vTaskDelay(5);
    }



    taskENTER_CRITICAL();           /* 进入临界区 */


    /* 创建lwIP任务 */
    xTaskCreate((TaskFunction_t )lwip_demo_task,
                (const char*    )"lwip_demo_task",
                (uint16_t       )LWIP_DMEO_STK_SIZE,
                (void*          )NULL,
                (UBaseType_t    )LWIP_DMEO_TASK_PRIO,
                (TaskHandle_t*  )&LWIP_Task_Handler);

    /* LED测试任务 */
    xTaskCreate((TaskFunction_t )led_task,
                (const char*    )"led_task",
                (uint16_t       )LED_STK_SIZE,
                (void*          )NULL,
                (UBaseType_t    )LED_TASK_PRIO,
                (TaskHandle_t*  )&LEDTask_Handler);

    vTaskDelete(StartTask_Handler); /* 删除开始任务 */
    taskEXIT_CRITICAL();            /* 退出临界区 */

}

void lwip_demo_task(void *pvParameters)
{
    pvParameters = pvParameters;

    lwip_demo();            /* lwip测试代码 */

    while (1)
    {
        vTaskDelay(5);
    }
}

/* UDP广播测试 */
void lwip_demo(void)
{
    struct link_socjet_info *socket_info;
    socket_info = mem_malloc(sizeof(struct link_socjet_info));
    socket_info->optval = 1;

    /* 创建socket UDP通信 */
    socket_info->sfd = socket(AF_INET, SOCK_DGRAM, 0);
    setsockopt(socket_info->sfd, SOL_SOCKET, SO_BROADCAST, &socket_info->optval, sizeof(socket_info->optval));
    socket_info->client_addr.sin_family = AF_INET;
    socket_info->client_addr.sin_port = htons(9090);
    socket_info->client_addr.sin_addr.s_addr = inet_addr("255.255.255.255");
    socket_info->client_addr_len = sizeof(struct sockaddr_in);

    /* 设置接收和发送缓冲区 */
    socket_info->recv.buf = g_lwip_demo_recvbuf;
    socket_info->recv.size = sizeof(g_lwip_demo_recvbuf);
    socket_info->send.buf = g_lwip_demo_sendbuf;
    socket_info->send.size = sizeof(g_lwip_demo_sendbuf);

    sys_thread_new("lwip_send_thread", lwip_recv_thread, (void *)socket_info, 512, LWIP_SEND_THREAD_PRIO );

    while (1)
    {
        /* 发送广播数据 */
        sendto(socket_info->sfd, socket_info->send.buf, socket_info->send.size, 0,
              (struct sockaddr *)&socket_info->client_addr, socket_info->client_addr_len);
        vTaskDelay(1000);
    }
}

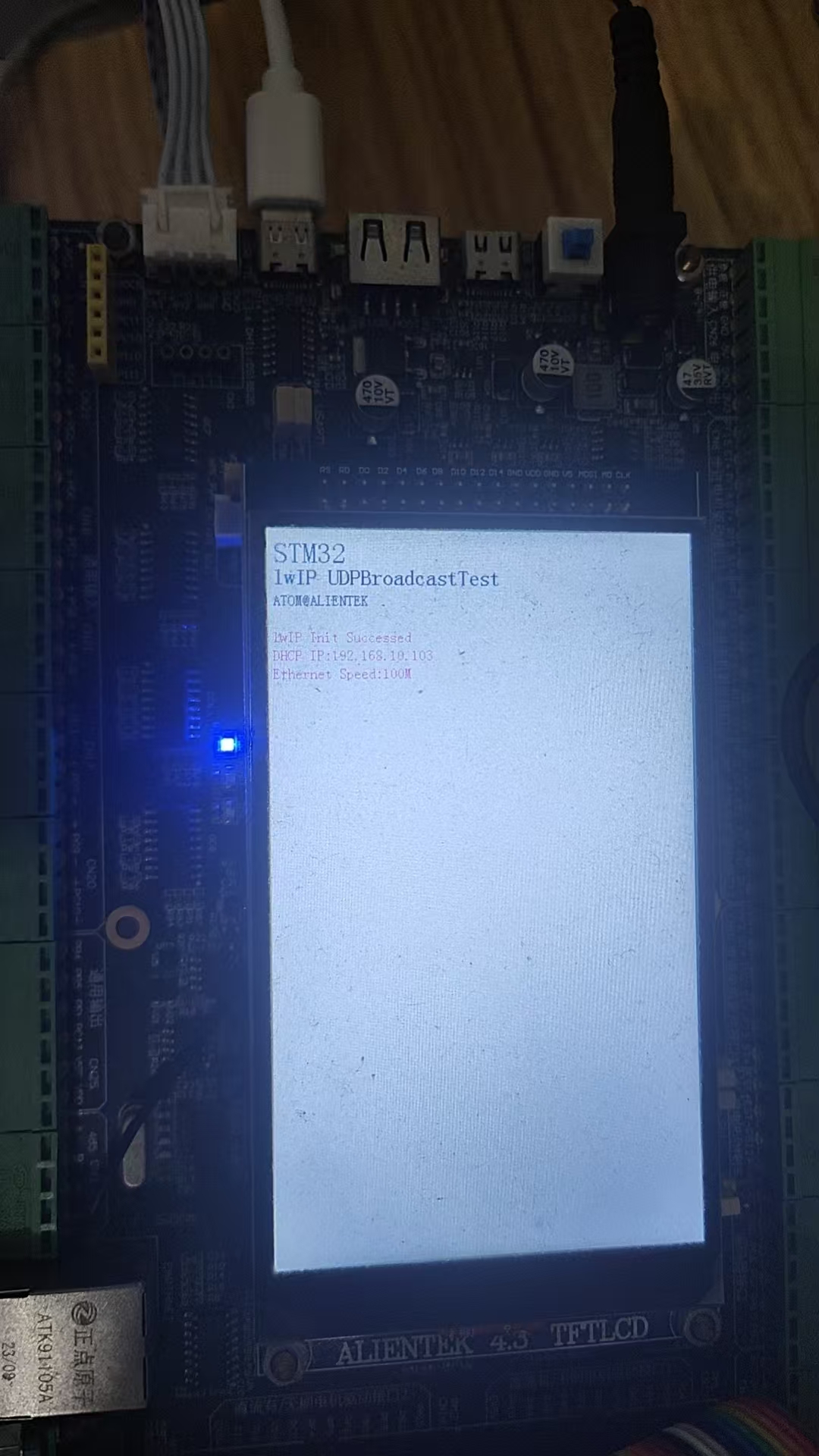

测试结果：

void freertos_demo(void)
{
    /* start_task任务 */
    xTaskCreate((TaskFunction_t )start_task,
                (const char *   )"start_task",
                (uint16_t       )START_STK_SIZE,
                (void *         )NULL,
                (UBaseType_t    )START_TASK_PRIO,
                (TaskHandle_t * )&StartTask_Handler);

    vTaskStartScheduler(); /* 开启任务调度 */
}

三、组播实验

int main(void)
{
    HAL_Init();                         /* 初始化HAL库 */
    sys_stm32_clock_init(336, 8, 2, 7); /* 设置时钟,168Mhz */
    delay_init(168);                    /* 延时初始化 */
    usart_init(115200);                 /* 串口初始化为115200 */
    usmart_dev.init(84);                /* 初始化USMART */
    led_init();                         /* 初始化LED */
    lcd_init();                         /* 初始化LCD */
    key_init();                         /* 初始化按键 */

    my_mem_init(SRAMIN);                /* 初始化内部SRAM内存池 */
    my_mem_init(SRAMCCM);               /* 初始化内部SRAMCCM内存池 */

    freertos_demo();                    /* 创建lwIP的任务函数 */
}

void start_task(void *pvParameters)
{
    pvParameters = pvParameters;

    g_lwipdev.lwip_display_fn = lwip_test_ui;

    lwip_test_ui(1);    /* 加载后前部分UI */

    while (lwip_comm_init() != 0)
    {
        lcd_show_string(30, 110, 200, 16, 16, "lwIP Init failed!!", RED);
        delay_ms(500);
        lcd_fill(30, 50, 200 + 30, 50 + 16, WHITE);
        lcd_show_string(30, 110, 200, 16, 16, "Retrying...       ", RED);
        delay_ms(500);
        LED1_TOGGLE();
    }

    while (!ethernet_read_phy(PHY_SR))  /* 检查MCU与PHY芯片是否通信成功 */
    {
        printf("MCU与PHY芯片通信失败，请检查电路或者源码！！！！\r\n");
    }

    while ((g_lwipdev.dhcpstatus != 2) && (g_lwipdev.dhcpstatus != 0XFF))  /* 等待DHCP获取成功/超时溢出 */
    {
        vTaskDelay(5);
    }



    taskENTER_CRITICAL();           /* 进入临界区 */


    /* 创建lwIP任务 */
    xTaskCreate((TaskFunction_t )lwip_demo_task,
                (const char*    )"lwip_demo_task",
                (uint16_t       )LWIP_DMEO_STK_SIZE,
                (void*          )NULL,
                (UBaseType_t    )LWIP_DMEO_TASK_PRIO,
                (TaskHandle_t*  )&LWIP_Task_Handler);

    /* LED测试任务 */
    xTaskCreate((TaskFunction_t )led_task,
                (const char*    )"led_task",
                (uint16_t       )LED_STK_SIZE,
                (void*          )NULL,
                (UBaseType_t    )LED_TASK_PRIO,
                (TaskHandle_t*  )&LEDTask_Handler);

    vTaskDelete(StartTask_Handler); /* 删除开始任务 */
    taskEXIT_CRITICAL();            /* 退出临界区 */

}

void lwip_demo_task(void *pvParameters)
{
    pvParameters = pvParameters;

    lwip_demo();            /* lwip测试代码 */

    while (1)
    {
        vTaskDelay(5);
    }
}

void lwip_demo(void)
{
    struct link_socjet_info *socket_info;
    struct ip_mreq_t *mreq_info;

    socket_info = mem_malloc(sizeof(struct link_socjet_info));
    mreq_info = mem_malloc(sizeof(struct ip_mreq_t));

    socket_info->sfd = socket(AF_INET, SOCK_DGRAM, 0);

    if (socket_info->sfd < 0)
    {
        printf("socket failed!\n");
    }

    socket_info->client_addr.sin_family = AF_INET;
    socket_info->client_addr.sin_addr.s_addr = htonl(INADDR_ANY);   /* 待与 socket 绑定的本地网络接口 IP */
    socket_info->client_addr.sin_port = htons(9999);                /* 待与 socket 绑定的本地端口号 */
    socket_info->client_addr_len = sizeof(socket_info->client_addr);

    /* 设置接收和发送缓冲区 */
    socket_info->recv.buf = g_lwip_demo_recvbuf;
    socket_info->recv.size = sizeof(g_lwip_demo_recvbuf);
    socket_info->send.buf = g_lwip_demo_sendbuf;
    socket_info->send.size = sizeof(g_lwip_demo_sendbuf);

    /* 将 Socket 与本地某网络接口绑定 */
    int ret = bind(socket_info->sfd, (struct sockaddr*)&socket_info->client_addr, socket_info->client_addr_len);

    if (ret < 0)
    {
        printf(" bind error!\n ");
    }

    mreq_info->mreq.imr_multiaddr.s_addr = inet_addr(GROUP_IP);     /* 多播组 IP 地址设置 */
    mreq_info->mreq.imr_interface.s_addr = htonl(INADDR_ANY);       /* 待加入多播组的 IP 地址 */
    mreq_info->mreq_len = sizeof(struct ip_mreq);

    /* 添加多播组成员（该语句之前，socket 只与 某单播IP地址相关联 执行该语句后 将与多播地址相关联） */
    ret = setsockopt(socket_info->sfd,IPPROTO_IP,IP_ADD_MEMBERSHIP,&mreq_info->mreq,mreq_info->mreq_len);

    if (ret < 0)
    {
        printf("setsockopt failed !");
    }
    else
    {
        printf("setsockopt success\n");
    }

    int length = 0;
    struct sockaddr_in sender;
    int sender_len = sizeof(sender);

    sys_thread_new("lwip_send_thread", lwip_send_thread, (void *)socket_info, 512, LWIP_SEND_THREAD_PRIO );

    while(1)
    {
        length = recvfrom(socket_info->sfd,socket_info->recv.buf,socket_info->recv.size,0,(struct sockaddr*)&sender,(socklen_t *)&sender_len);
        socket_info->recv.buf[length]='\0';
        printf("%s %d : %s\n", inet_ntoa(sender.sin_addr), ntohs(sender.sin_port), socket_info->recv.buf);
        vTaskDelay(10);
    }
}

测试结果：
