基于STM32的TFT LCD显示(ST7735S)
·
若该文为原创文章，转载请注明原文出处。
一、TFT是什么？
TFT（Thin Film Transistor）彩屏是一种基于薄膜晶体管技术的液晶显示屏，它使用了薄膜晶体管作为每个像素点的开关，能够实现快速响应和高质量的图像显示。
这次用到的是1.44寸彩屏，该款LCD模块采用4线制SPI通信方式，驱动IC为ST7735S，分辨率为128*128，该模块包含有LCD显示屏，背光控制电路。
废话不多说，下面直接进入正文。
二、TFT使用步骤

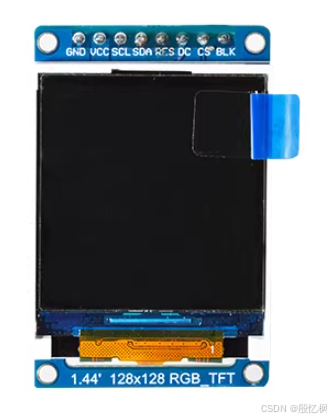

1、硬件
2、 引脚说明
三、STM32程序说明
1、引脚定义
| GND | 电源地 |
| VCC | 接5V或3.3v电源 |
| SCL | 接PA12（SCL） |
| SDA | 接PA15（SDA） |
| RES | 接PB3 |
| DC | 接PB4 |
| CS | 接PB5 |
| BL | 接PB10 |
2、程序
Lcd_Driver.h
//////////////////////////////////////////////////////////////////////////////////
//本程序只供学习使用，未经作者许可，不得用于其它任何用途
// 功能描述 : 1.44寸LCD 4接口演示例程(STM32系列)
/******************************************************************************
//本程序适用与STM32F103C8
// GND 电源地
// VCC 接5V或3.3v电源
// SCL 接PA12（SCL）
// SDA 接PA15（SDA）
// RES 接PB3
// DC 接PB4
// CS 接PB5
// BL 接PB10
*******************************************************************************/
//******************************************************************************/
#define RED 0xf800
#define GREEN 0x07e0
#define BLUE 0x001f
#define WHITE 0xffff
#define BLACK 0x0000
#define YELLOW 0xFFE0
#define GRAY0 0xEF7D //灰色0 3165 00110 001011 00101
#define GRAY1 0x8410 //灰色1 00000 000000 00000
#define GRAY2 0x4208 //灰色2 1111111111011111
#define LCD_CTRLA GPIOA //定义TFT数据端口
#define LCD_CTRLB GPIOB //定义TFT数据端口
#define LCD_SCL GPIO_Pin_12 //PB13--->>TFT --SCL/SCK
#define LCD_SDA GPIO_Pin_15 //PB15 MOSI--->>TFT --SDA/DIN
#define LCD_CS GPIO_Pin_5 //MCU_PB11--->>TFT --CS/CE
#define LCD_LED GPIO_Pin_10 //MCU_PB9--->>TFT --BL
#define LCD_RS GPIO_Pin_4 //PB11--->>TFT --RS/DC
#define LCD_RST GPIO_Pin_3 //PB10--->>TFT --RST
//#define LCD_CS_SET(x) LCD_CTRL->ODR=(LCD_CTRL->ODR&~LCD_CS)|(x ? LCD_CS:0)
//液晶控制口置1操作语句宏定义
#define LCD_SCL_SET LCD_CTRLA->BSRR=LCD_SCL
#define LCD_SDA_SET LCD_CTRLA->BSRR=LCD_SDA
#define LCD_CS_SET LCD_CTRLB->BSRR=LCD_CS
#define LCD_LED_SET LCD_CTRLB->BSRR=LCD_LED
#define LCD_RS_SET LCD_CTRLB->BSRR=LCD_RS
#define LCD_RST_SET LCD_CTRLB->BSRR=LCD_RST
//液晶控制口置0操作语句宏定义
#define LCD_SCL_CLR LCD_CTRLA->BRR=LCD_SCL
#define LCD_SDA_CLR LCD_CTRLA->BRR=LCD_SDA
#define LCD_CS_CLR LCD_CTRLB->BRR=LCD_CS
#define LCD_LED_CLR LCD_CTRLB->BRR=LCD_LED
#define LCD_RST_CLR LCD_CTRLB->BRR=LCD_RST
#define LCD_RS_CLR LCD_CTRLB->BRR=LCD_RS
#define LCD_DATAOUT(x) LCD_DATA->ODR=x; //数据输出
#define LCD_DATAIN LCD_DATA->IDR; //数据输入
#define LCD_WR_DATA(data){\
LCD_RS_SET;\
LCD_CS_CLR;\
LCD_DATAOUT(data);\
LCD_WR_CLR;\
LCD_WR_SET;\
LCD_CS_SET;\
}
void LCD_GPIO_Init(void);
void Lcd_WriteIndex(u8 Index);
void Lcd_WriteData(u8 Data);
void Lcd_WriteReg(u8 Index,u8 Data);
u16 Lcd_ReadReg(u8 LCD_Reg);
void Lcd_Reset(void);
void Lcd_Init(void);
void Lcd_Clear(u16 Color);
void Lcd_SetXY(u16 x,u16 y);
void Gui_DrawPoint(u16 x,u16 y,u16 Data);
unsigned int Lcd_ReadPoint(u16 x,u16 y);
void Lcd_SetRegion(u16 x_start,u16 y_start,u16 x_end,u16 y_end);
void LCD_WriteData_16Bit(u16 Data);
Lcd_Driver.c
//////////////////////////////////////////////////////////////////////////////////
//本程序只供学习使用，未经作者许可，不得用于其它任何用途
// 功能描述 : 1.44寸LCD 4接口演示例程(STM32系列)
/******************************************************************************
//本程序适用与STM32F103C8
// GND 电源地
// VCC 接5V或3.3v电源
// SCL 接PA12（SCL）
// SDA 接PA15（SDA）
// RES 接PB3
// DC 接PB4
// CS 接PB5
// BL 接PB10
*******************************************************************************/
#include "stm32f10x.h"
#include "Lcd_Driver.h"
#include "LCD_Config.h"
#include "delay.h"
//液晶IO初始化配置
void LCD_GPIO_Init(void)
{
GPIO_InitTypeDef GPIO_InitStructure;
RCC_APB2PeriphClockCmd( RCC_APB2Periph_GPIOB ,ENABLE);
GPIO_InitStructure.GPIO_Pin = GPIO_Pin_3| GPIO_Pin_4| GPIO_Pin_5;
GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;
GPIO_Init(GPIOB, &GPIO_InitStructure);
RCC_APB2PeriphClockCmd( RCC_APB2Periph_GPIOA ,ENABLE);
GPIO_InitStructure.GPIO_Pin = GPIO_Pin_12| GPIO_Pin_15;
GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;
GPIO_Init(GPIOA, &GPIO_InitStructure);
}
//向SPI总线传输一个8位数据
void SPI_WriteData(u8 Data)
{
unsigned char i=0;
for(i=8;i>0;i--)
{
if(Data&0x80)
LCD_SDA_SET; //输出数据
else LCD_SDA_CLR;
LCD_SCL_CLR;
LCD_SCL_SET;
Data<<=1;
}
}
//向液晶屏写一个8位指令
void Lcd_WriteIndex(u8 Index)
{
//SPI 写命令时序开始
LCD_CS_CLR;
LCD_RS_CLR;
SPI_WriteData(Index);
LCD_CS_SET;
}
//向液晶屏写一个8位数据
void Lcd_WriteData(u8 Data)
{
LCD_CS_CLR;
LCD_RS_SET;
SPI_WriteData(Data);
LCD_CS_SET;
}
//向液晶屏写一个16位数据
void LCD_WriteData_16Bit(u16 Data)
{
LCD_CS_CLR;
LCD_RS_SET;
SPI_WriteData(Data>>8); //写入高8位数据
SPI_WriteData(Data); //写入低8位数据
LCD_CS_SET;
}
void Lcd_WriteReg(u8 Index,u8 Data)
{
Lcd_WriteIndex(Index);
Lcd_WriteData(Data);
}
void Lcd_Reset(void)
{
LCD_RST_CLR;
delay_ms(100);
LCD_RST_SET;
delay_ms(50);
}
//LCD Init For 1.44Inch LCD Panel with ST7735R.
void Lcd_Init(void)
{
LCD_GPIO_Init();
Lcd_Reset(); //Reset before LCD Init.
//LCD Init For 1.44Inch LCD Panel with ST7735R.
Lcd_WriteIndex(0x11);//Sleep exit
delay_ms (120);
//ST7735R Frame Rate
Lcd_WriteIndex(0xB1);
Lcd_WriteData(0x01);
Lcd_WriteData(0x2C);
Lcd_WriteData(0x2D);
Lcd_WriteIndex(0xB2);
Lcd_WriteData(0x01);
Lcd_WriteData(0x2C);
Lcd_WriteData(0x2D);
Lcd_WriteIndex(0xB3);
Lcd_WriteData(0x01);
Lcd_WriteData(0x2C);
Lcd_WriteData(0x2D);
Lcd_WriteData(0x01);
Lcd_WriteData(0x2C);
Lcd_WriteData(0x2D);
Lcd_WriteIndex(0xB4); //Column inversion
Lcd_WriteData(0x07);
//ST7735R Power Sequence
Lcd_WriteIndex(0xC0);
Lcd_WriteData(0xA2);
Lcd_WriteData(0x02);
Lcd_WriteData(0x84);
Lcd_WriteIndex(0xC1);
Lcd_WriteData(0xC5);
Lcd_WriteIndex(0xC2);
Lcd_WriteData(0x0A);
Lcd_WriteData(0x00);
Lcd_WriteIndex(0xC3);
Lcd_WriteData(0x8A);
Lcd_WriteData(0x2A);
Lcd_WriteIndex(0xC4);
Lcd_WriteData(0x8A);
Lcd_WriteData(0xEE);
Lcd_WriteIndex(0xC5); //VCOM
Lcd_WriteData(0x0E);
Lcd_WriteIndex(0x36); //MX, MY, RGB mode
Lcd_WriteData(0xC8);
//ST7735R Gamma Sequence
Lcd_WriteIndex(0xe0);
Lcd_WriteData(0x0f);
Lcd_WriteData(0x1a);
Lcd_WriteData(0x0f);
Lcd_WriteData(0x18);
Lcd_WriteData(0x2f);
Lcd_WriteData(0x28);
Lcd_WriteData(0x20);
Lcd_WriteData(0x22);
Lcd_WriteData(0x1f);
Lcd_WriteData(0x1b);
Lcd_WriteData(0x23);
Lcd_WriteData(0x37);
Lcd_WriteData(0x00);
Lcd_WriteData(0x07);
Lcd_WriteData(0x02);
Lcd_WriteData(0x10);
Lcd_WriteIndex(0xe1);
Lcd_WriteData(0x0f);
Lcd_WriteData(0x1b);
Lcd_WriteData(0x0f);
Lcd_WriteData(0x17);
Lcd_WriteData(0x33);
Lcd_WriteData(0x2c);
Lcd_WriteData(0x29);
Lcd_WriteData(0x2e);
Lcd_WriteData(0x30);
Lcd_WriteData(0x30);
Lcd_WriteData(0x39);
Lcd_WriteData(0x3f);
Lcd_WriteData(0x00);
Lcd_WriteData(0x07);
Lcd_WriteData(0x03);
Lcd_WriteData(0x10);
Lcd_WriteIndex(0x2a);
Lcd_WriteData(0x00);
Lcd_WriteData(0x00);
Lcd_WriteData(0x00);
Lcd_WriteData(0x7f);
Lcd_WriteIndex(0x2b);
Lcd_WriteData(0x00);
Lcd_WriteData(0x00);
Lcd_WriteData(0x00);
Lcd_WriteData(0x9f);
Lcd_WriteIndex(0xF0); //Enable test command
Lcd_WriteData(0x01);
Lcd_WriteIndex(0xF6); //Disable ram power save mode
Lcd_WriteData(0x00);
Lcd_WriteIndex(0x3A); //65k mode
Lcd_WriteData(0x05);
Lcd_WriteIndex(0x29);//Display on
}
/*************************************************
函数名：LCD_Set_Region
功能：设置lcd显示区域，在此区域写点数据自动换行
入口参数：xy起点和终点
返回值：无
*************************************************/
void Lcd_SetRegion(u16 x_start,u16 y_start,u16 x_end,u16 y_end)
{
Lcd_WriteIndex(0x2a);
Lcd_WriteData(0x00);
Lcd_WriteData(x_start+2);
Lcd_WriteData(0x00);
Lcd_WriteData(x_end+2);
Lcd_WriteIndex(0x2b);
Lcd_WriteData(0x00);
Lcd_WriteData(y_start+3);
Lcd_WriteData(0x00);
Lcd_WriteData(y_end+3);
Lcd_WriteIndex(0x2c);
}
/*************************************************
函数名：LCD_Set_XY
功能：设置lcd显示起始点
入口参数：xy坐标
返回值：无
*************************************************/
void Lcd_SetXY(u16 x,u16 y)
{
Lcd_SetRegion(x,y,x,y);
}
/*************************************************
函数名：LCD_DrawPoint
功能：画一个点
入口参数：无
返回值：无
*************************************************/
void Gui_DrawPoint(u16 x,u16 y,u16 Data)
{
Lcd_SetRegion(x,y,x+1,y+1);
LCD_WriteData_16Bit(Data);
}
/*****************************************
函数功能：读TFT某一点的颜色
出口参数：color 点颜色值
******************************************/
unsigned int Lcd_ReadPoint(u16 x,u16 y)
{
unsigned int Data;
Lcd_SetXY(x,y);
//Lcd_ReadData();//丢掉无用字节
//Data=Lcd_ReadData();
Lcd_WriteData(Data);
return Data;
}
/*************************************************
函数名：Lcd_Clear
功能：全屏清屏函数
入口参数：填充颜色COLOR
返回值：无
*************************************************/
void Lcd_Clear(u16 Color)
{
unsigned int i,m;
Lcd_SetRegion(0,0,X_MAX_PIXEL-1,Y_MAX_PIXEL-1);
Lcd_WriteIndex(0x2C);
for(i=0;i<X_MAX_PIXEL;i++)
for(m=0;m<Y_MAX_PIXEL;m++)
{
LCD_WriteData_16Bit(Color);
}
}
Gui.h
u16 LCD_BGR2RGB(u16 c);
void Gui_Circle(u16 X,u16 Y,u16 R,u16 fc);
void Gui_DrawLine(u16 x0, u16 y0,u16 x1, u16 y1,u16 Color);
void Gui_box(u16 x, u16 y, u16 w, u16 h,u16 bc);
void Gui_box2(u16 x,u16 y,u16 w,u16 h, u8 mode);
void DisplayButtonDown(u16 x1,u16 y1,u16 x2,u16 y2);
void DisplayButtonUp(u16 x1,u16 y1,u16 x2,u16 y2);
void Gui_DrawFont_GBK16(u16 x, u16 y, u16 fc, u16 bc, u8 *s);
void Gui_DrawFont_GBK24(u16 x, u16 y, u16 fc, u16 bc, u8 *s);
void Gui_DrawFont_Num32(u16 x, u16 y, u16 fc, u16 bc, u16 num);Gui.c
#include "stm32f10x.h"
#include "Lcd_Driver.h"
#include "GUI.h"
#include "delay.h"
#include "font.h"
//从ILI93xx读出的数据为GBR格式，而我们写入的时候为RGB格式。
//通过该函数转换
//c:GBR格式的颜色值
//返回值：RGB格式的颜色值
u16 LCD_BGR2RGB(u16 c)
{
u16 r,g,b,rgb;
b=(c>>0)&0x1f;
g=(c>>5)&0x3f;
r=(c>>11)&0x1f;
rgb=(b<<11)+(g<<5)+(r<<0);
return(rgb);
}
void Gui_Circle(u16 X,u16 Y,u16 R,u16 fc)
{//Bresenham算法
unsigned short a,b;
int c;
a=0;
b=R;
c=3-2*R;
while (a<b)
{
Gui_DrawPoint(X+a,Y+b,fc); // 7
Gui_DrawPoint(X-a,Y+b,fc); // 6
Gui_DrawPoint(X+a,Y-b,fc); // 2
Gui_DrawPoint(X-a,Y-b,fc); // 3
Gui_DrawPoint(X+b,Y+a,fc); // 8
Gui_DrawPoint(X-b,Y+a,fc); // 5
Gui_DrawPoint(X+b,Y-a,fc); // 1
Gui_DrawPoint(X-b,Y-a,fc); // 4
if(c<0) c=c+4*a+6;
else
{
c=c+4*(a-b)+10;
b-=1;
}
a+=1;
}
if (a==b)
{
Gui_DrawPoint(X+a,Y+b,fc);
Gui_DrawPoint(X+a,Y+b,fc);
Gui_DrawPoint(X+a,Y-b,fc);
Gui_DrawPoint(X-a,Y-b,fc);
Gui_DrawPoint(X+b,Y+a,fc);
Gui_DrawPoint(X-b,Y+a,fc);
Gui_DrawPoint(X+b,Y-a,fc);
Gui_DrawPoint(X-b,Y-a,fc);
}
}
//画线函数，使用Bresenham 画线算法
void Gui_DrawLine(u16 x0, u16 y0,u16 x1, u16 y1,u16 Color)
{
int dx, // difference in x's
dy, // difference in y's
dx2, // dx,dy * 2
dy2,
x_inc, // amount in pixel space to move during drawing
y_inc, // amount in pixel space to move during drawing
error, // the discriminant i.e. error i.e. decision variable
index; // used for looping
Lcd_SetXY(x0,y0);
dx = x1-x0;//计算x距离
dy = y1-y0;//计算y距离
if (dx>=0)
{
x_inc = 1;
}
else
{
x_inc = -1;
dx = -dx;
}
if (dy>=0)
{
y_inc = 1;
}
else
{
y_inc = -1;
dy = -dy;
}
dx2 = dx << 1;
dy2 = dy << 1;
if (dx > dy)//x距离大于y距离，那么每个x轴上只有一个点，每个y轴上有若干个点
{//且线的点数等于x距离，以x轴递增画点
// initialize error term
error = dy2 - dx;
// draw the line
for (index=0; index <= dx; index++)//要画的点数不会超过x距离
{
//画点
Gui_DrawPoint(x0,y0,Color);
// test if error has overflowed
if (error >= 0) //是否需要增加y坐标值
{
error-=dx2;
// move to next line
y0+=y_inc;//增加y坐标值
} // end if error overflowed
// adjust the error term
error+=dy2;
// move to the next pixel
x0+=x_inc;//x坐标值每次画点后都递增1
} // end for
} // end if |slope| <= 1
else//y轴大于x轴，则每个y轴上只有一个点，x轴若干个点
{//以y轴为递增画点
// initialize error term
error = dx2 - dy;
// draw the line
for (index=0; index <= dy; index++)
{
// set the pixel
Gui_DrawPoint(x0,y0,Color);
// test if error overflowed
if (error >= 0)
{
error-=dy2;
// move to next line
x0+=x_inc;
} // end if error overflowed
// adjust the error term
error+=dx2;
// move to the next pixel
y0+=y_inc;
} // end for
} // end else |slope| > 1
}
void Gui_box(u16 x, u16 y, u16 w, u16 h,u16 bc)
{
Gui_DrawLine(x,y,x+w,y,0xEF7D);
Gui_DrawLine(x+w-1,y+1,x+w-1,y+1+h,0x2965);
Gui_DrawLine(x,y+h,x+w,y+h,0x2965);
Gui_DrawLine(x,y,x,y+h,0xEF7D);
Gui_DrawLine(x+1,y+1,x+1+w-2,y+1+h-2,bc);
}
void Gui_box2(u16 x,u16 y,u16 w,u16 h, u8 mode)
{
if (mode==0) {
Gui_DrawLine(x,y,x+w,y,0xEF7D);
Gui_DrawLine(x+w-1,y+1,x+w-1,y+1+h,0x2965);
Gui_DrawLine(x,y+h,x+w,y+h,0x2965);
Gui_DrawLine(x,y,x,y+h,0xEF7D);
}
if (mode==1) {
Gui_DrawLine(x,y,x+w,y,0x2965);
Gui_DrawLine(x+w-1,y+1,x+w-1,y+1+h,0xEF7D);
Gui_DrawLine(x,y+h,x+w,y+h,0xEF7D);
Gui_DrawLine(x,y,x,y+h,0x2965);
}
if (mode==2) {
Gui_DrawLine(x,y,x+w,y,0xffff);
Gui_DrawLine(x+w-1,y+1,x+w-1,y+1+h,0xffff);
Gui_DrawLine(x,y+h,x+w,y+h,0xffff);
Gui_DrawLine(x,y,x,y+h,0xffff);
}
}
/**************************************************************************************
功能描述: 在屏幕显示一凸起的按钮框
输 入: u16 x1,y1,x2,y2 按钮框左上角和右下角坐标
输 出: 无
**************************************************************************************/
void DisplayButtonDown(u16 x1,u16 y1,u16 x2,u16 y2)
{
Gui_DrawLine(x1, y1, x2,y1, GRAY2); //H
Gui_DrawLine(x1+1,y1+1,x2,y1+1, GRAY1); //H
Gui_DrawLine(x1, y1, x1,y2, GRAY2); //V
Gui_DrawLine(x1+1,y1+1,x1+1,y2, GRAY1); //V
Gui_DrawLine(x1, y2, x2,y2, WHITE); //H
Gui_DrawLine(x2, y1, x2,y2, WHITE); //V
}
/**************************************************************************************
功能描述: 在屏幕显示一凹下的按钮框
输 入: u16 x1,y1,x2,y2 按钮框左上角和右下角坐标
输 出: 无
**************************************************************************************/
void DisplayButtonUp(u16 x1,u16 y1,u16 x2,u16 y2)
{
Gui_DrawLine(x1, y1, x2,y1, WHITE); //H
Gui_DrawLine(x1, y1, x1,y2, WHITE); //V
Gui_DrawLine(x1+1,y2-1,x2,y2-1, GRAY1); //H
Gui_DrawLine(x1, y2, x2,y2, GRAY2); //H
Gui_DrawLine(x2-1,y1+1,x2-1,y2, GRAY1); //V
Gui_DrawLine(x2 ,y1 ,x2,y2, GRAY2); //V
}
void Gui_DrawFont_GBK16(u16 x, u16 y, u16 fc, u16 bc, u8 *s)
{
unsigned char i,j;
unsigned short k,x0;
x0=x;
while(*s)
{
if((*s) < 128)
{
k=*s;
if (k==13)
{
x=x0;
y+=16;
}
else
{
if (k>32) k-=32; else k=0;
for(i=0;i<16;i++)
for(j=0;j<8;j++)
{
if(asc16[k*16+i]&(0x80>>j)) Gui_DrawPoint(x+j,y+i,fc);
else
{
if (fc!=bc) Gui_DrawPoint(x+j,y+i,bc);
}
}
x+=8;
}
s++;
}
else
{
for (k=0;k<hz16_num;k++)
{
if ((hz16[k].Index[0]==*(s))&&(hz16[k].Index[1]==*(s+1)))
{
for(i=0;i<16;i++)
{
for(j=0;j<8;j++)
{
if(hz16[k].Msk[i*2]&(0x80>>j)) Gui_DrawPoint(x+j,y+i,fc);
else {
if (fc!=bc) Gui_DrawPoint(x+j,y+i,bc);
}
}
for(j=0;j<8;j++)
{
if(hz16[k].Msk[i*2+1]&(0x80>>j)) Gui_DrawPoint(x+j+8,y+i,fc);
else
{
if (fc!=bc) Gui_DrawPoint(x+j+8,y+i,bc);
}
}
}
}
}
s+=2;x+=16;
}
}
}
void Gui_DrawFont_GBK24(u16 x, u16 y, u16 fc, u16 bc, u8 *s)
{
unsigned char i,j;
unsigned short k;
while(*s)
{
if( *s < 0x80 )
{
k=*s;
if (k>32) k-=32; else k=0;
for(i=0;i<16;i++)
for(j=0;j<8;j++)
{
if(asc16[k*16+i]&(0x80>>j))
Gui_DrawPoint(x+j,y+i,fc);
else
{
if (fc!=bc) Gui_DrawPoint(x+j,y+i,bc);
}
}
s++;x+=8;
}
else
{
for (k=0;k<hz24_num;k++)
{
if ((hz24[k].Index[0]==*(s))&&(hz24[k].Index[1]==*(s+1)))
{
for(i=0;i<24;i++)
{
for(j=0;j<8;j++)
{
if(hz24[k].Msk[i*3]&(0x80>>j))
Gui_DrawPoint(x+j,y+i,fc);
else
{
if (fc!=bc) Gui_DrawPoint(x+j,y+i,bc);
}
}
for(j=0;j<8;j++)
{
if(hz24[k].Msk[i*3+1]&(0x80>>j)) Gui_DrawPoint(x+j+8,y+i,fc);
else {
if (fc!=bc) Gui_DrawPoint(x+j+8,y+i,bc);
}
}
for(j=0;j<8;j++)
{
if(hz24[k].Msk[i*3+2]&(0x80>>j))
Gui_DrawPoint(x+j+16,y+i,fc);
else
{
if (fc!=bc) Gui_DrawPoint(x+j+16,y+i,bc);
}
}
}
}
}
s+=2;x+=24;
}
}
}
void Gui_DrawFont_Num32(u16 x, u16 y, u16 fc, u16 bc, u16 num)
{
unsigned char i,j,k,c;
//lcd_text_any(x+94+i*42,y+34,32,32,0x7E8,0x0,sz32,knum[i]);
// w=w/8;
for(i=0;i<32;i++)
{
for(j=0;j<4;j++)
{
c=*(sz32+num*32*4+i*4+j);
for (k=0;k<8;k++)
{
if(c&(0x80>>k)) Gui_DrawPoint(x+j*8+k,y+i,fc);
else {
if (fc!=bc) Gui_DrawPoint(x+j*8+k,y+i,bc);
}
}
}
}
}
font.h
#define USE_ONCHIP_FLASH_FONT 1
const unsigned char asc16[]={
#if USE_ONCHIP_FLASH_FONT
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, //" "
0x00,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x00,0x00,0x10,0x10,0x00,0x00, //"!"
0x00,0x00,0x6C,0x6C,0x24,0x24,0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x00,0x00,0x00, //"""
0x00,0x24,0x24,0x24,0x24,0xFE,0x48,0x48,0x48,0x48,0xFC,0x90,0x90,0x90,0x90,0x00, //"#"
0x00,0x10,0x3C,0x54,0x92,0x90,0x50,0x38,0x14,0x12,0x12,0x92,0x54,0x78,0x10,0x00, //"$"
0x00,0x00,0x22,0x5C,0x94,0xA8,0x48,0x10,0x10,0x24,0x2A,0x52,0x54,0x88,0x00,0x00, //"%"
0x00,0x00,0x30,0x48,0x48,0x50,0x20,0x6E,0x54,0x94,0x8C,0x88,0x8A,0x74,0x00,0x00, //"&"
0x00,0x00,0x30,0x30,0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, //"'"
0x00,0x04,0x08,0x10,0x10,0x20,0x20,0x20,0x20,0x20,0x20,0x10,0x10,0x08,0x04,0x00, //"("
0x00,0x80,0x40,0x20,0x20,0x10,0x10,0x10,0x10,0x10,0x10,0x20,0x20,0x40,0x80,0x00, //")"
0x00,0x00,0x00,0x00,0x10,0x54,0x38,0x10,0x38,0x54,0x10,0x00,0x00,0x00,0x00,0x00, //"*"
0x00,0x00,0x00,0x10,0x10,0x10,0x10,0xFE,0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00, //"+"
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x20,0x00, //","
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, //"-"
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x00,0x00, //"."
0x00,0x00,0x04,0x04,0x08,0x08,0x10,0x10,0x20,0x20,0x40,0x40,0x80,0x80,0x00,0x00, //"/"
0x00,0x00,0x38,0x44,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0x44,0x38,0x00,0x00, //"0"
0x00,0x00,0x10,0x70,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x7C,0x00,0x00, //"1"
0x00,0x00,0x38,0x44,0x82,0x82,0x04,0x08,0x10,0x20,0x40,0x82,0x84,0xFC,0x00,0x00, //"2"
0x00,0x00,0x38,0x44,0x82,0x02,0x04,0x38,0x04,0x02,0x02,0x82,0x44,0x38,0x00,0x00, //"3"
0x00,0x00,0x04,0x0C,0x14,0x14,0x24,0x24,0x44,0x44,0xFE,0x04,0x04,0x0E,0x00,0x00, //"4"
0x00,0x00,0xFC,0x80,0x80,0x80,0xB8,0xC4,0x82,0x02,0x02,0x82,0x84,0x78,0x00,0x00, //"5"
0x00,0x00,0x3C,0x42,0x82,0x80,0xB8,0xC4,0x82,0x82,0x82,0x82,0x44,0x38,0x00,0x00, //"6"
0x00,0x00,0x7E,0x42,0x82,0x04,0x04,0x08,0x08,0x08,0x10,0x10,0x10,0x10,0x00,0x00, //"7"
0x00,0x00,0x38,0x44,0x82,0x82,0x44,0x38,0x44,0x82,0x82,0x82,0x44,0x38,0x00,0x00, //"8"
0x00,0x00,0x38,0x44,0x82,0x82,0x82,0x82,0x46,0x3A,0x02,0x82,0x44,0x38,0x00,0x00, //"9"
0x00,0x00,0x00,0x00,0x10,0x10,0x00,0x00,0x00,0x00,0x10,0x10,0x00,0x00,0x00,0x00, //":"
0x00,0x00,0x00,0x00,0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x20,0x00,0x00, //";"
0x00,0x00,0x00,0x00,0x06,0x18,0x60,0x80,0x60,0x18,0x06,0x00,0x00,0x00,0x00,0x00, //"<"
0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x00,0x00,0xFE,0x00,0x00,0x00,0x00,0x00,0x00, //"="
0x00,0x00,0x00,0x00,0xC0,0x30,0x0C,0x02,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00, //">"
0x00,0x38,0x44,0x82,0x82,0x02,0x04,0x08,0x10,0x10,0x10,0x00,0x10,0x10,0x00,0x00, //"?"
0x00,0x00,0x38,0x44,0x82,0x9A,0xAA,0xAA,0xAA,0xAA,0xAA,0x96,0x80,0x42,0x3C,0x00, //"@"
0x00,0x00,0x10,0x10,0x10,0x28,0x28,0x28,0x44,0x44,0x7C,0x44,0x44,0xEE,0x00,0x00, //"A"
0x00,0x00,0xFC,0x42,0x42,0x42,0x42,0x7C,0x42,0x42,0x42,0x42,0x42,0xFC,0x00,0x00, //"B"
0x00,0x00,0x3C,0x44,0x82,0x80,0x80,0x80,0x80,0x80,0x82,0x82,0x44,0x38,0x00,0x00, //"C"
0x00,0x00,0xF8,0x44,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0x44,0xF8,0x00,0x00, //"D"
0x00,0x00,0xFC,0x44,0x42,0x40,0x44,0x7C,0x44,0x40,0x40,0x42,0x44,0xFC,0x00,0x00, //"E"
0x00,0x00,0xFC,0x44,0x42,0x40,0x44,0x7C,0x44,0x40,0x40,0x40,0x40,0xF0,0x00,0x00, //"F"
0x00,0x00,0x34,0x4C,0x82,0x80,0x80,0x80,0x8E,0x84,0x84,0x84,0x4C,0x34,0x00,0x00, //"G"
0x00,0x00,0xEE,0x44,0x44,0x44,0x44,0x7C,0x44,0x44,0x44,0x44,0x44,0xEE,0x00,0x00, //"H"
0x00,0x00,0x7C,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x7C,0x00,0x00, //"I"
0x00,0x00,0x3E,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x88,0x88,0x70,0x00,0x00, //"J"
0x00,0x00,0xEE,0x44,0x48,0x48,0x50,0x60,0x50,0x48,0x48,0x44,0x44,0xEE,0x00,0x00, //"K"
0x00,0x00,0xE0,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x42,0x44,0xFC,0x00,0x00, //"L"
0x00,0x00,0xC6,0x44,0x6C,0x6C,0x6C,0x54,0x54,0x54,0x44,0x44,0x44,0xEE,0x00,0x00, //"M"
0x00,0x00,0xCE,0x44,0x64,0x64,0x64,0x54,0x54,0x4C,0x4C,0x4C,0x44,0xE4,0x00,0x00, //"N"
0x00,0x00,0x38,0x44,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0x44,0x38,0x00,0x00, //"O"
0x00,0x00,0xF8,0x44,0x42,0x42,0x42,0x44,0x78,0x40,0x40,0x40,0x40,0xE0,0x00,0x00, //"P"
0x00,0x00,0x38,0x44,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0xBA,0x44,0x3C,0x02,0x00, //"Q"
0x00,0x00,0xF0,0x48,0x44,0x44,0x44,0x48,0x70,0x48,0x44,0x44,0x44,0xE6,0x00,0x00, //"R"
0x00,0x00,0x3C,0x44,0x82,0x80,0x40,0x30,0x0C,0x02,0x02,0x82,0x44,0x78,0x00,0x00, //"S"
0x00,0x00,0x7C,0x54,0x92,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x38,0x00,0x00, //"T"
0x00,0x00,0xEE,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x38,0x00,0x00, //"U"
0x00,0x00,0xEE,0x44,0x44,0x44,0x44,0x28,0x28,0x28,0x28,0x10,0x10,0x10,0x00,0x00, //"V"
0x00,0x00,0xEE,0x44,0x54,0x54,0x54,0x54,0x54,0x54,0x28,0x28,0x28,0x28,0x00,0x00, //"W"
0x00,0x00,0xEE,0x44,0x44,0x28,0x28,0x10,0x10,0x28,0x28,0x44,0x44,0xEE,0x00,0x00, //"X"
0x00,0x00,0xEE,0x44,0x44,0x28,0x28,0x28,0x10,0x10,0x10,0x10,0x10,0x38,0x00,0x00, //"Y"
0x00,0x00,0x7E,0x44,0x84,0x08,0x08,0x10,0x20,0x20,0x40,0x82,0x84,0xFC,0x00,0x00, //"Z"
0x00,0x1C,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x1C,0x00, //"["
0x00,0x00,0xEE,0x44,0x54,0x54,0xFE,0x54,0x54,0x54,0x28,0x28,0x28,0x28,0x00,0x00, //"\"
0x00,0x70,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x70,0x00, //"]"
0x00,0x30,0x48,0x84,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, //"^"
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x00, //"_"
0x00,0x40,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, //"`"
0x00,0x00,0x00,0x00,0x00,0x00,0x78,0x84,0x04,0x7C,0x84,0x84,0x8C,0x76,0x00,0x00, //"a"
0x00,0x00,0xC0,0x40,0x40,0x40,0x58,0x64,0x42,0x42,0x42,0x42,0x64,0x58,0x00,0x00, //"b"
0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x44,0x80,0x80,0x80,0x80,0x44,0x38,0x00,0x00, //"c"
0x00,0x00,0x0C,0x04,0x04,0x04,0x34,0x4C,0x84,0x84,0x84,0x84,0x4C,0x36,0x00,0x00, //"d"
0x00,0x00,0x00,0x00,0x00,0x00,0x78,0x84,0x84,0xFC,0x80,0x80,0x84,0x78,0x00,0x00, //"e"
0x00,0x00,0x18,0x24,0x20,0x20,0xF8,0x20,0x20,0x20,0x20,0x20,0x20,0x70,0x00,0x00, //"f"
0x00,0x00,0x00,0x00,0x00,0x00,0x3A,0x44,0x44,0x78,0x80,0x7C,0x82,0x82,0x7C,0x00, //"g"
0x00,0x00,0xC0,0x40,0x40,0x40,0x58,0x64,0x44,0x44,0x44,0x44,0x44,0xEE,0x00,0x00, //"h"
0x00,0x00,0x10,0x10,0x00,0x00,0x30,0x10,0x10,0x10,0x10,0x10,0x10,0x38,0x00,0x00, //"i"
0x00,0x00,0x10,0x10,0x00,0x00,0x30,0x10,0x10,0x10,0x10,0x10,0x10,0x90,0x60,0x00, //"j"
0x00,0x00,0xC0,0x40,0x40,0x40,0x5C,0x48,0x50,0x60,0x50,0x48,0x44,0xEE,0x00,0x00, //"k"
0x00,0x00,0x30,0x10,0x10,0x10,0x10,0x11,0x10,0x10,0x10,0x10,0x10,0x39,0x00,0x00, //"l"
0x00,0x00,0x00,0x00,0x00,0x00,0xAC,0xD2,0x92,0x92,0x92,0x92,0x92,0xD6,0x00,0x00, //"m"
0x00,0x00,0x00,0x00,0x00,0x00,0x58,0xE4,0x44,0x44,0x44,0x44,0x44,0xEE,0x00,0x00, //"n"
0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x44,0x82,0x82,0x82,0x82,0x44,0x38,0x00,0x00, //"o"
0x00,0x00,0x00,0x00,0x00,0x00,0xD8,0x64,0x42,0x42,0x42,0x64,0x58,0x40,0xE0,0x00, //"p"
0x00,0x00,0x00,0x00,0x00,0x00,0x36,0x4C,0x84,0x84,0x84,0x4C,0x34,0x04,0x0E,0x00, //"q"
0x00,0x00,0x00,0x00,0x00,0x00,0x6C,0x30,0x20,0x20,0x20,0x20,0x20,0x70,0x00,0x00, //"r"
0x00,0x00,0x00,0x00,0x00,0x00,0x78,0x88,0x84,0x60,0x18,0x84,0x44,0x78,0x00,0x00, //"s"
0x00,0x00,0x00,0x20,0x20,0x20,0xF8,0x20,0x20,0x20,0x20,0x20,0x24,0x18,0x00,0x00, //"t"
0x00,0x00,0x00,0x00,0x00,0x00,0xC6,0x42,0x42,0x42,0x42,0x42,0x46,0x3A,0x00,0x00, //"u"
0x00,0x00,0x00,0x00,0x00,0x00,0xEE,0x44,0x44,0x28,0x28,0x28,0x10,0x10,0x00,0x00, //"v"
0x00,0x00,0x00,0x00,0x00,0x00,0xEE,0x44,0x44,0x54,0x54,0x28,0x28,0x28,0x00,0x00, //"w"
0x00,0x00,0x00,0x00,0x00,0x00,0xEE,0x44,0x28,0x10,0x10,0x28,0x44,0xEE,0x00,0x00, //"x"
0x00,0x00,0x00,0x00,0x00,0x00,0xEE,0x44,0x44,0x28,0x28,0x10,0x10,0xA0,0xC0,0x00, //"y"
0x00,0x00,0x00,0x00,0x00,0x00,0x7E,0x44,0x88,0x10,0x20,0x42,0x84,0xFC,0x00,0x00, //"z"
0x00,0x0C,0x10,0x10,0x10,0x10,0x10,0x60,0x10,0x10,0x10,0x10,0x10,0x10,0x0C,0x00, //"{"
0x00,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x00, //"|"
0x00,0xC0,0x20,0x20,0x20,0x20,0x20,0x18,0x20,0x20,0x20,0x20,0x20,0x20,0xC0,0x00, //"}"
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x72,0x8C,0x00,0x00,0x00,0x00,0x00,0x00,0x00, //"~"
#endif
0x00,
};
//数码管字体 % ℃
const unsigned char sz32[]={
#if USE_ONCHIP_FLASH_FONT
//"0",
0x00,0x00,0x00,0x00,0x00,0x1F,0xE0,0x00,0x00,0x3F,0xF0,0x00,0x00,0x3F,0xF0,0x00,0x00,0x1F,0xE0,0x00,0x01,0x80,0x06,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0x00,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x00,0x03,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x01,0x80,0x06,0x00,0x00,0x1F,0xE0,0x00,0x00,0x3F,0xF0,0x00,0x00,0x3F,0xF0,0x00,0x00,0x1F,0xE0,0x00,
//"1",
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x00,0x00,0x01,0x80,0x00,0x00,0x03,0x80,0x00,0x00,0x07,0x80,0x00,0x00,0x07,0x80,0x00,0x00,0x07,0x80,0x00,0x00,0x07,0x80,0x00,0x00,0x07,0x80,0x00,0x00,0x07,0x80,0x00,0x00,0x07,0x80,0x00,0x00,0x07,0x80,0x00,0x00,0x07,0x80,0x00,0x00,0x01,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x80,0x00,0x00,0x07,0x80,0x00,0x00,0x07,0x80,0x00,0x00,0x07,0x80,0x00,0x00,0x07,0x80,0x00,0x00,0x07,0x80,0x00,0x00,0x07,0x80,0x00,0x00,0x07,0x80,0x00,0x00,0x07,0x80,0x00,0x00,0x07,0x80,0x00,0x00,0x03,0x80,0x00,0x00,0x01,0x80,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,
//"2",
0x00,0x00,0x00,0x00,0x00,0x1F,0xE0,0x00,0x00,0x3F,0xF0,0x00,0x00,0xFF,0xF0,0x00,0x01,0xFF,0xE0,0x00,0x00,0x00,0x06,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x1F,0xE3,0x00,0x00,0x7F,0xF8,0x00,0x00,0x7F,0xF8,0x00,0x00,0x1F,0xE0,0x00,0x03,0x00,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x01,0x80,0x00,0x00,0x00,0x1F,0xF0,0x00,0x00,0x3F,0xF8,0x00,0x00,0x3F,0xFC,0x00,0x00,0x1F,0xFE,0x00,
//"3",
0x00,0x00,0x00,0x00,0x03,0xFF,0x80,0x00,0x01,0xFF,0xC0,0x00,0x00,0xFF,0xC0,0x00,0x00,0x7F,0x80,0x00,0x00,0x00,0x18,0x00,0x00,0x00,0x3C,0x00,0x00,0x00,0x3C,0x00,0x00,0x00,0x3C,0x00,0x00,0x00,0x3C,0x00,0x00,0x00,0x3C,0x00,0x00,0x00,0x3C,0x00,0x00,0x00,0x3C,0x00,0x00,0x00,0x3C,0x00,0x00,0x7F,0x8C,0x00,0x01,0xFF,0xE0,0x00,0x01,0xFF,0xF0,0x00,0x00,0x7F,0x80,0x00,0x00,0x00,0x0C,0x00,0x00,0x00,0x3C,0x00,0x00,0x00,0x3C,0x00,0x00,0x00,0x3C,0x00,0x00,0x00,0x3C,0x00,0x00,0x00,0x3C,0x00,0x00,0x00,0x3C,0x00,0x00,0x00,0x3C,0x00,0x00,0x00,0x3C,0x00,0x00,0x00,0x18,0x00,0x00,0x7F,0x80,0x00,0x00,0xFF,0xC0,0x00,0x01,0xFF,0xC0,0x00,0x03,0xFF,0x80,0x00,
//"4",
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x01,0x00,0x03,0x00,0x03,0x00,0x03,0x80,0x07,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0x1F,0xE3,0x00,0x00,0x7F,0xF8,0x00,0x00,0x7F,0xFC,0x00,0x00,0x1F,0xE0,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x07,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x01,0x00,0x00,0x00,0x00,0x00,
//"5",
0x00,0x00,0x00,0x00,0x00,0x1F,0xFC,0x00,0x00,0x3F,0xF8,0x00,0x00,0x3F,0xF0,0x00,0x00,0x1F,0xE0,0x00,0x01,0x80,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0x1F,0xE0,0x00,0x00,0x7F,0xF8,0x00,0x00,0x7F,0xF8,0x00,0x00,0x1F,0xE0,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x06,0x00,0x00,0x3F,0xE0,0x00,0x00,0x7F,0xF0,0x00,0x00,0xFF,0xF0,0x00,0x01,0xFF,0xE0,0x00,
//"6",
0x00,0x00,0x00,0x00,0x00,0x1F,0xFC,0x00,0x00,0x3F,0xF8,0x00,0x00,0x3F,0xF0,0x00,0x00,0x1F,0xE0,0x00,0x01,0x80,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0xC0,0x00,0x00,0x03,0x1F,0xE0,0x00,0x00,0x7F,0xF8,0x00,0x00,0x7F,0xFC,0x00,0x00,0x1F,0xE0,0x00,0x03,0x00,0x03,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x01,0x80,0x06,0x00,0x00,0x1F,0xE0,0x00,0x00,0x3F,0xF0,0x00,0x00,0x3F,0xF0,0x00,0x00,0x1F,0xE0,0x00,
//"7",
0x00,0x00,0x00,0x00,0x07,0xFF,0xE0,0x00,0x03,0xFF,0xC0,0x00,0x01,0xFF,0x88,0x00,0x00,0xFF,0x18,0x00,0x00,0x00,0x38,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x18,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x38,0x00,0x00,0x00,0x18,0x00,0x00,0x00,0x08,0x00,0x00,0x00,0x00,0x00,
//"8",
0x00,0x00,0x00,0x00,0x00,0x1F,0xE0,0x00,0x00,0x3F,0xF0,0x00,0x00,0x3F,0xF0,0x00,0x00,0x1F,0xE0,0x00,0x01,0x80,0x06,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0x1F,0xE3,0x00,0x00,0x7F,0xF8,0x00,0x00,0x7F,0xFC,0x00,0x00,0x1F,0xE0,0x00,0x03,0x00,0x03,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x01,0x80,0x06,0x00,0x00,0x1F,0xE0,0x00,0x00,0x3F,0xF0,0x00,0x00,0x3F,0xF0,0x00,0x00,0x1F,0xE0,0x00,
//"9",
0x00,0x00,0x00,0x00,0x00,0x1F,0xE0,0x00,0x00,0x3F,0xF0,0x00,0x00,0x3F,0xF0,0x00,0x00,0x1F,0xE0,0x00,0x01,0x80,0x06,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0xC0,0x0F,0x00,0x03,0x1F,0xE3,0x00,0x00,0x7F,0xF8,0x00,0x00,0x7F,0xFC,0x00,0x00,0x1F,0xE0,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x0F,0x00,0x00,0x00,0x06,0x00,0x00,0x1F,0xE0,0x00,0x00,0x3F,0xF0,0x00,0x00,0x7F,0xF0,0x00,0x00,0xFF,0xE0,0x00,
//".",
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x78,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
//":",
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,0x0F,0x80,0x00,0x00,0x0F,0x80,0x00,0x00,0x0F,0x80,0x00,0x00,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0x00,0x00,0x00,0x0F,0x80,0x00,0x00,0x0F,0x80,0x00,0x00,0x0F,0x80,0x00,0x00,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
//"%",
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xC0,0x06,0x00,0x0F,0xE0,0x06,0x00,0x00,0x00,0x0C,0x00,0x30,0x18,0x18,0x00,0x30,0x18,0x18,0x00,0x30,0x18,0x30,0x00,0x30,0x18,0x30,0x00,0x30,0x18,0x60,0x00,0x30,0x08,0xC0,0x00,0x07,0xC0,0xC0,0x00,0x0F,0xE0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0xE0,0x00,0x06,0x07,0xC0,0x00,0x06,0x30,0x18,0x00,0x0C,0x30,0x18,0x00,0x0C,0x30,0x18,0x00,0x18,0x30,0x18,0x00,0x30,0x30,0x18,0x00,0x30,0x30,0x18,0x00,0x60,0x00,0x00,0x00,0xC0,0x0F,0xE0,0x00,0xC0,0x07,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
//"℃",
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0x00,0xE0,0x00,0x08,0x87,0xFC,0x00,0x08,0x8E,0x03,0x00,0x08,0x98,0x01,0x80,0x07,0x18,0x00,0x80,0x00,0x30,0x00,0x00,0x00,0x30,0x00,0x00,0x00,0x70,0x00,0x00,0x00,0x60,0x00,0x00,0x00,0x60,0x00,0x00,0x00,0x60,0x00,0x00,0x00,0x60,0x00,0x00,0x00,0x60,0x00,0x00,0x00,0x70,0x00,0x00,0x00,0x30,0x00,0x00,0x00,0x30,0x00,0x00,0x00,0x38,0x00,0x00,0x00,0x18,0x01,0x00,0x00,0x0C,0x03,0x00,0x00,0x07,0xFC,0x00,0x00,0x01,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
//"-",
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xF0,0x00,0x00,0x7F,0xF0,0x00,0x00,0x7F,0xE0,0x00,0x00,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
#endif
0x00,
};
struct typFNT_GB162
{
unsigned char Index[2];
char Msk[32];
};

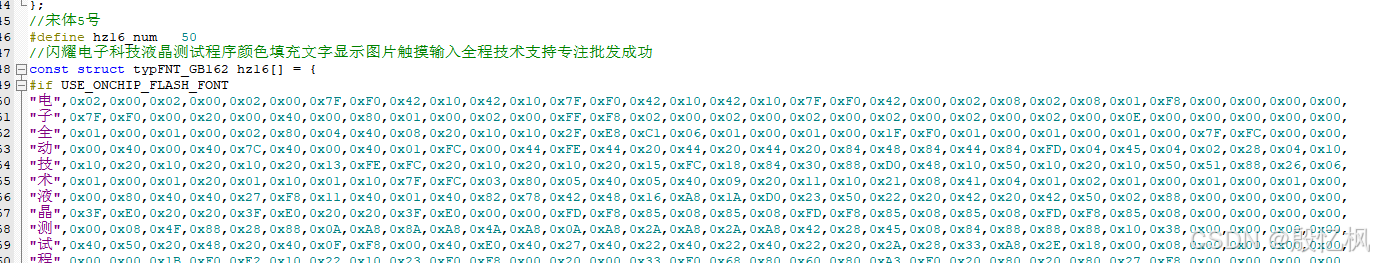

//宋体5号
#define hz16_num 50
//闪耀电子科技液晶测试程序颜色填充文字显示图片触摸输入全程技术支持专注批发成功
const struct typFNT_GB162 hz16[] = {
#if USE_ONCHIP_FLASH_FONT
"电",0x02,0x00,0x02,0x00,0x02,0x00,0x7F,0xF0,0x42,0x10,0x42,0x10,0x7F,0xF0,0x42,0x10,0x42,0x10,0x7F,0xF0,0x42,0x00,0x02,0x08,0x02,0x08,0x01,0xF8,0x00,0x00,0x00,0x00,
"子",0x7F,0xF0,0x00,0x20,0x00,0x40,0x00,0x80,0x01,0x00,0x02,0x00,0xFF,0xF8,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x0E,0x00,0x00,0x00,0x00,0x00,
"全",0x01,0x00,0x01,0x00,0x02,0x80,0x04,0x40,0x08,0x20,0x10,0x10,0x2F,0xE8,0xC1,0x06,0x01,0x00,0x01,0x00,0x1F,0xF0,0x01,0x00,0x01,0x00,0x01,0x00,0x7F,0xFC,0x00,0x00,
"动",0x00,0x40,0x00,0x40,0x7C,0x40,0x00,0x40,0x01,0xFC,0x00,0x44,0xFE,0x44,0x20,0x44,0x20,0x44,0x20,0x84,0x48,0x84,0x44,0x84,0xFD,0x04,0x45,0x04,0x02,0x28,0x04,0x10,
"技",0x10,0x20,0x10,0x20,0x10,0x20,0x13,0xFE,0xFC,0x20,0x10,0x20,0x10,0x20,0x15,0xFC,0x18,0x84,0x30,0x88,0xD0,0x48,0x10,0x50,0x10,0x20,0x10,0x50,0x51,0x88,0x26,0x06,
"术",0x01,0x00,0x01,0x20,0x01,0x10,0x01,0x10,0x7F,0xFC,0x03,0x80,0x05,0x40,0x05,0x40,0x09,0x20,0x11,0x10,0x21,0x08,0x41,0x04,0x01,0x02,0x01,0x00,0x01,0x00,0x01,0x00,
"液",0x00,0x80,0x40,0x40,0x27,0xF8,0x11,0x40,0x01,0x40,0x82,0x78,0x42,0x48,0x16,0xA8,0x1A,0xD0,0x23,0x50,0x22,0x20,0x42,0x20,0x42,0x50,0x02,0x88,0x00,0x00,0x00,0x00,
"晶",0x3F,0xE0,0x20,0x20,0x3F,0xE0,0x20,0x20,0x3F,0xE0,0x00,0x00,0xFD,0xF8,0x85,0x08,0x85,0x08,0xFD,0xF8,0x85,0x08,0x85,0x08,0xFD,0xF8,0x85,0x08,0x00,0x00,0x00,0x00,
"测",0x00,0x08,0x4F,0x88,0x28,0x88,0x0A,0xA8,0x8A,0xA8,0x4A,0xA8,0x0A,0xA8,0x2A,0xA8,0x2A,0xA8,0x42,0x28,0x45,0x08,0x84,0x88,0x88,0x88,0x10,0x38,0x00,0x00,0x00,0x00,
"试",0x40,0x50,0x20,0x48,0x20,0x40,0x0F,0xF8,0x00,0x40,0xE0,0x40,0x27,0x40,0x22,0x40,0x22,0x40,0x22,0x20,0x2A,0x28,0x33,0xA8,0x2E,0x18,0x00,0x08,0x00,0x00,0x00,0x00,
"程",0x00,0x00,0x1B,0xF0,0xE2,0x10,0x22,0x10,0x23,0xF0,0xF8,0x00,0x20,0x00,0x33,0xF0,0x68,0x80,0x60,0x80,0xA3,0xF0,0x20,0x80,0x20,0x80,0x27,0xF8,0x00,0x00,0x00,0x00,
"序",0x02,0x00,0x01,0x00,0x3F,0xF8,0x20,0x00,0x2F,0xF0,0x20,0x20,0x22,0x40,0x21,0x80,0x3F,0xF8,0x20,0x88,0x20,0x90,0x40,0x80,0x40,0x80,0x83,0x80,0x00,0x00,0x00,0x00,
"颜",0x20,0x00,0x10,0xF8,0x7E,0x20,0x44,0x40,0x28,0xF8,0x7E,0x88,0x48,0xA8,0x50,0xA8,0x64,0xA8,0x48,0xA8,0x72,0xA8,0x84,0x50,0x18,0x88,0x61,0x08,0x00,0x00,0x00,0x00,
"色",0x10,0x00,0x10,0x00,0x3F,0xE0,0x40,0x40,0x80,0x80,0x7F,0xF0,0x42,0x10,0x42,0x10,0x42,0x10,0x7F,0xF0,0x40,0x00,0x40,0x08,0x40,0x08,0x3F,0xF8,0x00,0x00,0x00,0x00,
"填",0x20,0x80,0x2F,0xF8,0x20,0x80,0x27,0xF0,0xF4,0x10,0x27,0xF0,0x24,0x10,0x27,0xF0,0x24,0x10,0x27,0xF0,0x34,0x10,0xCF,0xF8,0x02,0x20,0x04,0x10,0x00,0x00,0x00,0x00,
"充",0x04,0x00,0x02,0x00,0xFF,0xF8,0x08,0x00,0x10,0x40,0x20,0x20,0x7F,0xF0,0x08,0x90,0x08,0x80,0x08,0x80,0x08,0x80,0x10,0x88,0x20,0x88,0xC0,0x78,0x00,0x00,0x00,0x00,
"文",0x04,0x00,0x02,0x00,0x02,0x00,0xFF,0xF8,0x10,0x40,0x10,0x40,0x08,0x80,0x08,0x80,0x05,0x00,0x02,0x00,0x05,0x00,0x08,0x80,0x30,0x60,0xC0,0x18,0x00,0x00,0x00,0x00,
"字",0x04,0x00,0x02,0x00,0xFF,0xF8,0x80,0x08,0x80,0x08,0x3F,0xC0,0x00,0x80,0x01,0x00,0x02,0x00,0xFF,0xF8,0x02,0x00,0x02,0x00,0x02,0x00,0x0E,0x00,0x00,0x00,0x00,0x00,
"显",0x3F,0xE0,0x20,0x20,0x20,0x20,0x3F,0xE0,0x20,0x20,0x20,0x20,0x3F,0xE0,0x08,0x80,0x48,0x90,0x28,0x90,0x28,0xA0,0x08,0x80,0x08,0x80,0xFF,0xF8,0x00,0x00,0x00,0x00,
"示",0x00,0x00,0x3F,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xF8,0x02,0x00,0x12,0x40,0x12,0x20,0x22,0x10,0x42,0x08,0x82,0x08,0x02,0x00,0x0E,0x00,0x00,0x00,0x00,0x00,
"图",0x7F,0xF8,0x40,0x08,0x44,0x08,0x47,0xC8,0x48,0x48,0x54,0x88,0x43,0x08,0x4C,0xC8,0x73,0x38,0x40,0x88,0x4C,0x08,0x43,0x08,0x40,0x88,0x7F,0xF8,0x00,0x00,0x00,0x00,
"片",0x00,0x80,0x20,0x80,0x20,0x80,0x20,0x80,0x3F,0xF0,0x20,0x00,0x20,0x00,0x20,0x00,0x3F,0xC0,0x20,0x40,0x20,0x40,0x20,0x40,0x40,0x40,0x80,0x40,0x00,0x00,0x00,0x00,
"触",0x20,0x40,0x38,0x40,0x48,0x40,0x91,0xF0,0x7D,0x50,0x55,0x50,0x55,0x50,0x7D,0x50,0x55,0xF0,0x54,0x40,0x7C,0x40,0x54,0x50,0x57,0xF8,0x8C,0x08,0x00,0x00,0x00,0x00,
"摸",0x22,0x20,0x22,0x20,0x27,0xF8,0xFA,0x20,0x27,0xF0,0x24,0x10,0x27,0xF0,0x34,0x10,0xE7,0xF0,0x20,0x80,0x2F,0xF8,0x21,0x40,0x22,0x20,0xEC,0x18,0x00,0x00,0x00,0x00,
"输",0x40,0x80,0x41,0x40,0xF2,0x20,0x44,0x10,0x8B,0xE8,0xA0,0x00,0xF7,0x88,0x24,0xA8,0x27,0xA8,0x34,0xA8,0xE7,0xA8,0x24,0xA8,0x24,0x88,0x25,0xB8,0x00,0x00,0x00,0x00,
"入",0x08,0x00,0x04,0x00,0x04,0x00,0x02,0x00,0x02,0x00,0x05,0x00,0x05,0x00,0x08,0x80,0x08,0x80,0x10,0x40,0x10,0x40,0x20,0x20,0x40,0x10,0x80,0x08,0x00,0x00,0x00,0x00,
"全",0x02,0x00,0x02,0x00,0x05,0x00,0x08,0x80,0x10,0x40,0x20,0x20,0xDF,0xD8,0x02,0x00,0x02,0x00,0x1F,0xC0,0x02,0x00,0x02,0x00,0x02,0x00,0xFF,0xF8,0x00,0x00,0x00,0x00,
"程",0x00,0x00,0x1B,0xF0,0xE2,0x10,0x22,0x10,0x23,0xF0,0xF8,0x00,0x20,0x00,0x33,0xF0,0x68,0x80,0x60,0x80,0xA3,0xF0,0x20,0x80,0x20,0x80,0x27,0xF8,0x00,0x00,0x00,0x00,
"技",0x20,0x80,0x20,0x80,0x20,0x80,0xF7,0xF0,0x20,0x80,0x20,0x80,0x27,0xE0,0x32,0x20,0xE2,0x20,0x21,0x40,0x20,0x80,0x21,0x40,0x22,0x20,0xEC,0x18,0x00,0x00,0x00,0x00,
"术",0x02,0x00,0x02,0x40,0x02,0x20,0x02,0x00,0xFF,0xF8,0x07,0x00,0x0A,0x80,0x0A,0x80,0x12,0x40,0x22,0x20,0x42,0x10,0x82,0x08,0x02,0x00,0x02,0x00,0x00,0x00,0x00,0x00,
"支",0x02,0x00,0x02,0x00,0xFF,0xF8,0x02,0x00,0x02,0x00,0x7F,0xE0,0x10,0x20,0x10,0x40,0x08,0x80,0x05,0x00,0x02,0x00,0x05,0x00,0x18,0xC0,0xE0,0x38,0x00,0x00,0x00,0x00,
"持",0x20,0x80,0x20,0x80,0x23,0xF0,0xF8,0x80,0x20,0x80,0x27,0xF8,0x28,0x20,0x30,0x20,0xE7,0xF8,0x20,0x20,0x22,0x20,0x21,0x20,0x20,0x20,0xE0,0xE0,0x00,0x00,0x00,0x00,
"专",0x02,0x00,0x02,0x00,0x7F,0xF0,0x04,0x00,0x04,0x00,0xFF,0xF8,0x08,0x00,0x10,0x00,0x3F,0xE0,0x00,0x20,0x00,0x40,0x1C,0x80,0x03,0x00,0x00,0x80,0x00,0x00,0x00,0x00,
"注",0x01,0x00,0x40,0x80,0x20,0x00,0x17,0xF0,0x00,0x80,0x80,0x80,0x40,0x80,0x00,0x80,0x17,0xF0,0x10,0x80,0x20,0x80,0x20,0x80,0x40,0x80,0x4F,0xF8,0x00,0x00,0x00,0x00,
"批",0x20,0x40,0x24,0x40,0x24,0x40,0xF4,0x48,0x24,0x50,0x27,0x60,0x24,0x40,0x34,0x40,0xE4,0x40,0x24,0x40,0x24,0x40,0x25,0x48,0x26,0x48,0xE4,0x38,0x00,0x00,0x00,0x00,
"发",0x02,0x00,0x22,0x20,0x22,0x10,0x44,0x00,0x7F,0xF8,0x04,0x00,0x08,0x00,0x0F,0xE0,0x14,0x20,0x24,0x40,0x42,0x80,0x81,0x00,0x06,0xC0,0x38,0x38,0x00,0x00,0x00,0x00,
"成",0x00,0xA0,0x00,0x90,0x00,0x80,0x7F,0xF8,0x40,0x80,0x40,0x90,0x7C,0x90,0x44,0x90,0x44,0xA0,0x44,0xA0,0x44,0x48,0x58,0xA8,0x41,0x18,0x82,0x08,0x00,0x00,0x00,0x00,
"功",0x01,0x00,0x01,0x00,0xF9,0x00,0x23,0xF0,0x21,0x10,0x21,0x10,0x21,0x10,0x21,0x10,0x21,0x10,0x39,0x10,0xC2,0x10,0x02,0x10,0x04,0x10,0x08,0x60,0x00,0x00,0x00,0x00,
"移",0x00,0x00,0x00,0x20,0x00,0x78,0x0C,0xE4,0x79,0x04,0x51,0x68,0x10,0x30,0x7E,0x60,0x19,0x98,0x1A,0x3C,0x2F,0xE4,0x48,0xE4,0x08,0x38,0x00,0x30,0x00,0x60,0x00,0x00,
"选",0x00,0x00,0x01,0x20,0x01,0x20,0x03,0xFC,0x62,0x20,0x34,0x20,0x04,0x20,0x03,0xFC,0x24,0x00,0x21,0xB0,0x21,0x20,0x22,0x20,0x32,0x3E,0x18,0x00,0x0F,0xE0,0x00,0x00,
"择",0x00,0x00,0x00,0x00,0x10,0xFC,0x13,0x04,0x11,0x0C,0x3D,0xF8,0x70,0x3E,0x10,0xD0,0x15,0x90,0x7C,0xF0,0x50,0x3E,0x18,0x10,0x1B,0xFE,0x02,0x30,0x00,0x20,0x00,0x00,
"项",0x00,0x00,0x00,0x00,0x03,0xFE,0x00,0x60,0x7C,0x40,0x12,0xFC,0x11,0x04,0x11,0x06,0x11,0x36,0x11,0x24,0x1F,0x44,0x79,0x44,0x00,0xC0,0x00,0x9C,0x01,0x86,0x00,0x00,
"目",0x00,0x00,0x00,0x00,0x0F,0xE0,0x3C,0x18,0x20,0x08,0x20,0x04,0x3E,0x04,0x60,0x04,0x60,0x04,0x7E,0x04,0x60,0x04,0x20,0x0C,0x20,0x08,0x1F,0xF0,0x01,0x80,0x00,0x00,
"短",0x00,0x00,0x08,0x00,0x11,0xFC,0x10,0x3E,0x3E,0xF8,0x2D,0x8C,0x29,0x04,0x49,0x04,0x09,0x04,0x3E,0x8C,0x50,0xFC,0x10,0x88,0x1E,0xC8,0x11,0xFC,0x10,0x0E,0x00,0x00,
"按",0x00,0x00,0x00,0x40,0x00,0x60,0x12,0xFE,0x13,0x02,0x3A,0x42,0x7F,0x44,0x10,0xC4,0x1B,0xFE,0x3C,0x98,0x71,0x90,0x11,0x30,0x11,0xA0,0x00,0x78,0x00,0x4C,0x00,0x00,
"确",0x00,0x00,0x00,0x40,0x00,0xF8,0x78,0xC4,0x1F,0x8C,0x31,0x38,0x21,0xEC,0x21,0x26,0x41,0x3A,0x7D,0xE2,0x27,0x22,0x25,0xFA,0x3D,0x26,0x01,0x24,0x01,0x04,0x00,0x00,
"定",0x00,0x00,0x01,0x00,0x01,0x70,0x5F,0xFC,0x70,0x04,0x20,0x04,0x2F,0xF8,0x01,0x00,0x11,0x00,0x11,0x38,0x21,0xC4,0x31,0x00,0x3F,0x00,0x63,0xE0,0x40,0x38,0x00,0x00,
"长",0x00,0x00,0x00,0x00,0x08,0x18,0x08,0x60,0x08,0xC0,0x0B,0x00,0x1E,0x00,0x18,0x1C,0x7F,0xF0,0x10,0x00,0x11,0x80,0x10,0xE0,0x18,0x38,0x09,0x8E,0x0F,0x00,0x00,0x00,
"按",0x00,0x00,0x00,0x40,0x00,0x60,0x12,0xFE,0x13,0x02,0x3A,0x42,0x7F,0x44,0x10,0xC4,0x1B,0xFE,0x3C,0x98,0x71,0x90,0x11,0x30,0x11,0xA0,0x00,0x78,0x00,0x4C,0x00,0x00,
"返",0x00,0x00,0x00,0x00,0x07,0xF8,0x06,0x00,0x24,0x00,0x14,0xF8,0x07,0x8C,0x04,0x04,0x24,0x08,0x26,0x18,0x25,0xF0,0x64,0x7C,0x64,0xC2,0x20,0x80,0x1F,0xC0,0x00,0x00,
"回",0x00,0x00,0x00,0x00,0x1F,0xF0,0x30,0x18,0x20,0x08,0x27,0x8C,0x2C,0x44,0x28,0x44,0x28,0x44,0x2C,0xC4,0x27,0x84,0x20,0x04,0x30,0x0C,0x1F,0xF8,0x03,0x80,0x00,0x00,
#endif
0x00,
};
struct typFNT_GB242
{
unsigned char Index[2];
char Msk[72];
};
#define hz24_num 20
const struct typFNT_GB242 hz24[] =
{
#if USE_ONCHIP_FLASH_FONT
"纯",0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x01,0x00,0x06,0x3F,0xC0,0x0C,0x3F,0xE0,0x18,0x03,0x00,0x10,0x02,0x00,0x33,0x36,0x60,0x37,0x26,0x20,0x3E,0x66,0x30,0x1C,0x64,0x30,0x18,0x64,0x20,0x31,0xFE,0xE0,0x3F,0x1F,0xC0,0x1C,0x0C,0x00,0x00,0x0C,0x00,0x07,0x04,0x00,0x3E,0x07,0xF0,0x00,0x01,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"色",0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFE,0x00,0x03,0xE3,0x00,0x07,0x03,0x00,0x0C,0x03,0x00,0x1C,0x3F,0x00,0x3B,0xFF,0xC0,0x3F,0x30,0x60,0x0C,0x30,0x20,0x0C,0x30,0x20,0x0C,0x10,0x20,0x0C,0x10,0x60,0x0F,0xFF,0xC0,0x08,0x3F,0x00,0x08,0x00,0x00,0x08,0x00,0x60,0x0E,0x3F,0xE0,0x07,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"填",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x00,0x00,0xFF,0xE0,0x0C,0x07,0xF0,0x0C,0x06,0x00,0x0C,0xFF,0x80,0x3F,0xF0,0xE0,0x1F,0xC0,0x60,0x0C,0xFE,0x30,0x0C,0xCC,0x30,0x04,0xF8,0x30,0x04,0xFF,0x20,0x04,0xC0,0x20,0x1F,0xFE,0x60,0x3E,0xC0,0x60,0x01,0xFF,0xF0,0x01,0xFF,0xF0,0x00,0x60,0x60,0x00,0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"充",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x30,0x00,0x07,0xFF,0xF0,0x3F,0xFF,0xE0,0x03,0x00,0x00,0x06,0x01,0x80,0x0C,0x01,0x80,0x08,0x01,0xC0,0x18,0x07,0xE0,0x0F,0xFE,0x70,0x07,0xE0,0x00,0x02,0x06,0x00,0x06,0x04,0x00,0x04,0x04,0x00,0x04,0x04,0x00,0x0C,0x06,0x70,0x0C,0x07,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"测",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x39,0xFC,0x30,0x1F,0xCC,0x30,0x07,0x06,0xB0,0x0F,0x06,0xF0,0x19,0x07,0xB0,0x31,0x37,0xB0,0x31,0x36,0xF0,0x1F,0x27,0xF0,0x01,0x67,0xF0,0x01,0xE5,0xF0,0x01,0xE1,0xF0,0x00,0x41,0xF0,0x0C,0xF8,0xB0,0x3C,0xD8,0x30,0x00,0x8C,0x30,0x00,0x80,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"试",0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x03,0x60,0x0C,0x03,0x70,0x0C,0x03,0x30,0x00,0x3F,0xE0,0x00,0x3F,0x80,0x08,0x01,0x00,0x3C,0x01,0x80,0x04,0x7F,0x80,0x04,0x7D,0x80,0x0C,0x00,0x80,0x0C,0x10,0xC0,0x0C,0x10,0xC0,0x0C,0x18,0x40,0x0C,0x1C,0x60,0x0F,0x7E,0x60,0x06,0x70,0x30,0x00,0x00,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"文",0x00,0x00,0x00,0x00,0xC0,0x00,0x00,0xE0,0x00,0x00,0x70,0x00,0x01,0xFF,0xE0,0x1F,0xFF,0xC0,0x18,0x01,0x00,0x00,0x03,0x00,0x00,0x06,0x00,0x00,0x0E,0x00,0x00,0x1C,0x00,0x0E,0x18,0x00,0x07,0x30,0x00,0x01,0xE0,0x00,0x00,0xF0,0x00,0x00,0xFC,0x00,0x01,0x8F,0x00,0x03,0x03,0xC0,0x02,0x01,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"字",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x3F,0x00,0x31,0xFF,0xE0,0x3F,0xC0,0x20,0x38,0x00,0x30,0x30,0xFE,0x20,0x33,0xC6,0x60,0x10,0x02,0x00,0x00,0x0C,0x00,0x00,0x18,0x00,0x00,0x18,0x00,0x00,0x0C,0x00,0x07,0xFF,0xE0,0x3F,0xFF,0xE0,0x00,0x04,0x00,0x00,0x0C,0x00,0x00,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"显",0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0x00,0x0F,0x03,0xC0,0x0C,0x00,0x40,0x1F,0xF8,0x60,0x18,0x00,0x60,0x08,0x00,0x40,0x0E,0x01,0xC0,0x07,0xFF,0x00,0x00,0x00,0x00,0x01,0x84,0x00,0x01,0x84,0x00,0x19,0x87,0x80,0x0F,0x8C,0xE0,0x07,0x8C,0x20,0x00,0xCC,0x00,0x03,0xFF,0xE0,0x1F,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"示",0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x00,0x00,0x1F,0xFF,0xC0,0x00,0x7F,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xC0,0x3F,0xFF,0xE0,0x00,0x30,0x00,0x00,0x30,0x00,0x00,0x30,0x00,0x06,0x13,0x00,0x0C,0x13,0xC0,0x0C,0x18,0xF0,0x18,0x18,0x00,0x18,0x18,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"图",0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0x00,0x0F,0x03,0x80,0x1C,0xC0,0xC0,0x19,0xFC,0x60,0x11,0xC6,0x60,0x33,0x06,0x20,0x33,0xE6,0x30,0x36,0xFF,0x30,0x30,0x1F,0xF0,0x30,0x70,0x30,0x30,0xFC,0x30,0x33,0x9F,0x30,0x36,0x00,0x20,0x10,0xE0,0x60,0x18,0x7C,0x40,0x0E,0x01,0xC0,0x03,0xFF,0x00,0x00,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"片",0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x18,0x00,0x18,0x08,0x00,0x18,0x08,0x00,0x18,0x08,0x00,0x18,0x0C,0x20,0x1F,0xFF,0xF0,0x1F,0xF8,0x00,0x18,0x00,0x00,0x10,0x00,0x00,0x10,0xF8,0x00,0x1F,0xFE,0x00,0x1E,0x03,0x00,0x10,0x03,0x00,0x10,0x03,0x00,0x10,0x03,0x00,0x10,0x03,0x00,0x18,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"显",0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0x00,0x0F,0x03,0xC0,0x0C,0x00,0x40,0x1F,0xF8,0x60,0x18,0x00,0x60,0x08,0x00,0x40,0x0E,0x01,0xC0,0x07,0xFF,0x00,0x00,0x00,0x00,0x01,0x84,0x00,0x01,0x84,0x00,0x19,0x87,0x80,0x0F,0x8C,0xE0,0x07,0x8C,0x20,0x00,0xCC,0x00,0x03,0xFF,0xE0,0x1F,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"示",0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x00,0x00,0x1F,0xFF,0xC0,0x00,0x7F,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xC0,0x3F,0xFF,0xE0,0x00,0x30,0x00,0x00,0x30,0x00,0x00,0x30,0x00,0x06,0x13,0x00,0x0C,0x13,0xC0,0x0C,0x18,0xF0,0x18,0x18,0x00,0x18,0x18,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"触",0x00,0x00,0x00,0x00,0x00,0x00,0x06,0x01,0x80,0x0F,0xC1,0x80,0x1E,0x61,0x80,0x30,0x4F,0xC0,0x20,0xCF,0xE0,0x07,0x8D,0x30,0x3F,0xC9,0x30,0x33,0x79,0x30,0x33,0x79,0x30,0x3F,0xFB,0x30,0x37,0xFF,0x20,0x32,0x67,0xE0,0x3F,0xE3,0x80,0x3F,0xE3,0xC0,0x32,0x63,0x60,0x32,0x67,0xF0,0x30,0x4F,0xB0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"摸",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0xC0,0x00,0xFF,0xF0,0x0C,0x79,0xC0,0x0C,0x1F,0x80,0x0C,0x7F,0xE0,0x3F,0xE0,0x60,0x0C,0xC0,0x30,0x0C,0xFC,0x30,0x04,0xC0,0x30,0x07,0xC0,0x30,0x1E,0x60,0x60,0x3C,0x3F,0xC0,0x04,0x1C,0x00,0x04,0x7F,0xE0,0x00,0xFF,0xE0,0x00,0x30,0xC0,0x00,0x60,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"输",0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x03,0x80,0x0C,0x0F,0xC0,0x08,0x1C,0x70,0x3F,0x70,0x00,0x1F,0x9F,0xC0,0x10,0x1F,0xC0,0x10,0x00,0x00,0x36,0x7C,0x30,0x17,0xE6,0x30,0x1F,0xE3,0xB0,0x06,0x7F,0xB0,0x02,0x77,0xF0,0x07,0xE3,0xF0,0x3F,0x7F,0xF0,0x13,0x36,0xF0,0x03,0x26,0x30,0x03,0x26,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"入",0x00,0x00,0x00,0x00,0x00,0x00,0x06,0x00,0x00,0x03,0x80,0x00,0x01,0xC0,0x00,0x00,0xE0,0x00,0x00,0x70,0x00,0x00,0x78,0x00,0x00,0xCC,0x00,0x00,0xC6,0x00,0x01,0x83,0x00,0x03,0x01,0x80,0x07,0x00,0xC0,0x06,0x00,0xE0,0x0C,0x00,0x70,0x18,0x00,0x30,0x18,0x00,0x00,0x30,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
#endif
0x00,
};
LCD_Config.h
#define X_MAX_PIXEL 128
#define Y_MAX_PIXEL 128
3、示例
初始化
Lcd_Init();
LCD_LED_SET;//通过IO控制背光亮 显示
Lcd_Clear(GRAY0);
Gui_DrawFont_GBK16(16,10,BLUE,GRAY0,"文字显示测试");4、文字取模

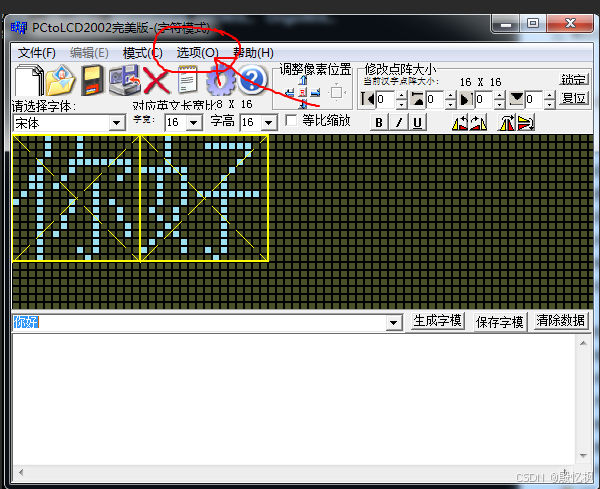

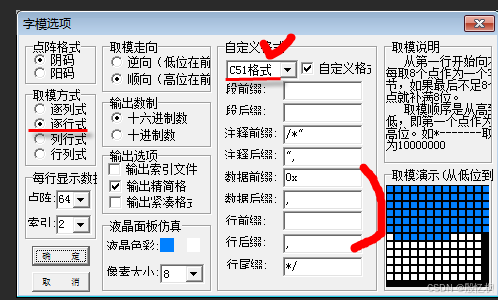

软件：PCtoLCD2002完美版
生成的数组拷贝到font.h里替换
根据上面的格式修改替换即可。
5、示例程序
void Font_Test(void)
{
Lcd_Clear(GRAY0);
Gui_DrawFont_GBK16(16,10,BLUE,GRAY0,"文字显示测试");
delay_ms(1000);
Lcd_Clear(GRAY0);
Gui_DrawFont_GBK16(16,30,YELLOW,GRAY0,"电子技术");
Gui_DrawFont_GBK16(16,50,BLUE,GRAY0,"专注液晶批发");
Gui_DrawFont_GBK16(16,70,RED,GRAY0, "全程技术支持");
Gui_DrawFont_GBK16(0,100,BLUE,GRAY0,"Tel:11111111111");
Gui_DrawFont_GBK16(0,130,RED,GRAY0, "QQ:111111111");
delay_ms(1800);
}程序主要是初始化和显示部分代码，Gui里基本封装了大部分用到的功能，直接调用使用。
如有侵权，或需要完整代码，请及时联系博主。
智能硬件社区聚焦AI智能硬件技术生态，汇聚嵌入式AI、物联网硬件开发者，打造交流分享平台，同步全国赛事资讯、开展 OPC 核心人才招募，助力技术落地与开发者成长。
更多推荐
4
0- 0
已为社区贡献50条内容
所有评论(0)
