本文将详细介绍如何在Flutter鸿蒙应用中开发传感器数据采集插件，实现加速度计、陀螺仪、磁力计、光线传感器等数据的实时获取。

Flutter 三方库 cached_network_image 的鸿蒙化适配与实战指南
欢迎加入开源鸿蒙跨平台社区：https://openharmonycrossplatform.csdn.net

前言

一、前言

在移动应用开发中，传感器数据采集是运动健康、AR/VR、游戏等应用的核心功能。HarmonyOS提供了完善的传感器框架，支持加速度计、陀螺仪、磁力计、光线传感器等多种传感器类型。本文将介绍如何通过Flutter插件机制调用这些原生传感器能力。

二、功能概述

本插件实现以下传感器数据采集功能：

传感器	说明	数据格式
加速度计	测量设备加速度	X/Y/Z三轴 (m/s²)
陀螺仪	测量角速度	X/Y/Z三轴 (rad/s)
磁力计	测量磁场强度	X/Y/Z三轴 (μT)
光线传感器	测量环境光强度	单值 (lux)

三、技术架构

3.1 整体架构

┌─────────────────────┐
│   Flutter UI层      │
│  (传感器数据展示)    │
└──────────┬──────────┘
           │ EventChannel (数据流)
           ▼
┌─────────────────────┐
│  sensor_plugin.dart │
│  (Dart传感器接口)    │
└──────────┬──────────┘
           │ MethodChannel (控制命令)
           ▼
┌─────────────────────┐
│  SensorPlugin.ets   │
│  (鸿蒙原生实现)      │
└──────────┬──────────┘
           │
           ▼
┌─────────────────────┐
│  @ohos.sensor       │
│  (HarmonyOS传感器API)│
└─────────────────────┘

3.2 通信机制

• MethodChannel：用于控制命令（检查传感器可用性、获取可用传感器列表）
• EventChannel：用于持续接收传感器数据流

四、Flutter端实现

4.1 数据模型定义

// lib/sensor_plugin.dart

enum SensorType {
  accelerometer,
  gyroscope,
  magnetometer,
  light,
}

class SensorData {
  final double x;
  final double y;
  final double z;
  final double value;
  final int timestamp;

  SensorData({
    this.x = 0,
    this.y = 0,
    this.z = 0,
    this.value = 0,
    required this.timestamp,
  });

  factory SensorData.fromMap(Map<dynamic, dynamic> map) {
    return SensorData(
      x: (map['x'] as num?)?.toDouble() ?? 0,
      y: (map['y'] as num?)?.toDouble() ?? 0,
      z: (map['z'] as num?)?.toDouble() ?? 0,
      value: (map['value'] as num?)?.toDouble() ?? 0,
      timestamp: map['timestamp'] as int? ?? 0,
    );
  }
}

4.2 插件类实现

class SensorPlugin {
  static const MethodChannel _methodChannel = MethodChannel('sensor_plugin');
  static const EventChannel _accelerometerChannel =
      EventChannel('sensor_plugin/accelerometer');
  static const EventChannel _gyroscopeChannel =
      EventChannel('sensor_plugin/gyroscope');
  static const EventChannel _magnetometerChannel =
      EventChannel('sensor_plugin/magnetometer');
  static const EventChannel _lightChannel =
      EventChannel('sensor_plugin/light');

  // 检查传感器是否可用
  static Future<bool> isSensorAvailable(SensorType type) async {
    try {
      final result = await _methodChannel.invokeMethod('isSensorAvailable', {
        'type': type.index,
      });
      return result as bool;
    } on PlatformException catch (e) {
      print('Failed to check sensor availability: ${e.message}');
      return false;
    }
  }

  // 获取可用传感器列表
  static Future<List<SensorType>> getAvailableSensors() async {
    try {
      final List<dynamic> result =
          await _methodChannel.invokeMethod('getAvailableSensors');
      return result.map((index) => SensorType.values[index as int]).toList();
    } on PlatformException catch (e) {
      print('Failed to get available sensors: ${e.message}');
      return [];
    }
  }

  // 加速度计数据流
  static Stream<SensorData> accelerometerEvents() {
    return _accelerometerChannel
        .receiveBroadcastStream({'channel': 'sensor_plugin/accelerometer'})
        .map((event) => SensorData.fromMap(event as Map<dynamic, dynamic>));
  }

  // 陀螺仪数据流
  static Stream<SensorData> gyroscopeEvents() {
    return _gyroscopeChannel
        .receiveBroadcastStream({'channel': 'sensor_plugin/gyroscope'})
        .map((event) => SensorData.fromMap(event as Map<dynamic, dynamic>));
  }

  // 磁力计数据流
  static Stream<SensorData> magnetometerEvents() {
    return _magnetometerChannel
        .receiveBroadcastStream({'channel': 'sensor_plugin/magnetometer'})
        .map((event) => SensorData.fromMap(event as Map<dynamic, dynamic>));
  }

  // 光线传感器数据流
  static Stream<SensorData> lightEvents() {
    return _lightChannel
        .receiveBroadcastStream({'channel': 'sensor_plugin/light'})
        .map((event) => SensorData.fromMap(event as Map<dynamic, dynamic>));
  }
}

五、鸿蒙原生端实现

5.1 插件类结构

// ohos/entry/src/main/ets/plugins/SensorPlugin.ets

import { FlutterPlugin, MethodChannel, MethodCall, MethodResult,
         EventChannel, FlutterPluginBinding } from '@ohos/flutter_ohos';
import common from '@ohos.app.ability.common';
import sensor from '@ohos.sensor';

interface SensorEventData {
  x: number;
  y: number;
  z: number;
  value: number;
  timestamp: number;
}

interface EventSink {
  success(data: ESObject): void;
}

export class SensorPlugin implements FlutterPlugin {
  private channel: MethodChannel | null = null;
  private accelerometerEventChannel: EventChannel | null = null;
  private gyroscopeEventChannel: EventChannel | null = null;
  private magnetometerEventChannel: EventChannel | null = null;
  private lightEventChannel: EventChannel | null = null;
  private context: common.Context | null = null;

  private accelerometerSink: EventSink | null = null;
  private gyroscopeSink: EventSink | null = null;
  private magnetometerSink: EventSink | null = null;
  private lightSink: EventSink | null = null;

  constructor(context: common.Context) {
    this.context = context;
  }

  getUniqueClassName(): string {
    return 'SensorPlugin';
  }
}

5.2 初始化EventChannel

onAttachedToEngine(binding: FlutterPluginBinding): void {
  // 主通道用于方法调用
  this.channel = new MethodChannel(binding.getBinaryMessenger(), 'sensor_plugin');
  this.channel.setMethodCallHandler(this);

  // 事件通道用于传感器数据流
  this.accelerometerEventChannel = new EventChannel(
    binding.getBinaryMessenger(), 'sensor_plugin/accelerometer');
  this.accelerometerEventChannel.setStreamHandler(this);

  this.gyroscopeEventChannel = new EventChannel(
    binding.getBinaryMessenger(), 'sensor_plugin/gyroscope');
  this.gyroscopeEventChannel.setStreamHandler(this);

  this.magnetometerEventChannel = new EventChannel(
    binding.getBinaryMessenger(), 'sensor_plugin/magnetometer');
  this.magnetometerEventChannel.setStreamHandler(this);

  this.lightEventChannel = new EventChannel(
    binding.getBinaryMessenger(), 'sensor_plugin/light');
  this.lightEventChannel.setStreamHandler(this);
}

5.3 方法调用处理

async onMethodCall(call: MethodCall, result: MethodResult): Promise<void> {
  switch (call.method) {
    case 'isSensorAvailable':
      this.isSensorAvailable(call, result);
      break;
    case 'getAvailableSensors':
      this.getAvailableSensors(result);
      break;
    default:
      result.notImplemented();
      break;
  }
}

private isSensorAvailable(call: MethodCall, result: MethodResult): void {
  const type = call.argument('type') as number;
  const sensorId = this.getSensorId(type);

  if (sensorId < 0) {
    result.success(false);
    return;
  }

  try {
    const isAvailable = sensor.isSensorSupported(sensorId);
    result.success(isAvailable);
  } catch (e) {
    result.success(false);
  }
}

private getSensorId(type: number): number {
  switch (type) {
    case 0: return sensor.SensorType.ACCELEROMETER;
    case 1: return sensor.SensorType.GYROSCOPE;
    case 2: return sensor.SensorType.MAGNETIC_FIELD;
    case 3: return sensor.SensorType.AMBIENT_LIGHT;
    default: return -1;
  }
}

5.4 传感器订阅

private subscribeAccelerometer(): void {
  try {
    sensor.on(sensor.SensorType.ACCELEROMETER, (data: ESObject) => {
      if (this.accelerometerSink != null) {
        const eventData: SensorEventData = {
          x: data['x'] ?? 0,
          y: data['y'] ?? 0,
          z: data['z'] ?? 0,
          value: data['x'] ?? 0,
          timestamp: Date.now()
        };
        this.accelerometerSink!.success(eventData);
      }
    });
  } catch (e) {
    // 处理异常
  }
}

private subscribeLight(): void {
  try {
    sensor.on(sensor.SensorType.AMBIENT_LIGHT, (data: ESObject) => {
      if (this.lightSink != null) {
        const eventData: SensorEventData = {
          x: 0,
          y: 0,
          z: 0,
          value: data['intensity'] ?? 0,
          timestamp: Date.now()
        };
        this.lightSink!.success(eventData);
      }
    });
  } catch (e) {
    // 处理异常
  }
}

5.5 EventChannel回调

onListen(args: ESObject, sink: EventSink): void {
  const channel = args['channel'] as string;

  switch (channel) {
    case 'sensor_plugin/accelerometer':
      this.accelerometerSink = sink;
      this.subscribeAccelerometer();
      break;
    case 'sensor_plugin/gyroscope':
      this.gyroscopeSink = sink;
      this.subscribeGyroscope();
      break;
    case 'sensor_plugin/magnetometer':
      this.magnetometerSink = sink;
      this.subscribeMagnetometer();
      break;
    case 'sensor_plugin/light':
      this.lightSink = sink;
      this.subscribeLight();
      break;
  }
}

onCancel(args: ESObject): void {
  const channel = args['channel'] as string;

  switch (channel) {
    case 'sensor_plugin/accelerometer':
      this.accelerometerSink = null;
      sensor.off(sensor.SensorType.ACCELEROMETER);
      break;
    // ... 其他传感器
  }
}

六、插件注册

在 EntryAbility.ets 中直接注册插件：

import { FlutterAbility, FlutterEngine } from '@ohos/flutter_ohos';
import { SensorPlugin } from '../plugins/SensorPlugin';

export default class EntryAbility extends FlutterAbility {
  configureFlutterEngine(flutterEngine: FlutterEngine) {
    super.configureFlutterEngine(flutterEngine)
    const plugins = flutterEngine.getPlugins();
    if (plugins != null) {
      plugins.add(new SensorPlugin(this.context));
    }
  }
}

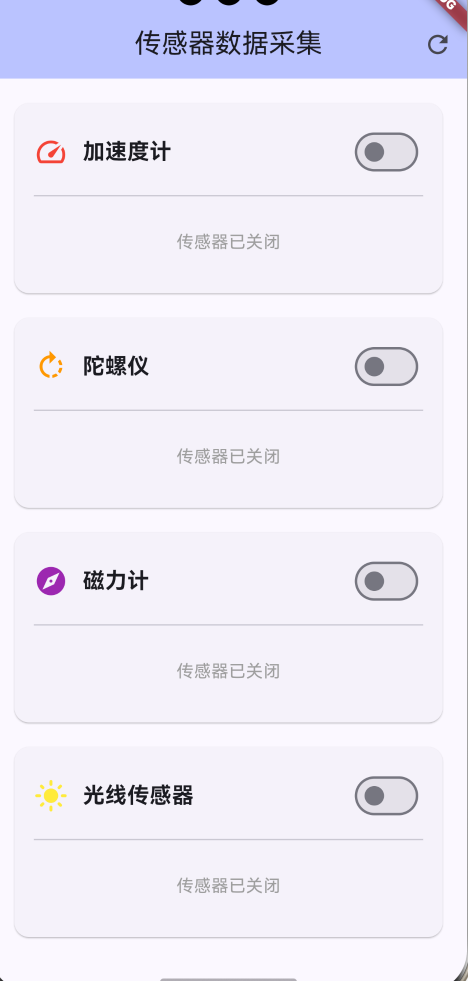

七、UI界面实现

// lib/main.dart

class SensorDemoPage extends StatefulWidget {
  const SensorDemoPage({super.key});

  @override
  State<SensorDemoPage> createState() => _SensorDemoPageState();
}

class _SensorDemoPageState extends State<SensorDemoPage> {
  SensorData? _accelerometerData;
  StreamSubscription? _accelerometerSubscription;
  bool _accelerometerEnabled = false;

  void _toggleAccelerometer(bool enabled) {
    if (enabled) {
      _accelerometerSubscription = SensorPlugin.accelerometerEvents().listen((data) {
        setState(() => _accelerometerData = data);
      });
    } else {
      _accelerometerSubscription?.cancel();
      setState(() => _accelerometerData = null);
    }
    setState(() => _accelerometerEnabled = enabled);
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('传感器数据采集')),
      body: ListView(
        children: [
          _buildSensorCard(
            title: '加速度计',
            data: _accelerometerData,
            enabled: _accelerometerEnabled,
            onToggle: _toggleAccelerometer,
            unit: 'm/s²',
          ),
          // ... 其他传感器卡片
        ],
      ),
    );
  }
}

八、权限配置

在 module.json5 中添加传感器权限：

{
  "module": {
    "requestPermissions": [
      {"name": "ohos.permission.ACCELEROMETER"},
      {"name": "ohos.permission.GYROSCOPE"},
      {"name": "ohos.permission.ACTIVITY_MOTION"}
    ]
  }
}

九、实际应用场景

9.1 运动健康应用

// 计步器应用示例
SensorPlugin.accelerometerEvents().listen((data) {
  // 分析加速度数据检测步伐
  detectStep(data);
});

9.2 屏幕自动调节

// 根据环境光调节屏幕亮度
SensorPlugin.lightEvents().listen((data) {
  if (data.value < 50) {
    // 暗光环境，降低亮度
    setScreenBrightness(0.3);
  } else if (data.value > 500) {
    // 强光环境，提高亮度
    setScreenBrightness(1.0);
  }
});

9.3 指南针应用

// 使用磁力计数据计算方向
SensorPlugin.magnetometerEvents().listen((data) {
  double azimuth = atan2(data.y, data.x) * 180 / pi;
  updateCompassDirection(azimuth);
});

十、注意事项

1. 传感器可用性：不同设备支持的传感器类型不同，使用前需检查可用性
2. 功耗优化：传感器持续运行会消耗电量，不使用时应及时取消订阅
3. 数据采样率：根据应用需求设置合适的采样间隔
4. 权限申请：部分传感器需要用户授权才能使用
5. 主线程处理：传感器回调在主线程执行，避免耗时操作

十一、总结

本文详细介绍了Flutter鸿蒙传感器数据采集插件的开发过程，包括：

• Flutter端EventChannel数据流设计
• HarmonyOS传感器API的使用方法
• 多传感器同时工作的实现方案
• 完整的UI演示界面

通过本插件，开发者可以轻松获取设备传感器数据，为运动健康、AR/VR、游戏等应用提供基础支持。

---
